Heating mat 560W single-side powered 160W/m2, COMFORT LDTS 160/3,4 SET

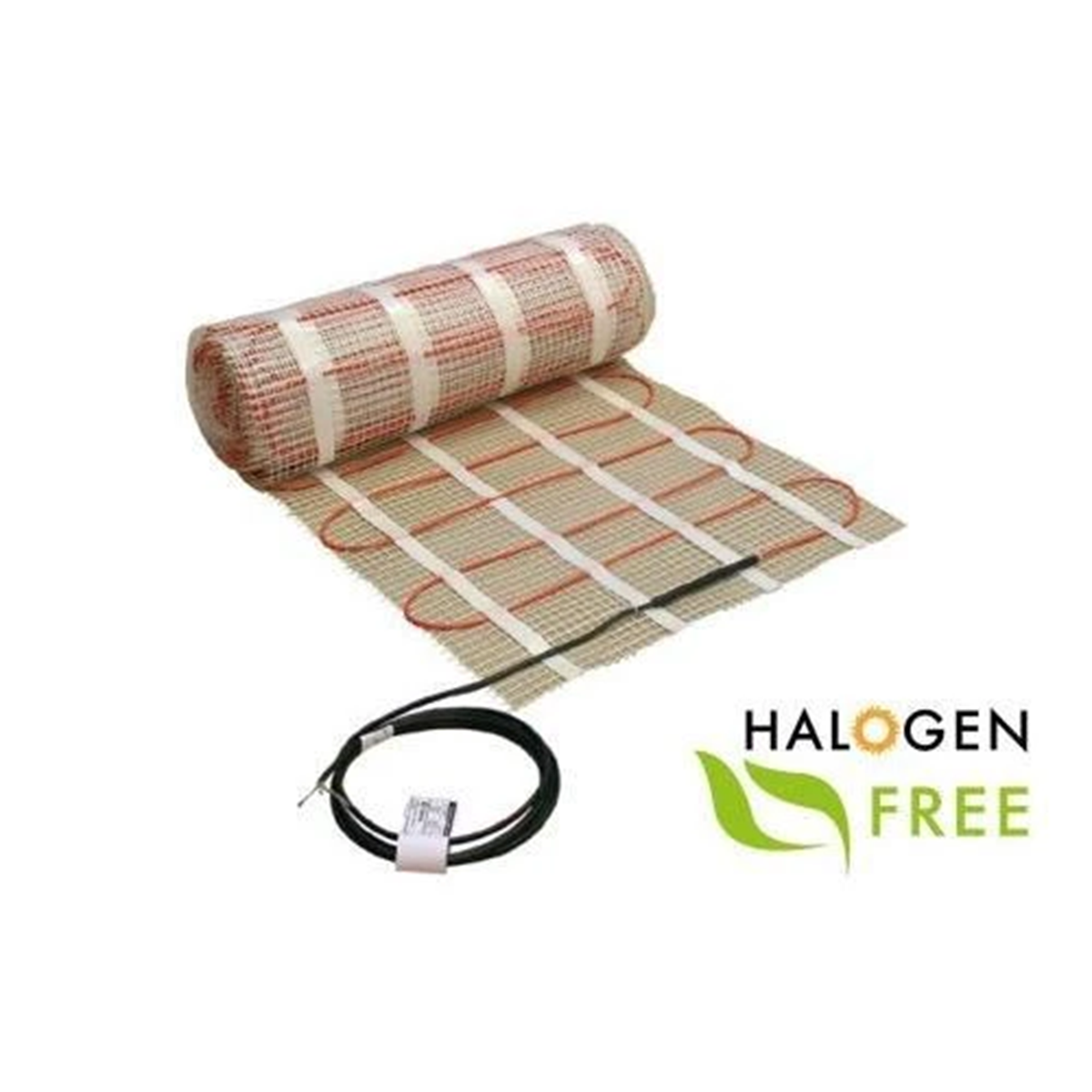

Single-sided heating mat CM-1. The base of the mat is a fiberglass mesh, to which a heating cable with the following structure is attached with tapes:

•
  two resistance heating wires


•
  teflon basic insulation (AFLON)


•
  protective screen made of 14 tinned copper wires


•
  outer sheath made of polypropylene/polyethylene LDPE 4

From the bottom, the mat's mesh is equipped with self-adhesive tapes that enable it to be attached to a well-primed surface.

Advantages:

•
  Self-adhesive


•
  Available power densities of 160 W/m2 (quick floor heating) or 100 W/m2 (basic heating) )


•
  Installation directly in the adhesive under the tiles (short floor heating time)


•
  One-sided power supply facilitates the installation of the mat and reduces magnitude of electromagnetic radiation


•
  Mat heating cable shielded along its entire length


•
  Teflon insulation of heating cores.


•
  A wide range of the offer - for areas from 0.5 m to 17.9 m
