COMFORT Heating Mat 1000 W 1-sided powered 160 W/m2 LDTS 160/6,1 SET

local index:
GGM038FENI
Catalog No:
LDTS 160/6,1 SET
EAN code:
5907707070419
Length [m]: 3
Maximum temperature resistance of the heating cable [°C]: +70°C
Power [W]: 1000
Price:
190,10 €
gross / pcs.
(including VAT 23%)
63,37 € gross/m.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

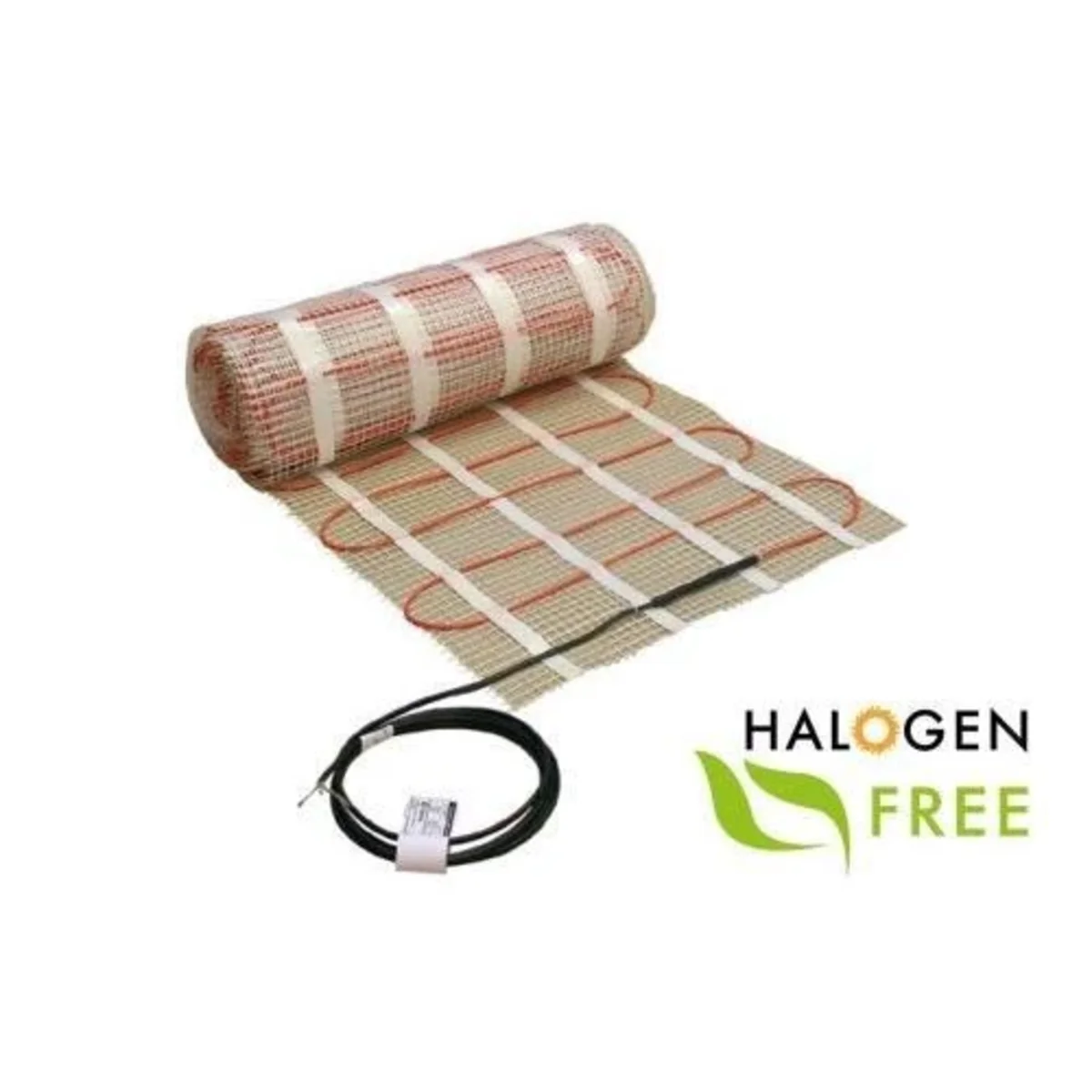

Single-sided heating mat CM-1. The base of the mat is a glass fiber mesh, to which a heating cable with the following structure is attached with tapes:
1. two heating wires, resistance
2. teflon basic insulation (AFLON)
3. protective screen made of 14 tinned copper wires
4. outer cover made of polypropylene/polyethylene LDPE 4
From the bottom, the mat's mesh is equipped with self-adhesive tapes enabling its attachment to a well-primed surface.
Advantages:
- Self-adhesive
-  Available power densities: 160 W/m2 (fast floor heating) or 100 W/m2 (basic heating) and reduces the amount of electromagnetic radiation
- The mat's heating cable is shielded along its entire length
- Teflon insulation of the heating cores.
- A wide range of the offer – for areas from 0.5 m to 17.9 m

Technical data

  • Length [m]
    3
  • Power [W]
    1000
  • Area [m2]
    6.1
  • Mat width
    0.5m
  • Dimensions [m]
    0.5 x 12.3
  • Maximum temperature resistance of the heating cable [°C]
    +70°C
  • Heating power
    160W/m2
  • Level of security
    IP67
  • External diameter of the heating cable
    from 3.0mm to 4.0mm
  • PKWIU
    27.51.29.0
