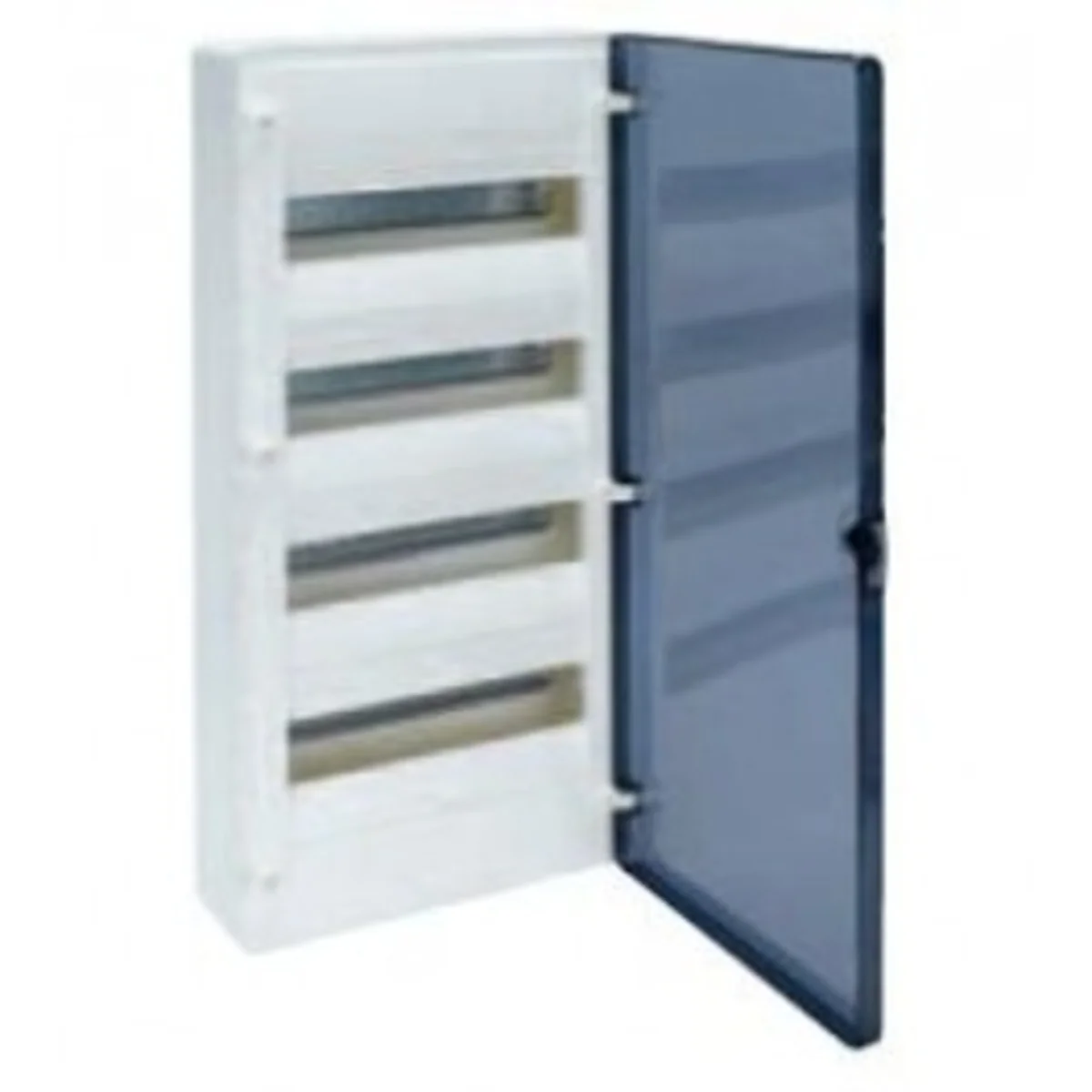

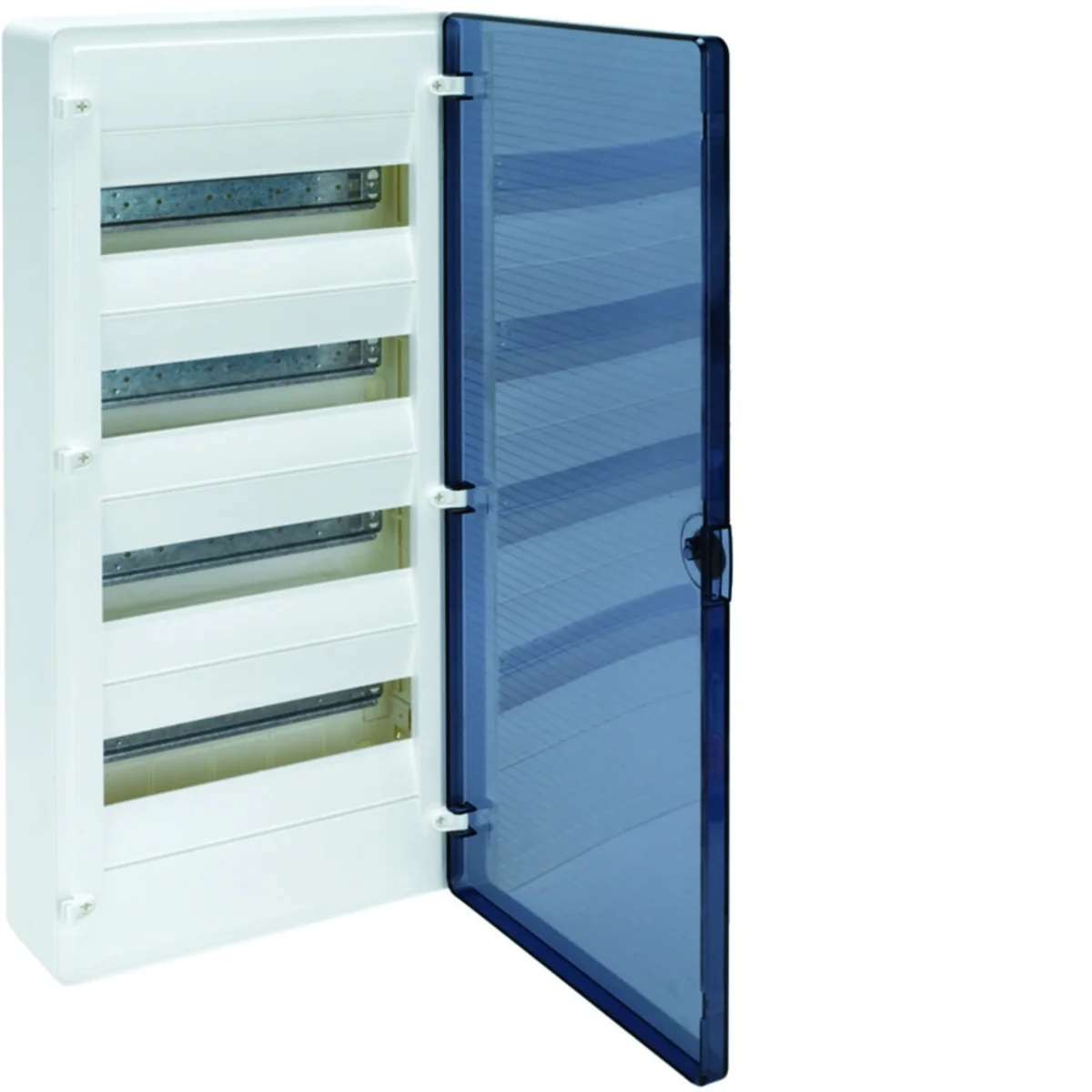

Switchgear n/t golf IP40 transparent door 48M VS412TD

Index local:
RIN002HAGE
Numéro de catalogue:
VS412TD
Code EAN:
3250616593107
Producteur: HAGER
Depth [mm]: 98.5
Number of doors: 1
Number of modules: 48
Prix:
563,60 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 4 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

1-4 row surface-mounted distribution boards, for 4 to 72 modules, for devices with a depth of up to 70 mm, supplied with solid or transparent doors. The box is made of plastic. Simple replacement of the left-right door, without the need to dismantle the masking frame. Optionally, a lock with a key can be installed. The door opens to the angle of 180°.

Données techniques

  • Depth [mm]
    98.5
  • Number of modules
    48
  • Level of security
    IP40
  • Height [mm]
    646.5
  • PKWIU
    27.12.40.0
  • Number of doors
    1
  • Number of rows
    4
  • Width [mm]
    281.5
  • Number of modules
    48

Autres données techniques

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    12
  • Cover model
    Closed
  • Transparent cover/door
    Yes
  • With lock
    No
  • Housing material
    Plastic
  • Earthing terminal block
    Yes
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • Height
    647 mm
  • Depth
    99 mm
  • Number of rows
    4
  • Type of covering
    Door
  • Type of door
    Single
  • Signal passing door
    Yes
  • Type of closure
    Other
  • Inner depth
    99 mm
  • Neutral terminal block
    Yes
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Width
    282 mm

Détails du fabricant

  • Producteur
    Hager Industrial de Envolventes S.A.
  • Adresse
    08430 La Roca del Valles Alfred Nobel 18 Hiszpania

Emballage en vrac

Une sorte de paquet Karton Paleta
Quantité 1 pcs. 40 pcs.
poids (kg) 2,730 134,200
Largeur (m) 0,650 0,800
Longueur (m) 0,110 1,130
Profondeur (m) 0,290 1,200
