UNIVERS Wall-mounted enclosure IP44/II 1550x300x205 FP01SN2

Name: UNIVERS Wall-mounted enclosure IP44/II 1550x300x205
Brand: HAGER
SKU: RIN019HAGE
Price: 2675.99 PLN
Availability: BackOrder

local index:

RIN019HAGE

Catalog number:

FP01SN2

EAN code:

3250612670123

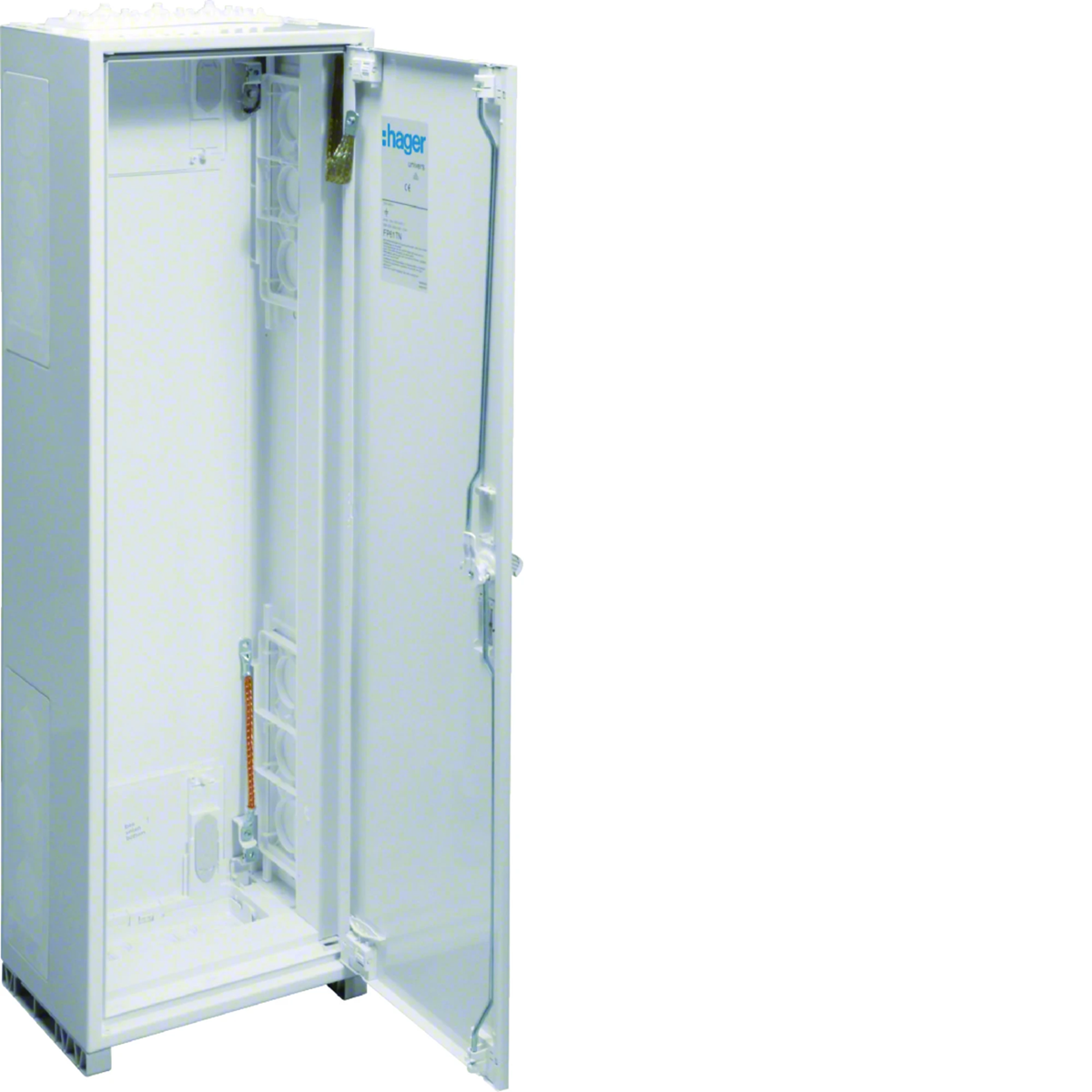

UNIVERS Wall-mounted enclosure IP44/II 1550x300x205

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 205

Thickness [mm]: 1

Number of doors: 1

See full description

Price:

2 675,99 zł

gross / pcs.

(including VAT 23%)

up to 10 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Wall-mounted housing from univers series:

flush, surface or semi-recessed mounting.

< p> Characteristics of the series:

The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, guaranteeing at the same time maximum safety.

Technical data

Depth [mm]

205
Number of doors

1
Protection class

II
Material

steel
Family

UNIVERS
Width [mm]

250
Surface finish

Powder coated
Number of rows for cameras

10
Lock type

T-Handle

Thickness [mm]

1
Number of locks

1
Color

White
Housing material

Steel plate
Level of security

IP44
Height [mm]

1550
Number of sections

1
Number of cable entries

2
PKWIU

27.12.40.0

Other technical data

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

250 A
Width

300 mm
Built-in depth

205 mm
Material plate thickness cabinet

1 mm
Colour

White
Number of modules

120
Width in number of modular spacings

12
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

II
Circuit integrity

None

Type of covering

Cover
Type of door

Single
With lock

No
Height

1550 mm
Depth

205 mm
Inner depth

130 mm
Material plate thickness door/cover

1 mm
RAL-number

9010
Number of rows

10
Number of openings for flange plates

2
Number of conduit inlets

2
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP44
Impact strength

IK09
Cover with overpressure release

No

Manufacturer details

Manufacturer

Hager Electro GmbH & Co KG
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Paleta	Karton	Paleta
Quantity	1 pcs.	12 pcs.	1 pcs.	12 pcs.
Weight (kg)	18,500	247,000	18,500	247,000
Width (m)	0,320	0,800	0,320	0,800
Length (m)	1,600	1,740	1,600	1,740
Depth (m)	0,210	1,200	0,210	1,200
