VECTOR OUTDOOR Switchgear IP65, UV-resistant, embossing 1R/18M (1x18) VE118PN

Name: VECTOR OUTDOOR Switchgear IP65, UV-resistant, embossing 1R/18M (1x18)
Brand: HAGER
SKU: RIN028HAGE
Price: 467.01 PLN
Availability: BackOrder

local index:

RIN028HAGE

Catalog number:

VE118PN

EAN code:

3250616450387

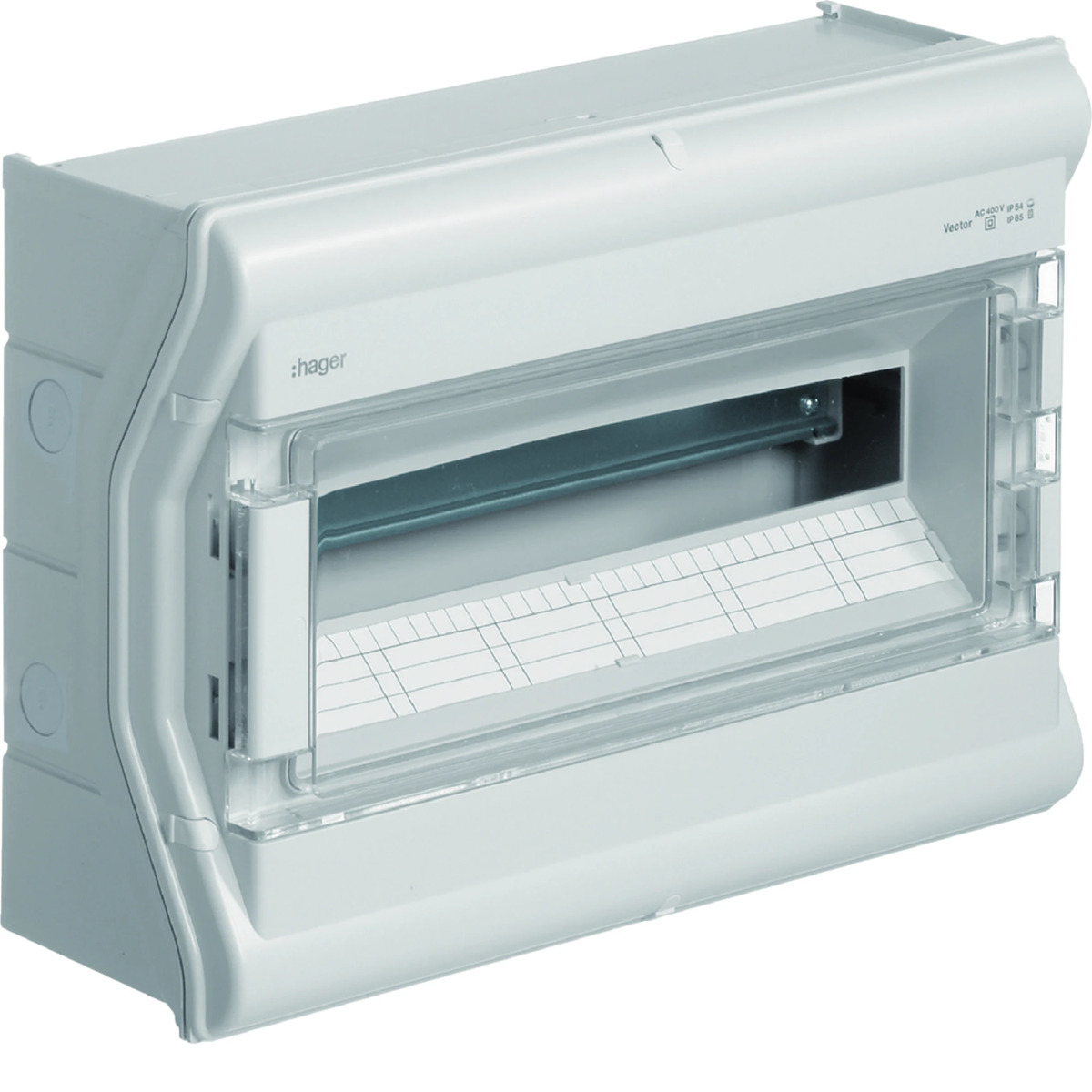

VECTOR OUTDOOR Switchgear IP65, UV-resistant, embossing 1R/18M (1x18)

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 151

Number of doors: 1

Protection class: II

See full description

Price:

467,01 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Surface-mounted switchgear 1-row, for metric cable glands, knockouts 1R/18M (1x18), vector outdoor series.

Series characteristics:

Vector outdoor switchboards are made of plastic resistant to long-term exposure to UV radiation, intended for outdoor installation, resistant to weather conditions. Switchgears of this type can be used, among others, in photovoltaic systems; using dedicated mounting plates, it is possible to mount selected switchgears on pole structures.

for apparatus up to 63A
version with TS35 mounting rail
possibility of mounting on poles and masts with dedicated holders (for VE106PN/SN and VE110PN/SN)
flammability test 850°C with the glow-wire method according to EN 60695-2
II insulation class, IP65 , IK08
light gray

Technical data

Depth [mm]

151
Protection class

II
Material

Plastic
Installation

Surface-mounted
Width [mm]

418
Number of modules

18
Glow wire test [°C]

850
Number of rows for cameras

1
PKWIU

27.12.40.0

Number of doors

1
Color

Gray
Housing material

Polycarbonate
Family

VECTOR OUTDOOR
Height [mm]

302
Accurate color

light gray
Number of sections

1
Lock type

Latch

Other technical data

Mounting method

Surface mounted
Width in number of modular spacings

18
Cover model

Closed
Transparent cover/door

Yes
With lock

No
Housing material

Plastic
Earthing terminal block

No
DIN-rail

Yes
Extension possible

Yes
RAL-number

7035
Height

302 mm
Depth

151 mm

Number of rows

1
Type of covering

Door
Type of door

Single
Signal passing door

Yes
Type of closure

Other
Inner depth

151 mm
Neutral terminal block

No
With mounting plate

No
Colour

Grey
Degree of protection (IP)

IP65
Width

418 mm

Manufacturer details

Manufacturer

Hager Industrial de Envolventes S.A.
Address

08430 La Roca del Valles Alfred Nobel 18 Hiszpania
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Paleta	Karton	Paleta
Quantity	1 pcs.	36 pcs.	1 pcs.	36 pcs.
Weight (kg)	2,470	113,920	2,470	113,920
Width (m)	0,320	0,800	0,320	0,800
Length (m)	0,160	1,100	0,160	1,100
Depth (m)	0,430	1,200	0,430	1,200
