FW 2 Complete surface-mounted switchgear 5x12 modules + PE/N terminals, IP30/I class FW512WT

Name: FW 2 Complete surface-mounted switchgear 5x12 modules + PE/N terminals, IP30/I class
Brand: HAGER
SKU: RIN013HAGE
Price: 372.71 PLN

local index:

RIN013HAGE

Catalog No:

FW512WT

EAN code:

3250614300998

FW 2 Complete surface-mounted switchgear 5x12 modules + PE/N terminals, IP30/I class

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 150

Number of doors: 1

Number of rows: 5

See full description

Price:

372,71 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Product advantages and technical characteristics

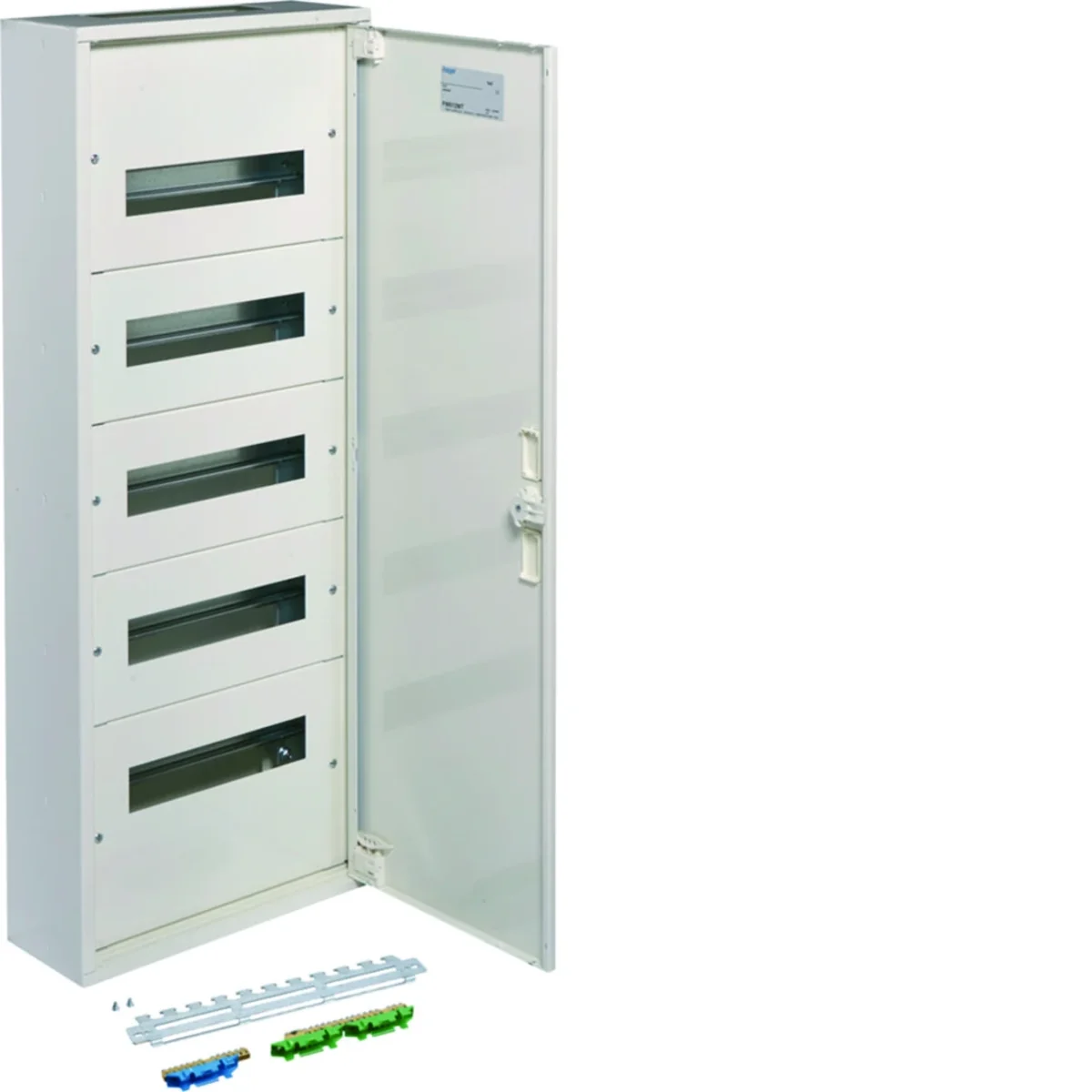

Complete surface-mounted switchgear with doors, mounting grid, metal covers and a set of PE/N screw terminals mounted on a special bracket, for devices up to 125 A,
I protection class, degree of protection IP30,
depth 150 mm, width 355-787 mm,
height: 641-1241 mm, from 3 to 7 rows,
perforated cable entries - top and bottom,
material: steel sheet, powder coated, white (RAL 9010),
door closure: lever handle,
compliance with the standard: PN-EN 61439-1.

Technical data

Depth [mm]

150
Number of rows

5
Level of security

IP30
Height [mm]

941
PKWIU

27.12.40.0

Number of doors

1
Installation

Surface-mounted
Width [mm]

334
Number of modules

72

Other technical data

Mounting method

Surface mounted
Width in number of modular spacings

12
Cover model

Closed
Housing material

Steel
Width

354 mm
Inner depth

150 mm
With mounting plate

No
Colour

White
Degree of protection (IP)

IP30
Type of closure

Other

Number of rows

5
Type of covering

Door
Transparent cover/door

No
Height

941 mm
Depth

150 mm
DIN-rail

Yes
Extension possible

Yes
RAL-number

9010
With lock

No

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	15,600	17,000	195,000
Width (m)	0,358	0,390	0,800
Length (m)	0,942	0,160	0,940
Depth (m)	0,150	0,950	1,200
