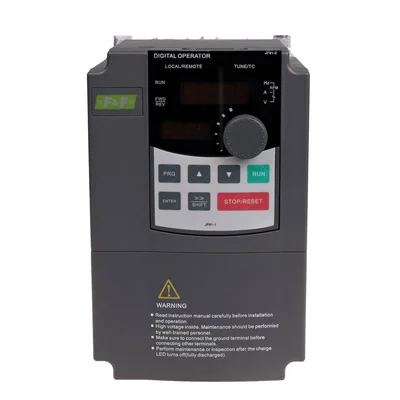

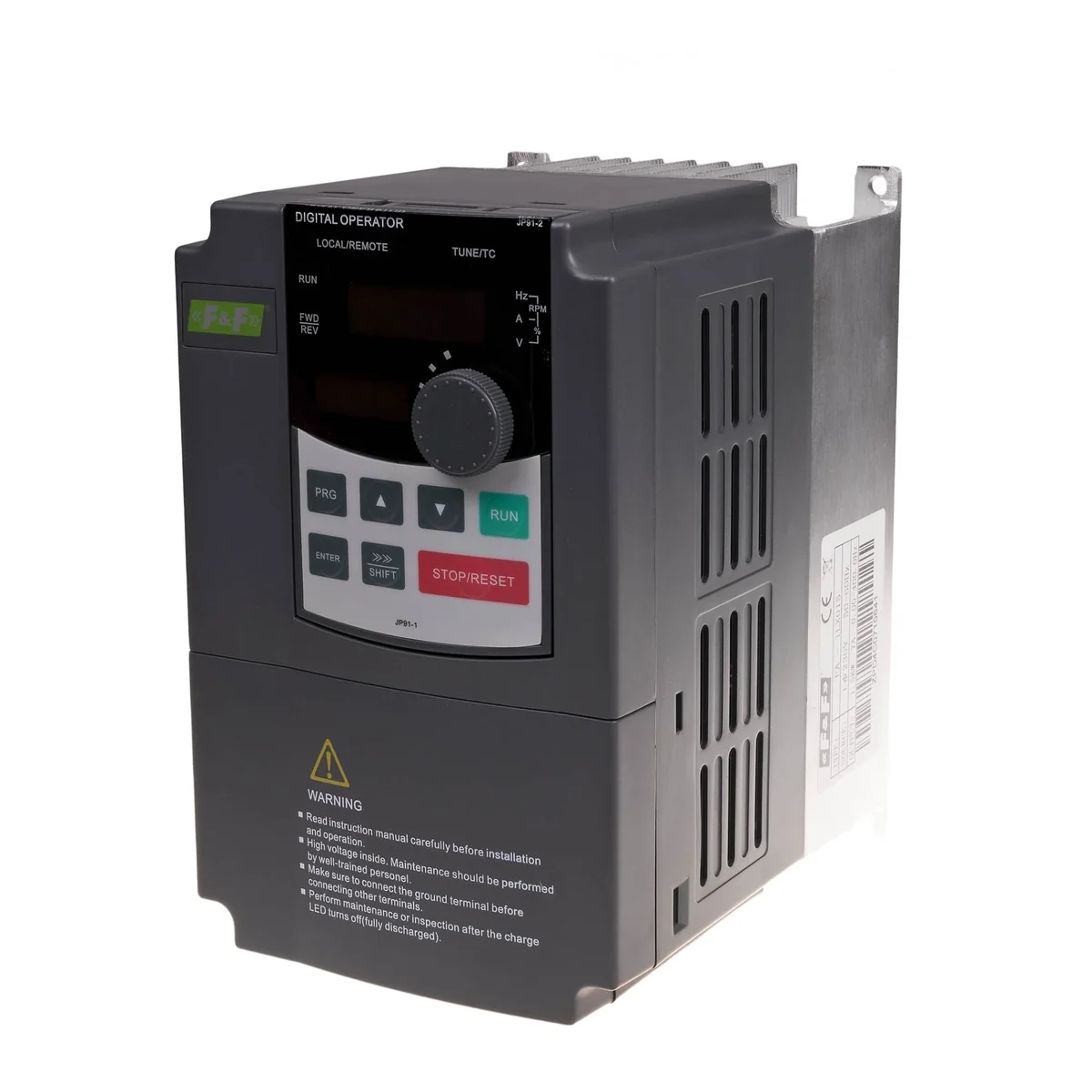

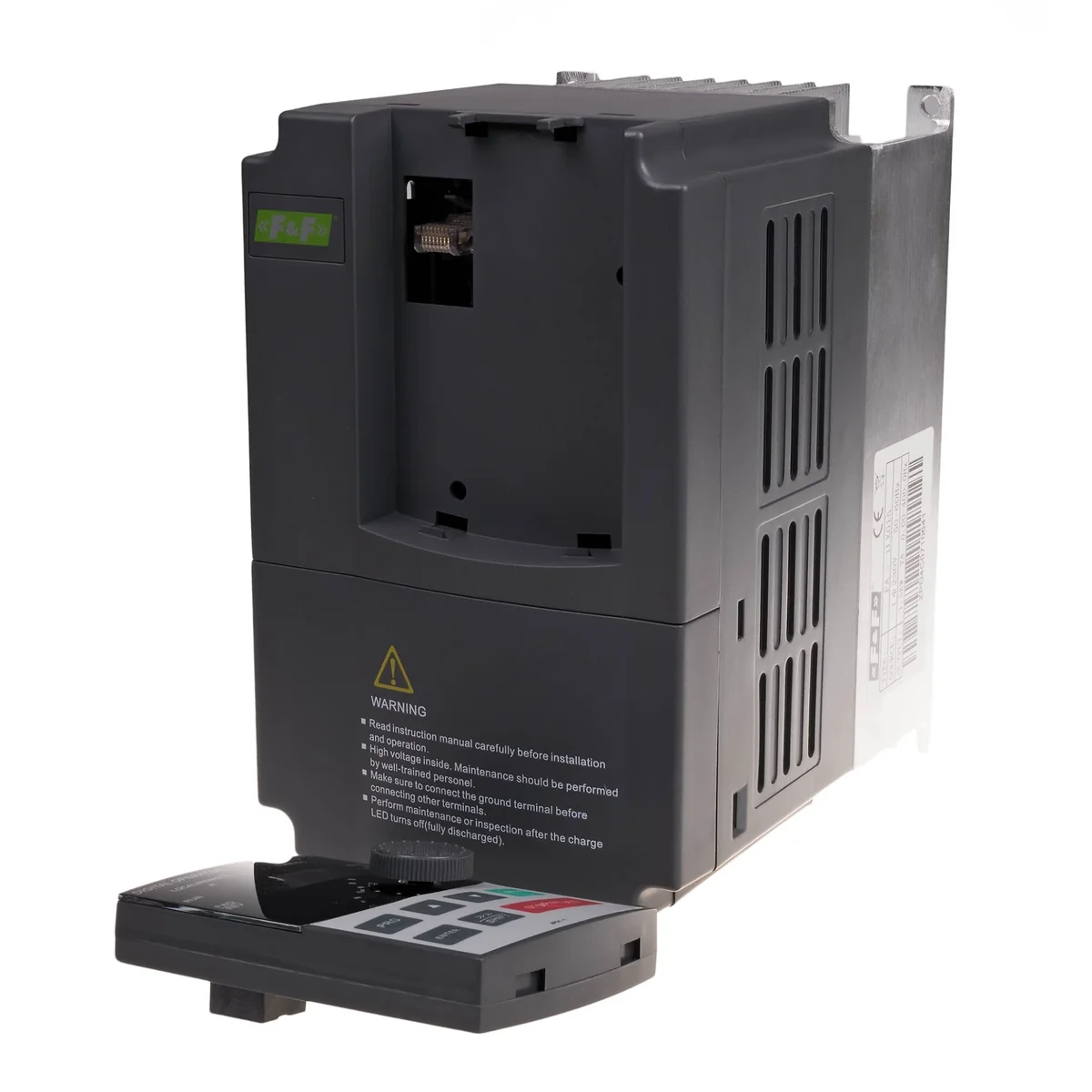

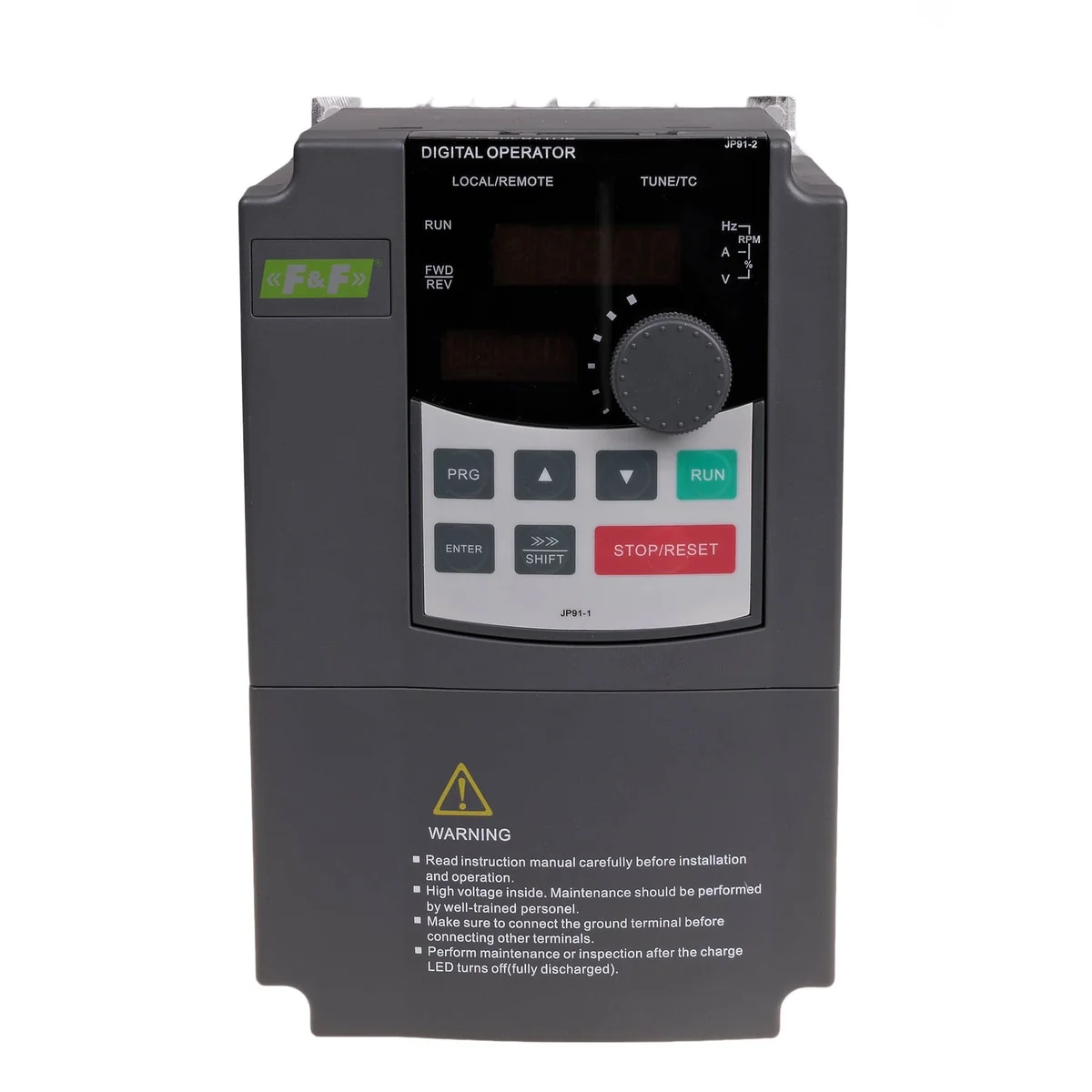

Three-phase inverter 3 3A 0 75kW FA-3HX007
local index:
AUF005FIFQ
Catalog No:
FA-3HX007
EAN code:
5908312596615
Price:
299,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The most important functions: the design of the inverter based on a powerful 32-bit DSP processor ensures fast and effective implementation of advanced asynchronous control algorithms, the ability to work in the speed control mode.
Technical data
-
Power [kW]0.75
-
Maximum current [kA]0.75
-
Output current [A]2.5
-
Package width [mm]160
-
Output current [A]2.5
-
Rated voltage [V]400
-
Input Current [A]3
-
Package height [mm]200
-
Package weight [kg]2
-
PKWIU27.11.50.0
Other technical data
-
Mains voltage400 ... 400 V
-
Number of phases input3
-
Max. output frequency800 Hz
-
Max. output at linear load at rated output voltage0.75 kW
-
Relative symmetric net voltage tolerance15 %
-
Application in industrial area permittedYes
-
Supporting protocol for TCP/IPNo
-
Supporting protocol for CANNo
-
Supporting protocol for ASINo
-
Supporting protocol for ModbusYes
-
Supporting protocol for DeviceNetNo
-
Supporting protocol for LONNo
-
Supporting protocol for PROFINET CBANo
-
Supporting protocol for Foundation FieldbusNo
-
Supporting protocol for AS-Interface Safety at WorkNo
-
Supporting protocol for INTERBUS-SafetyNo
-
Supporting protocol for SafetyBUS pNo
-
Number of HW-interfaces industrial Ethernet0
-
Number of HW-interfaces RS-2320
-
Number of HW-interfaces RS-4851
-
Number of HW-interfaces USB0
-
Number of HW-interfaces other0
-
Integrated breaking resistanceNo
-
Type of converterU converter
-
Height185 mm
-
Depth168.5 mm
-
Mains frequency50/60 Hz
-
Number of phases output3
-
Max. output at quadratic load at rated output voltage0.75 kW
-
Relative symmetric net frequency tolerance5 %
-
With control elementYes
-
Application in domestic- and commercial area permittedYes
-
Supporting protocol for PROFIBUSNo
-
Supporting protocol for INTERBUSNo
-
Supporting protocol for KNXNo
-
Supporting protocol for Data-HighwayNo
-
Supporting protocol for SUCONETNo
-
Supporting protocol for PROFINET IONo
-
Supporting protocol for SERCOSNo
-
Supporting protocol for EtherNet/IPNo
-
Supporting protocol for DeviceNet SafetyNo
-
Supporting protocol for PROFIsafeNo
-
Supporting protocol for other bus systemsNo
-
Number of interfaces PROFINET0
-
Number of HW-interfaces RS-4220
-
Number of HW-interfaces serial TTY0
-
Number of HW-interfaces parallel0
-
With optical interfaceNo
-
4-quadrant operation possibleNo
-
Degree of protection (IP)IP20
-
Width120 mm
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 2,104 |
| Width (m) | 0,245 |
| Length (m) | 0,255 |
| Depth (m) | 0,210 |
