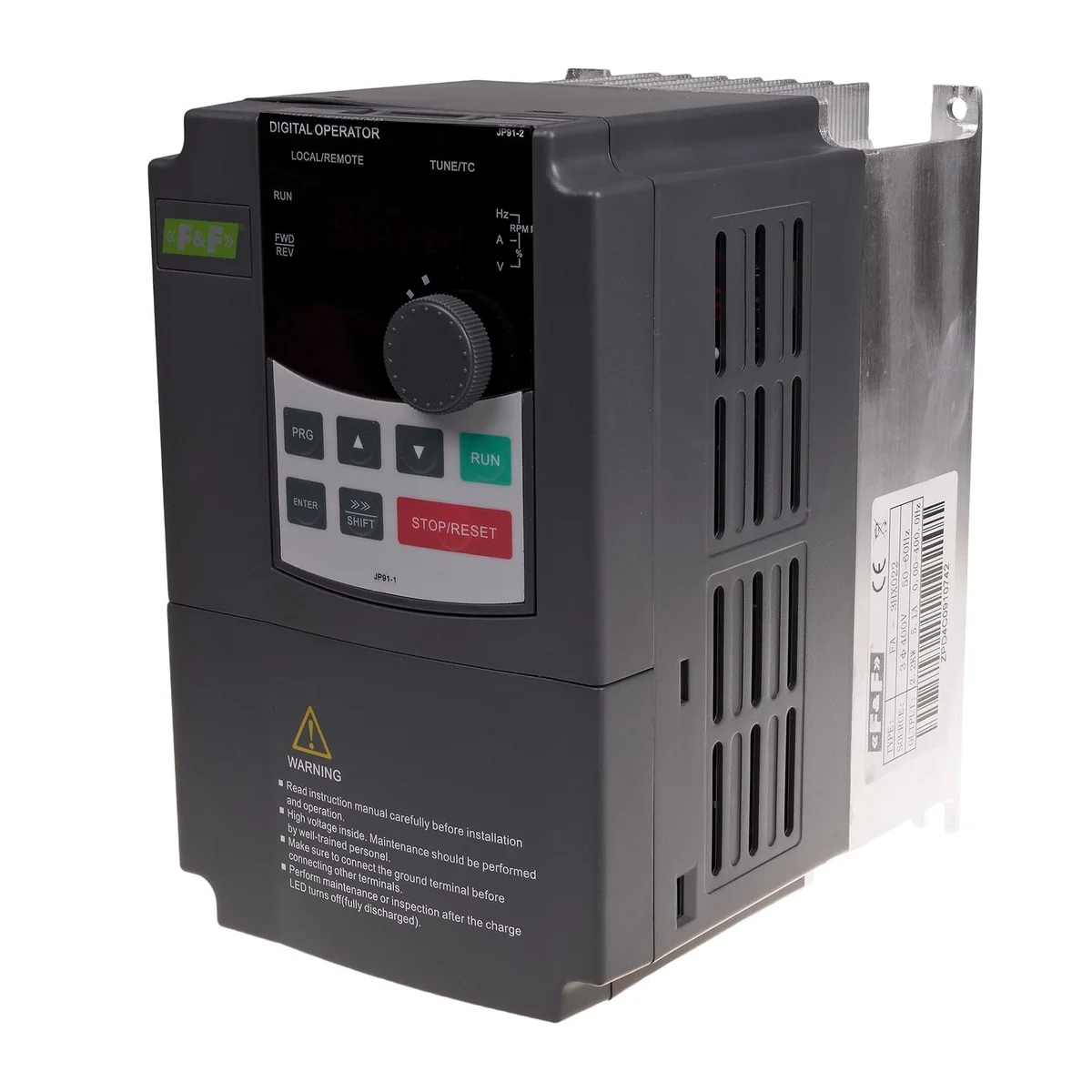

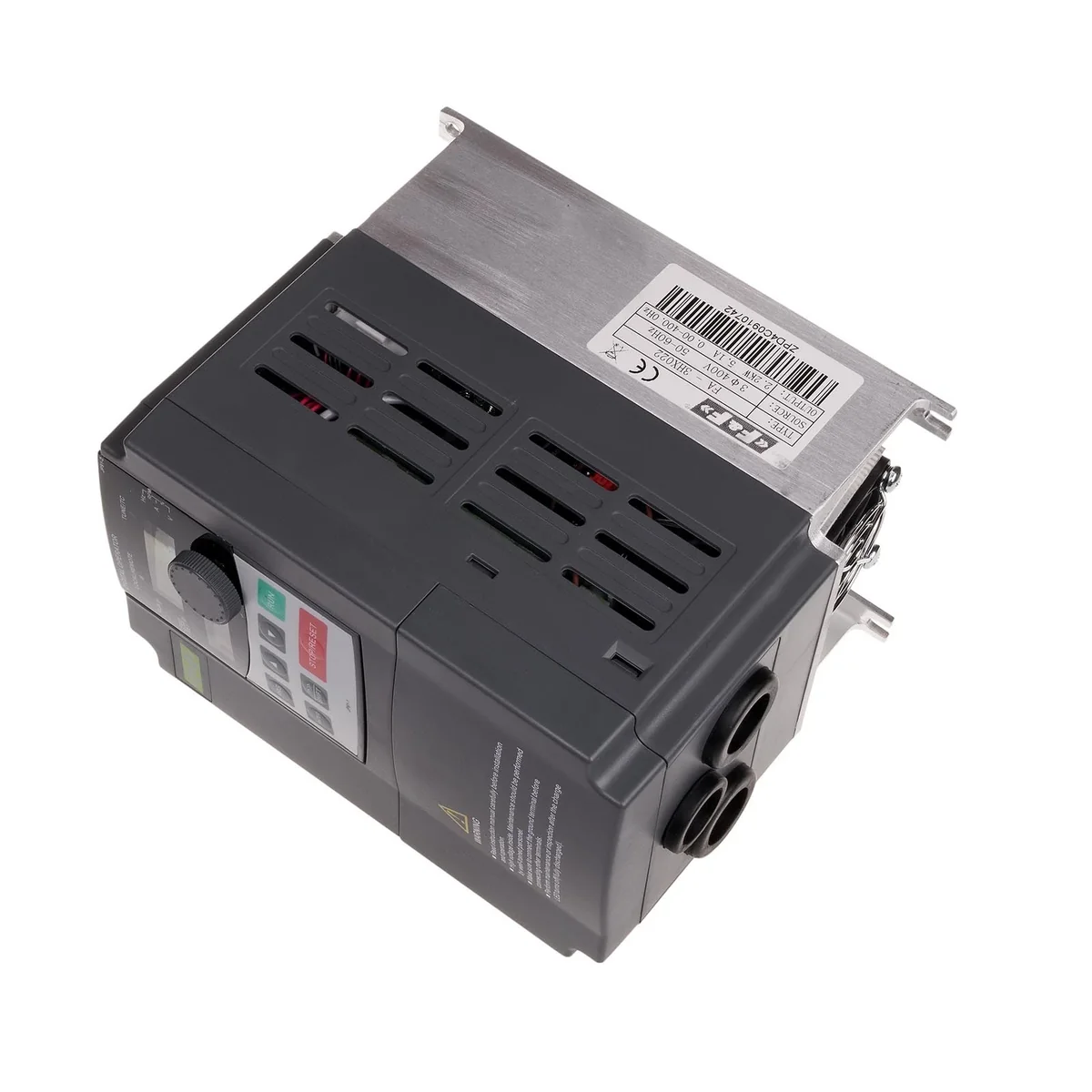

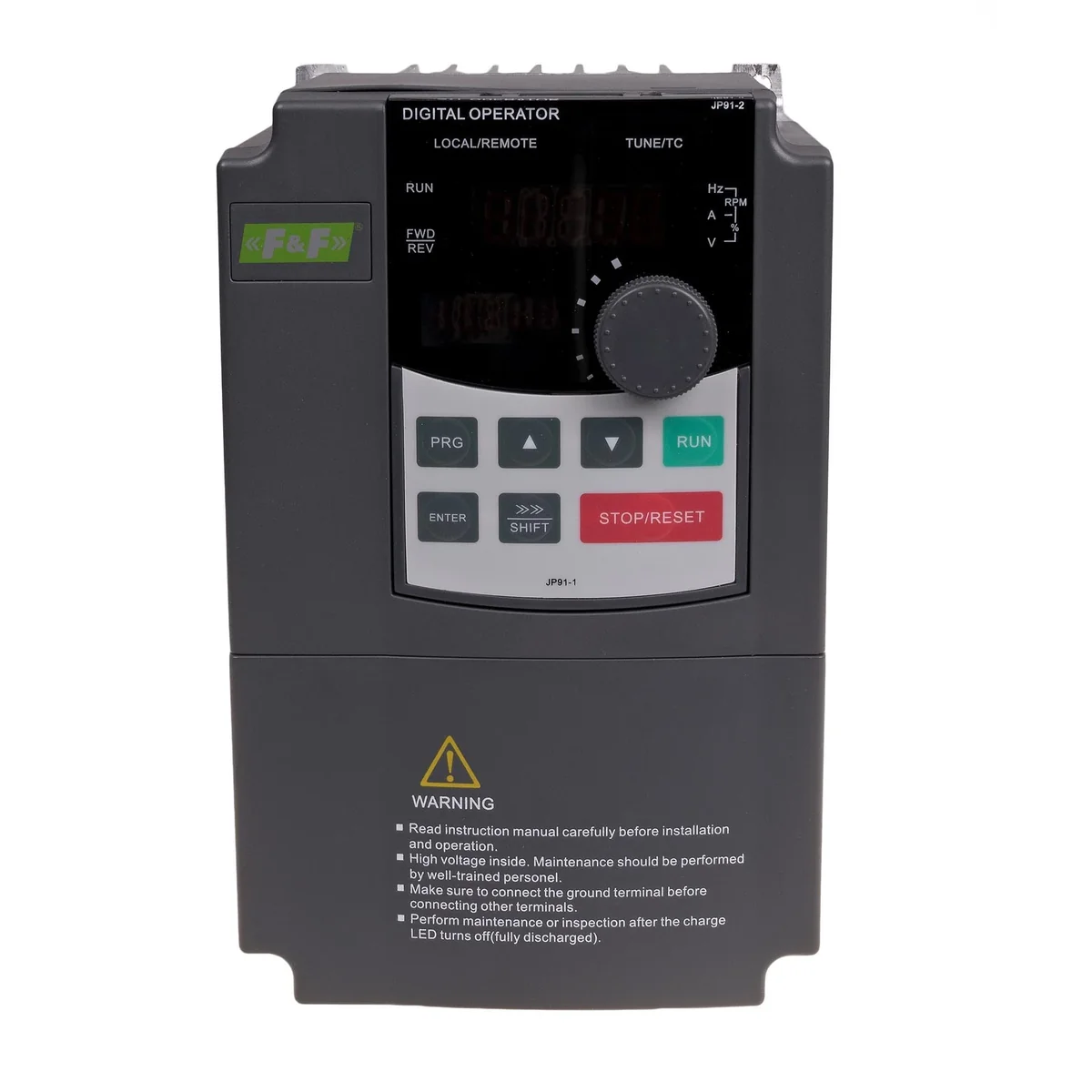

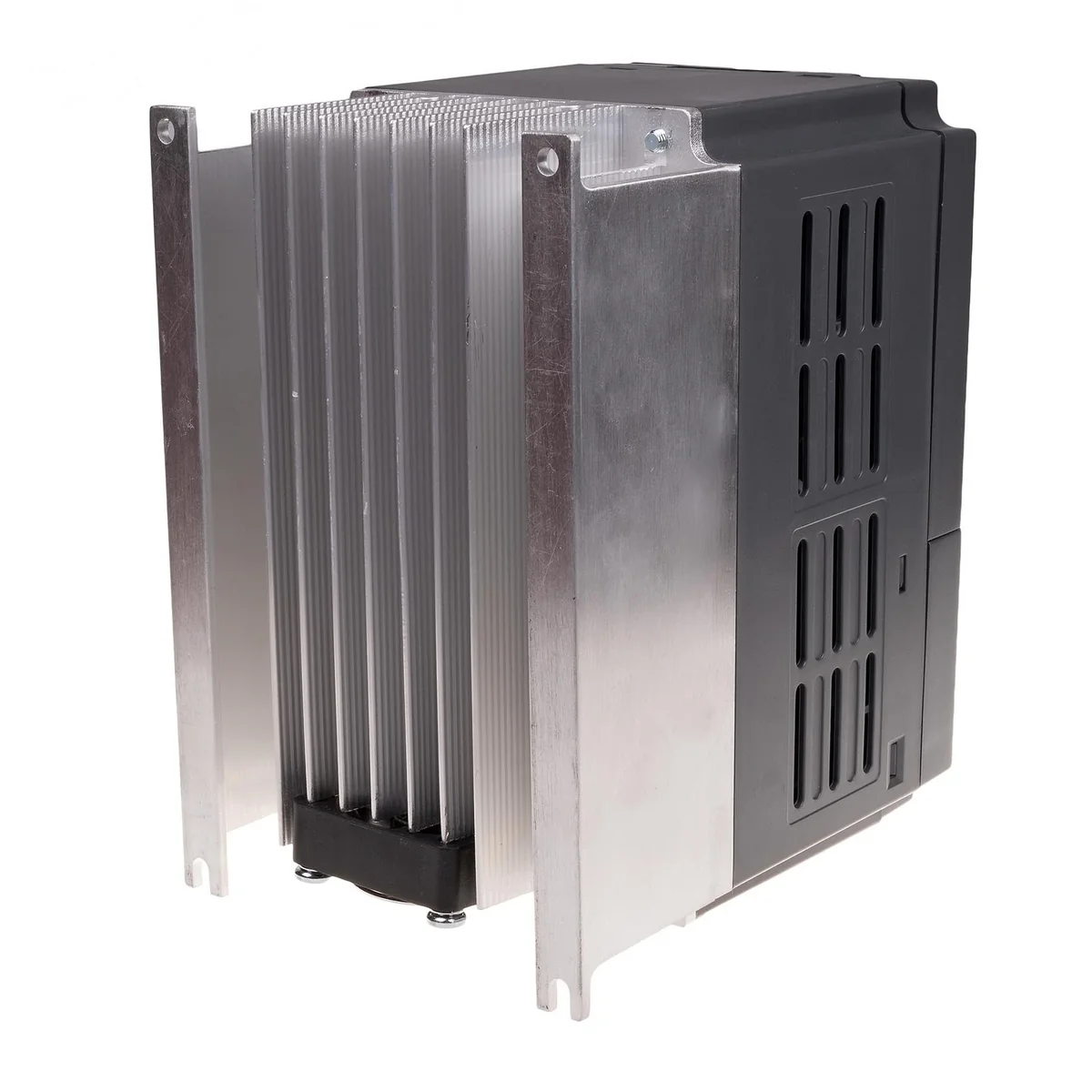

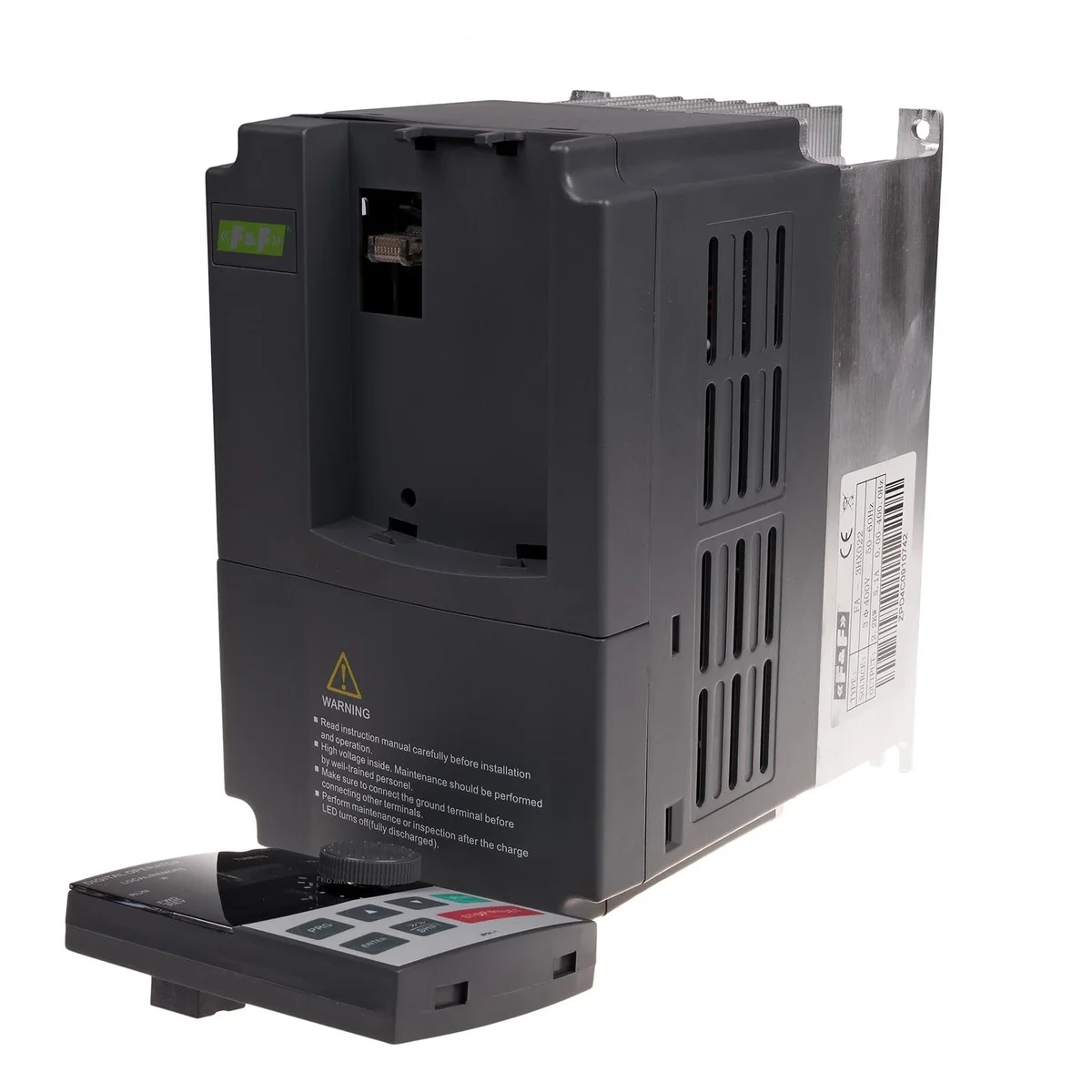

Three-phase inverter 7A 2 2kW FA-3HX022

local index:
AUF008FIFQ
Catalog No:
FA-3HX022
EAN code:
5908312596639
Manufacturer: F&F
Power [kW]: 2.2
Rated voltage [V]: 400
Maximum current [kA]: 2.2
Price:
379,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

The most important functions: the design of the inverter based on a powerful 32-bit DSP processor ensures fast and effective implementation of advanced asynchronous control algorithms, the ability to work in speed control mode.

Technical data

  • Power [kW]
    2.2
  • Maximum current [kA]
    2.2
  • Output current [A]
    5
  • Package width [mm]
    160
  • Output current [A]
    5
  • Rated voltage [V]
    400
  • Input Current [A]
    7
  • Package height [mm]
    200
  • Package weight [kg]
    2
  • PKWIU
    27.11.50.0

Other technical data

  • Mains voltage
    400 ... 400 V
  • Number of phases input
    3
  • Max. output frequency
    800 Hz
  • Max. output at quadratic load at rated output voltage
    2.2 kW
  • Relative symmetric net frequency tolerance
    5 %
  • With control element
    yes
  • Application in domestic- and commercial area permitted
    yes
  • Supporting protocol for PROFIBUS
    no
  • Supporting protocol for INTERBUS
    no
  • Supporting protocol for KNX
    no
  • Supporting protocol for Data-Highway
    no
  • Supporting protocol for SUCONET
    no
  • Supporting protocol for PROFINET IO
    no
  • Supporting protocol for SERCOS
    no
  • Supporting protocol for EtherNet/IP
    no
  • Supporting protocol for DeviceNet Safety
    no
  • Supporting protocol for PROFIsafe
    no
  • Supporting protocol for other bus systems
    no
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces parallel
    0
  • With optical interface
    no
  • 4-quadrant operation possible
    no
  • Degree of protection (IP)
    IP20
  • Width
    120 mm
  • Mains frequency
    50/60 Hz
  • Number of phases output
    3
  • Nominal output current I2N
    5.1 A
  • Max. output at linear load at rated output voltage
    2.2 kW
  • Relative symmetric net voltage tolerance
    15 %
  • Application in industrial area permitted
    yes
  • Supporting protocol for TCP/IP
    no
  • Supporting protocol for CAN
    no
  • Supporting protocol for ASI
    no
  • Supporting protocol for Modbus
    yes
  • Supporting protocol for DeviceNet
    no
  • Supporting protocol for LON
    no
  • Supporting protocol for PROFINET CBA
    no
  • Supporting protocol for Foundation Fieldbus
    no
  • Supporting protocol for AS-Interface Safety at Work
    no
  • Supporting protocol for INTERBUS-Safety
    no
  • Supporting protocol for SafetyBUS p
    no
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    1
  • Number of HW-interfaces USB
    0
  • Number of HW-interfaces other
    0
  • Integrated breaking resistance
    no
  • Type of converter
    U converter
  • Height
    165 mm
  • Depth
    185 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 2,096
Width (m) 0,245
Length (m) 0,255
Depth (m) 0,210
