DS7 soft starter, DS7-342SX100N0-N 134938
local index:
API069MOEL
Catalog No:
134938
EAN code:
4015081317530
Manufacturer:
EATON
Rated operational current [A]: 100
Price:
765,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

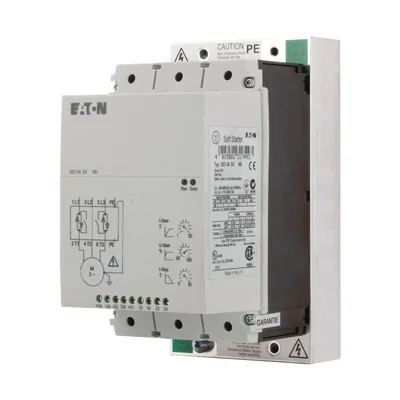

DS7 soft starter, DS7-342SX100N0-N
Technical data
-
Rated operational current [A]100
Other technical data
-
Rated operation current Ie at 40 °C Tu100 A
-
Rated power three-phase motor, inline, at 230 V30 kW
-
Rated power three-phase motor, inside delta, at 230 V0 kW
-
FunctionSingle direction
-
With displayNo
-
Rated surrounding temperature without derating40 °C
-
Rated control supply voltage AC 60 Hz110 ... 230 V
-
Voltage type for actuatingAC
-
Release classOther
-
Degree of protection (NEMA)1
-
Rated operating voltage Ue230 ... 480 V
-
Rated power three-phase motor, inline, at 400 V55 kW
-
Rated power three-phase motor, inside delta, at 400 V0 kW
-
Internal bypassYes
-
Torque controlNo
-
Rated control supply voltage AC 50 Hz110 ... 230 V
-
Rated control supply voltage DC0 ... 0 V
-
Integrated motor overload protectionNo
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 1,800 | 1,900 |
| Volume (m3) | 0,002 | 0,002 |
| Width (m) | 0,093 | 0,095 |
| Length (m) | 0,139 | 0,144 |
| Depth (m) | 0,175 | 0,180 |
