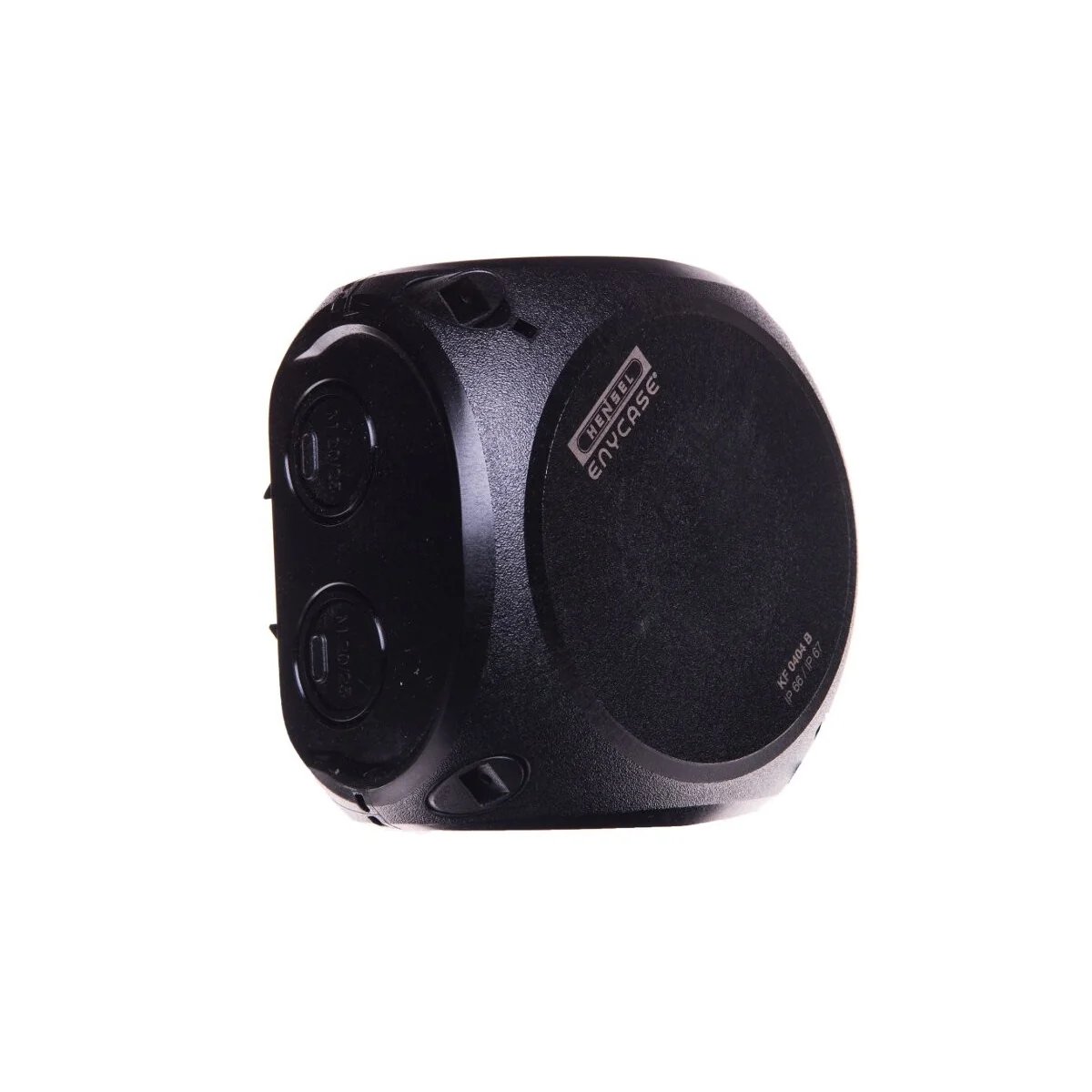

Surface-mounted junction box KF 0404 B 104x104x70mm with terminal strip IP66/67/69 black 62000050

local index:
MVN053HENS
Catalog No:
62000050
EAN code:
4012591121787
Manufacturer: HENSEL
Depth [mm]: 70
Color: Black
Shape: Square
Price:
24,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

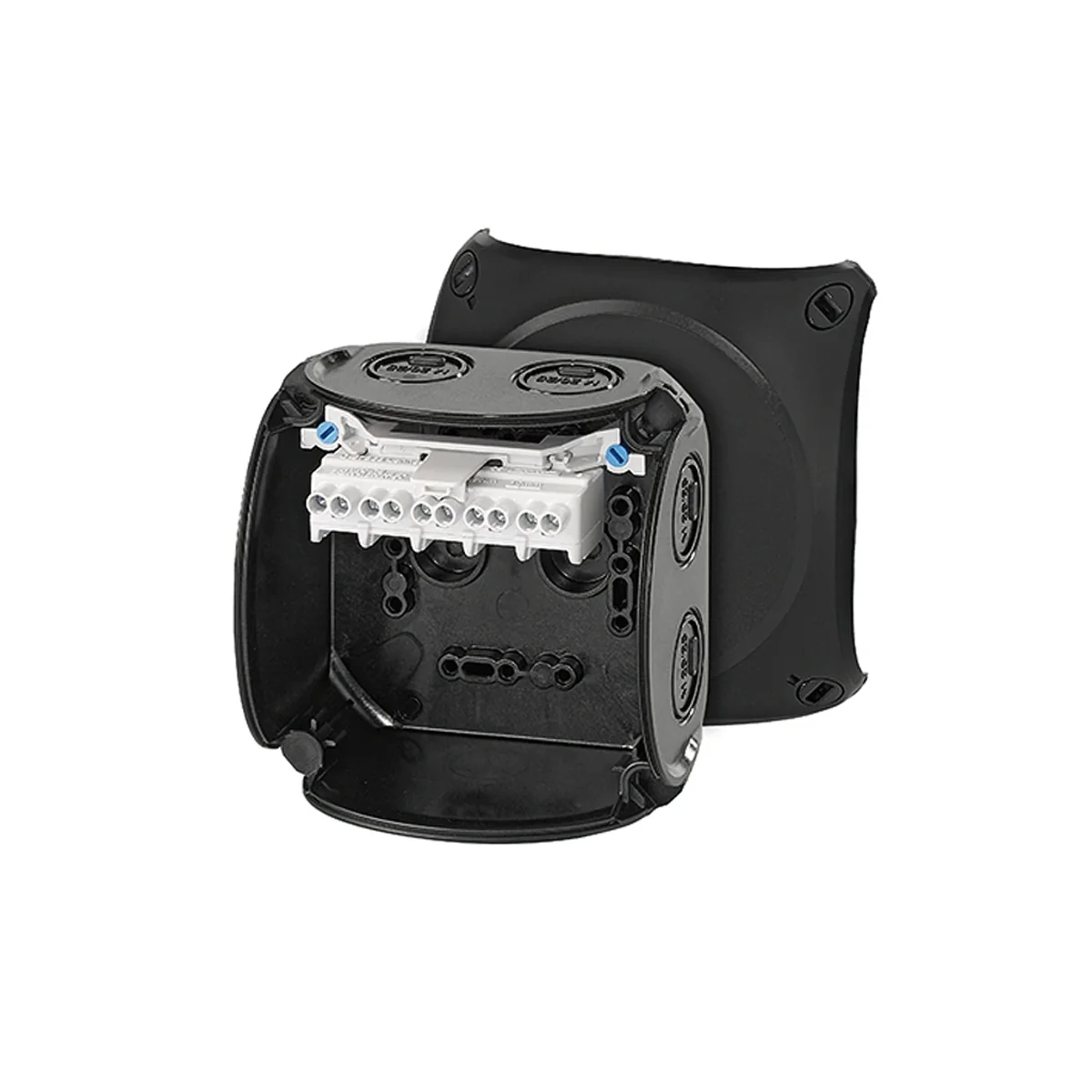

Junction box for outdoor unshielded installations

  • 1.5-4 mm², Cu 3~
  • Two terminals each pole
  • For each of the 5 poles: 8 x 1.5 mm² r/f, 6x2.5mm² r/f, 4x4mm² r/f, 2x6mm² r / f
  • With metric ribs in the side walls
  • Resistance to UV radiation, precipitation, temperature, mechanical impacts
  • Resistance to sea water
  • Wharf and ship compatible
  • Sealable cover without additional accessories
    • IP 66 / IP 67 / IP 69
    • IP 67, submersible up to 1 m max. 15 min.
    • IP 69, water pressure: max. 100 bar, water temperature: max. 80°C, distance => 0.15m

Technical data

  • Depth [mm]
    70
  • Shape
    Square
  • Tightening torque [Nm]
    0.7
  • Rated insulation voltage [V]
    690
  • Rated current [A]
    32
  • Level of security
    IP66 IP67 IP69
  • Type
    branching
  • Fire resistance
    Not applicable
  • With terminal strip
    Yes
  • Color
    Black
  • Material
    PC
  • Installation
    Surface-mounted
  • Cover
    Yes
  • Type
    Wall-mounted
  • Width [mm]
    104
  • Height [mm]
    104
  • For modular equipment
    Not applicable
  • Terminals [mm²]
    1.5-4
