A-SERIES A8 junction box without IP55 terminal block 2000016

Name: A-SERIES A8 junction box without IP55 terminal block
Brand: OBO BETTERMANN
SKU: MVN002OBOB
Price: 5.81 PLN
Availability: InStock

Index local:

MVN002OBOB

Numéro de catalogue:

2000016

Code EAN:

4012195151395

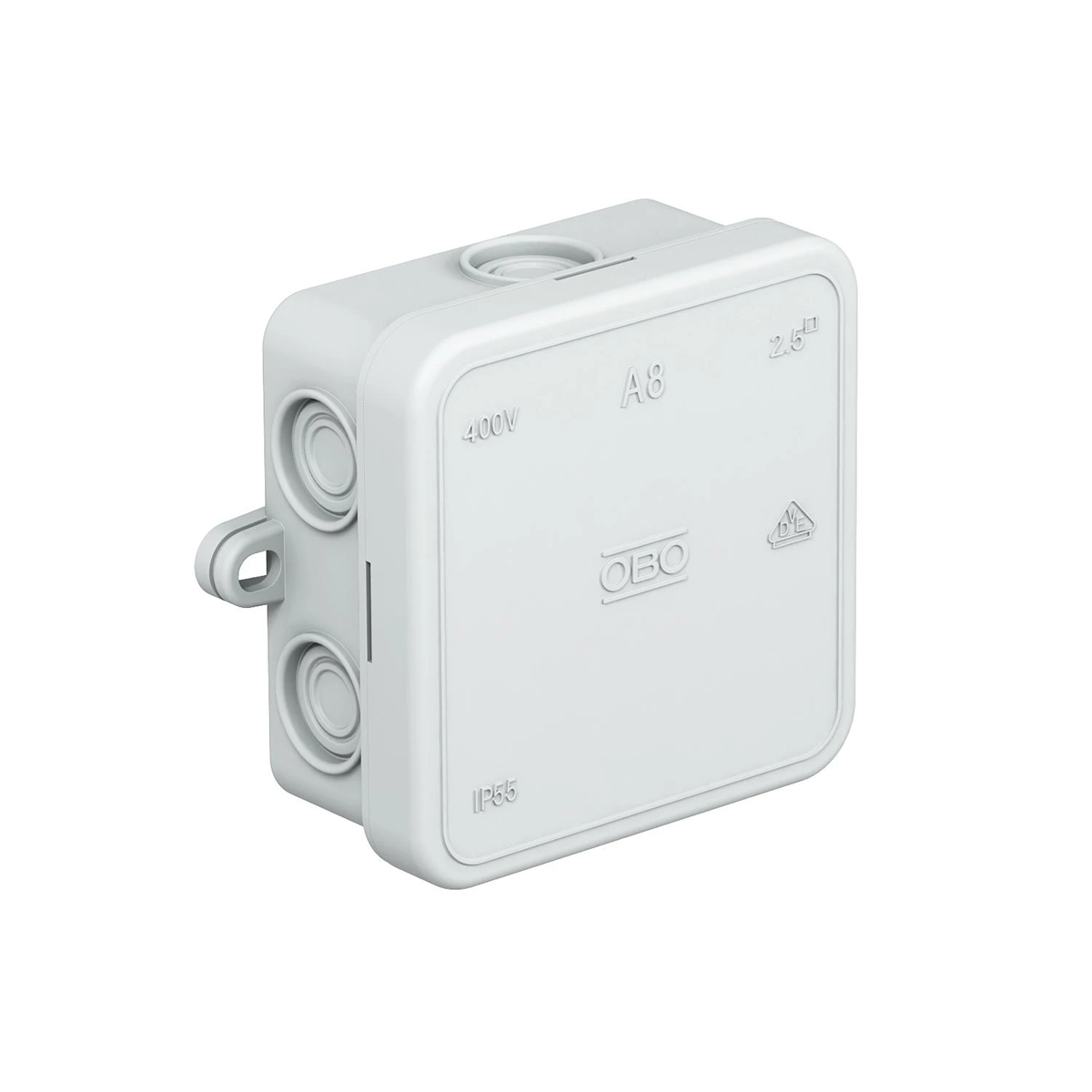

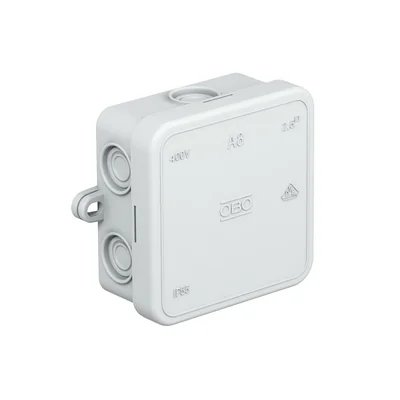

A-SERIES A8 junction box without IP55 terminal block

Cliquer sur la photo pour l'agrandir

Producteur: OBO BETTERMANN

Halogen free: Yes

Depth [mm]: 36.2

Color: Gray

Voir la description complète

Prix:

5,81 zł

gross / pcs.

(y compris la TVA 23%)

Accessible 921 pcs.

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

A-series junction box with membrane glands.

Classic and updated: the well-known A-series boxes have been given a facelift. Halogen-free, thermoplastic material is the hallmark of the A-series - as well as the clamping cover and flexible cable entries. IP55 degree of protection and stable mounting brackets are a classic solution.

7 entries for cables with a diameter of 5 - 14 mm.

Données techniques

Halogen free

Yes
Color

Gray
Material

PE
Rated voltage [V]

400
Type

Wall-mounted
Level of security

IP55
Type

branching
Operating temperature range [°C]

-5 to +45
Maximum conductor cross-section [mm²]

2.5
Fire resistance

Not applicable
For modular equipment

Not applicable
Number of stuffing boxes

7
Groove diameter [mm]

5-14

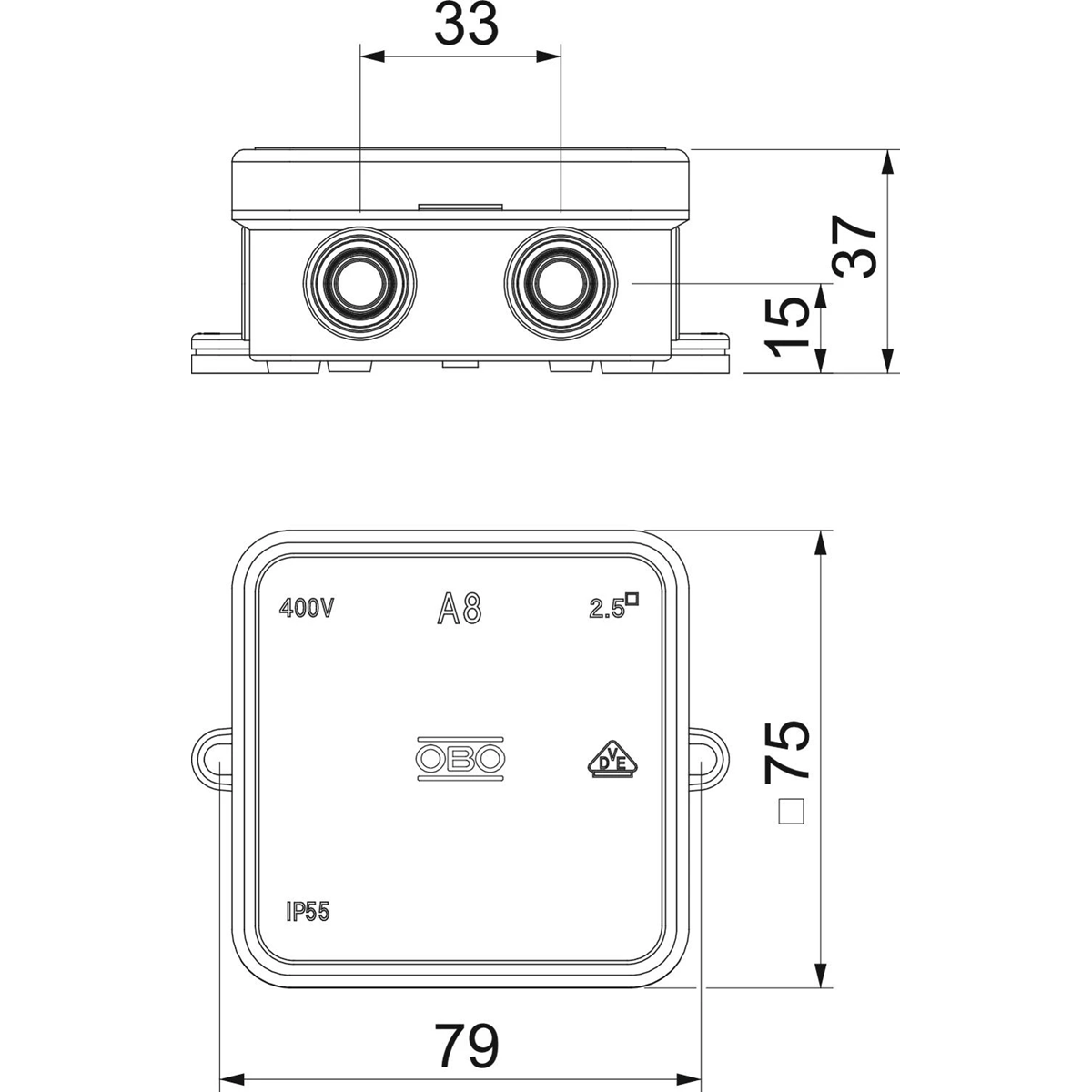

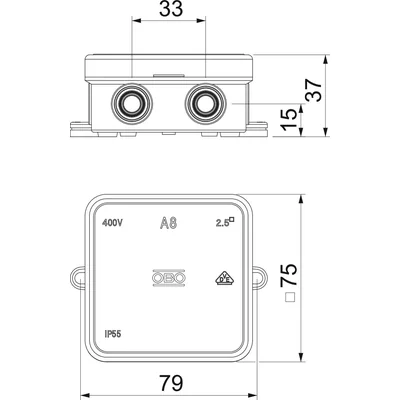

Depth [mm]

36.2
Shape

Square
Installation

Surface-mounted
Cover

Yes
Family

A-SERIES
Width [mm]

75
Height [mm]

75
Degree of mechanical protection

IK07
Accurate color

light gray
Fire resistance [°C]

650
With terminal strip

NO
Stuffing box type

Membrane
PKWIU

22.29.29.0

Autres données techniques

Model

Junction box
Max. conductor cross section

2.5 mm²
Mounting method

Wall-/ceiling mounting
Mounting under water

No
Inlet from the rear

No
Width

75 mm
Tackable

Yes
Material

Plastic
Colour

Grey
Degree of protection (IP)

IP55
Transparent cover

No
Cover attachment

Snapped on
Sealable

No
Circuit integrity

None
Weatherproof

No
Explosion-tested version

No
For Ex-Zone dust

None

Equipped with

None
Shape

Square
Mounting in the soil

No
Number of inlets

7
Length

75 mm
Depth

36.7 mm
Type of housing feed-through

Preembossing
Halogen free

Yes
RAL-number (similar)

7035
Cover model

Blind cover
Castable

No
With casting compound

No
Rated insulation voltage Ui

690 V
With screening

No
Operating temperature

-5 ... 45 °C
For Ex-zone gas

None

Détails du fabricant

Producteur

OBO Bettermann Holding GmbH & Co. KG
Adresse

58710 Menden Hüingser Ring 52 Niemcy
E-mail

oferty@obo.pl

Emballage en vrac

Une sorte de paquet	Torebka	Karton	Paleta
Quantité	10 pcs.	150 pcs.	2700 pcs.
poids (kg)	0,366	5,998	130,464
Volume (m3)	0,002	0,038	0,912
Largeur (m)	0,085	0,388	0,800
Longueur (m)	0,375	0,395	1,200
Profondeur (m)	0,075	0,249	0,950
