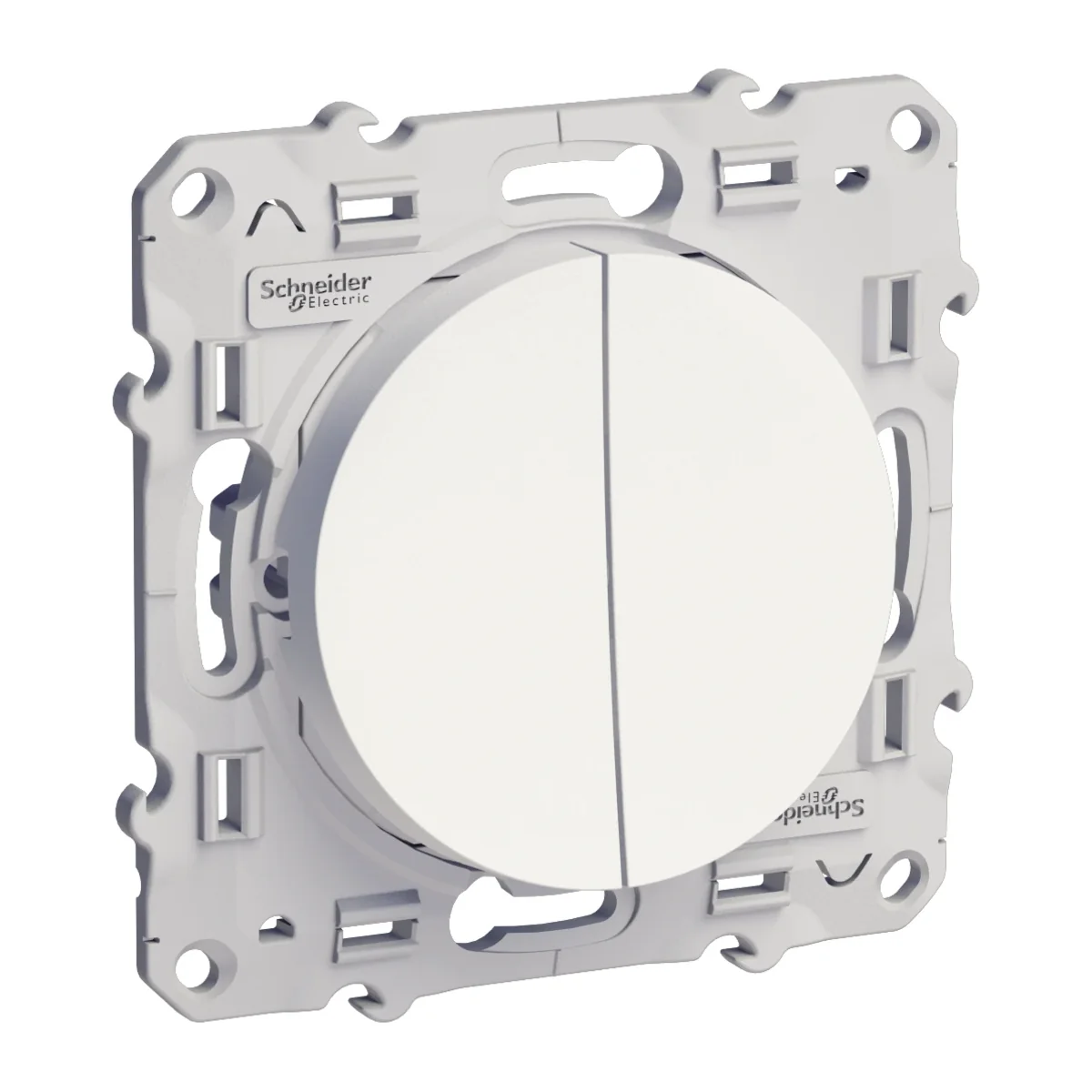

ODACE DIY candle holder white S52D211

local index:
MMT023SCHN
Catalog No:
S52D211
EAN code:
3606480563324
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 33.6
Number of keys: 2
Color: White
Price:
18,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Candlestick switch from the Odace series, from the manufacturer Schneider Electric. The product catalog number is S52D211.



FEATURES

  • Borderless module .
  • Screwless terminals.
  • Color white.
  • Rated current 10 AX .
  • Rated voltage 230 V.
  • Mounting flush.
  • Ingress protection IP21.
  • Dimensions: 71 x 71 mm (H x W).
  • Material:
    • ABS thermoplastic with enhanced UV resistance: center plate,
    • PBT (polybutylene terephthalate) GF30: support frame,
    • PC (polycarbonate) GF10 FR: casing.
    < /li>



SERIES DESCRIPTION

The innovative Odace series makes a seemingly ordinary interior gain character. Vivid colors, natural materials and original design, using the round shape of mechanisms, will perfectly complement any interior. Thanks to a wide range of functions, it is possible to choose the best solutions tailored to the needs of users.

Technical data

  • Depth [mm]
    33.6
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    ODACE
  • Width [mm]
    71
  • Height [mm]
    71
  • Backlight
    NO
  • For the frame system
    Yes
  • Exact material
    ABS
  • Number of keys
    2
  • Shape
    Round
  • Fixing
    claws
  • Rated voltage [V]
    230
  • Type
    Candlestick
  • Level of security
    IP21
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK04
  • Terminal type
    Threadless
  • Protrusion depth [mm]
    18.75
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element with central cover plate
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    Yes
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Function lighting
    Control and orientation
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Screwed terminal
  • Device width
    71 mm
  • Device depth
    33.6 mm
  • Min. depth of built-in installation box
    18.95 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    0
  • Number of rockers
    2
  • Type of fastening
    Mounting with claw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003
  • Illumination
    Yes
  • Suitable for degree of protection (IP)
    IP21
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    18.75 mm
