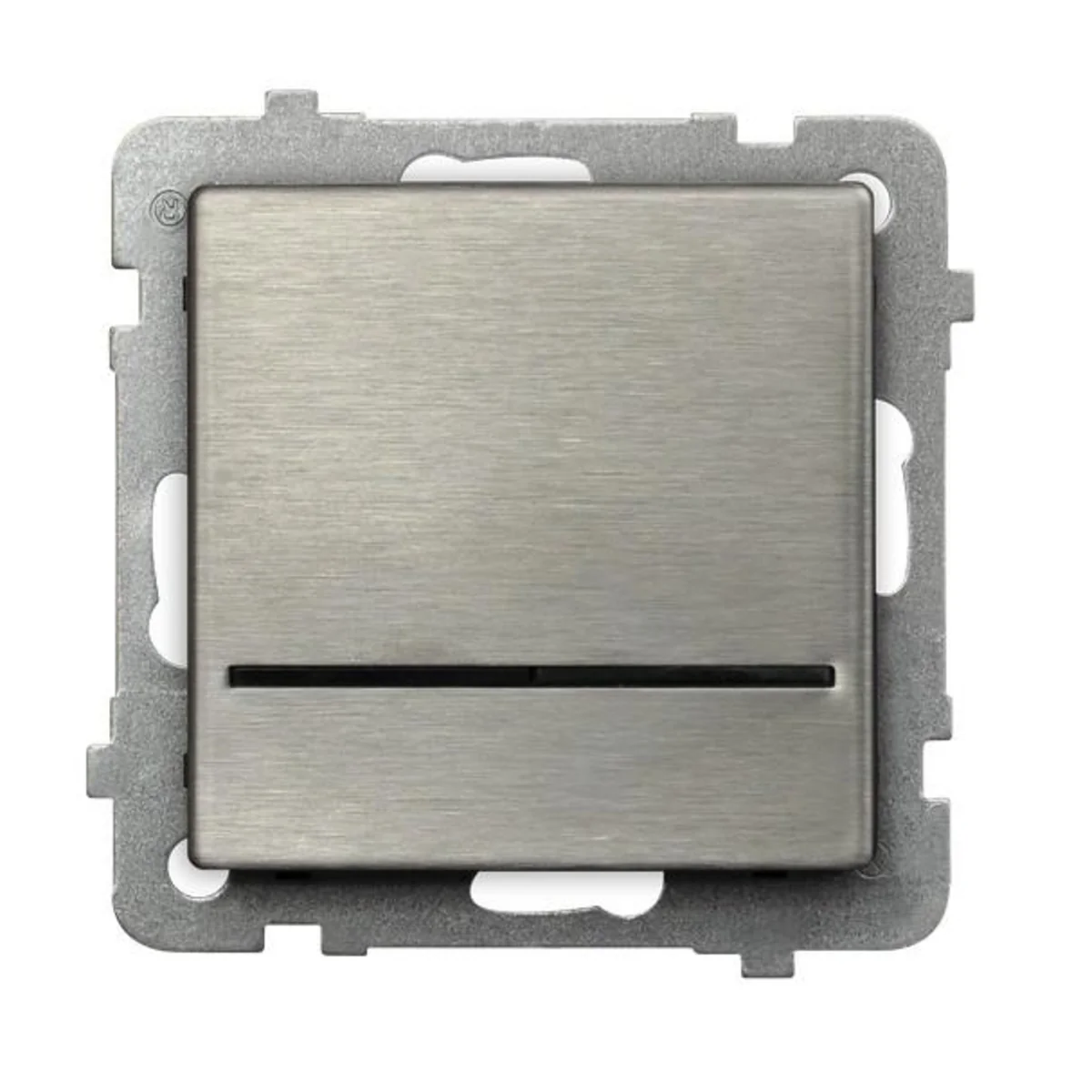

SONATA STEEL INOX Single-pole switch with backlight stainless steel, without frame ŁP-1RMS/M/37
local index:
MMP066OSPE
Catalog No:
ŁP-1RMS/M/37
EAN code:
5907577449940
Price:
21,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Single-pole switch with illumination, Sonata series. Standard accessories used to turn on/off lighting.
;
SERIES DESCRIPTION
The Sonata collection is a comprehensive and functional arrangement solution meeting the highest technological standards. This modular series is based on a strong and simple square.
The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.
Technical data
-
Depth [mm]42
-
ColorSilver
-
MaterialMetal
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySONATA STAINLESS STEEL
-
Width [mm]71
-
Height [mm]71
-
Accurate colorstainless steel
-
Mounting depth [mm]26
-
For the frame systemYes
-
Backlight typeIndicative LTS
-
PKWIU27.33.11.0
-
Number of keys1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeSingle
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionBrushing
-
BacklightYes
-
Terminal typeThreadless
-
Exact materialstainless steel
-
Backlight colorBlue
Other technical data
-
Wiring systemOff switch 1-pole
-
Assembly arrangementBasic element with complete housing
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityOther
-
Surface protectionUntreated
-
ColourBrass
-
Label space/information surfaceNo
-
Function lightingOrientation
-
Suitable for degree of protection (IP)IP20
-
Rated current16 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height75 mm
-
Built-in depth25 mm
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialMetal
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9023
-
IlluminationYes
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps16 AX
-
Connection typePush-in clamp
-
Device width75 mm
-
Device depth42 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 4 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
