ASFORA Candlestick connector without a cream frame EPH0301423

local index:
MMT019SCHN
Catalog No:
EPH0301423
EAN code:
3606480595752
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 43
Number of keys: 2
Color: Beige
Price:
3,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

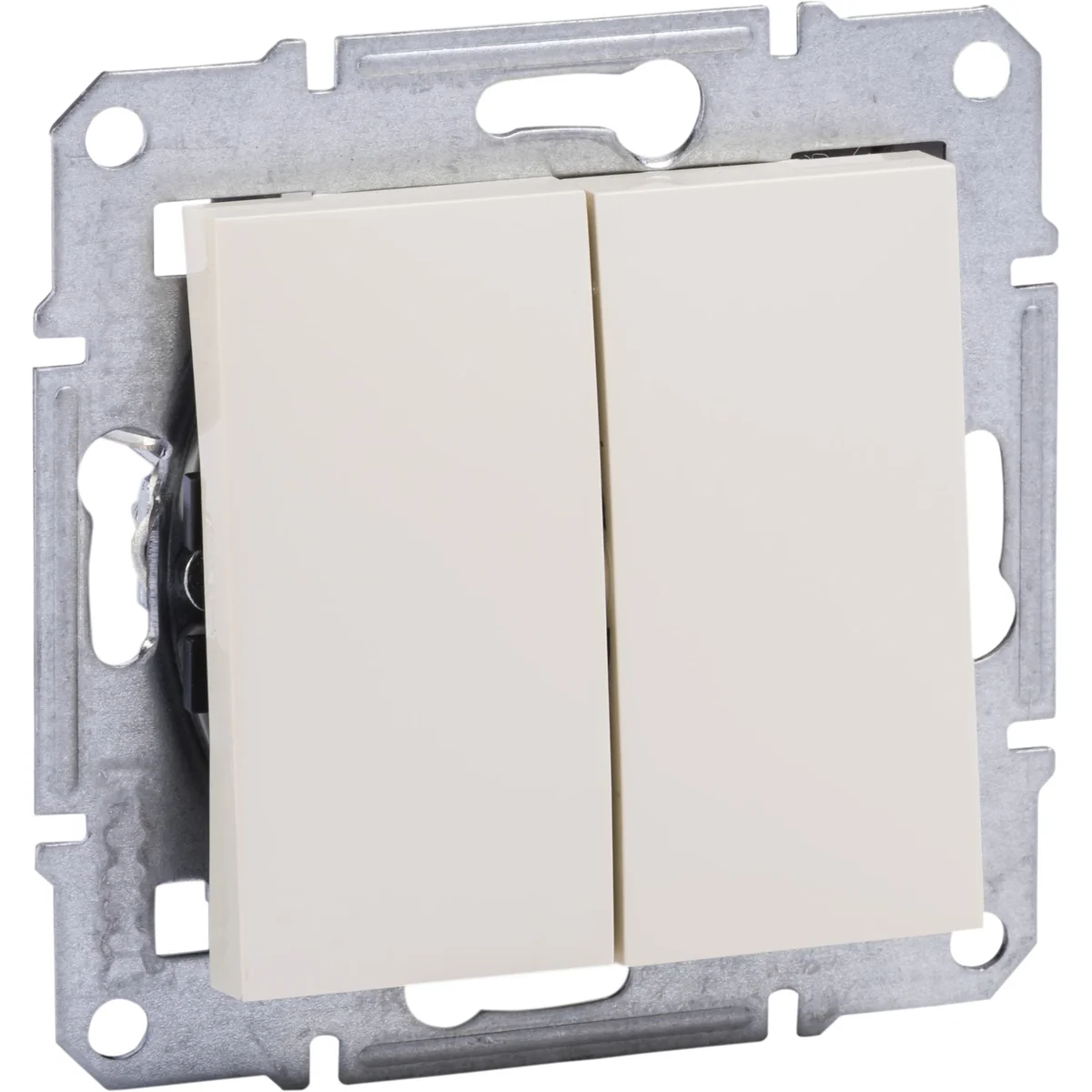

Candlestick switch from the Asfora series, from Schneider Electric. The product part number is EPH0301423.



FEATURES

  • Module without frame.
  • Screwless terminals.
  • Colour cream.
  • < li>Rated current 10AX.
  • Rated voltage 230V.
  • Mounting flush.< /li>
  • Ingress protection IP20.
  • Dimensions: 71 x 71 mm (H x W).
  • Made of ABS .
  • Length of insulation stripped from the cable: 13mm.



FEATURES OF ASFORA SWITCH

< ul>
  • Simple, quick assembly and disassembly of wires in the terminals.
  • Conical entries leading the wires to the terminals.
  • Long solid claws. Metal guides keep the claws in the right position.
  • Galvanized, solid mounting frame with cuts for easy positioning.
  • Clear diagram and terminal marking for easy connection.
  •

    SERIES DESCRIPTION

    The accessories of the Asfora series are characterized by quick, easy and safe installation. The mechanisms of the products have clear markings and connection diagrams, which greatly facilitates assembly and reduces the risk of incorrect connection.

    The Asfora series of electrical installation accessories is used in residential buildings, public utility facilities , offices and hotels. If you value classic beauty, you like a clear, decisive shape with classic elegance and simple form, you focus on comfort and ease of installation, then the Asfora series of electrical installation accessories is for you!

    Technical data

    • Depth [mm]
      43
    • Color
      Beige
    • Material
      Plastic
    • Installation
      Flush-mounted
    • Rated current [A]
      10
    • Family
      ASPHORA
    • Width [mm]
      71
    • Height [mm]
      71
    • Accurate color
      Creamy
    • Terminal type
      Threadless
    • Protrusion depth [mm]
      15
    • PKWIU
      27.33.11.0
    • Number of keys
      2
    • Shape
      Square
    • Fixing
      claws screws
    • Rated voltage [V]
      230
    • Type
      Candlestick
    • Level of security
      IP20
    • Type
      Flush-mounted
    • Surface finish
      Shiny
    • Backlight
      NO
    • For the frame system
      Yes
    • Exact material
      ABS

    Other technical data

    • Wiring system
      Series switch
    • Assembly arrangement
      Basic element with central cover plate
    • Number of rockers
      1
    • Type of fastening
      Mounting with claw and screw
    • Material
      Plastic
    • Halogen free
      Yes
    • Surface finishing
      Glossy
    • Label space/information surface
      No
    • Suitable for degree of protection (IP)
      IP20
    • Rated current
      10 A
    • Feedback-signal contact
      No
    • Washing machine switch
      No
    • Device height
      71 mm
    • Built-in depth
      28.0 mm
    • Method of operation
      Rocker/button
    • Push button switch
      No
    • Mounting method
      Flush-mounted
    • With mounting plate
      No
    • Material quality
      Thermoplastic
    • Surface protection
      Untreated
    • RAL-number (similar)
      1013.0
    • Illumination
      No
    • Nominal voltage
      250 V
    • Switching current for fluorescent lamps
      10 AX
    • Connection type
      Other
    • Device width
      71 mm
    • Device depth
      43.0 mm
    • Min. depth of built-in installation box
      40.0 mm
