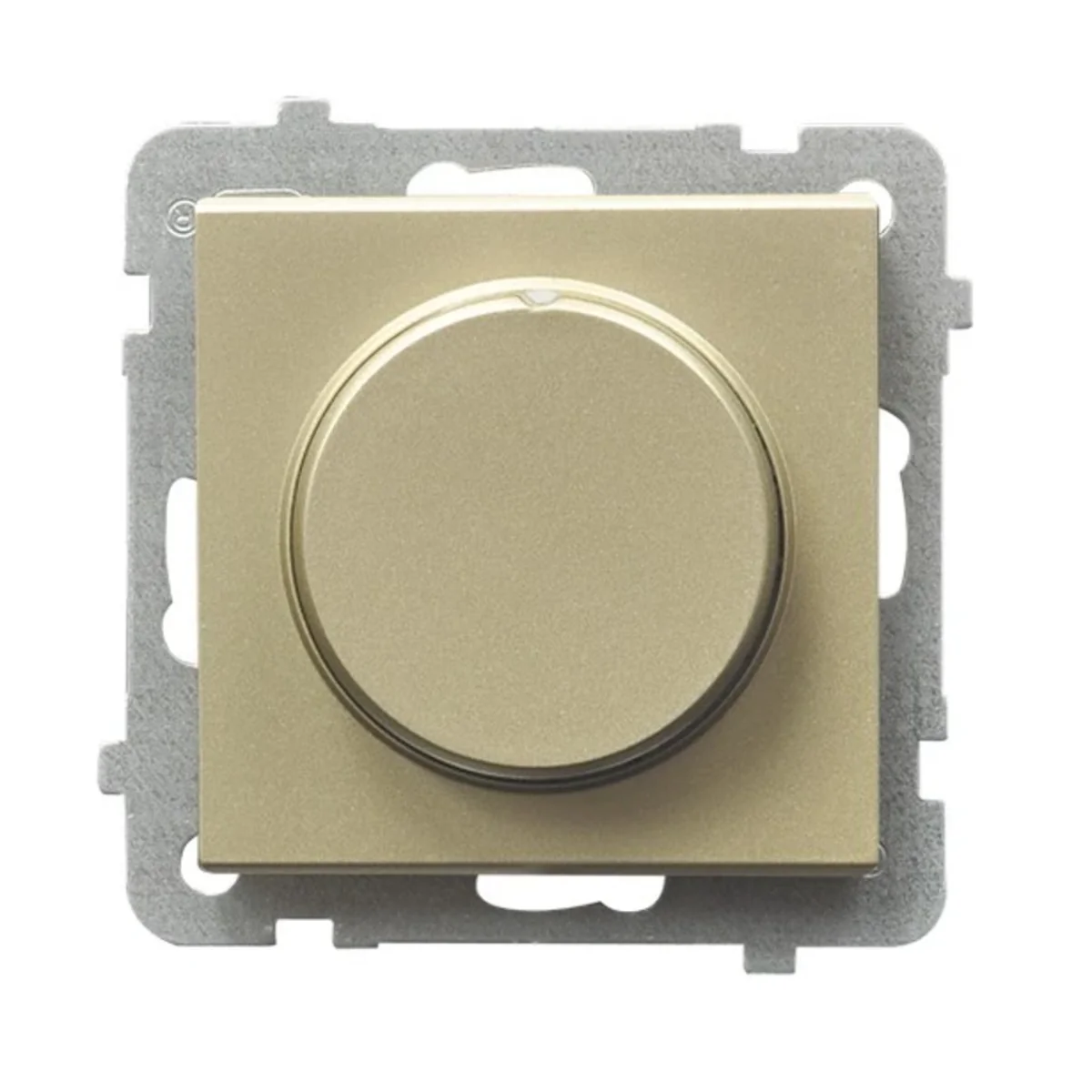

SONATA Push-turn dimmer for incandescent and other loads, champagne gold, without frame ŁP-8R/M/39

local index:
MMC015OSPE
Catalog No:
ŁP-8R/M/39
EAN code:
5907577447878
Manufacturer: OSPEL
Depth [mm]: 50
Number of keys: Knob
Color: Golden
Price:
30,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Push-turn dimmer from theSonata series, from Ospel. The product catalog number is ŁP-8R/M/39.



FEATURES

  • Adjusted to incandescent load and halogen.
  • Load power: 40-400W.



SERIES DESCRIPTION

Sonata is a modular series that will perfectly fit into any room, thanks to its simple but decisive design. Dimmer characterize the features of this unique series.

Technical data

  • Depth [mm]
    50
  • Color
    Golden
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Family
    SONATA
  • Width [mm]
    71
  • Version
    For incandescent lighting For halogen lighting
  • Surface protection
    varnishing
  • Backlight
    NO
  • load power [W]
    40-400
  • Variant
    Rotary Button
  • PKWIU
    27.33.11.0
  • Number of keys
    Knob
  • Shape
    Square
  • Fixing
    claws screws
  • Type
    dimmers
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Champagne gold
  • Mounting depth [mm]
    24
  • Terminal type
    Threaded
  • For the frame system
    Yes

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Number of modules (module system)
    1
  • Serial dimmer
    Yes
  • Substation input
    No
  • Applicable with button
    No
  • Applicable with presence indicator
    No
  • Applicable with transmission button
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1014
  • Suitable for degree of protection (IP)
    IP20
  • Nominal voltage
    230 ... 230 V
  • Control voltage
    230 ... 230 V
  • Device width
    75 mm
  • Device depth
    50 mm
  • Method of operation
    Turn/push button
  • App control via Bluetooth
    No
  • Type of load
    Resistive load
  • Light value memory
    No
  • Applicable with movement sensor
    Yes
  • Applicable with time switch/timer
    No
  • Applicable with infrared button
    Yes
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Gold
  • Transparent
    No
  • Impact strength
    IK03
  • Frequency
    50 ... 50 Hz
  • Core cross section
    1 ... 1.5 mm²
  • Device height
    75 mm
  • Min. depth of built-in installation box
    60 mm

Bulk packaging

A kind of package Pudełko
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,112 -
Width (m) - 0,162
Length (m) - 0,237
Depth (m) - 0,090
