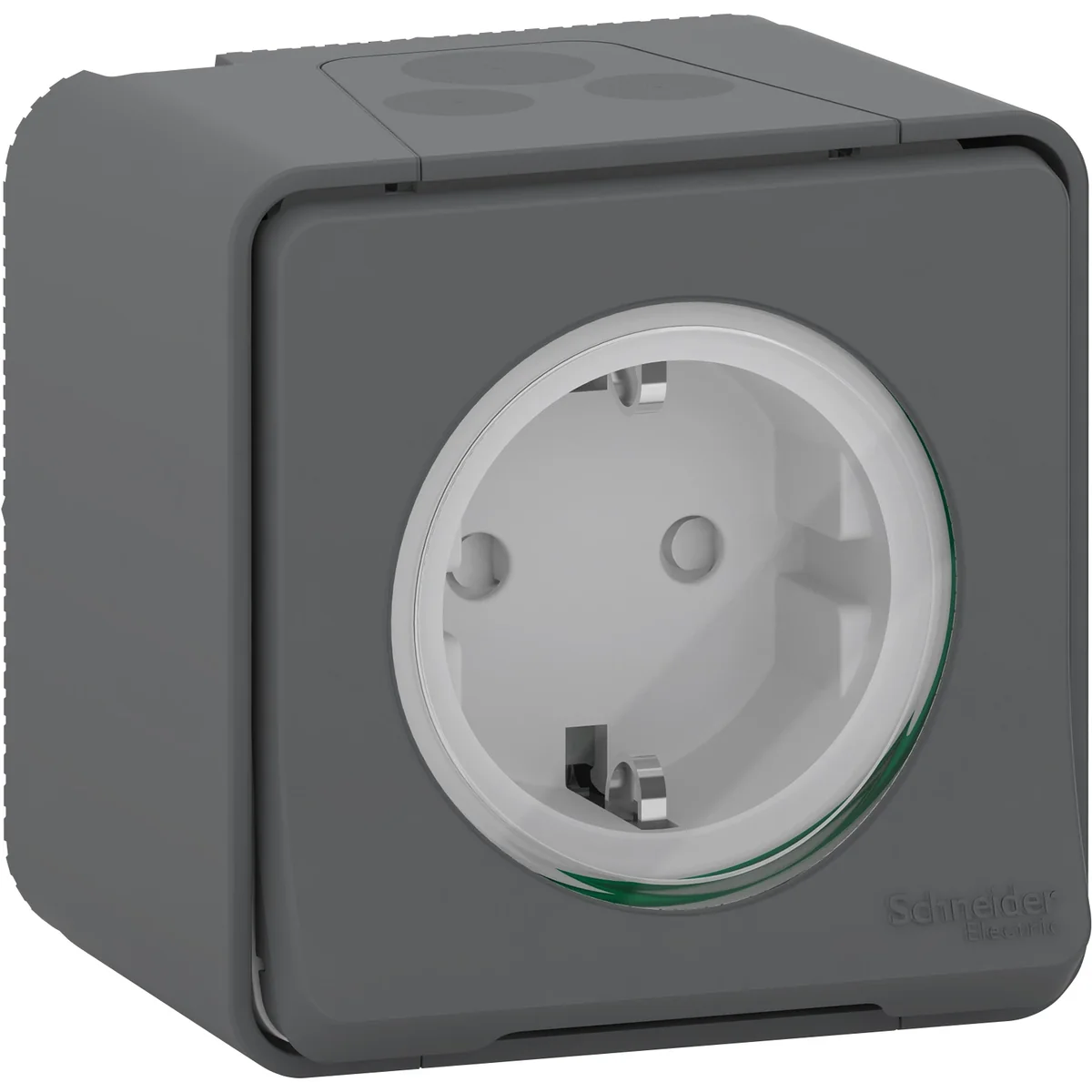

MUREVA STYL IP55 Socket 2P+PE schuko anthracite MUR36034

local index:
MFB009SCHN
Catalog No:
MUR36034
EAN code:
3606480789625
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 64
Number of sockets: 1
Color: Graphite
Price:
18,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hermetic wall-mounted electric socket from the Mureva Styl series, from Schneider Electric. The product part number is MUR36034.



FEATURES

  • Single.< /li>
  • 2P+PE.
  • 2-pole + PE with shutters.
  • With SCHUKO grounding .
  • Color anthracite.
  • Rated current 16 A.
  • Voltage 230 V.
  • Ingress protection IP55.
  • Mounting surface.
  • Self-extinguishing 650° ;C according to IEC 60695-2-1.
  • Material: PP (polypropylene), brass, polycarbonate (PC).
  • Strip length of the cable: 13 mm.



SERIES DESCRIPTION

Mureva Styl is a series of ergonomic electrical equipment which, thanks to the degree of protection IP55 and mechanical strength IK08 is waterproof and resistant to shocks, dirt, dust and solvents. Hermetic surface-mounted electrical socket characterize the features of this unique series.

Technical data

  • Depth [mm]
    64
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Surface-mounted
  • Rated current [A]
    16
  • Family
    MUREVA STYLE
  • Width [mm]
    76
  • Ground
    schuko
  • Degree of mechanical protection
    IK08
  • Backlight
    NO
  • Conductor cross-section (wire) [mm²]
    1 - 2.5
  • Shutters of current paths
    Yes
  • For the frame system
    NO
  • Exact material
    PP PC
  • Number of sockets
    1
  • Shape
    Rectangular
  • Fixing
    Screws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Height [mm]
    76
  • Accurate color
    Anthracite
  • Wire cross-section (cord) [mm²]
    1 - 2.5
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Transparent
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Other
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    1
  • Number of phases
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    Yes
  • Colour
    Anthracite
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK09
  • Device height
    85 mm
  • Min. depth of built-in installation box
    0 mm
  • Protective contact
    No
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Imprint/indication
    Data
  • With hinged lid
    Yes
  • Label space/information surface
    Yes
  • RAL-number (similar)
    7035
  • Lockable
    Yes
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP55
  • Device width
    65 mm
  • Device depth
    45.2 mm
