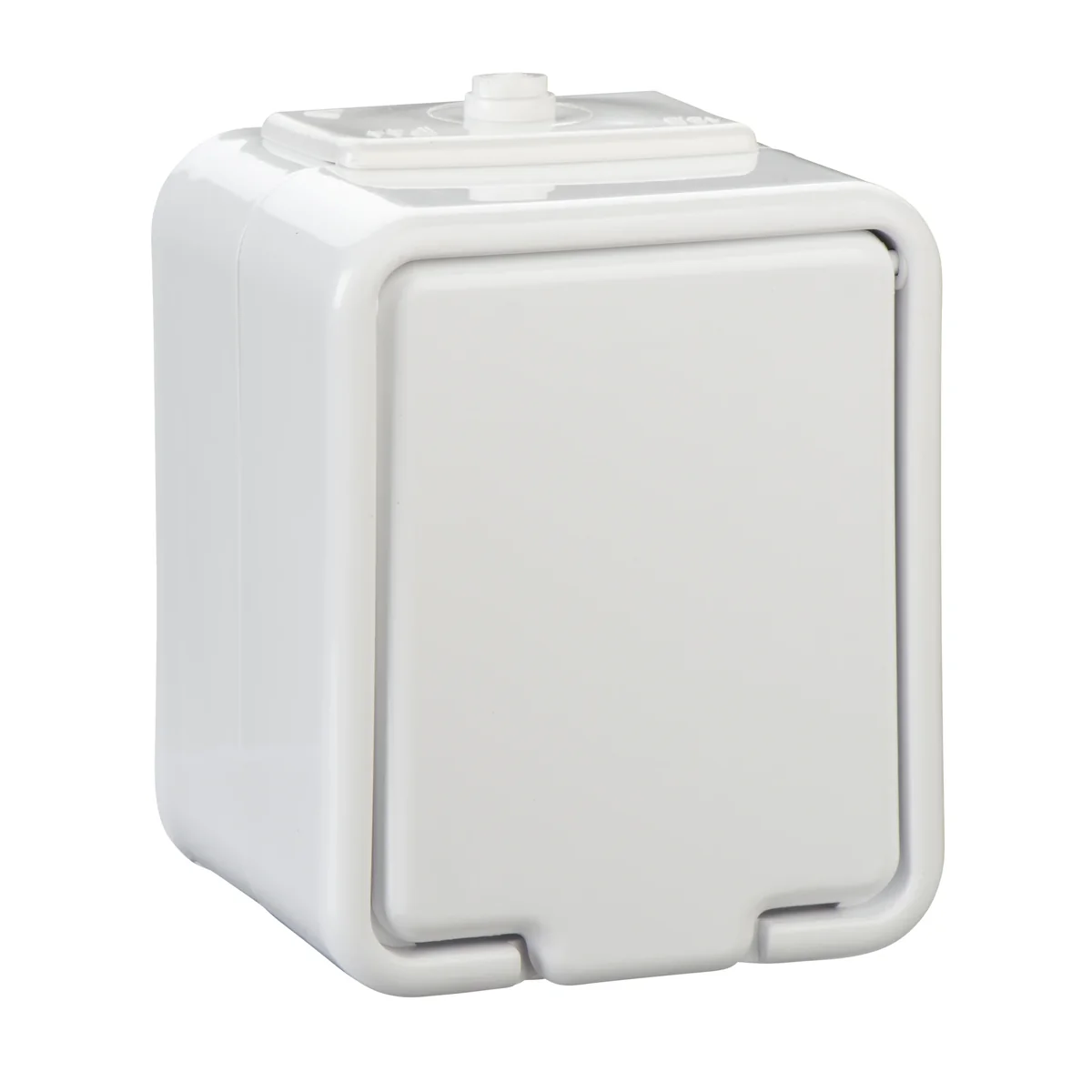

CEDAR Single SCHUKO socket outlet with shutters IP44 white GWN140PC01
local index:
MFB003SCHN
Catalog No:
GWN140PC01
EAN code:
5904093445210
Price:
4,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Hermetic wall-mounted electric socket from the Cedar series, from Schneider Electric. The product part number is GWN140PC01.
FEATURES
- Single.< /li>
- With SCHUKO grounding.
- With shutters.
- Socket color white< /strong>.
- White flap.
- Rated current 16 A.
- Rated voltage 230 V< /strong>.
- Ingress protection IP44.
- surface mounting.
- Complete product.< /li>
Technical data
-
Depth [mm]48
-
ColorWhite
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectrical hermetic
-
Level of securityIP44
-
TypeSurface-mounted
-
Height [mm]90
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorSocket color
-
Number of sockets1
-
ShapeRectangular
-
InstallationSurface-mounted
-
Rated current [A]16
-
FamilyCEDAR
-
Width [mm]64
-
Groundschuko
-
BacklightNO
-
Shutters of current pathsYes
-
For the frame systemNO
-
PKWIU27.33.13.0
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)0
-
Number of phases1
-
With hinged lidYes
-
Label space/information surfaceNo
-
RAL-number (similar)9003
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Impact strengthOther
-
Device height90 mm
-
Protective contactYes
-
Number of active contacts (round)0
-
With signal lampNo
-
Number of units1
-
Number of socket outlets switchable0
-
Connection typeOther
-
With enhanced contact protectionYes
-
ColourWhite
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodSurface mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP44
-
Device width64 mm
-
Device depth48 mm
