BAKS

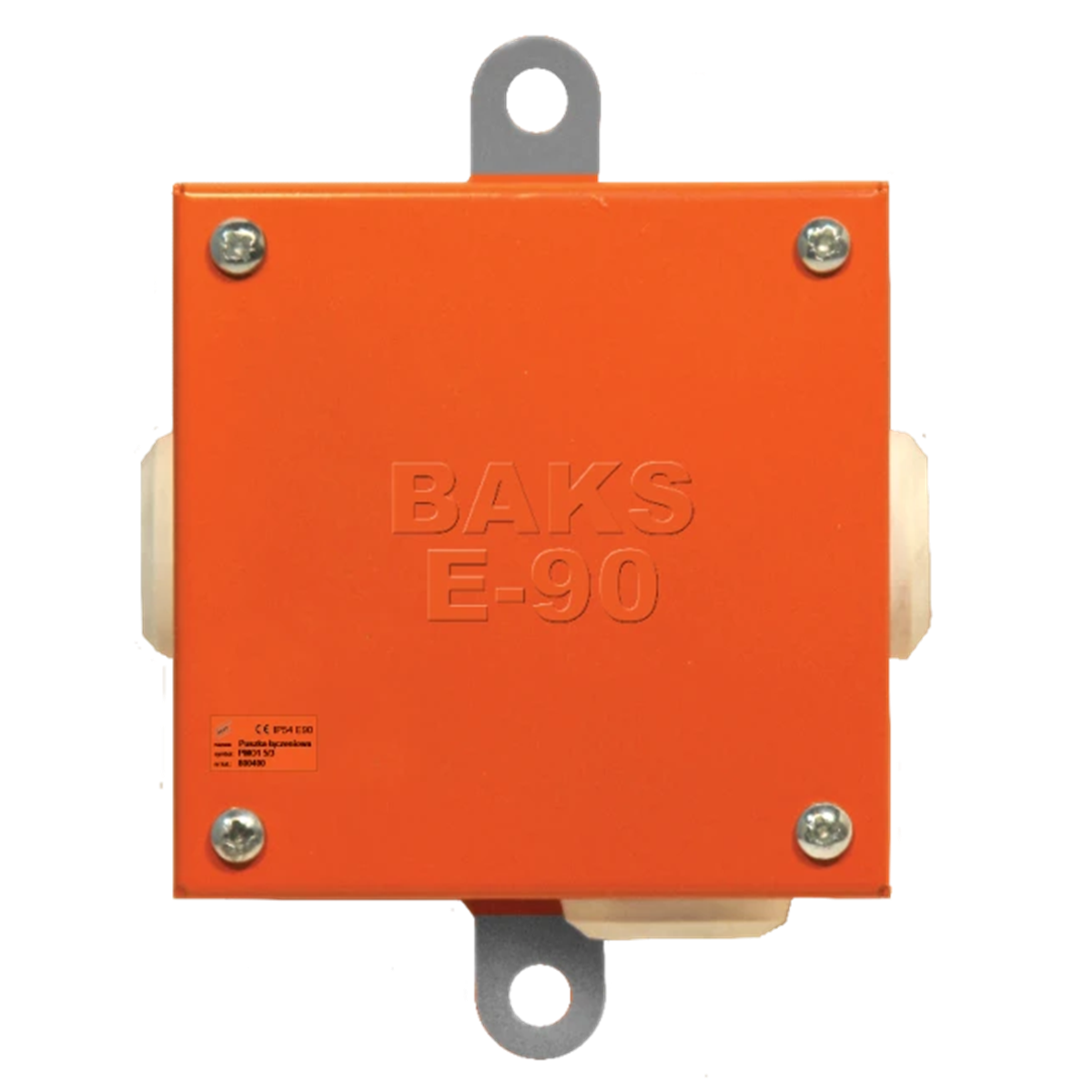

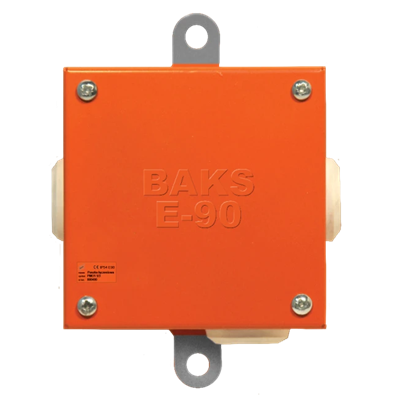

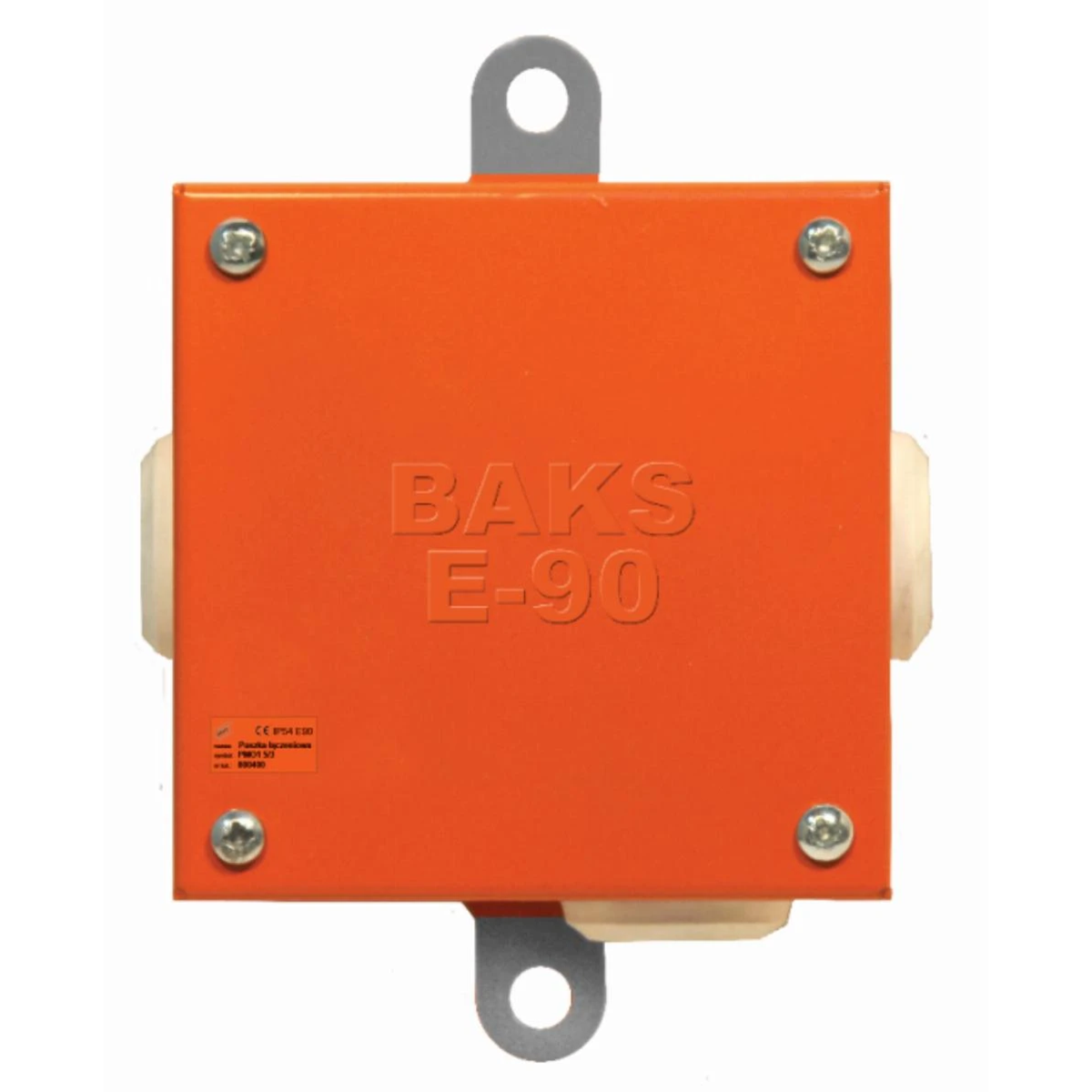

Metal junction box PMO1(5/3) 801200

local index:
MVN009BAKS
Catalog No:
801200
EAN code:
5900993154894
Price:
35,29 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Joint and branch box, Ui=400 V, with permanent preservation of the switching function E30 / E60 / E90 according to DIN 4102 part 12. Degree of protection IP65, sealing range from 7 mm to 18.5 mm . Fastening with external concrete mounting brackets using steel pins. For ladders and cable trays with SGKM6x12 screw. Installation of the box on the mesh tray using the box holder UP1 or UPP... and the set SGNM6x12 or SGKM6x12

Material:

  • Galvanized steel PN-EN 10152, powder coated RAL 2003 .
  • The terminal block is made of special ceramics resistant to high temperatures.
  • The gland is made of halogen-free material.
  • Fixed with external mounting brackets.

Additional information:

  • M25 torsion glands can be used
  • Cable cross-sections junction boxes (mm2): 0.5mm2-6mm2.< /li>
  • Cable cross-sections junction boxes (mm2): 0.5mm2-1.5mm2.

Assembly and installation of the box:

  • Mounting of the box to the ground.
  • Removing the cover.
  • Punching the glands.
  • Pushing the cables through the glands.
  • Connection to ceramic cubes.< /li>
  • The protective conductor must always be connected to the green-yellow PE clamp.

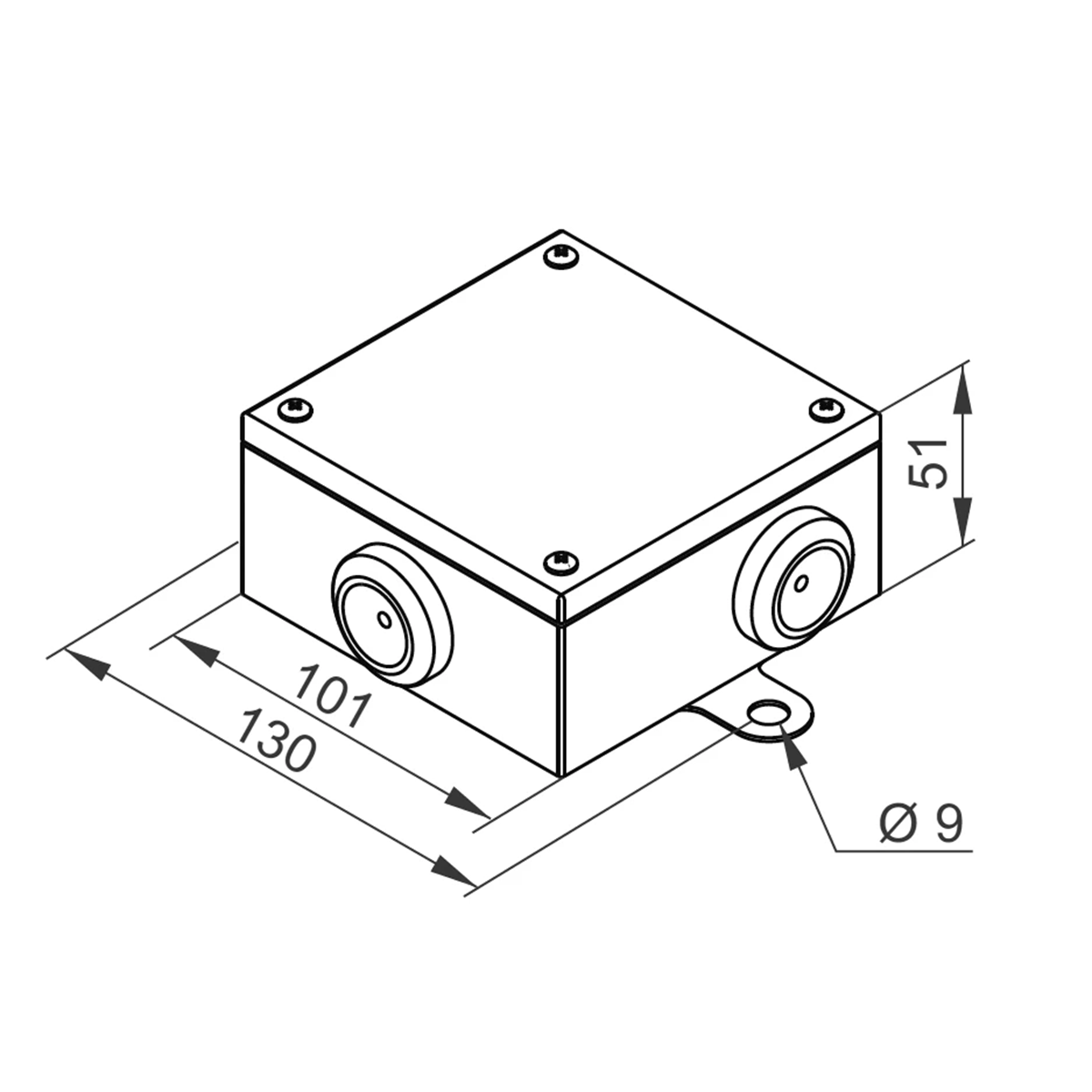

Technical data

  • Depth [mm]
    51
  • Color
    Orange
  • Material
    steel
  • Rated insulation voltage [V]
    400
  • Cable section [mm2]
    0.5-6 0.5-1.5
  • Level of security
    IP65
  • Type
    branching
  • Sealing range [mm]
    7-18.5
  • For modular equipment
    Not applicable
  • Number of stuffing boxes
    3
  • Number of terminal blocks
    5
  • Shape
    Square
  • Installation
    Surface-mounted
  • Cover
    Yes
  • Type
    Wall-mounted
  • Width [mm]
    101
  • Height [mm]
    101
  • Fire resistance
    Non-flammable
  • With terminal strip
    Yes
  • Stuffing box type
    M25
