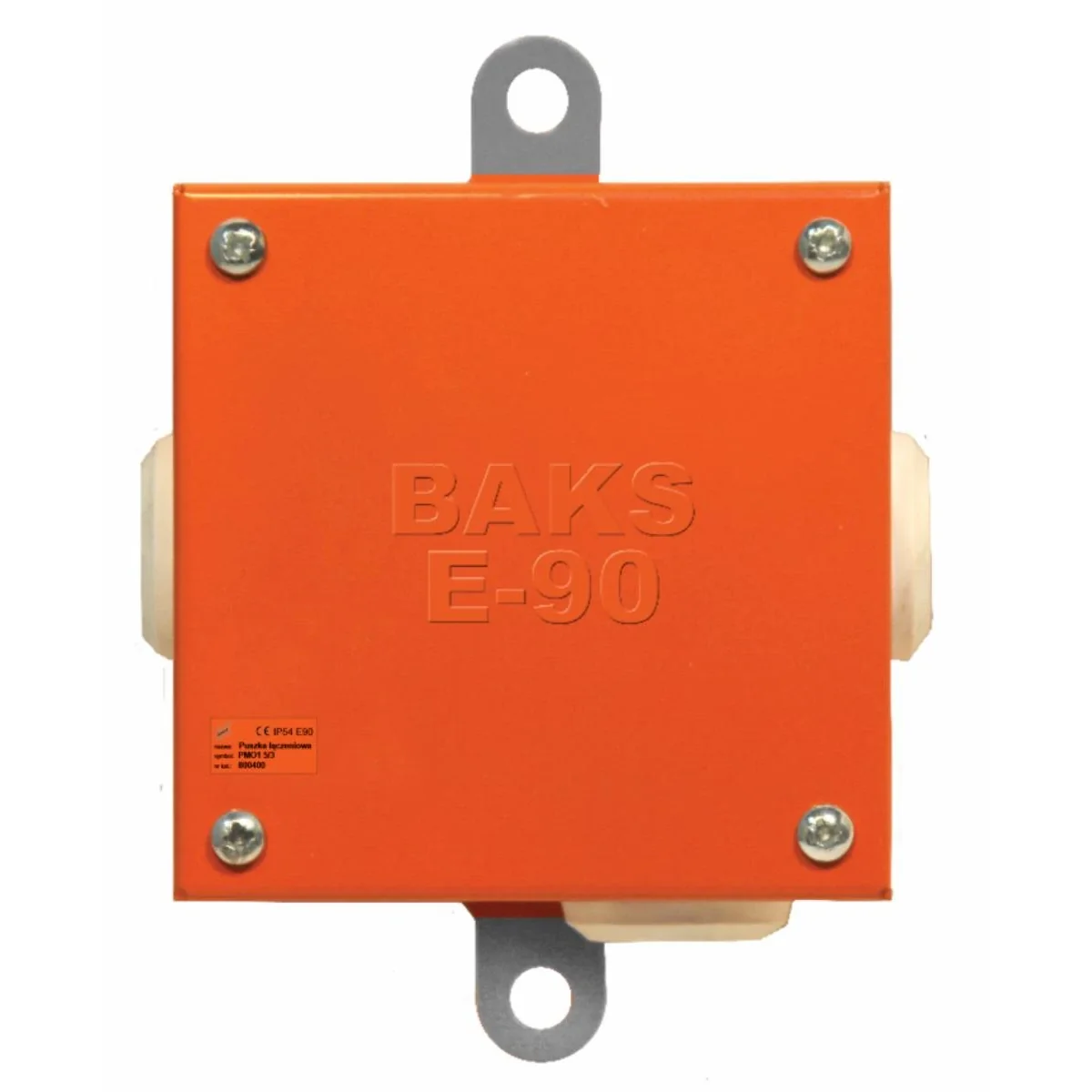

Junction-branch box PMO2(3/3) 802030

Indice locale:
MVN004BAKS
Numero di catalogo:
802030
Codice EAN:
5900993154962
Produttore: BAKS
Depth [mm]: 59
Number of terminal blocks: 3
Color: Orange
Prezzo:
43,05 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
Accessibile 1 pezzi
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Joint and branch box, Ui=400 V, with permanent preservation of the E30 / E60 / E90 switching function according to DIN 4102 part 12. Degree of protection IP65, sealing range from 11 mm to 24 mm. Fastening with external concrete mounting brackets using steel pins. For ladders and cable trays with SGKM6x12 screw. Installation of the box on the mesh tray using the box holder UP1 or UPP... and the set SGNM6x12 or SGKM6x12

Material:

  • Galvanized steel PN-EN 10152, powder coated RAL 2003 .
  • The terminal block is made of special ceramics resistant to high temperatures.
  • The gland is made of halogen-free material.
  • Fixed with external mounting brackets.

Additional information:

  • M32 torsion glands can be used.
  • Cable cross-section junction boxes (mm2): 1mm2-10mm2.
  • Cable cross-sections junction boxes (mm2): 1mm2-4mm2.

Assembly and installation of the box:

  • Mounting the box to the ground.
  • Removing the cover.
  • Punching the glands.
  • Pushing the cables through the glands.
  • Connecting to ceramic cubes.
  • Always connect the protective conductor with the green-yellow PE terminal.

Dati tecnici

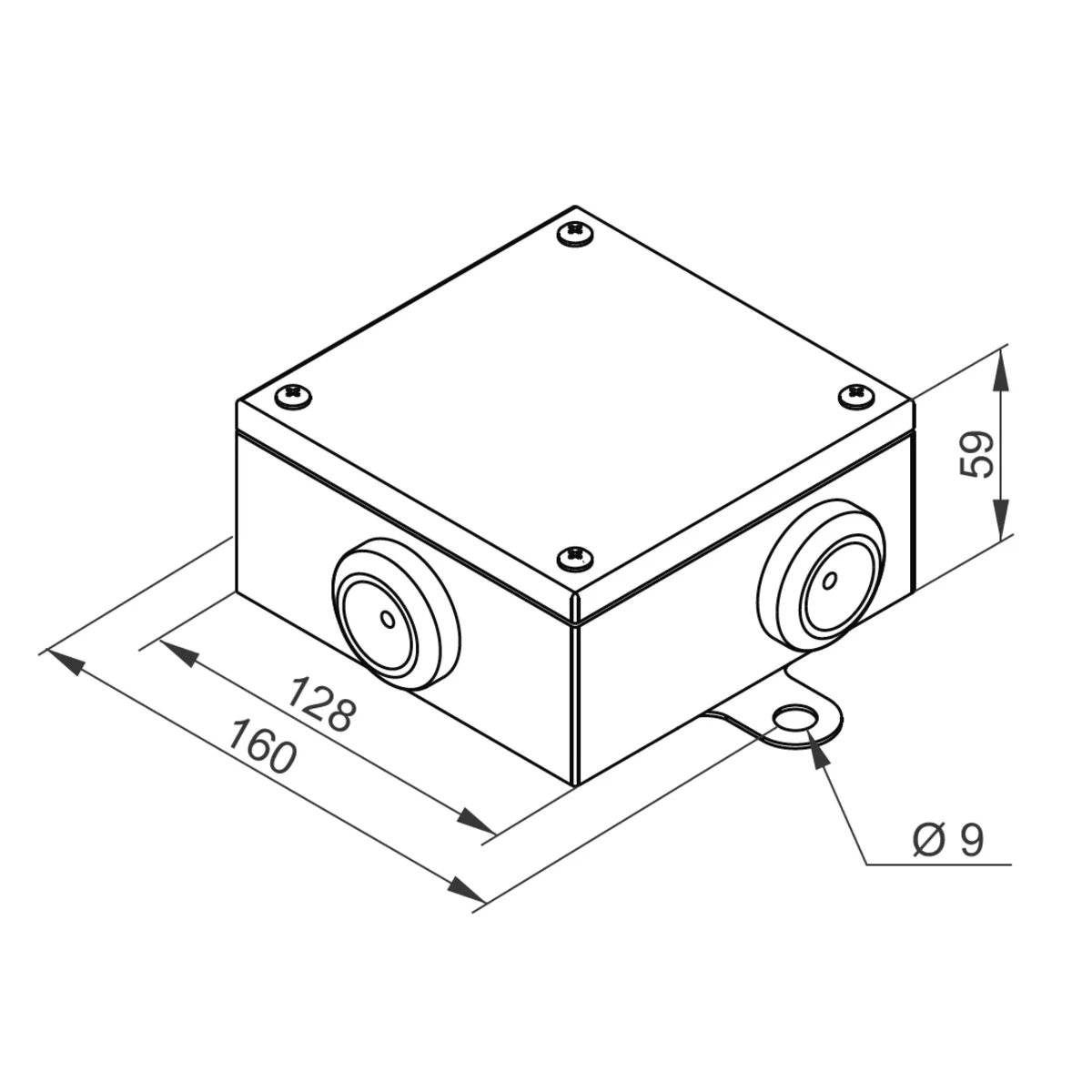

  • Depth [mm]
    59
  • Color
    Orange
  • Material
    steel
  • Rated insulation voltage [V]
    400
  • Cable section [mm2]
    0.5-6 0.5-1.5
  • Level of security
    IP65
  • Type
    branching
  • Sealing range [mm]
    7-18.5
  • For modular equipment
    Not applicable
  • Number of stuffing boxes
    3
  • PKWIU
    27.33.13.0
  • Number of terminal blocks
    3
  • Shape
    Square
  • Installation
    Surface-mounted
  • Cover
    Yes
  • Type
    Wall-mounted
  • Width [mm]
    128
  • Height [mm]
    128
  • Fire resistance
    Non-flammable
  • With terminal strip
    Yes
  • Stuffing box type
    M32

Dettagli del produttore

  • Produttore
    BAKS Kazimierz Sielski
  • Indirizzo
    05-480 Karczew Jagodne 5 Polska
