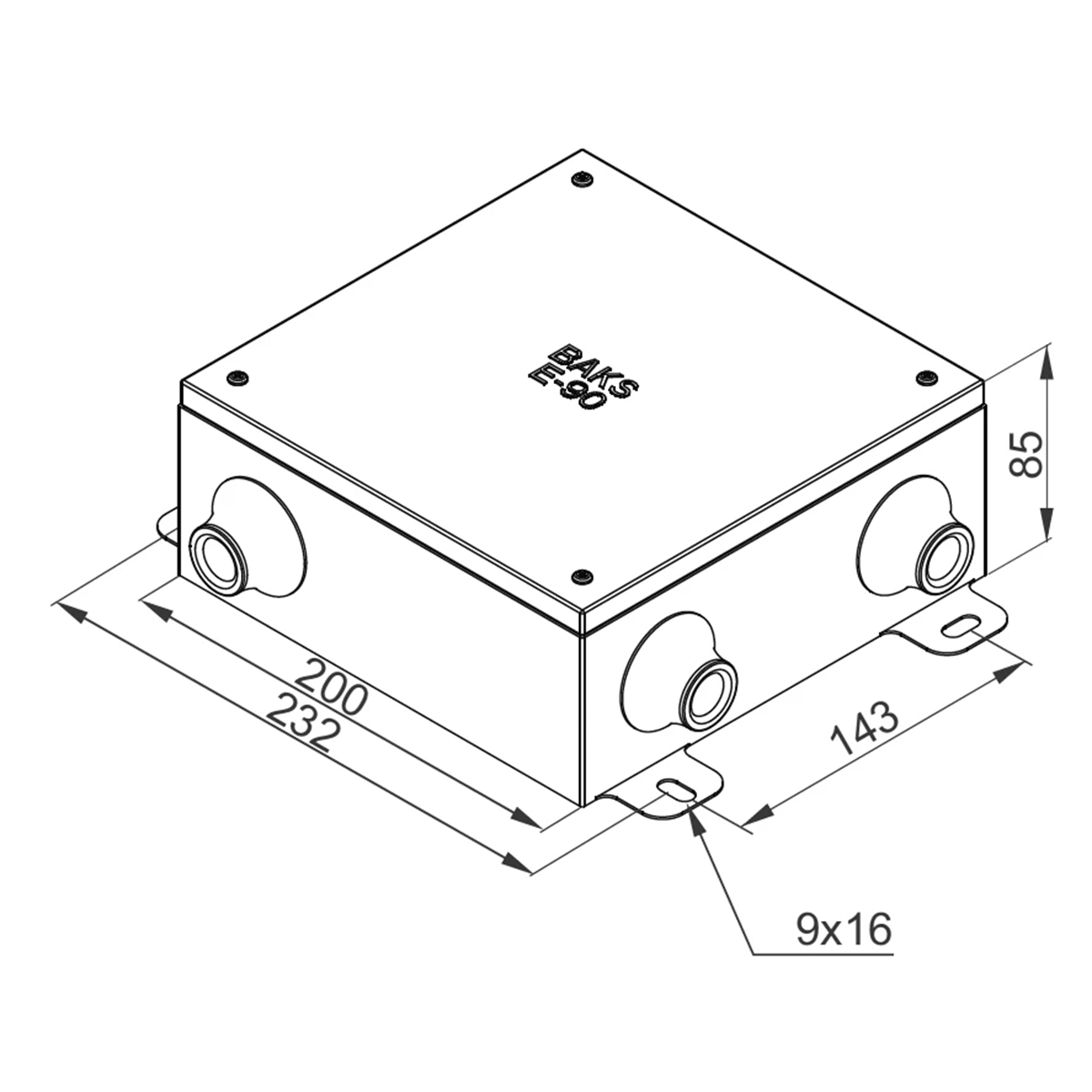

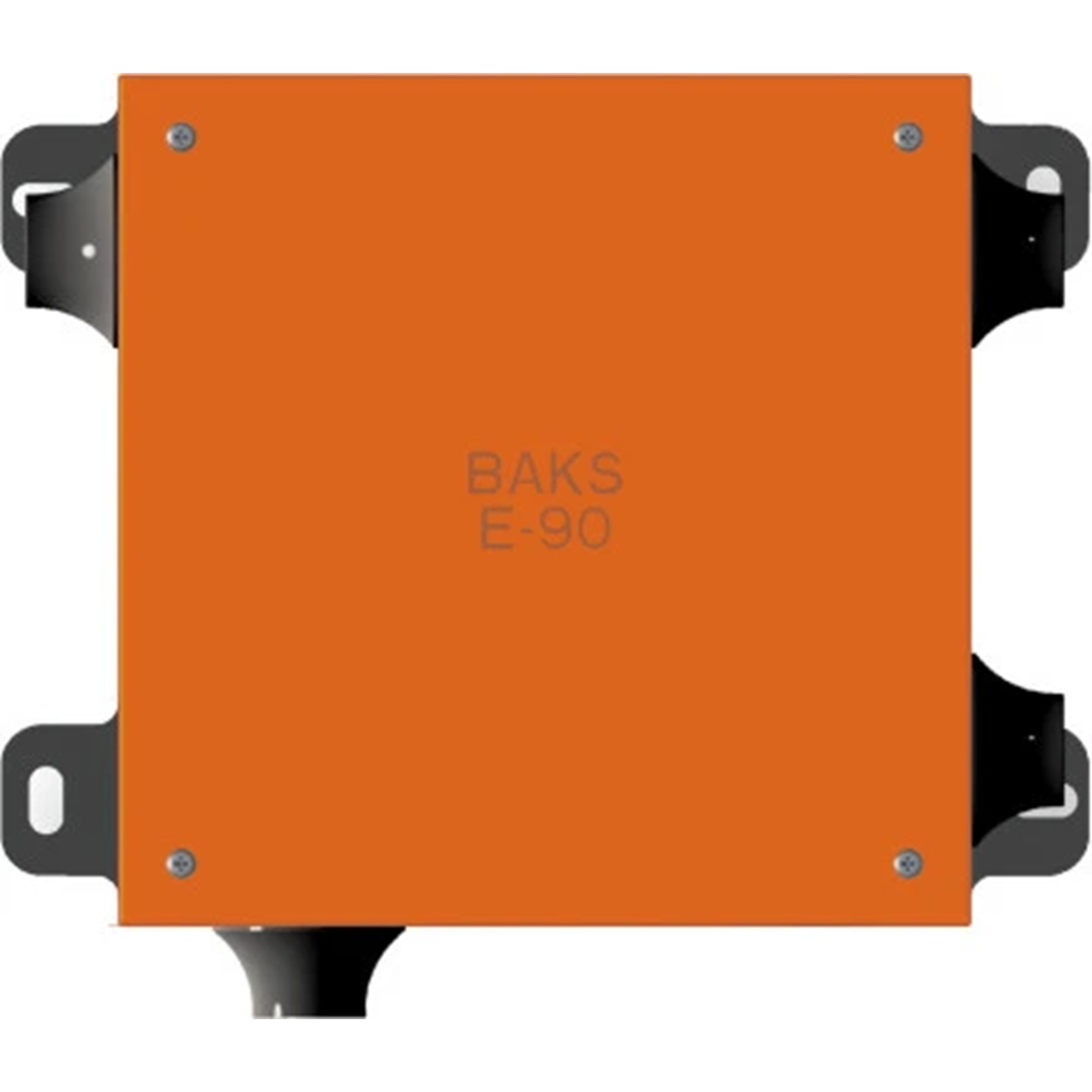

Junction box with fuse PMO3B(6/4) 803031

Joint and junction box, Ui=400 V, with permanent preservation of the E30 / E60 / E90 connection function according to DIN 4102 part 12. Protection degree IP65, sealing range from Ø7 mm to Ø28 mm. Fastening with external concrete mounting brackets using steel pins. For ladders and cable trays with SGKM6x12 screw. Installation of the box on the mesh tray using the box holder UP2 or UPP... and the SGNM6x12 or SGKM6x12 set.

Material:

• Steel, hot-dip galvanized PN-EN ISO 1461: 2011, powder coated RAL 2003.
• The terminal block is made of special ceramic resistant to high temperatures.
• The gland is made of halogen-free material.
• Fixed with external mounting brackets.
• Fuse base for D01 insert.

Additional information:

• M40 torsion glands can be used.
• Cable size junction boxes (mm2): 1mm2-16mm2.
• Cable size junction boxes (mm2): 1mm2-16mm2.

Installation of the box:

• Fixing cables in front of and behind the box max. 150mm.
