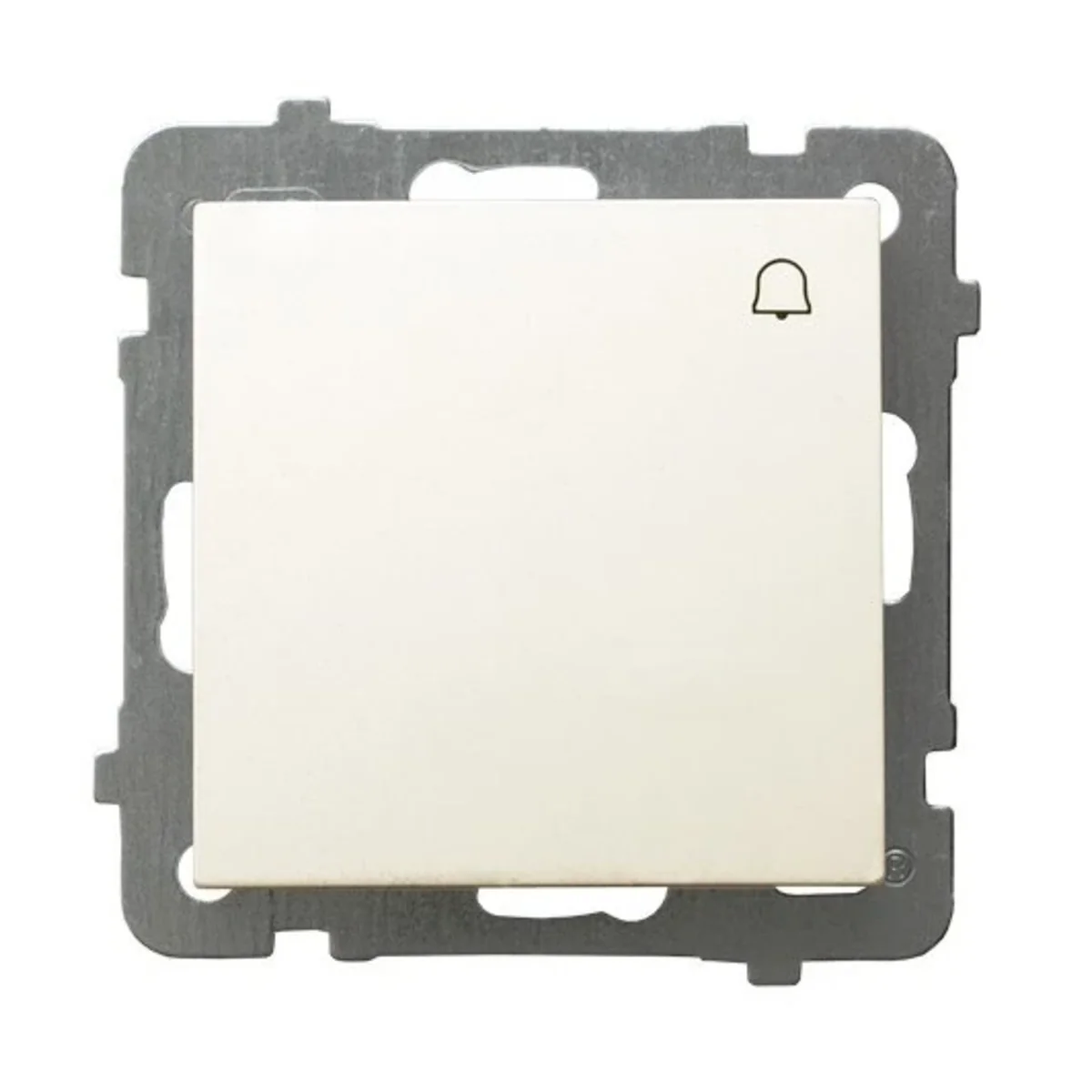

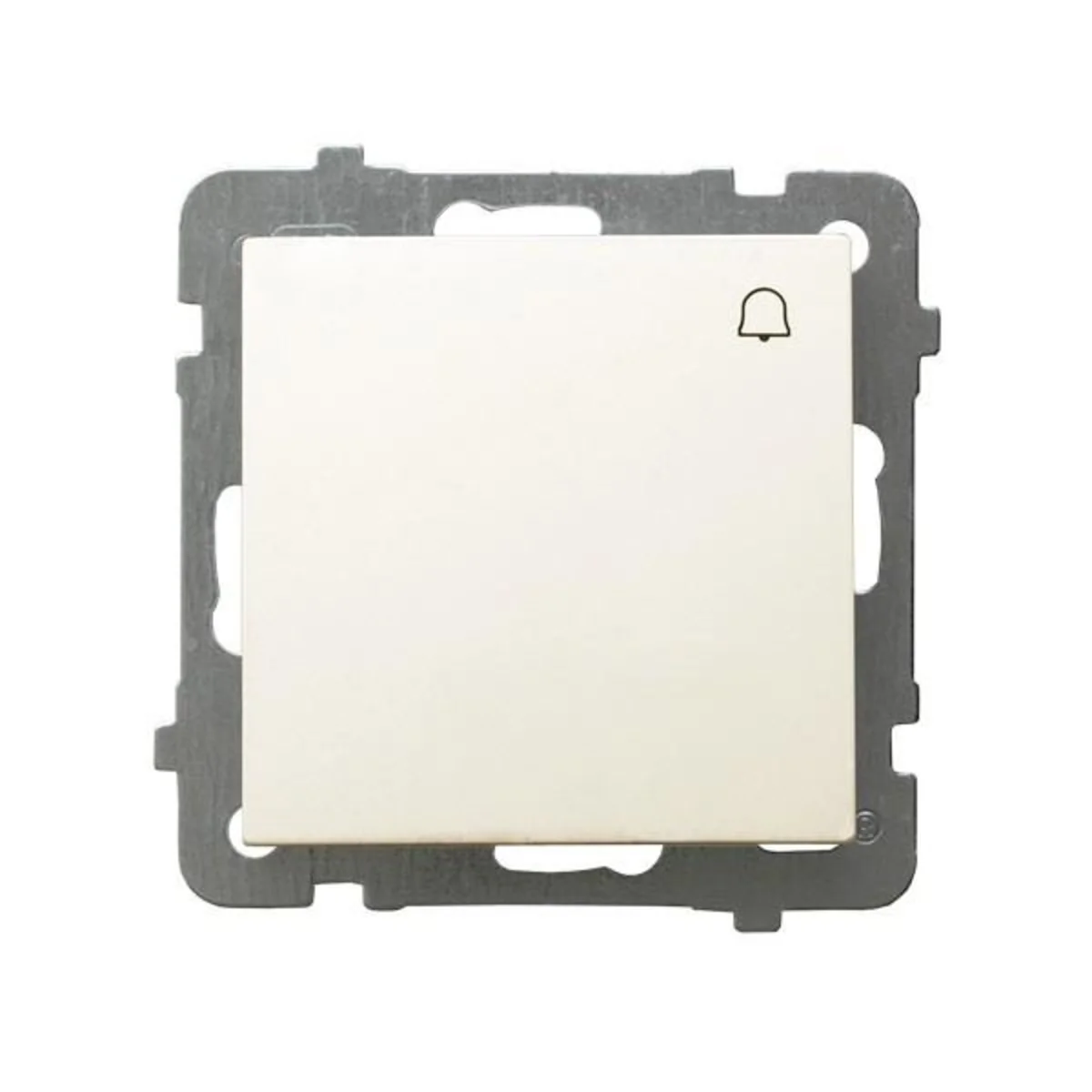

AS "bell" ecru short-circuit switch, without frame ŁP-6G/M/27
local index:
MMZ119OSPE
Catalog No:
ŁP-6G/M/27
EAN code:
5907577452032
Price:
3,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Short-circuit switch "bell" of the As series, from the manufacturer Ospel. The product catalog number is ŁP-6G/M/27. Ecru color.
FEATURES
- To be equipped with a frame .
- The "bell" symbol on the key.
- To obtain IP44 splash-proof class, use a sealing kit for switches.
SERIES DESCRIPTION
< p>The As series is a geometrical form broken with delicate curvatures of the frames. It is a combination of dynamic design with neutral colors that will work in any interior. The highest quality materials and timeless design allowed us to create a product that will decorate your interiors for many years.As an ideal solution for people who value true classics. Both the main elements and the supplementary frames are based on a square with strongly outlined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the determined, which is why the color options are also limited and strongly correspond to the classics.
Technical data
-
Depth [mm]40
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyAS
-
SymbolBell
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorEcru
-
Mounting depth [mm]25
-
VariantBell
-
Exact materialPlastic Metal
-
Number of keys1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeShort
-
Level of securityIP20
-
Width [mm]71
-
VersionConfident
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeThreaded
-
For the frame systemYes
-
PKWIU27.33.11.0
Other technical data
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)1013
-
IlluminationNo
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height75 mm
-
Built-in depth25 mm
-
Assembly arrangementBasic element with complete housing
-
Push button switchYes
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
Label space/information surfaceNo
-
Function lightingOther
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width75 mm
-
Device depth40 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,090 |
