SONATA Stair switch black metallic, without frame ŁP-3R/M/33

local index:
MMS070OSPE
Catalog No:
ŁP-3R/M/33
EAN code:
5907577446048
Manufacturer: OSPEL
Depth [mm]: 42
Number of keys: 1
Color: Black
Price:
7,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 15 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

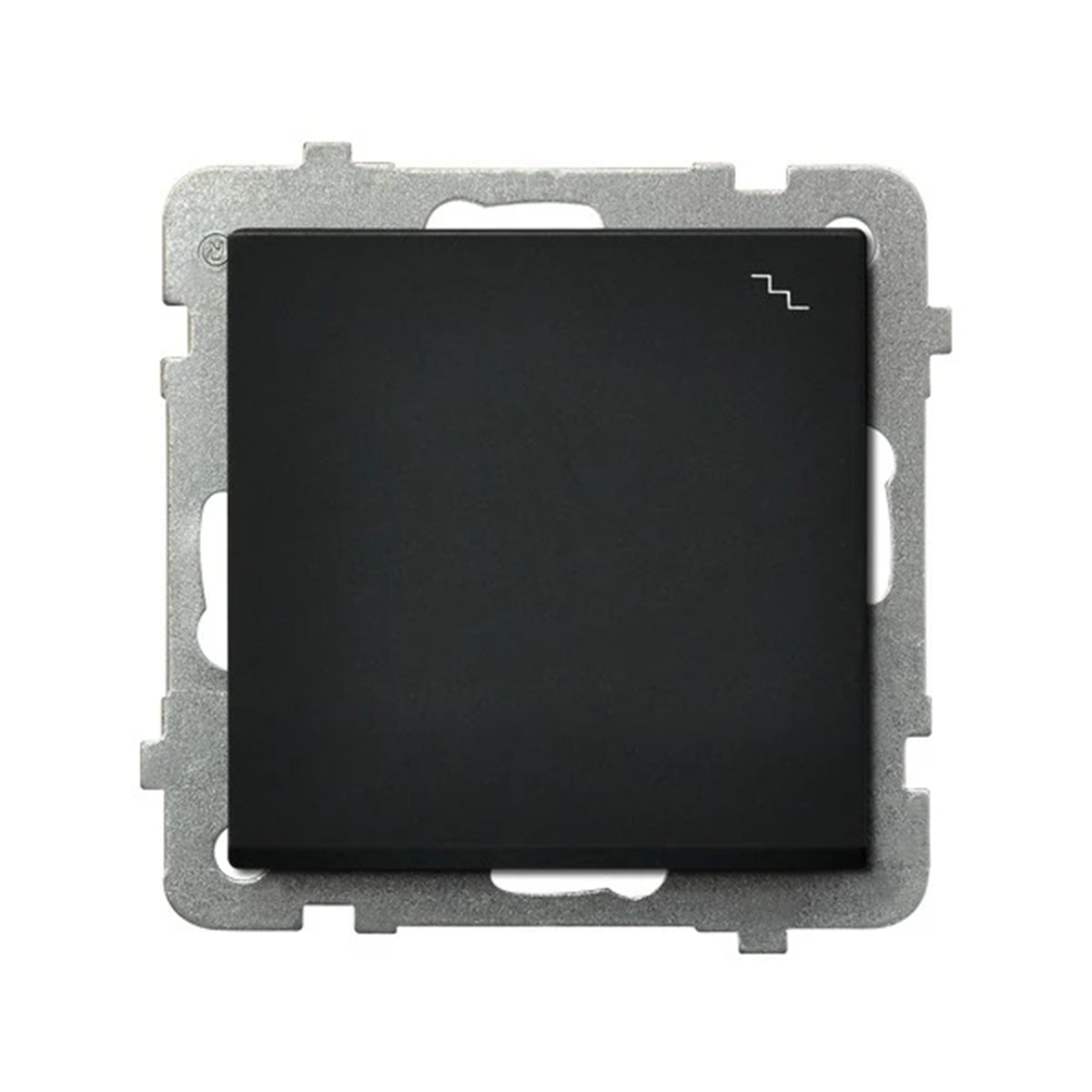

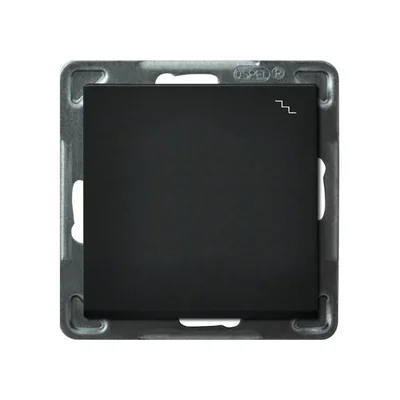

Stair switch from the Sonata series, from Ospel. The product catalog number is ŁP-3R/M/33.



FEATURES

  • Single.< /li>
  • Symbol "stairs" on the key.
  • Module without frame.
  • Terminals threadless.
  • Color black metallic.
  • Rated current 16AX.
  • Rated voltage 230V.
  • flush mounting.
  • Protection rating IP20.

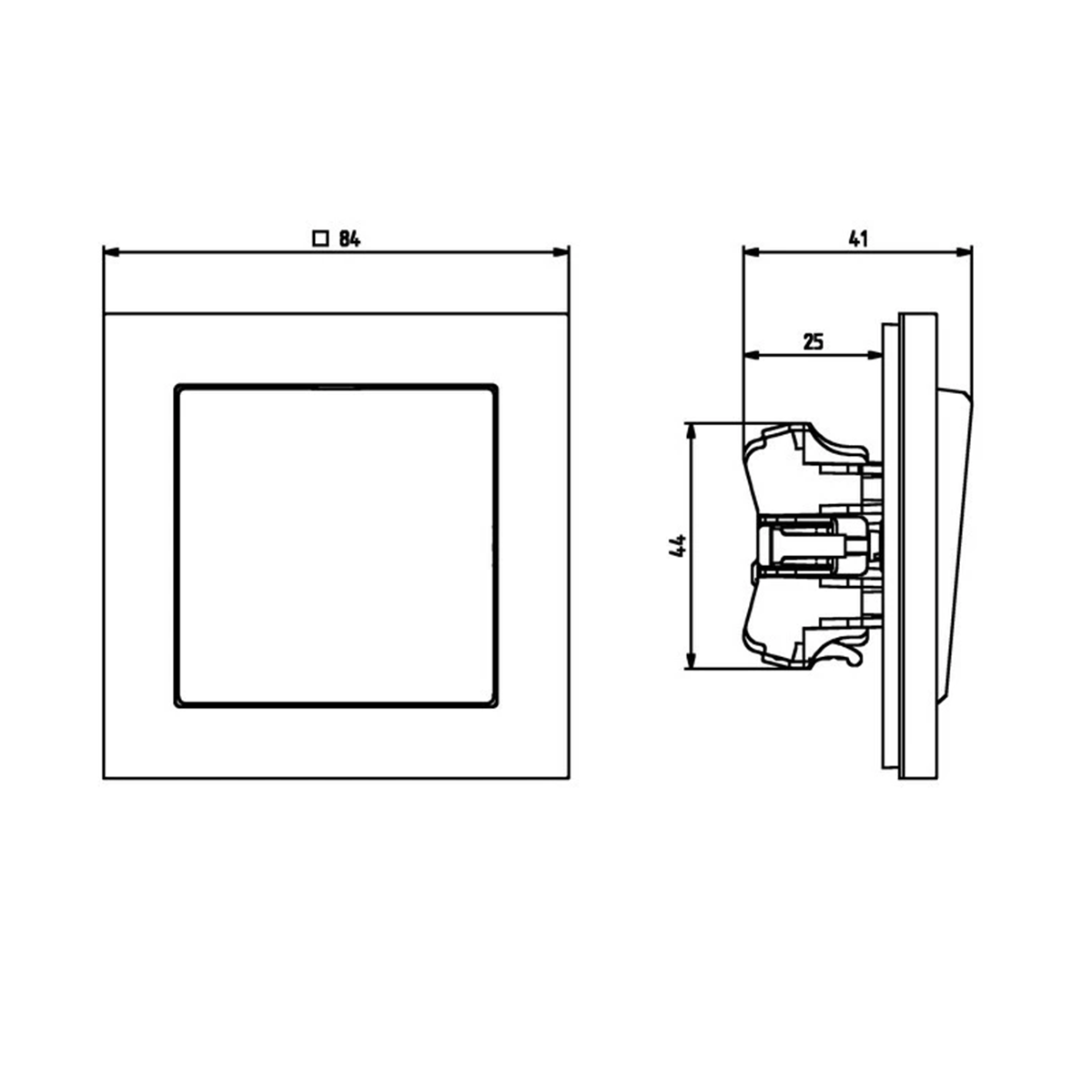

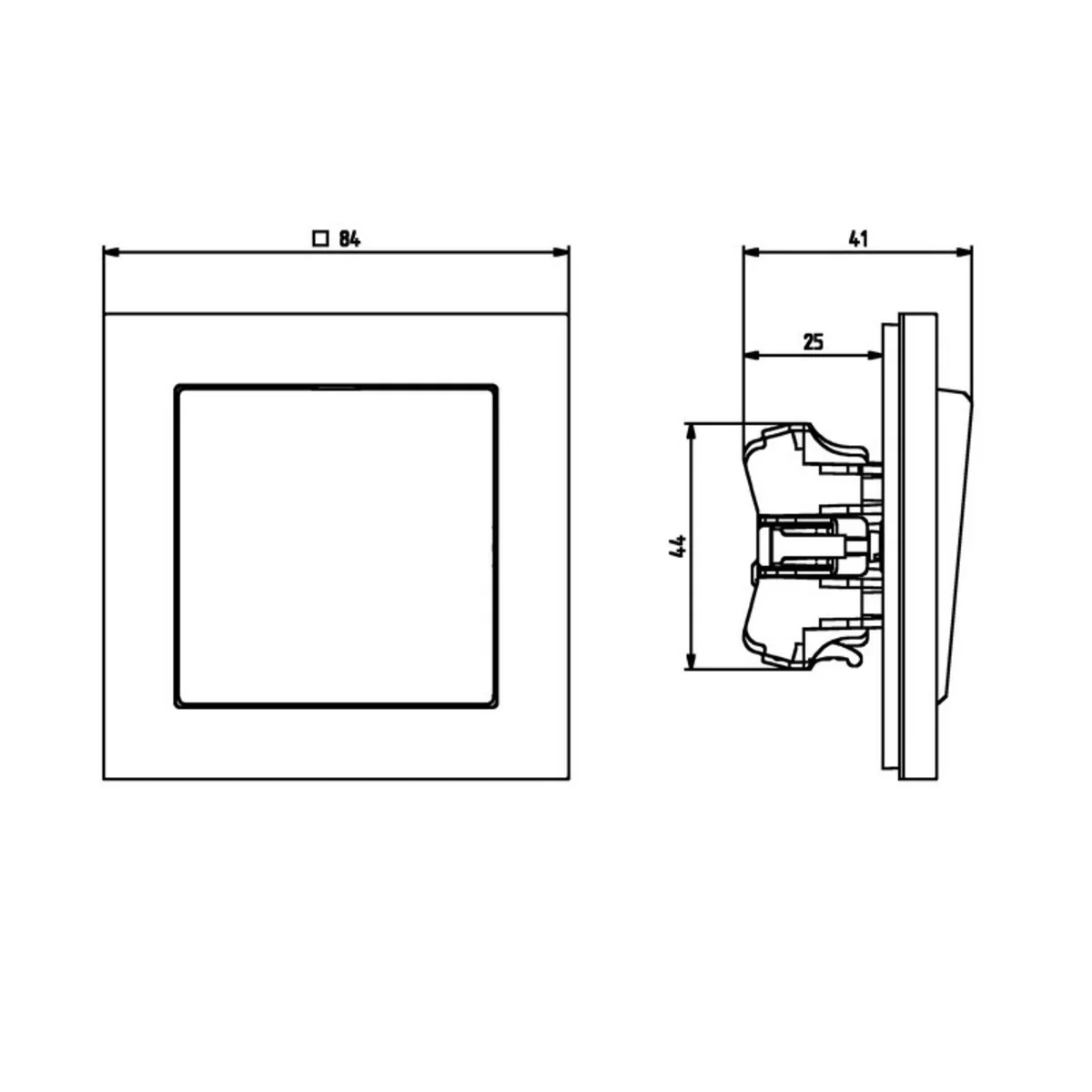

  • Dimensions: 71 x 71 mm (height x width).



SERIES DESCRIPTION

Collection Sonata is an arrangement solution meeting the highest technological standards, as well as a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.

The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible  they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.

Technical data

  • Depth [mm]
    42
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SONATA
  • Symbol
    Stairs
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threadless
  • Exact material
    Plastic Metal
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    25
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Two-way switch
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    no
  • Mounting method
    Flush-mounted
  • With mounting plate
    no
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Black
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    no
  • Washing machine switch
    no
  • Device height
    75 mm
  • Built-in depth
    25 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9005
  • Illumination
    No
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    16 AX
  • Connection type
    Push-in clamp
  • Device width
    75 mm
  • Device depth
    42 mm
