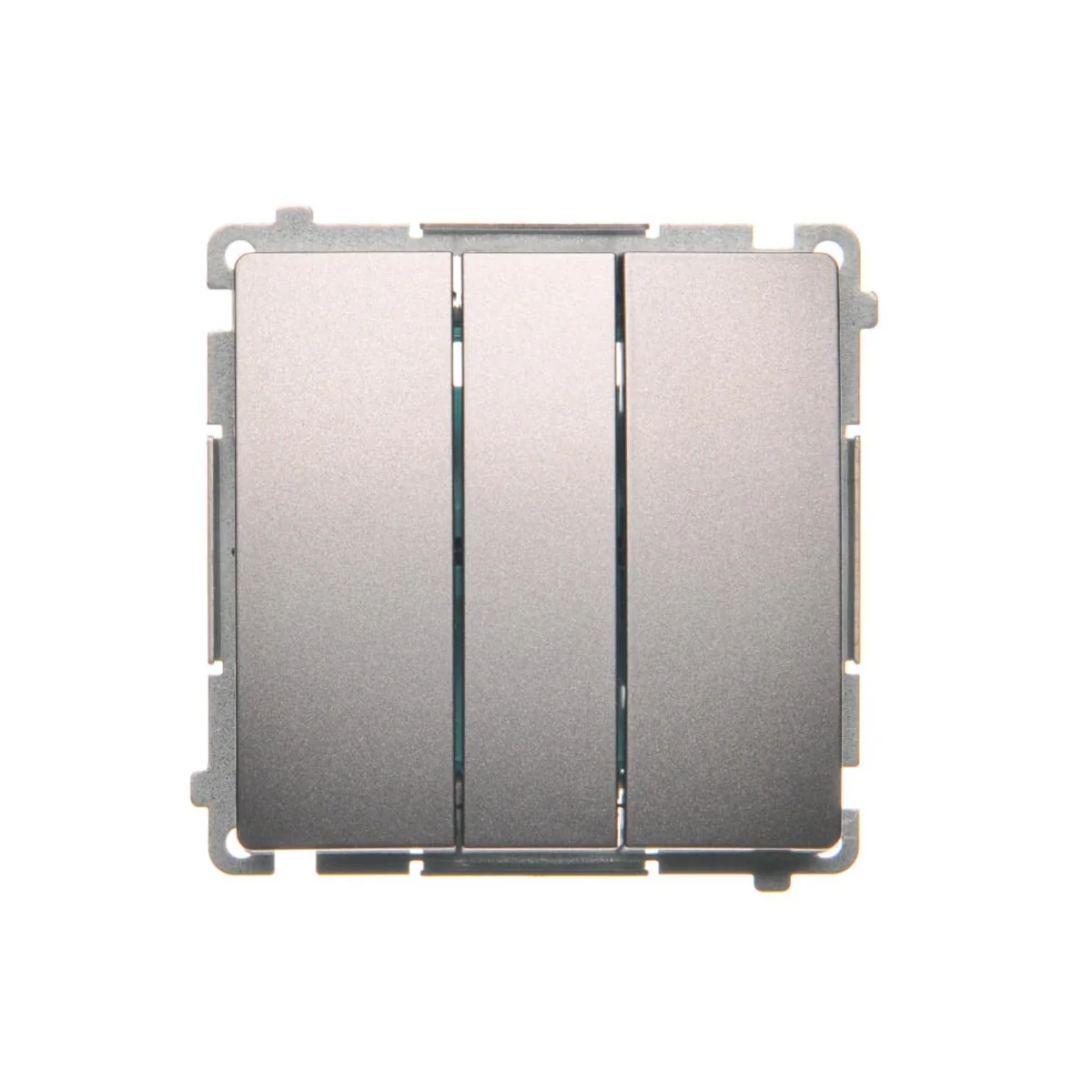

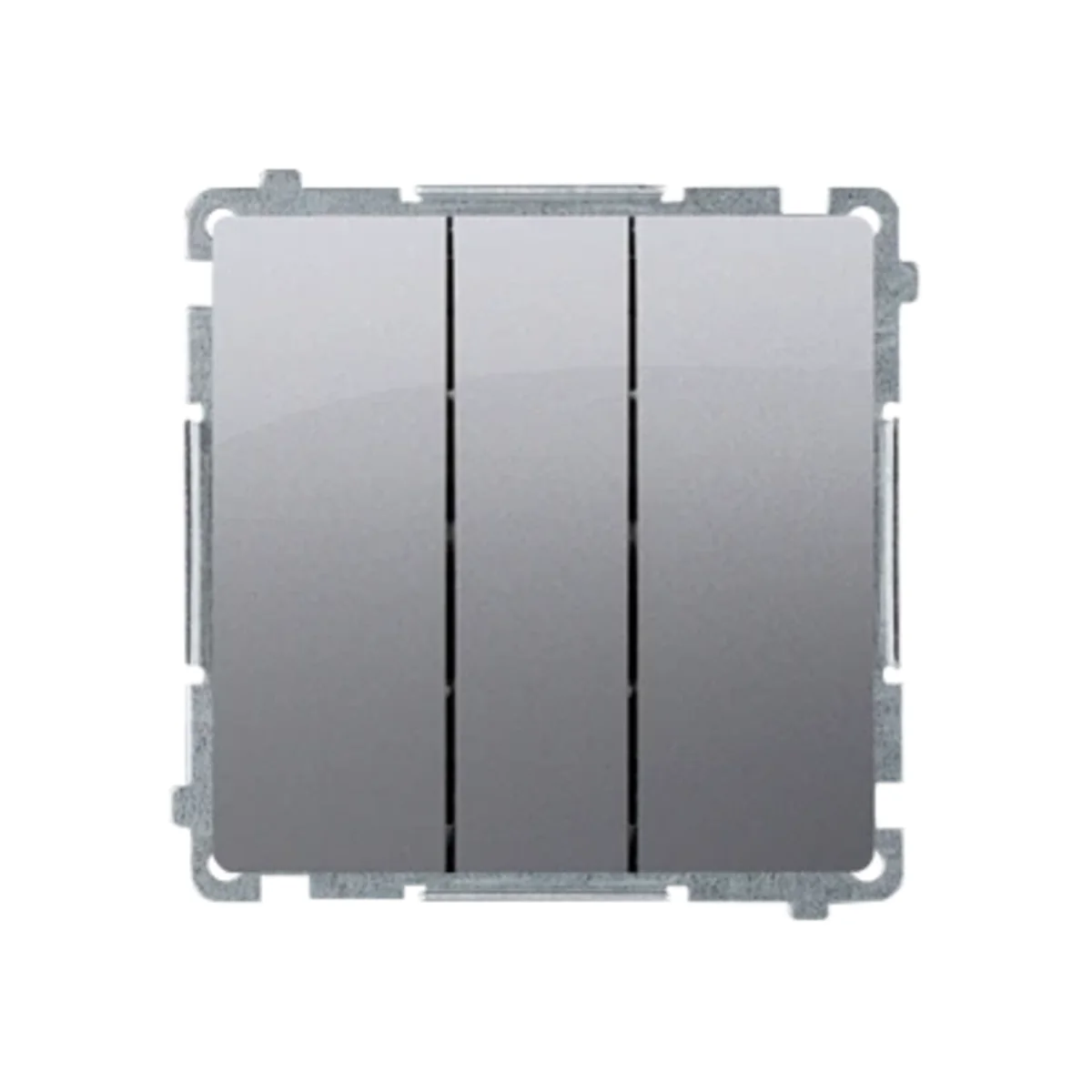

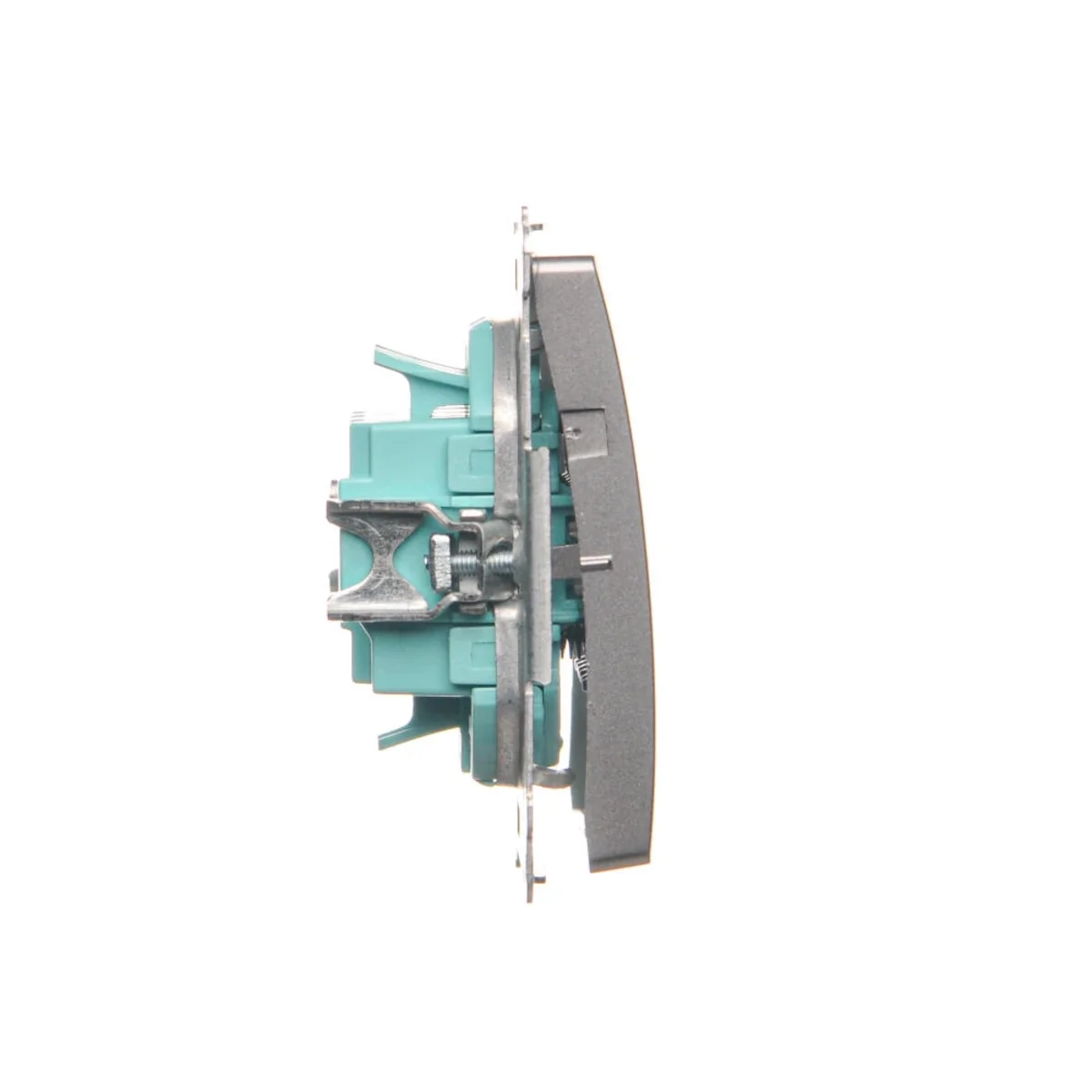

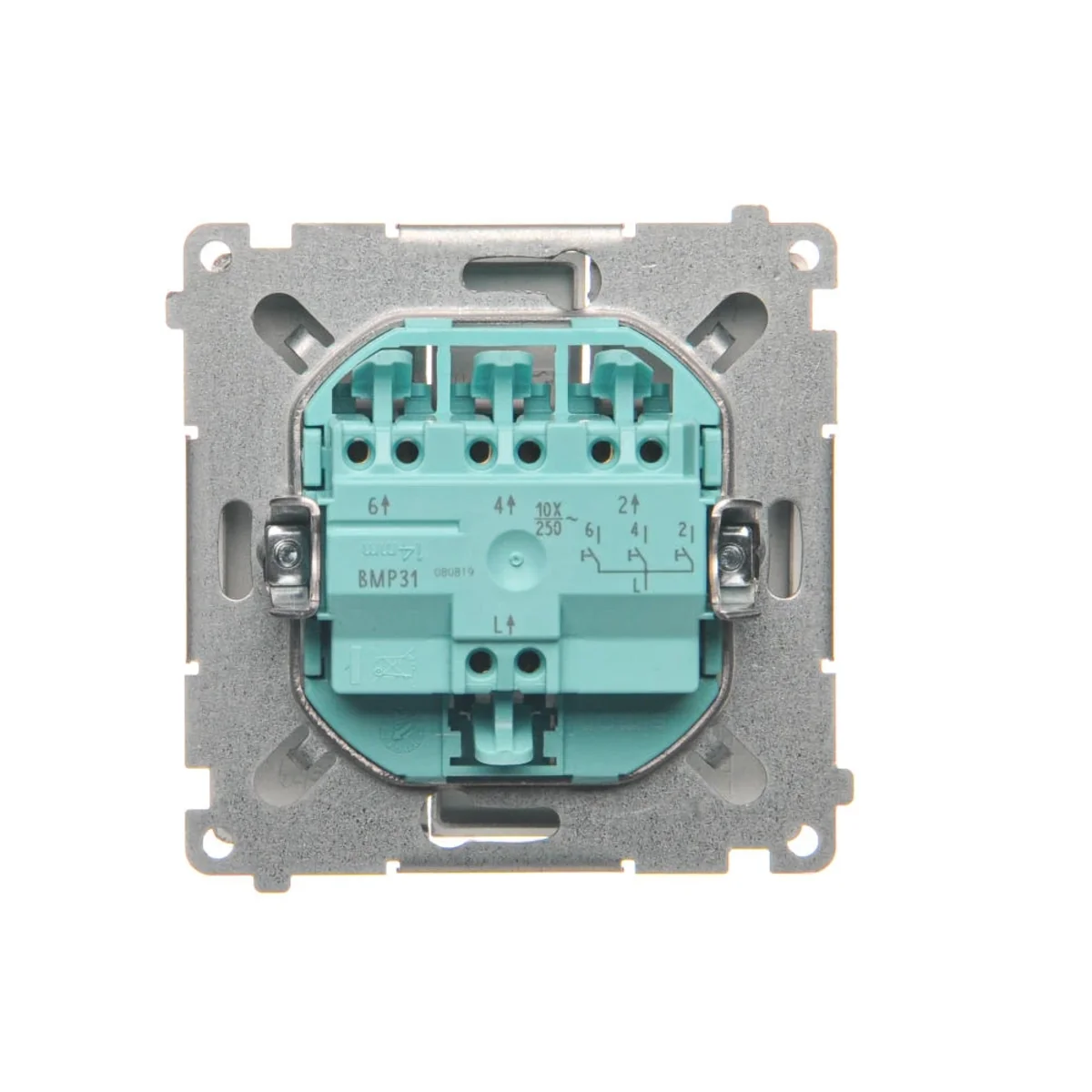

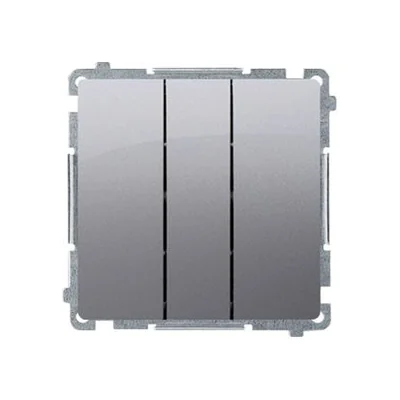

SIMON BASIC Triple pushbutton 10A 250V stainless steel BMP31.01/21

local index:
MMZ126KONT
Catalog No:
BMP31.01/21
EAN code:
5902787859657
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Number of keys: 3
Color: Silver
Price:
12,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Triple button from the Simon Basic series, from the manufacturer Contact Simon. The product catalog number is < strong>BMP31.01/21. Inox color, metallised.



FEATURES

  • Quick connectors.< /li>
  • 3x1-pole pushbutton (monostable).



SERIES DESCRIPTION

Functionality and classic appearance are characteristic features Simon Basic series, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technical data

  • Halogen free
    Yes
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Version
    Confident
  • Surface protection
    varnishing
  • Accurate color
    Metallized stainless steel
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Number of keys
    3
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    NO
  • Variant
    Ordinary
  • Exact material
    PC

Manufacturer details

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,075 0,075 0,840
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,045 0,230
Depth (m) 0,037 0,160 0,100
