Power switch, 3-pole, 400A, 15kA, installation and cable protection, fixed mounting, 1000V 119362

Name: Power switch, 3-pole, 400A, 15kA, installation and cable protection, fixed mounting, 1000V
Brand: EATON
SKU: ALP051MOEL
Price: 7670.80 PLN
Availability: BackOrder

Índice local:

ALP051MOEL

Número de catálogo:

119362

Código EAN:

4015081174980

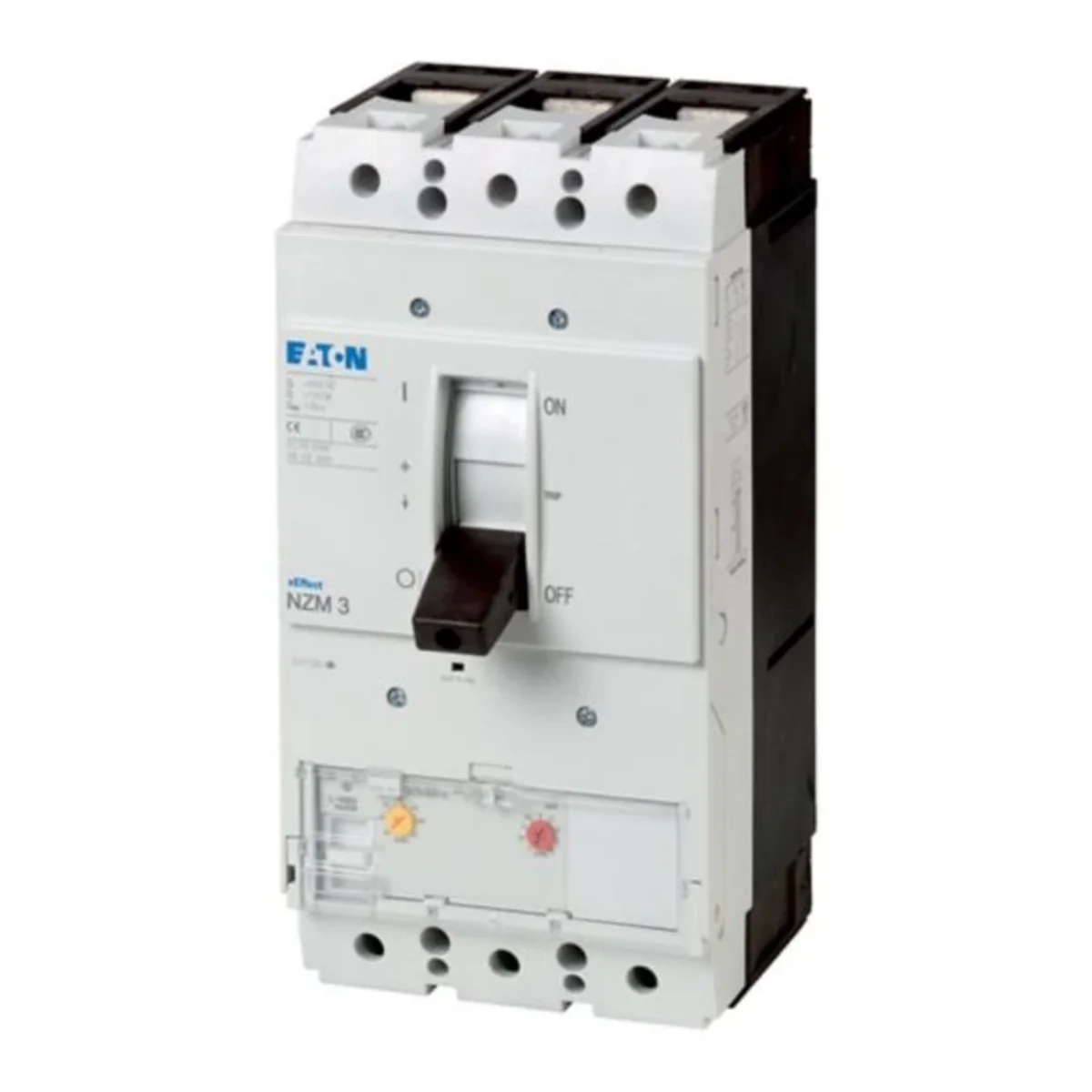

Power switch, 3-pole, 400A, 15kA, installation and cable protection, fixed mounting, 1000V

Haga clic en la foto para ampliar

Fabricante: EATON

Number of poles: 3

Installation: Constant

Operating voltage [V]: 1000

Ver descripción completa

Precio:

7 670,80 zł

gross / uds.

(IVA incluido 23%)

hasta 4 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel

Descripción del producto

The circuit breakers of the NZM..-AE series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With electronic release to protect installations and cables.

Datos técnicos

Number of poles

3
Operating voltage [V]

1000
Switching capacity [kA]

15

Installation

Constant
Rated current [A]

400

Otros datos técnicos

Rated permanent current Iu

400 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

150 kA
Adjustment range short-term delayed short-circuit release

0 ... 0 A
Integrated earth fault protection

No
Device construction

Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional

No
Number of auxiliary contacts as normally open contact

0
With switched-off indicator

No
Number of poles

3
Type of control element

Rocker lever
Motor drive integrated

No
Degree of protection (IP)

IP20

Rated voltage

1000 ... 1000 V
Overload release current setting

200 ... 400 A
Adjustment range undelayed short-circuit release

800 ... 4400 A
Type of electrical connection of main circuit

Screw connection
Suitable for DIN rail (top hat rail) mounting

No
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
With integrated under voltage release

No
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Detalles del fabricante

Fabricante

Eaton Electric Sp. z o.o.
Dirección

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Empaquetado a granel

una especie de paquete	Skrzynia	Karton
Cantidad	1 uds.	1 uds.
Peso (kg)	6,340	7,188
Volumen (m3)	0,006	0,006
Ancho (m)	0,142	0,140
Longitud (m)	0,168	0,166
Profundidad (m)	0,277	0,275
