Power switch, 3-pole, 320A, 50kA, Short-circuit protection 109681

Name: Power switch, 3-pole, 320A, 50kA, Short-circuit protection
Brand: EATON
SKU: ALP063MOEL
Price: 5200.92 PLN
Availability: BackOrder

Index local:

ALP063MOEL

Numéro de catalogue:

109681

Code EAN:

4015081092673

Power switch, 3-pole, 320A, 50kA, Short-circuit protection

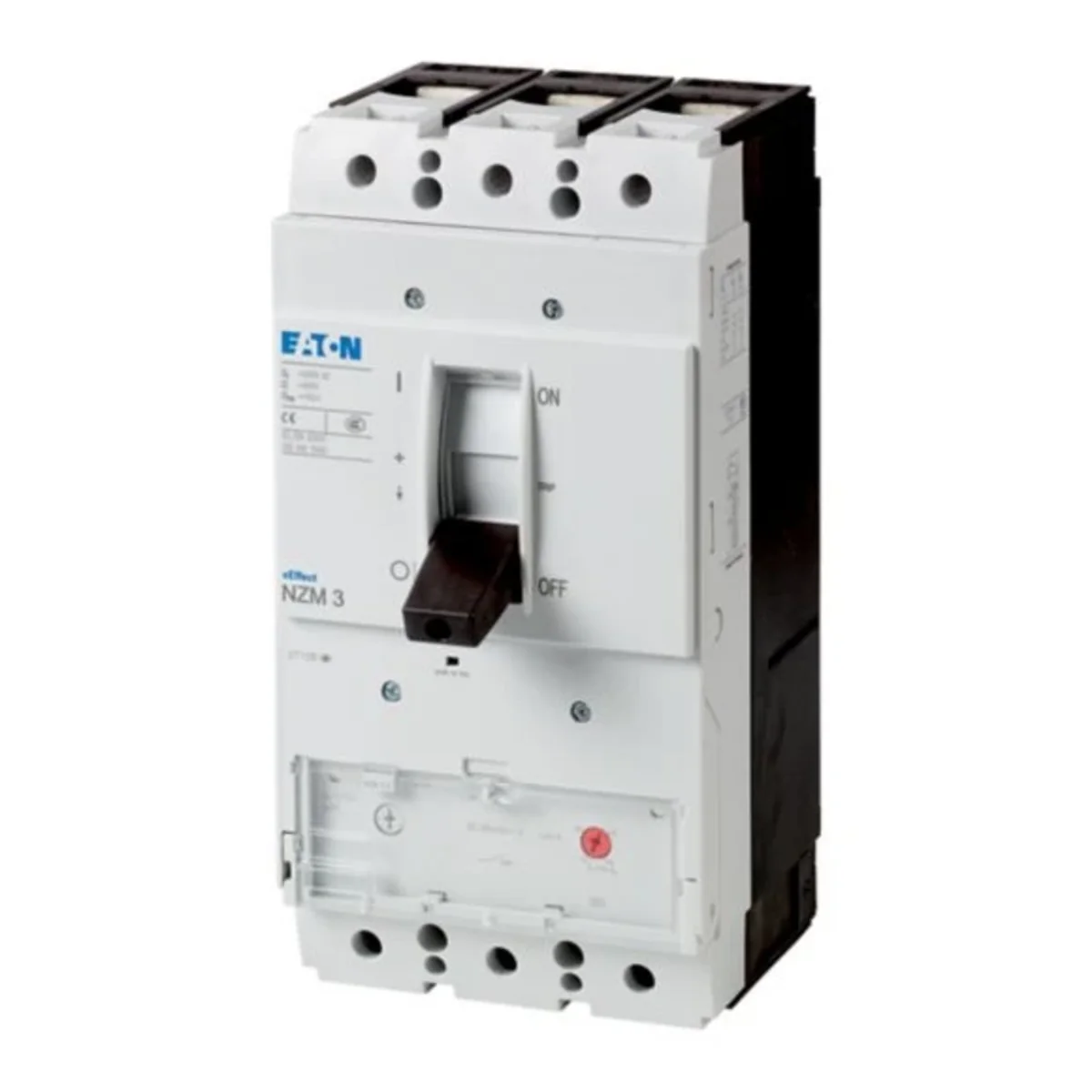

Cliquer sur la photo pour l'agrandir

Producteur: EATON

Number of poles: 3

Rated current [A]: 320

Switching capacity [kA]: 50

Voir la description complète

Prix:

5 200,92 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 4 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

The circuit breakers of the NZM..-S series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With magnetic short-circuit release in combination with motor protection relay with short-circuit release without overload release. Tips: Miniature circuit breakers meet all the requirements of the AC-3 utilization category.

Données techniques

Number of poles

3
Switching capacity [kA]

50

Rated current [A]

320

Autres données techniques

Overload release current setting

0 ... 0 A
With thermal overload protection

No
Switch off technique

Magnetic
Rated permanent current Iu

320 A
Rated operation power at AC-3, 400 V

160 kW
Type of control element

Rocker lever
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

140 mm

Adjustment range undelayed short-circuit release

8 ... 14 A
Phase failure sensitive

No
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

90 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Built-in device fixed built-in technique
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

35 kA
Height

275 mm
Depth

166 mm

Détails du fabricant

Producteur

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Emballage en vrac

Une sorte de paquet	Skrzynia	Karton
Quantité	1 pcs.	1 pcs.
poids (kg)	5,800	5,800
Volume (m3)	0,006	0,006
Largeur (m)	0,142	0,140
Longueur (m)	0,168	0,166
Profondeur (m)	0,277	0,275
