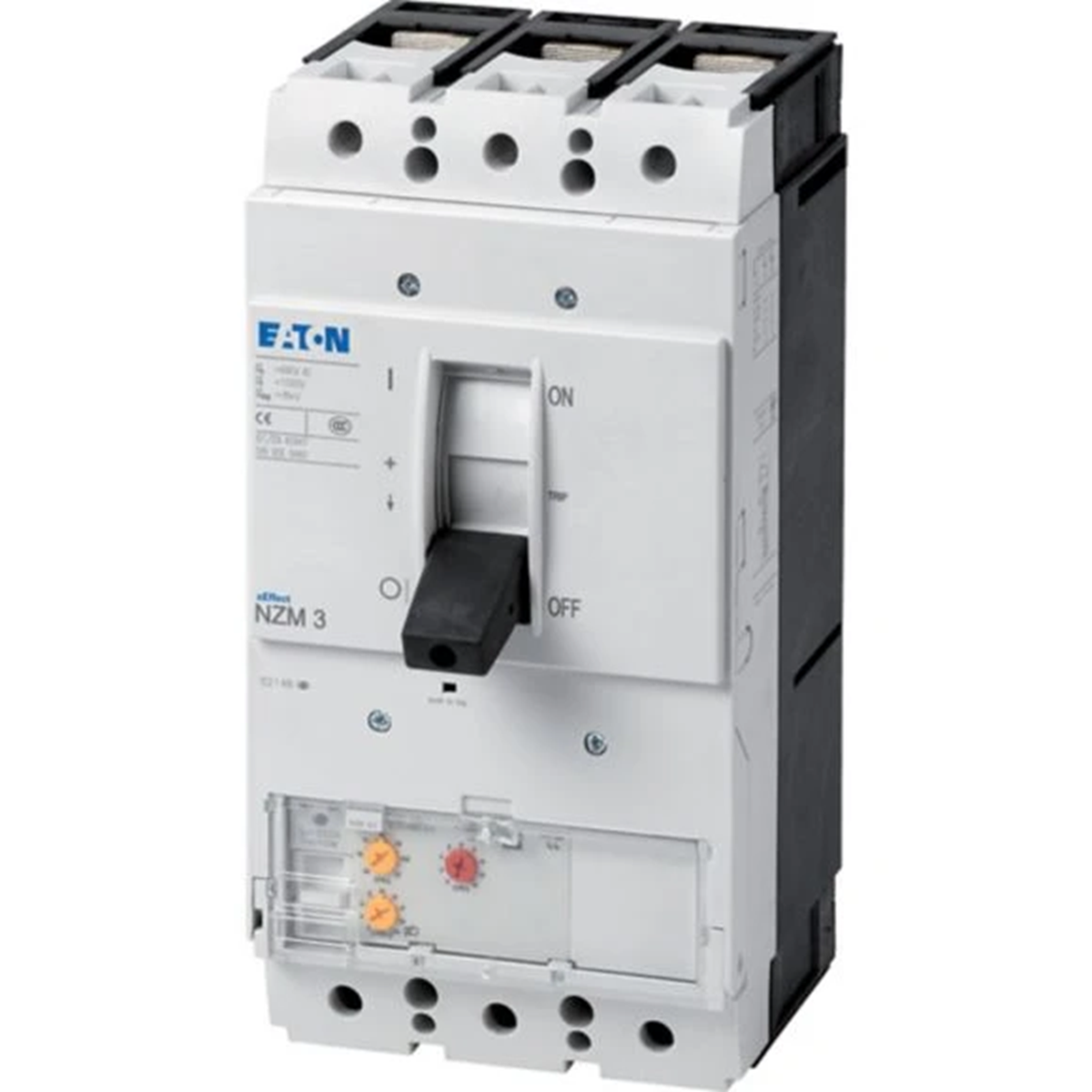

Power switch, 3-pole, 350A, 15kA, motor protection, 1000V 119365
local index:
ALP054MOEL
Catalog No:
119365
EAN code:
4015081175017
Price:
1926,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The circuit breakers of the NZM..-ME series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With electronic trip unit to protect the motor with phase failure sensitivity. Tips: Measuring RMS value and thermal memory, adjustable delay setting tr: 2-20s at 6xIr and infinity (without overload release), connection method NZM..S1: cover NZM..XKSA required, connection method NZM4..S1: insulated busbar connection (bolt connection NZM4-XKS)
Technical data
-
Number of poles3
-
Operating voltage [V]1000
-
Switching capacity [kA]15
-
InstallationConstant
-
Rated current [A]350
Other technical data
-
Overload release current setting175 ... 350 A
-
With thermal overload protectionYes
-
Switch off techniqueElectronic
-
Rated permanent current Iu350 A
-
Rated operation power at AC-3, 400 V200 kW
-
Type of control elementRocker lever
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width140 mm
-
Adjustment range undelayed short-circuit release350 ... 4900 A
-
Phase failure sensitiveYes
-
Rated operating voltage1000 ... 1000 V
-
Rated operation power at AC-3, 230 V110 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC130 kA
-
Height275 mm
-
Depth166 mm
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 6,340 |
| Volume (m3) | 0,006 |
| Width (m) | 0,140 |
| Length (m) | 0,166 |
| Depth (m) | 0,275 |
