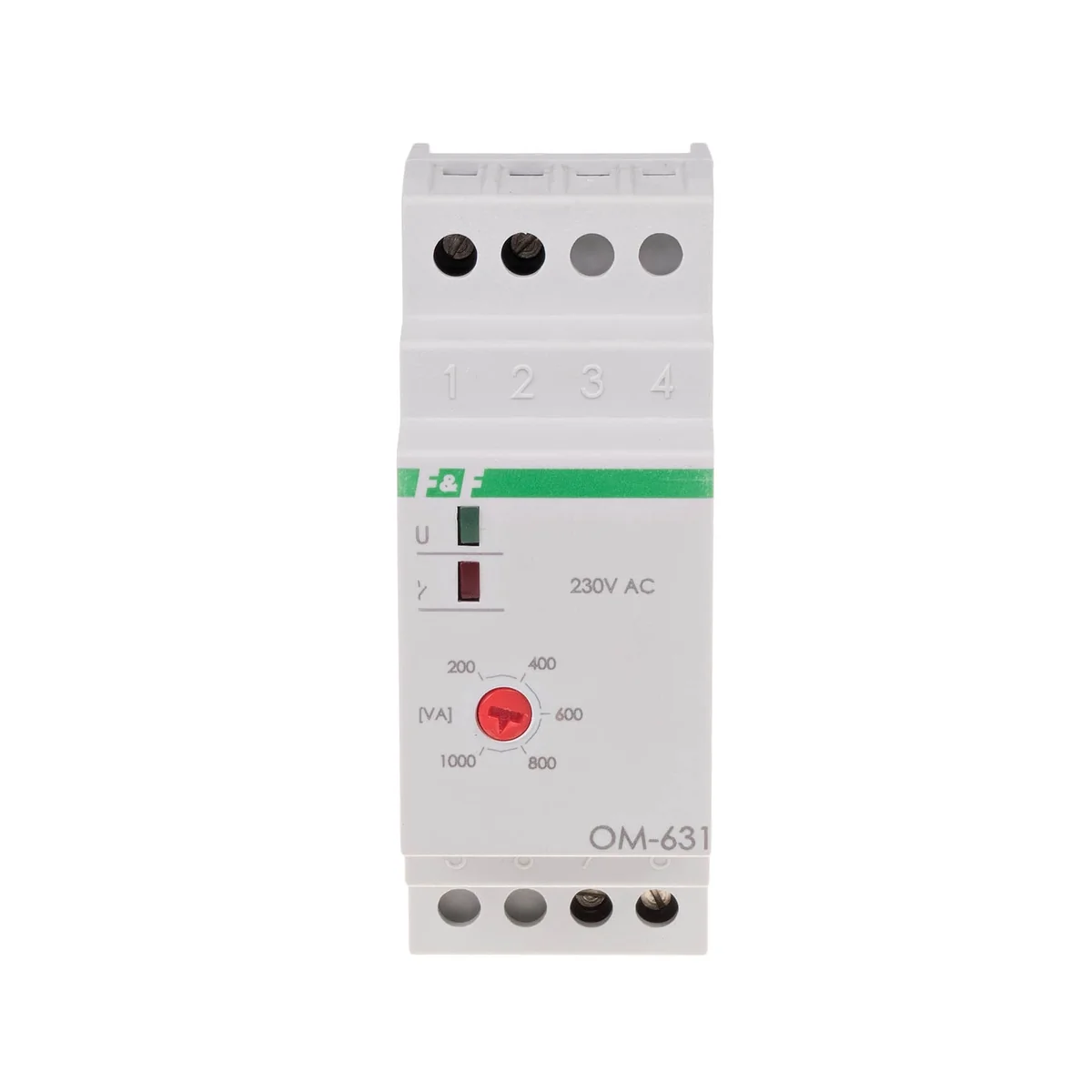

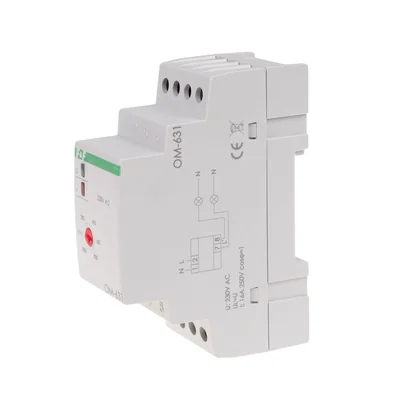

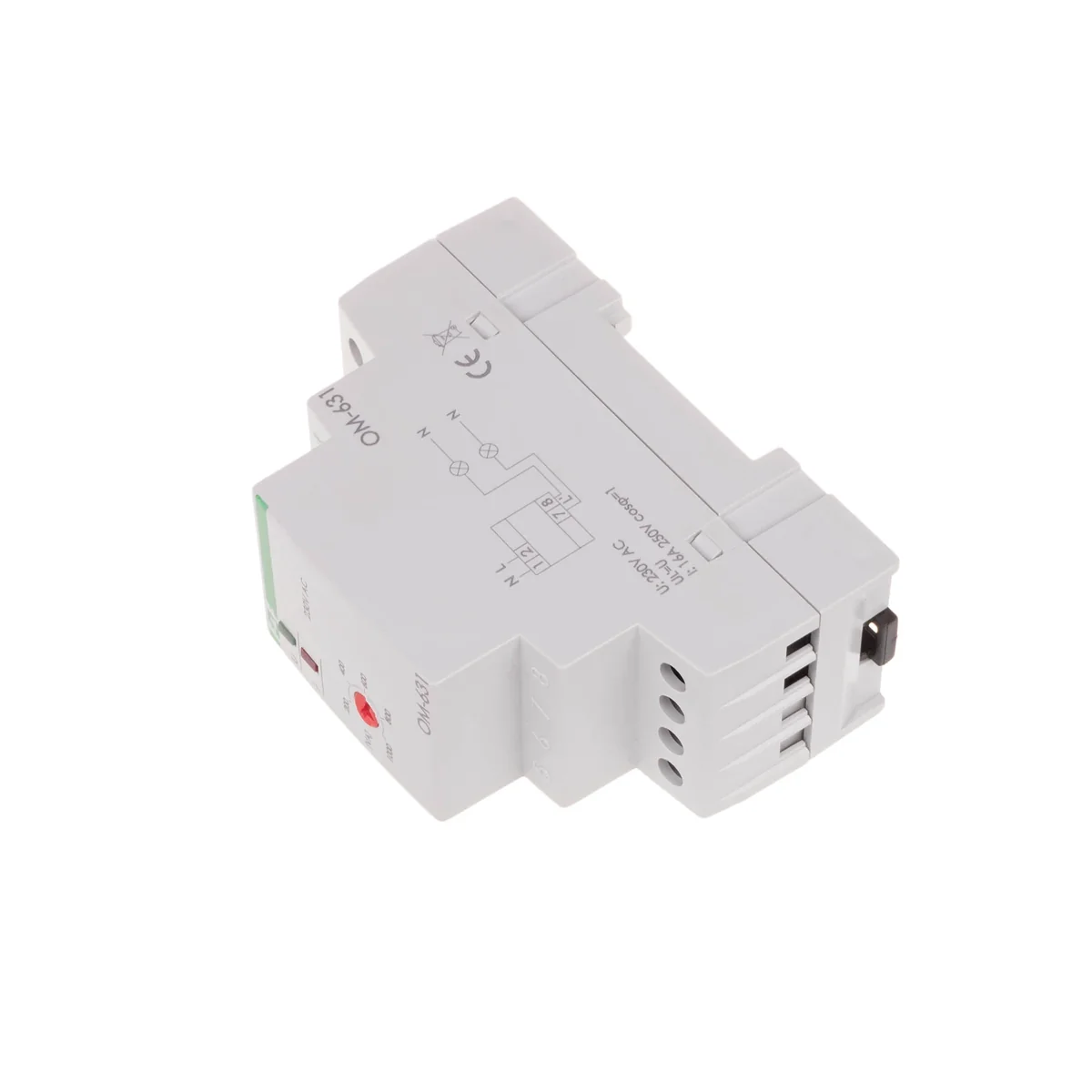

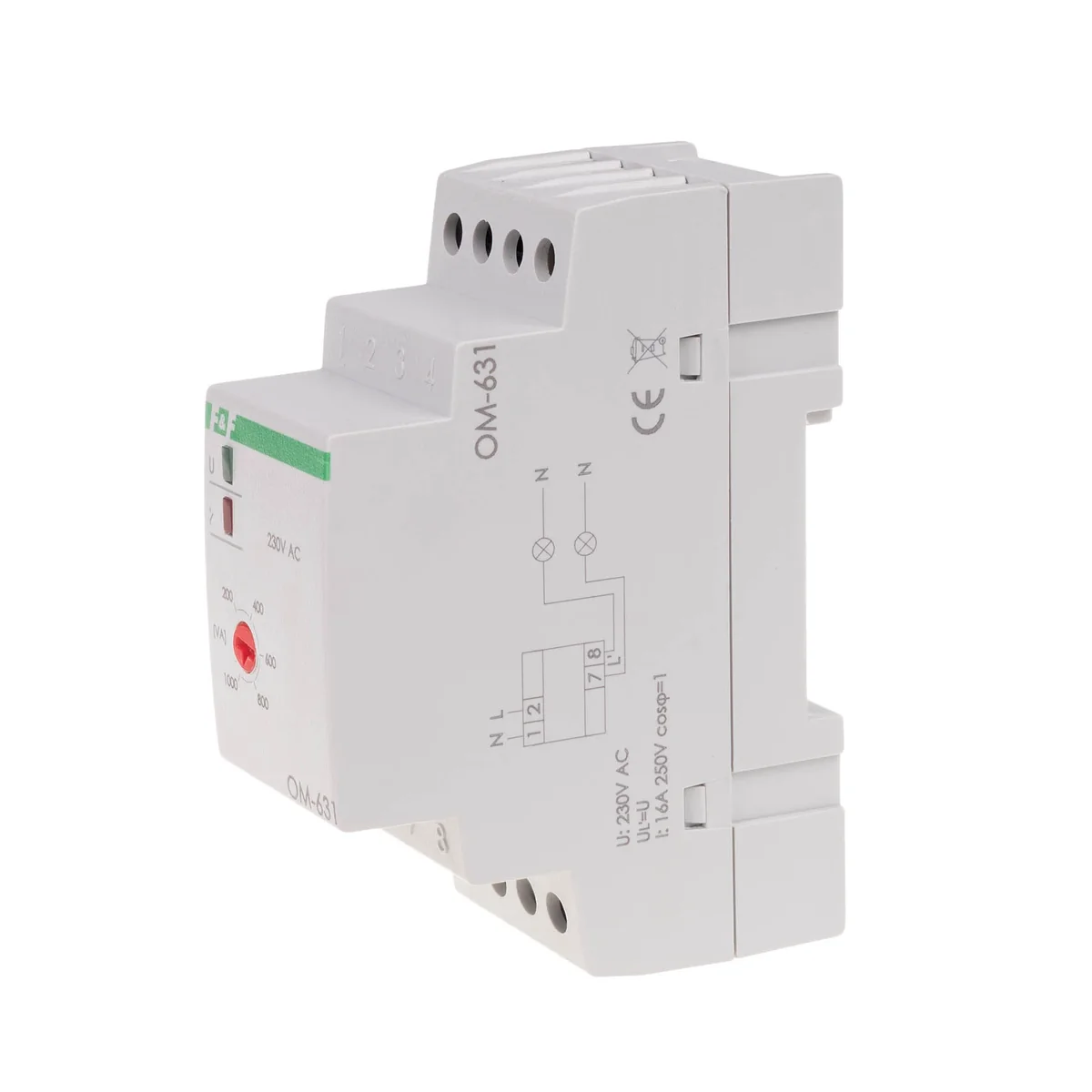

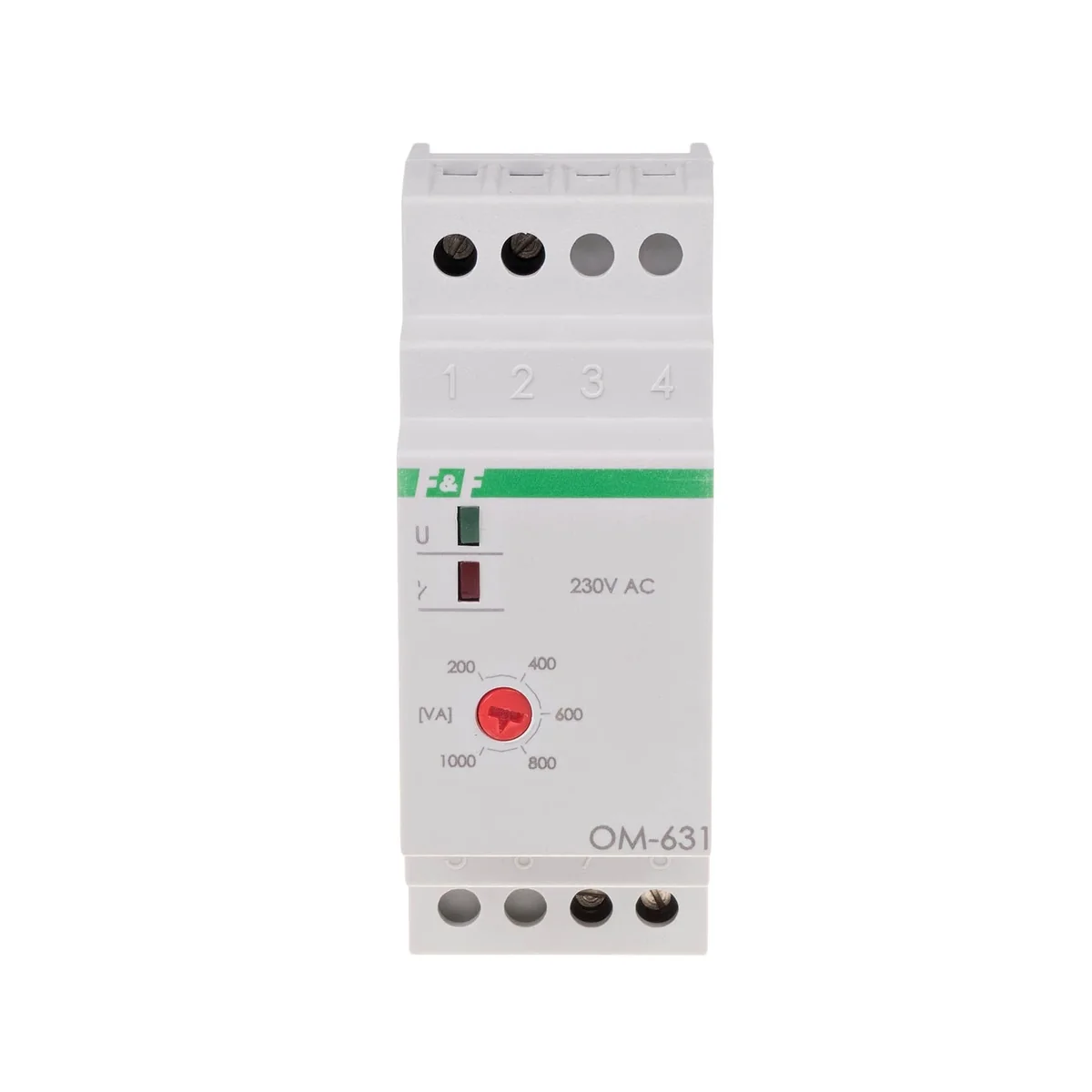

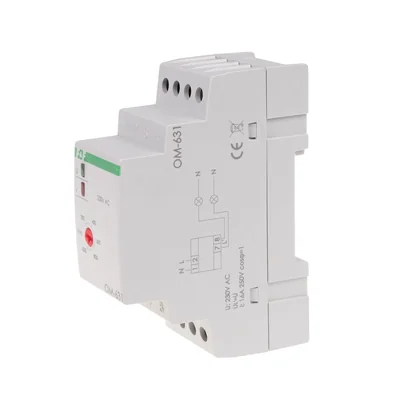

Power limiter / rail / OM-631 OM-631

local index:
APN109FIFQ
Catalog No:
OM-631
EAN code:
5908312592082
Manufacturer: F&F
Power recovery time [s]: thirty
Hysteresis [%]: 2
Power [W]: 0.8
Price:
27,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 20 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Purpose
The power consumption limiter is used to automatically disconnect the power supply to the electrical installation circuit in the event of exceeding the set value of power consumed by the receivers in this circuit. to supply the circuit when the total power of the receivers in the controlled circuit is lower than the one set on the limiter scale. Exceeding the set threshold of power consumption in the controlled circuit results in disconnecting the power supply to this circuit. Power will resume automatically after the set time. If the value of the consumed power is still greater than the set value, the power supply to the circuit will be disconnected again. The limiter has a system that delays its operation (1.5÷2sec), which prevents the power from being turned off in the event of temporary exceeding of the set power. switched-mode power supplies and other devices generating higher harmonics from 3rd and up.


Actuation threshold - adjustable [VA]200-1000



Technical data

  • Power recovery time [s]
    thirty
  • Power [W]
    0.8
  • Rated voltage [V]
    230
  • load current [A]
    <16
  • Working temperature [°C]
    From -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.13
  • Hysteresis [%]
    2
  • Installation
    On the TH-35 rail
  • Tripping delay
    1.5-2sec
  • connection
    2.5mm screw terminals
  • Dimensions
    2 modules (35mm)
  • Package width [mm]
    40
  • PKWIU
    27.12.24.0

Other technical data

  • Nominal measuring voltage
    230 V
  • Nominal operating current
    16 A
  • Voltage type
    AC
  • Frequency measuring voltage
    50 Hz
  • Number of phases
    1
  • Krótkozwłoczny
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,104
Width (m) 0,041
Length (m) 0,095
Depth (m) 0,070
