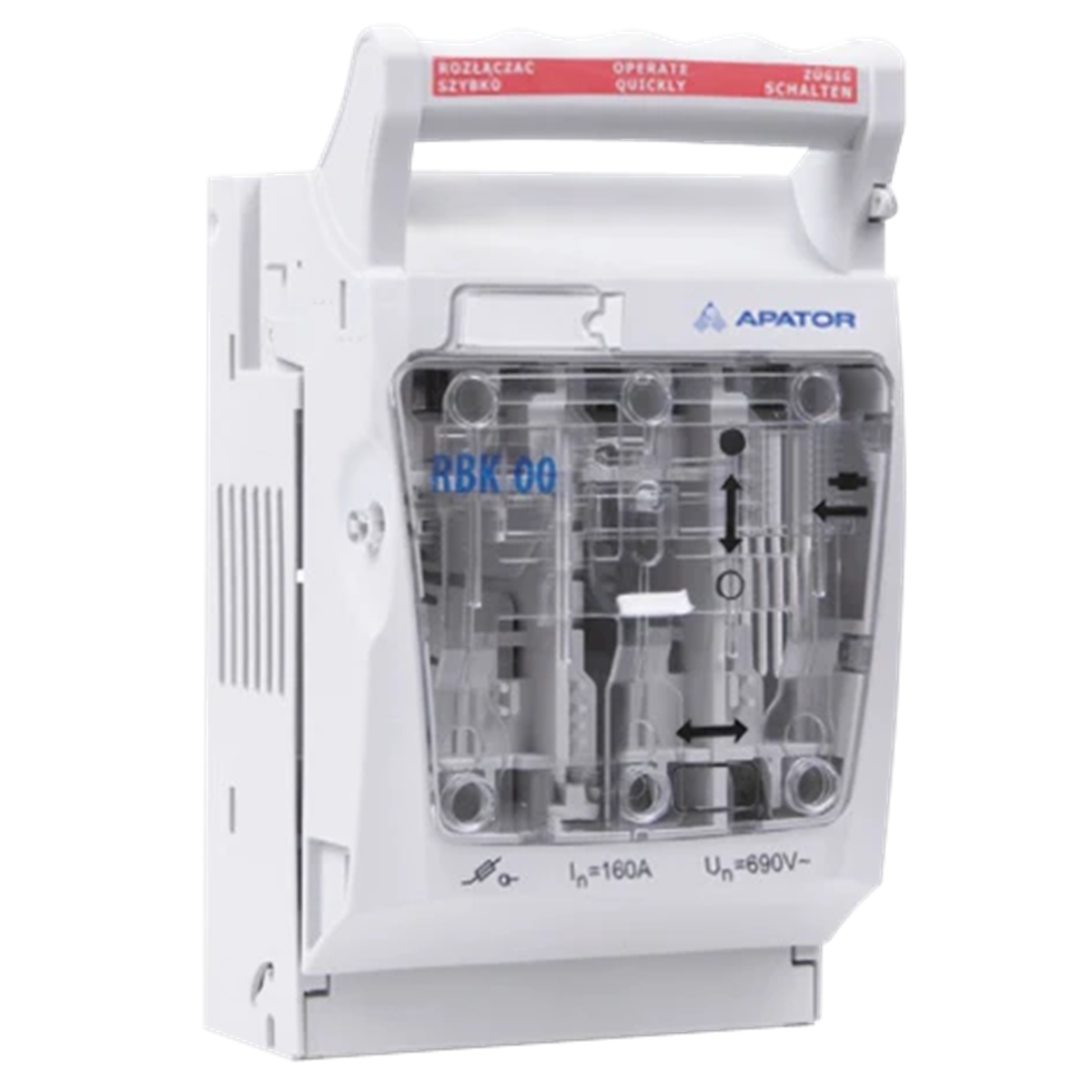

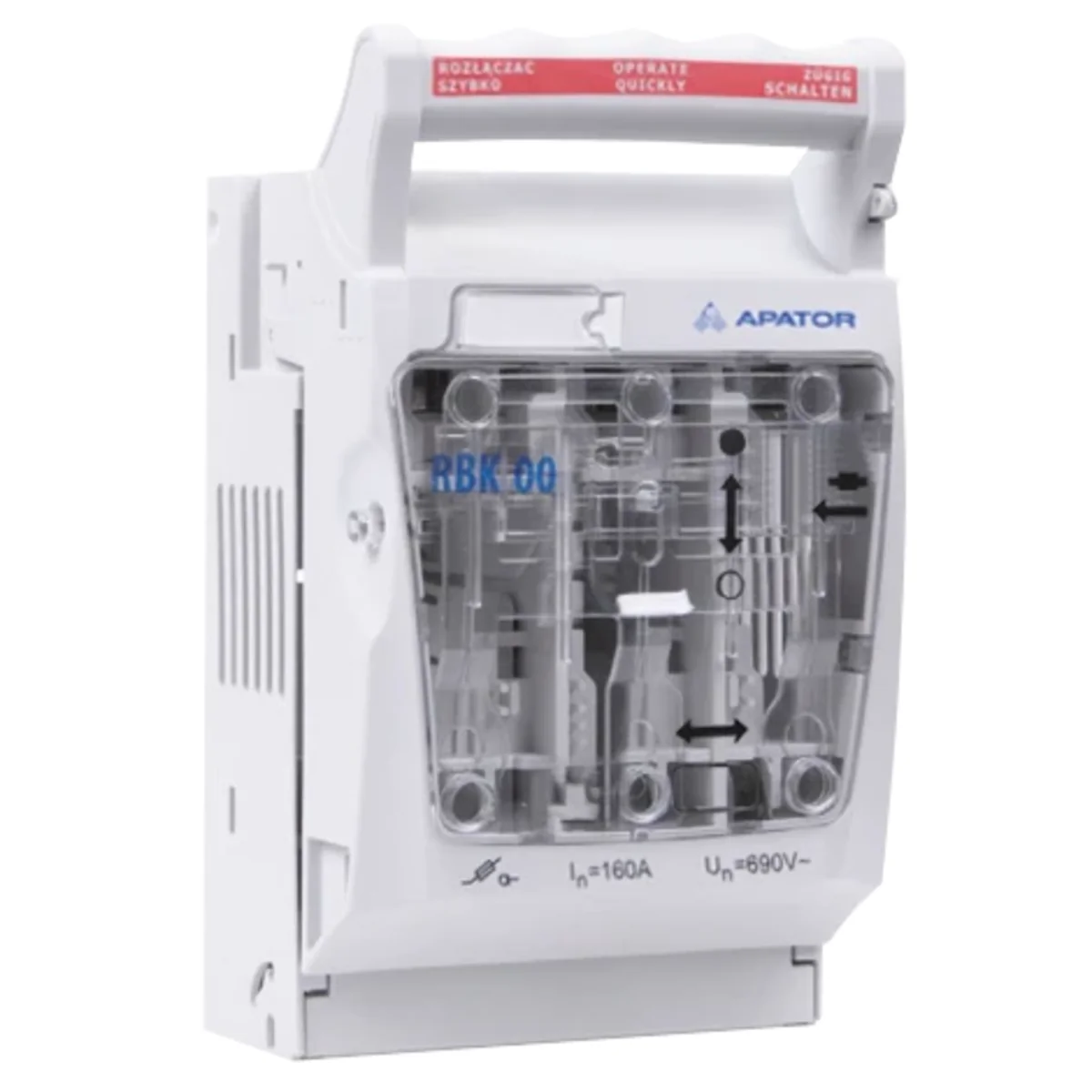

RBK 3P 160A fuse switch disconnector 63-823333-111

local index:
ALI005APAT
Catalog No:
63-823333-111
EAN code:
5906739021109
Manufacturer: APATOR
Frequency [Hz]: 50
Number of fuse links: 3x00
Material: Plastic
Price:
23,15 €
gross / pcs.
(including VAT 23%)
Last lowest price: 23,15 € gross
Base price: 56,44 € gross -59%
Delivery in 3h
Accessible 76 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


RBK pro fuse switch disconnectors are designed for distribution of electricity and protection of electrical devices against the effects of short circuits and overloads by means of industrial fuse links. They are dedicated to industrial LV switchgears and cable-distribution connectors. Equipped with a sealable cover, cage clamps for Cu/Al wires from 4 to 50 mm², double-gap contact system, extinguishing chambers with deionization plates on each contact. It is possible to change the direction of the outflow up-down and use a wide range of accessories. Basic version for mounting on a mounting plate.

Technical data

  • Frequency [Hz]
    50
  • Material
    Plastic
  • Rated voltage [V]
    690
  • Level of security
    IP20
  • Application
    Industrial LV switchboards and cable-distribution connectors.
  • PKWIU
    27.12.23.0
  • Number of fuse links
    3x00
  • Model
    RBK 00 PRO 160A
  • Rated current [A]
    160
  • Type
    AC-22B, AC21-B, DC-21B
  • Short-circuit capacity [kA]
    100
