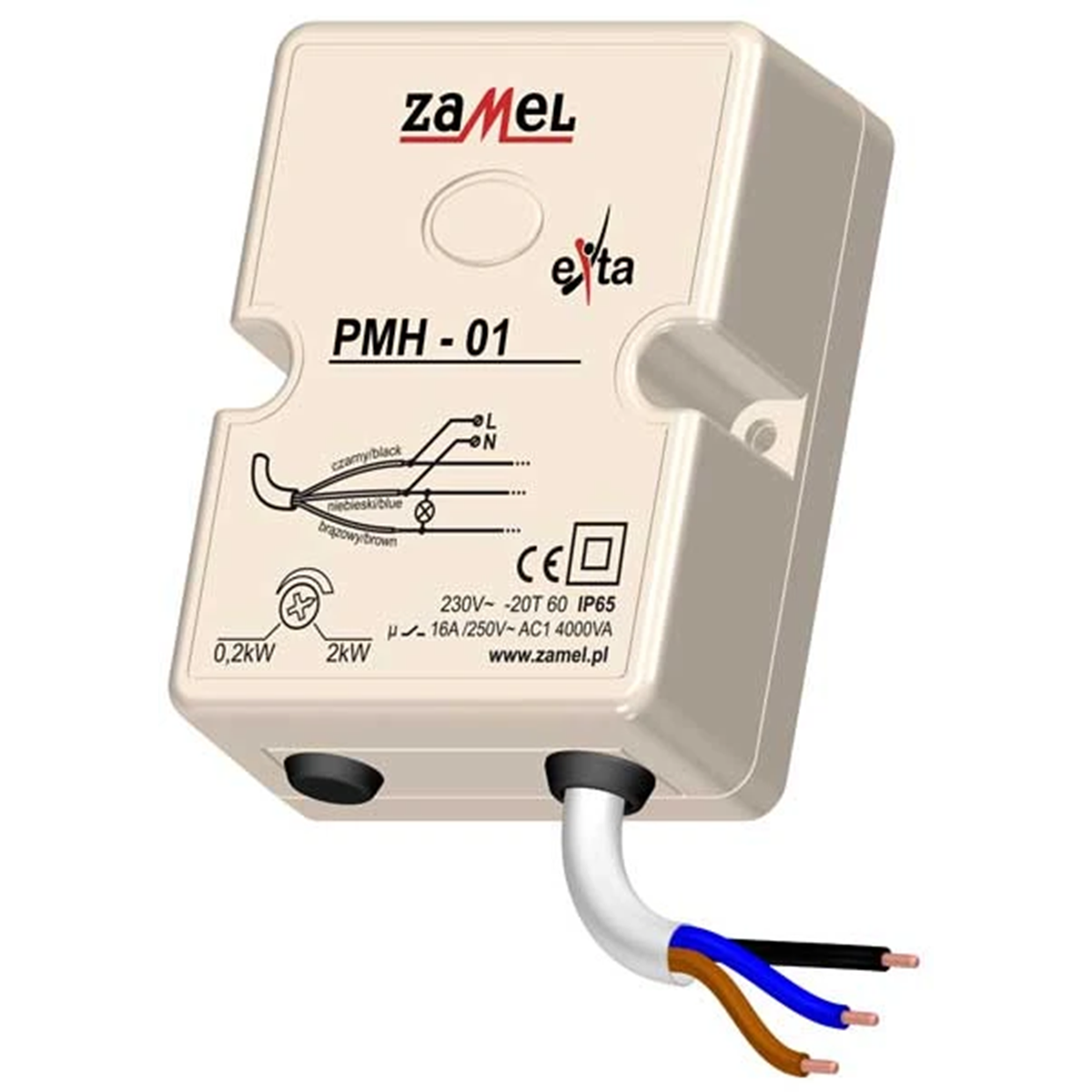

Power limiter 230V AC 0, 2-2kW TYPE: PMH-01 EXT10000101

local index:
APN005ZAME
Catalog No:
EXT10000101
EAN code:
5903669024873
Manufacturer: ZAMEL
Length [mm]: 27
Maximum relay power [VA]: 4000
Maximum power [W]: 2000
Price:
24,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 6 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

The PMH01 power limiter is used to automatically switch off the power supply in the supervised circuit when the set value of power consumed by the receivers is exceeded. The power value can be smoothly adjusted in the range from 0.2 to 2 kW using a potentiometer. Successive power measurement cycles are carried out every 40 seconds when the receivers are switched off. The hermetic housing ensures safe operation of the device in adverse conditions (IP65).

Technical data

  • Length [mm]
    27
  • Maximum power [W]
    2000
  • Relay current [A]
    16
  • Mounting method
    For screws
  • Contact
    1NO
  • Type
    limiters
  • PKWIU
    27.12.40.0
  • Maximum relay power [VA]
    4000
  • Rated voltage [V]
    230
  • Family
    EXTA
  • Level of security
    IP20
  • Width [mm]
    56
  • Height [mm]
    69
