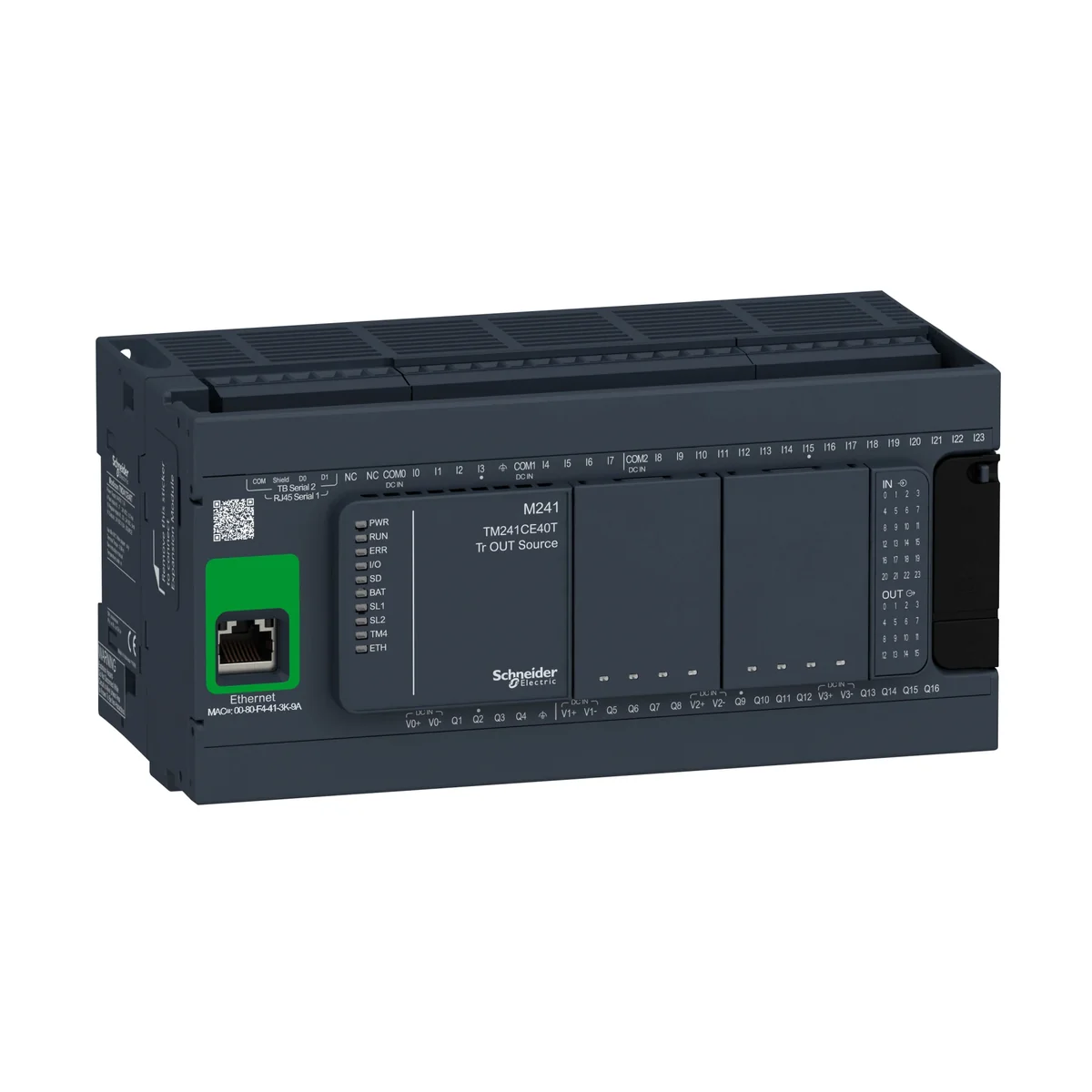

M241-40I/O Ethernet driver TM241CE40T

local index:
APS024SCHN
Catalog No:
TM241CE40T
EAN code:
3606480611209
Manufacturer: SCHNEIDER ELECTRIC
Height [mm]: 90
Price:
770,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

M241-40I/O Ethernet driver

Technical data

  • Height [mm]
    90
  • PKWIU
    26.20.13.0

Other technical data

  • Supply voltage DC
    19.2 ... 28.8 V
  • Number of relay outputs
    0
  • Model
    Compact
  • Number of HW-interfaces industrial Ethernet
    1
  • Number of HW-interfaces RS-232
    2
  • Number of HW-interfaces RS-485
    2
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces other
    0
  • Number of analogue inputs
    0
  • Number of digital outputs
    16
  • Supporting protocol for TCP/IP
    Yes
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    Yes
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • System accessory
    No
  • With display
    No
  • Memory size
    64000 kB
  • Rail mounting possible
    Yes
  • Front built-in possible
    No
  • Suitable for safety functions
    No
  • Performance level according to EN ISO 13849-1
    None
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    None
  • Height
    90 mm
  • Voltage type (supply voltage)
    DC
  • Max. number of time switches
    0
  • Processing time (1K, binary operation)
    0.022 ms
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces USB
    1
  • Number of HW-interfaces wireless
    0
  • Number of analogue outputs
    0
  • Number of digital inputs
    24
  • With optical interface
    No
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    Yes
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Redundancy
    No
  • Type of memory
    NVRAM
  • Additional program memory possible
    Yes
  • Wall mounting/direct mounting
    Yes
  • Rack-assembly possible
    No
  • SIL according to IEC 61508
    None
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    None
  • Width
    190 mm
  • Depth
    95 mm
