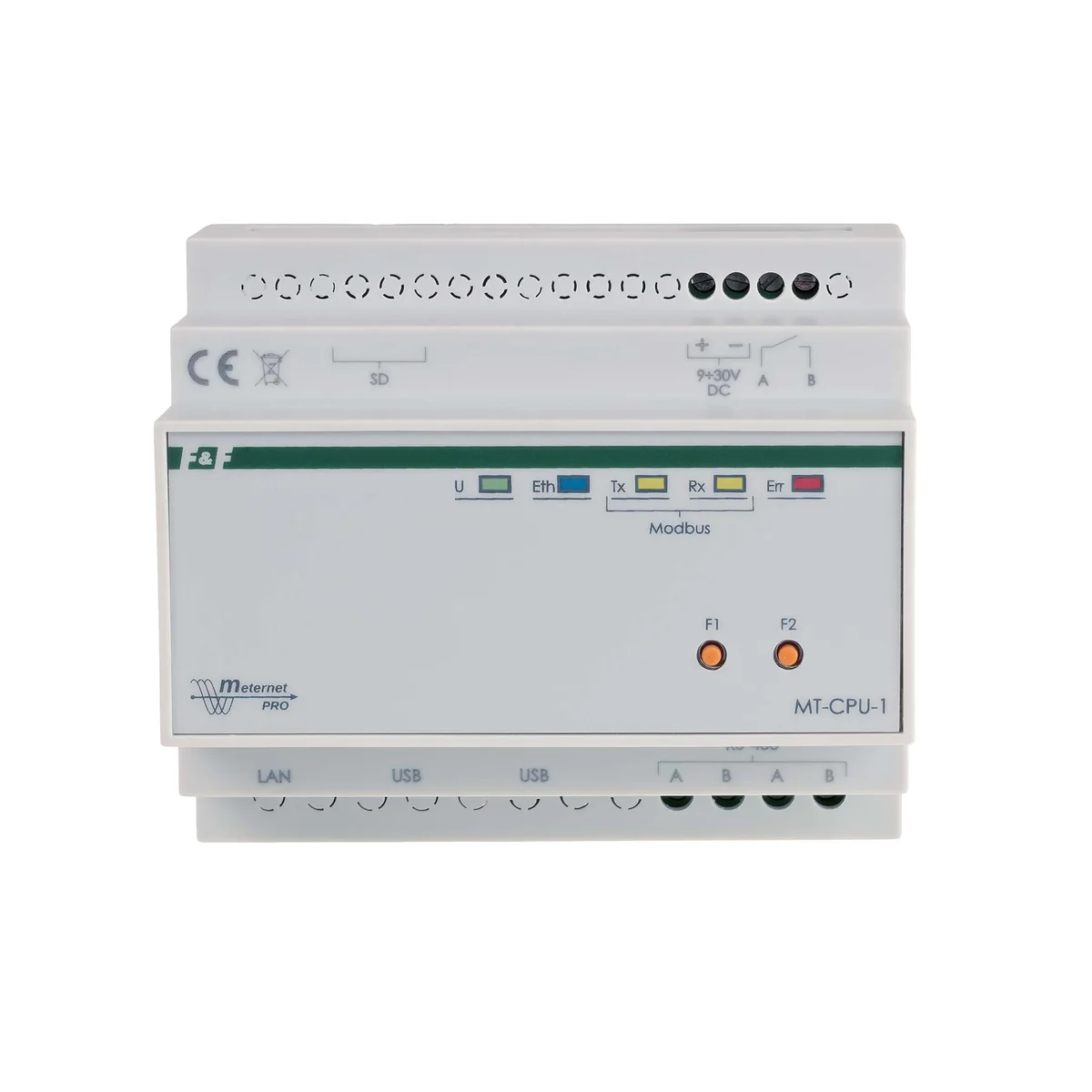

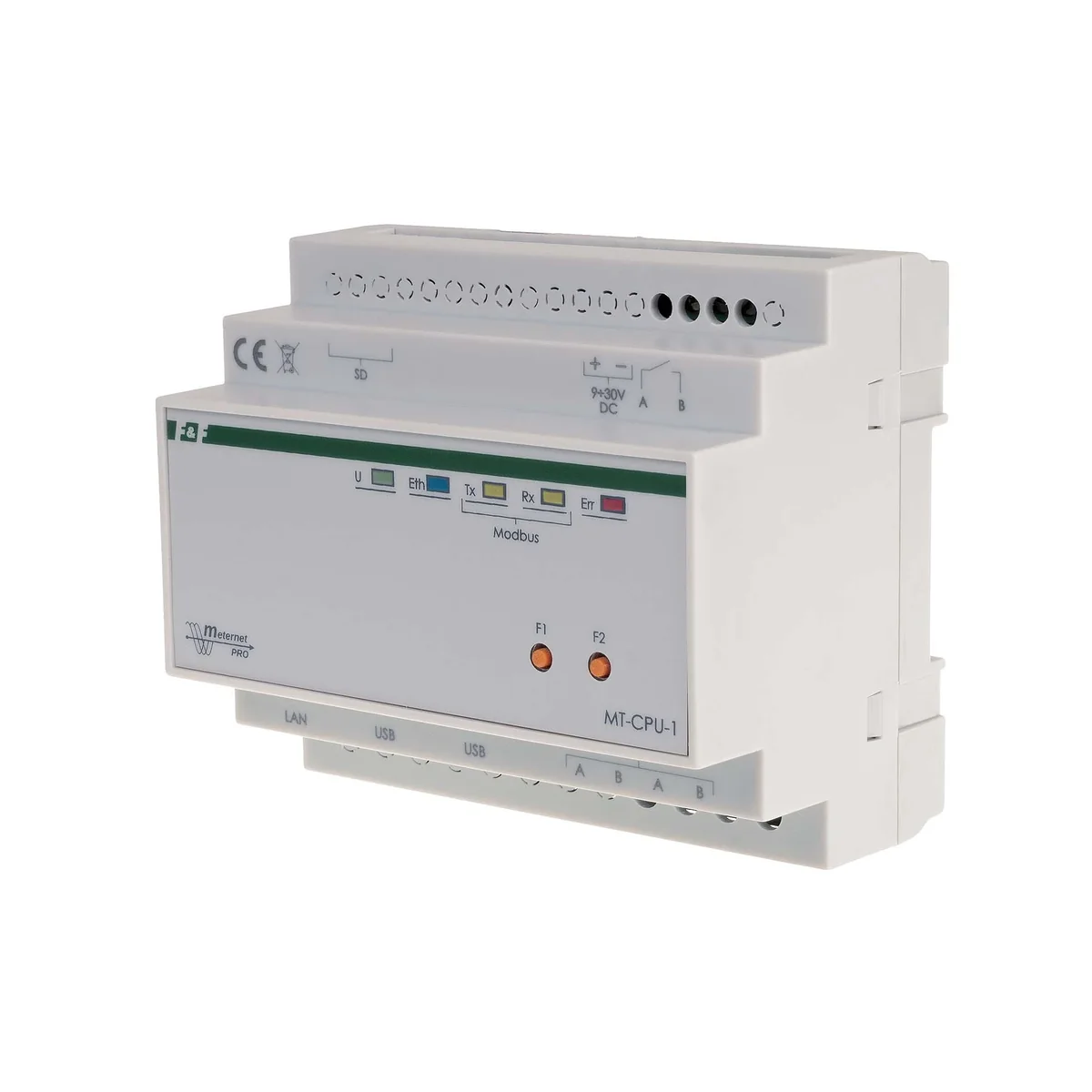

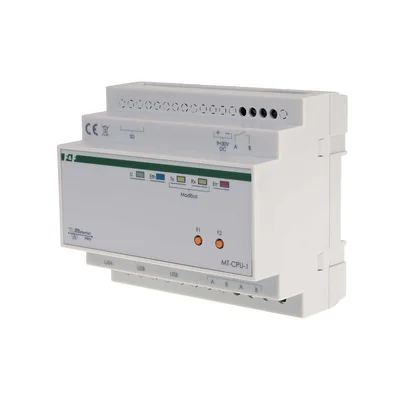

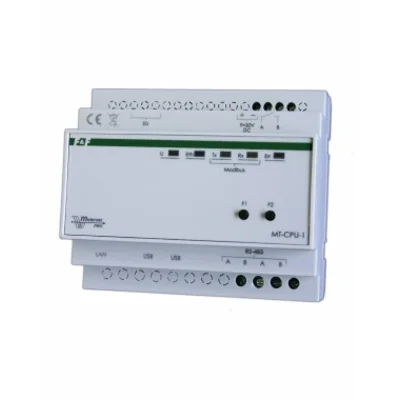

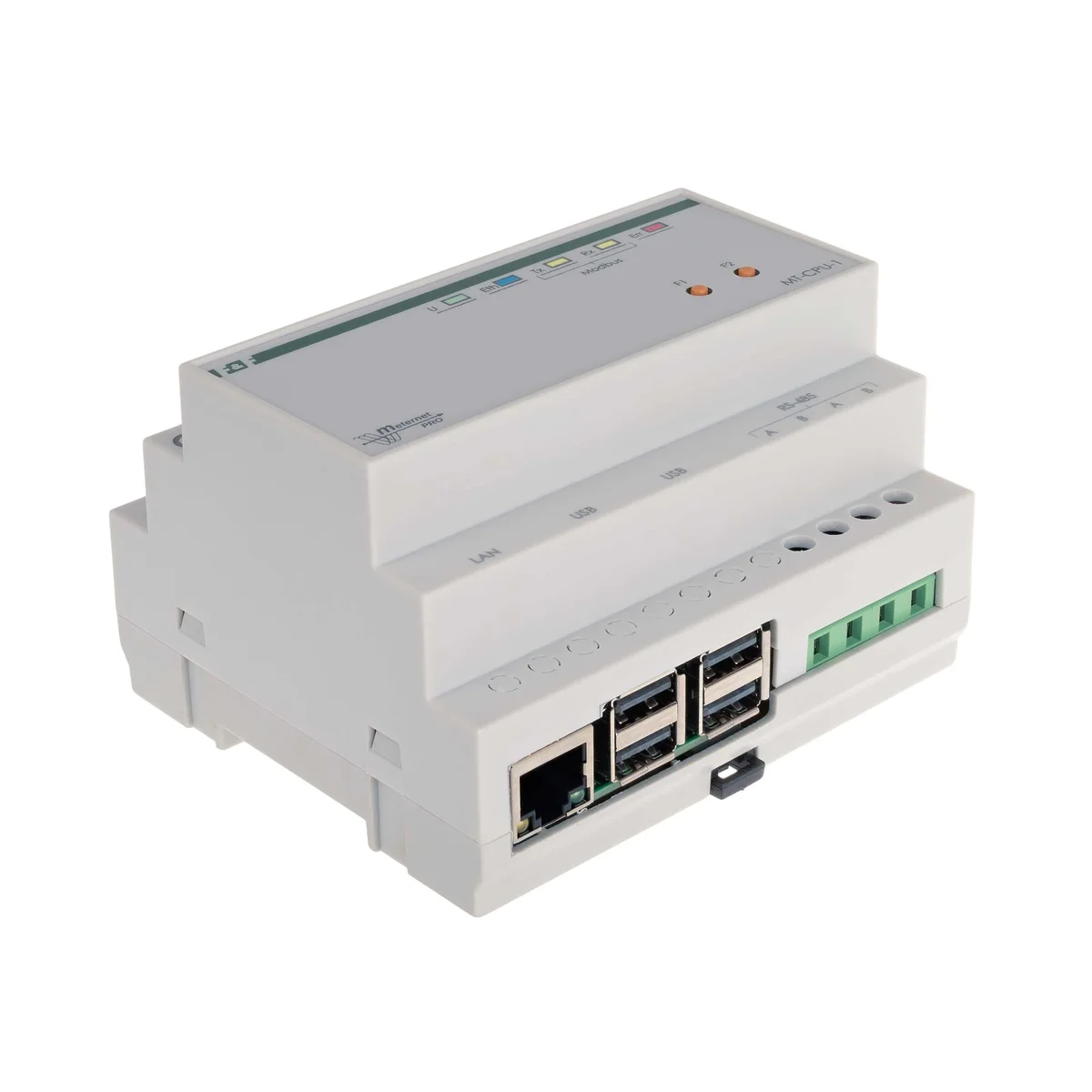

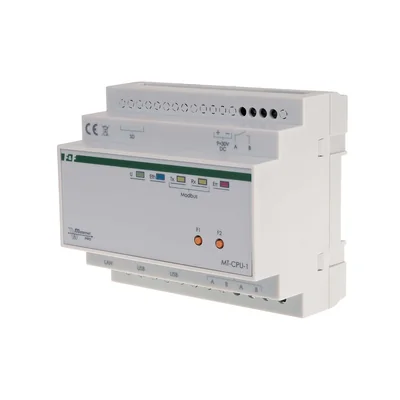

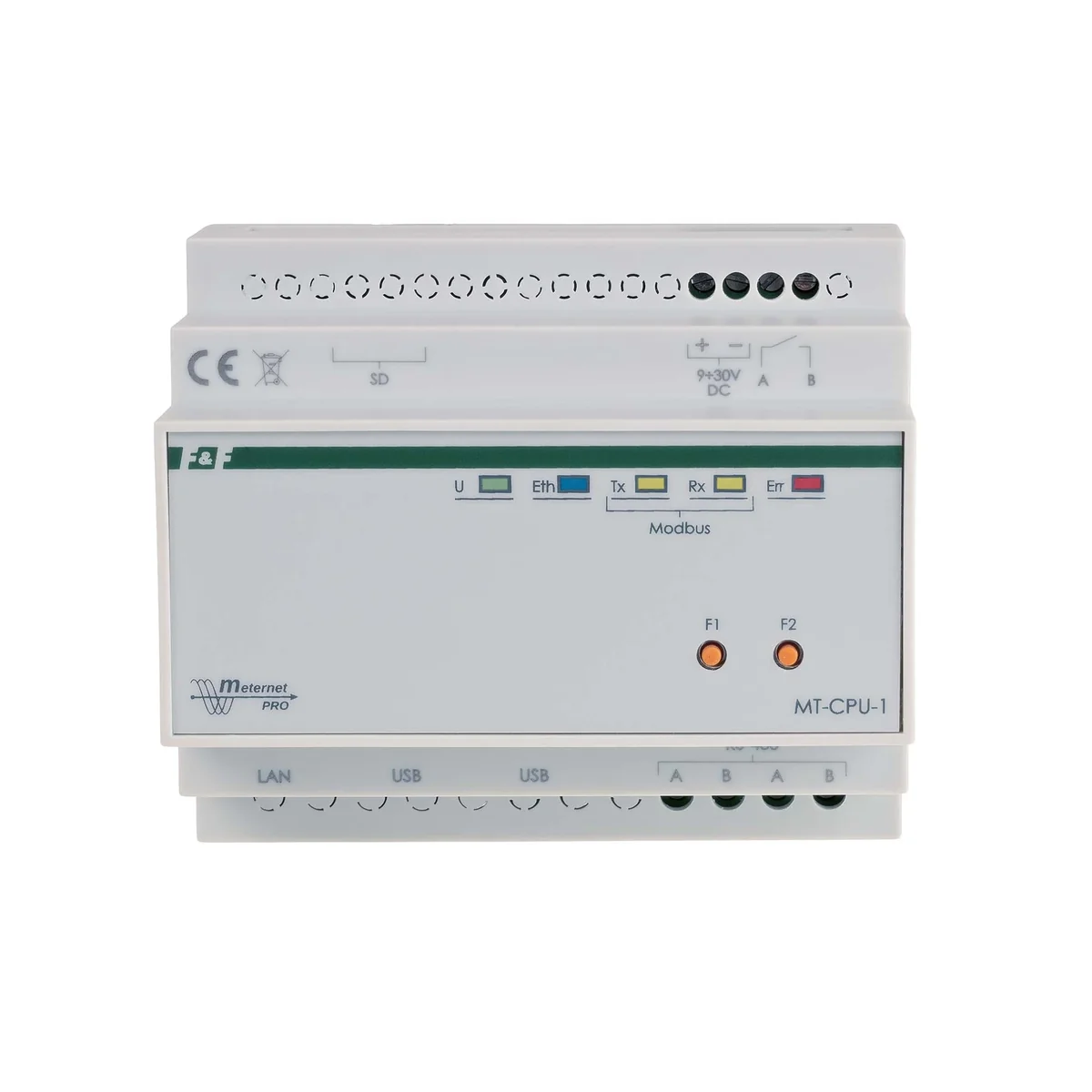

Hardware server MT-CPU-1 MAX-MT-CPU-1

local index:
APS014FIFQ
Catalog No:
MAX-MT-CPU-1
EAN code:
5908312598435
Manufacturer: F&F
Rated voltage [V]: 12
Working temperature [°C]: -25-50
Dimensions: 6 modules (105mm)
Price:
308,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The MeternetPRO program enables remote reading of the states and indications of meters, multimeters, measuring transducers, input/output expansion modules and other measuring devices communicating in accordance with the Modbus RTU protocol. Data exchange between the devices and the application is carried out via the RS-485 network or the local LAN network. The program together with the database is installed on a special MT-CPU-1 server, which works in the local network. The software user interface is a web application (web page). The program can be accessed via any web browser. In the case of a LAN with a public IP address, it is possible to configure the program and read data via the Internet.System Memory [GB]
8



Technical data

  • Rated voltage [V]
    12
  • Dimensions
    6 modules (105mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.7
  • Working temperature [°C]
    -25-50
  • Real Time Clock
    Yes
  • Package width [mm]
    130
  • PKWIU
    26.20.13.0

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,223
Width (m) 0,071
Length (m) 0,095
Depth (m) 0,070
