Intended use

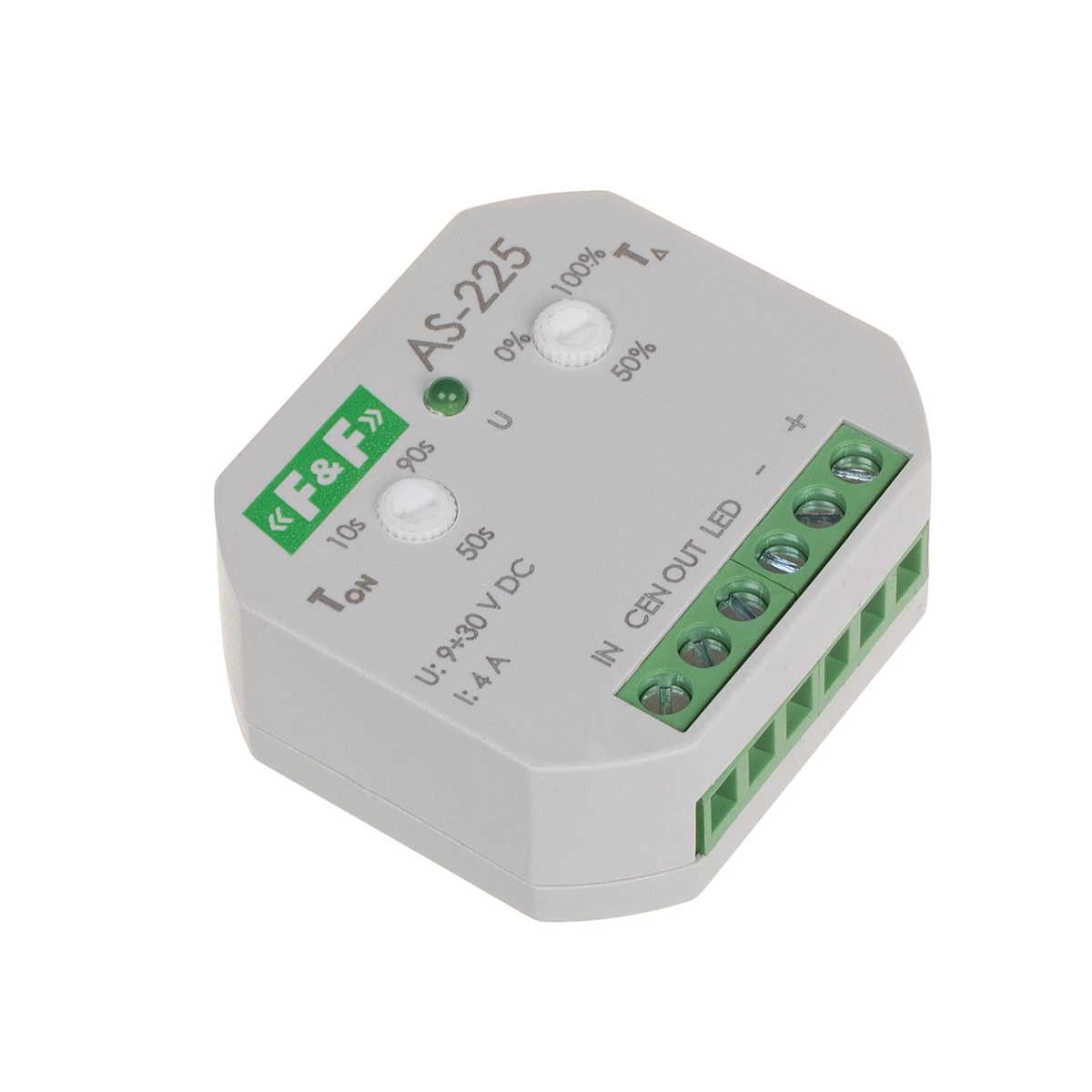

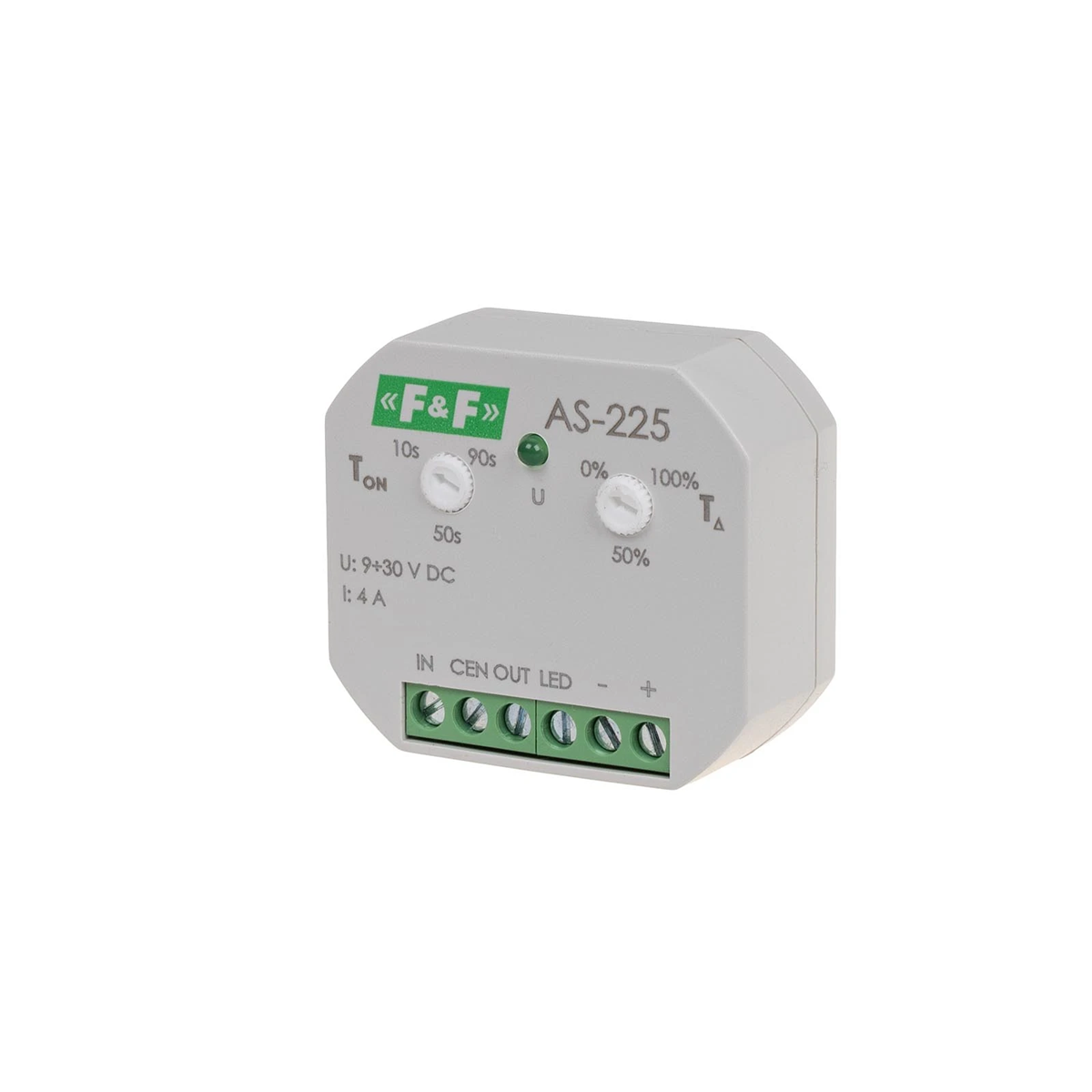

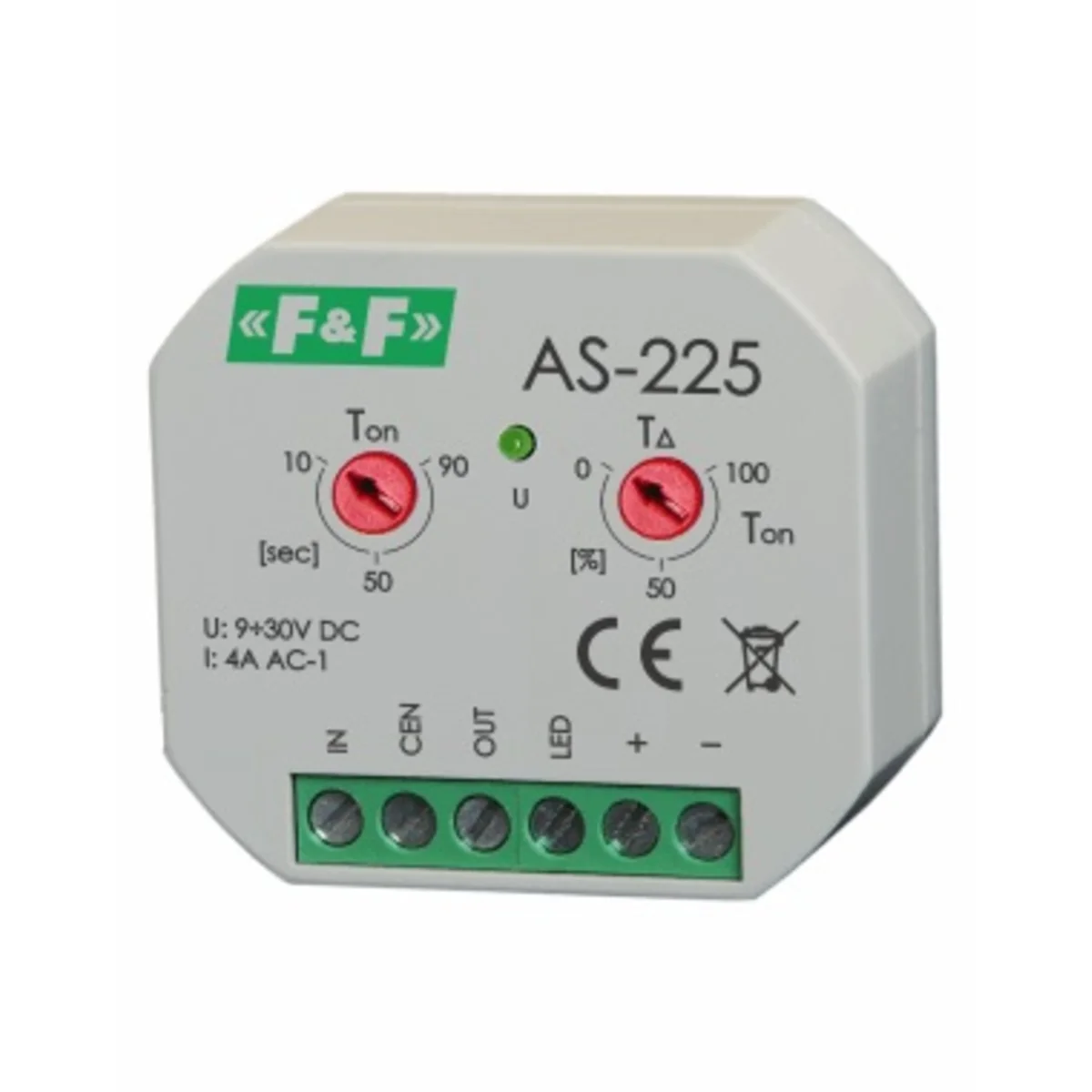

The AS-225 automatic controller is a controller dedicated to the construction of a multi-point, cascade stair lighting control system, in which rhyme, you can get the effect of light moving along the stairs.
The number of light points controlled in this way is arbitrary and only requires connecting together the appropriate number of controllers.
Features
* control of a multi-point lighting system
* possibility of creating a group from any number of controllers
* each of the controllers allows you to set your own time of switching on the light and the moment when the next segment starts to be switched on.
* switching on the light with various remote controls:
- bell button
- motion sensor
- optical barrier
- pressure sensor
the command is given potential-free by connecting the IN/OUT input with the “-”
* small housing for installation box - can be mounted directly under the lamp
* simple installation - only 3 wires from the controller to the controller
input   ;
power 9÷30V DC
control inputs (IN, CEN, OUT) potential-free, triggered by connection
to level "-" power
power consumption
wake up 0.3W
work 0.5W
output
output type transistor (OC - open collector)
output current <4A
output voltage 9÷30V DC
switching time Ton - adjustable 10÷90s
TΔ - adjustable 0÷100%Ton
connection 2.5mm screw terminals²
tightening torque 0.4Nm
working temperature -15÷50°C
dimensions Ø54 (48×43mm), h= 20mm
mounting in a flush-mounted box Ø60
degree of protection IP20
A kind of package | Sztuka |
Quantity | 1 pcs. |
Weight (kg) | 0,045 |
Width (m) | 0,026 |
Length (m) | 0,095 |
Depth (m) | 0,070 |
