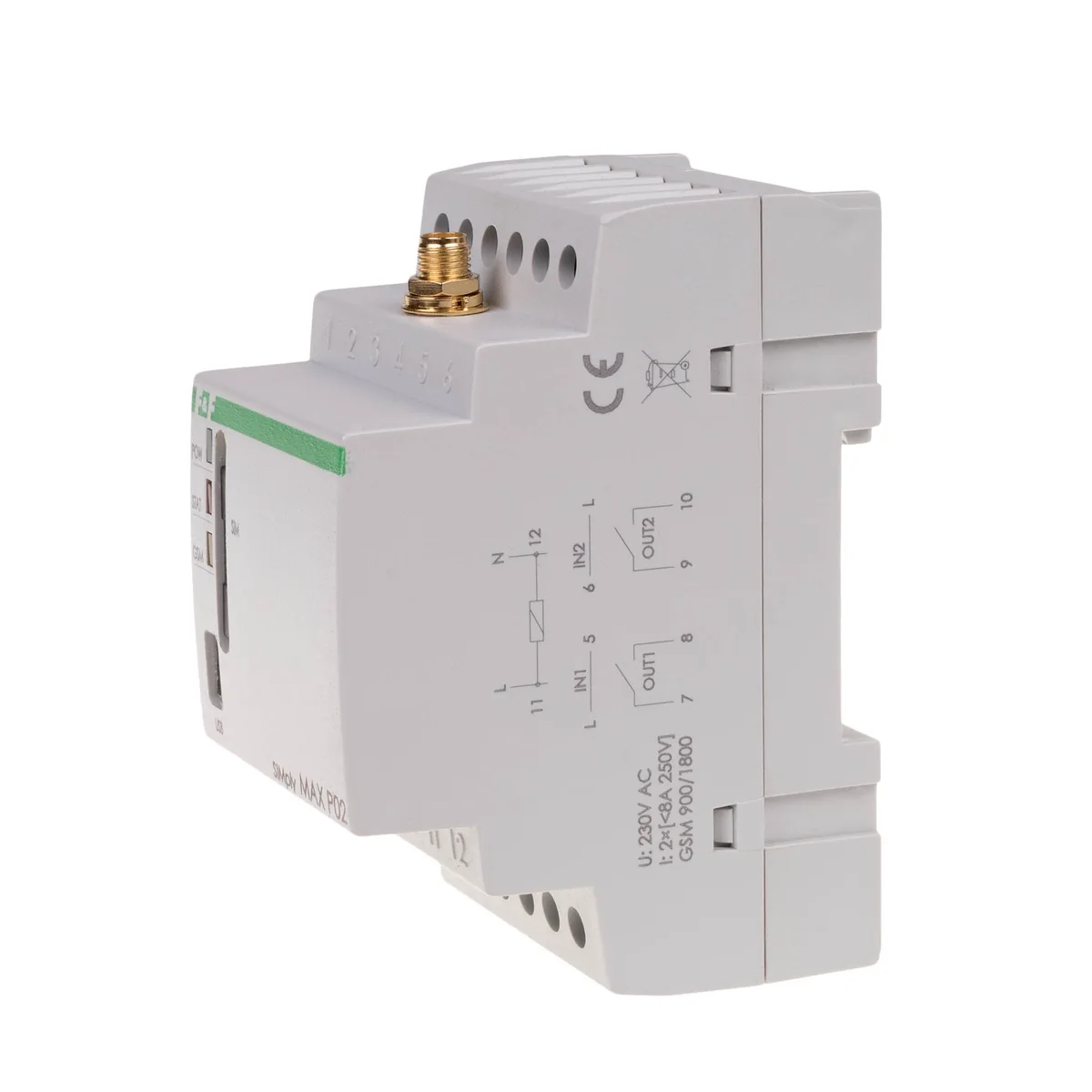

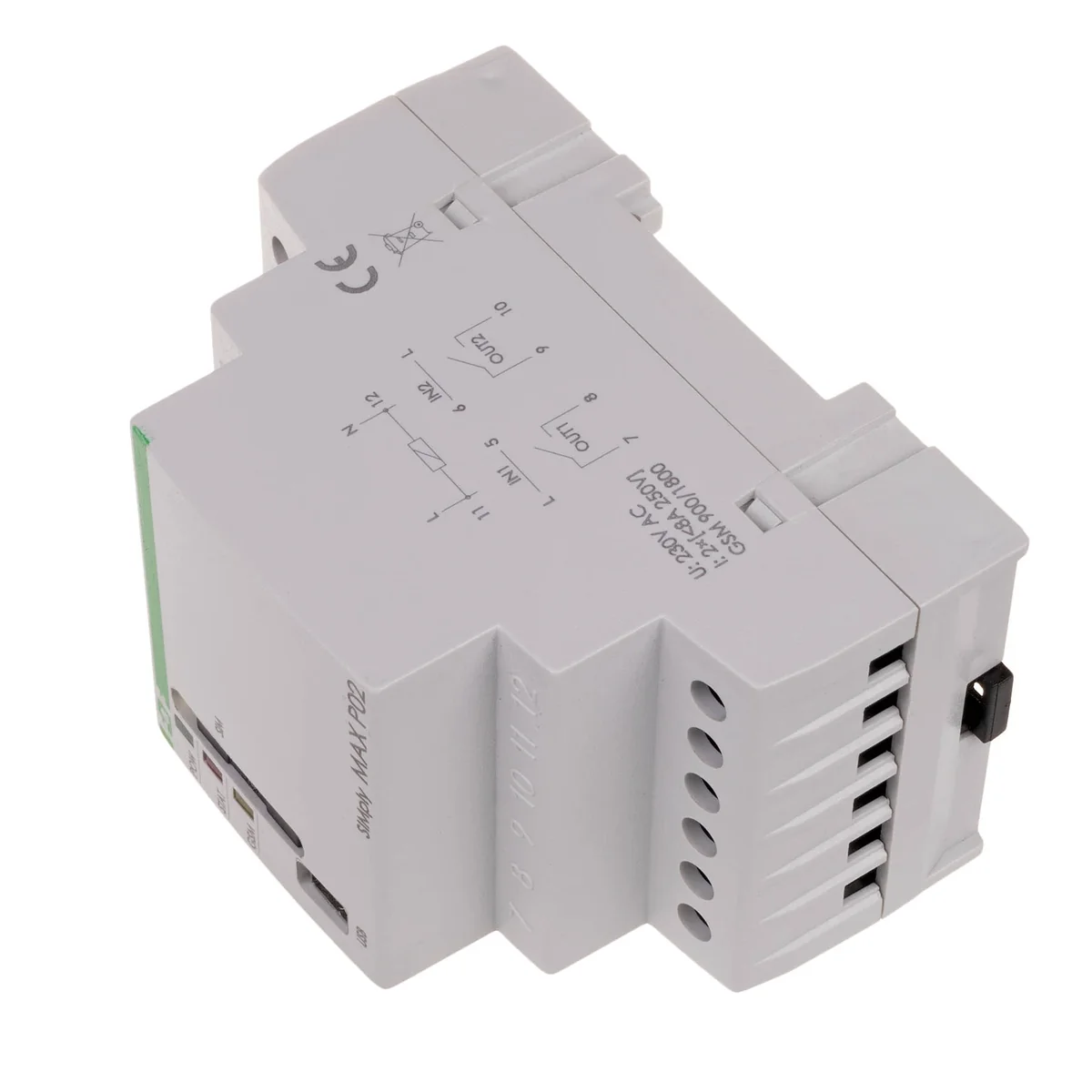

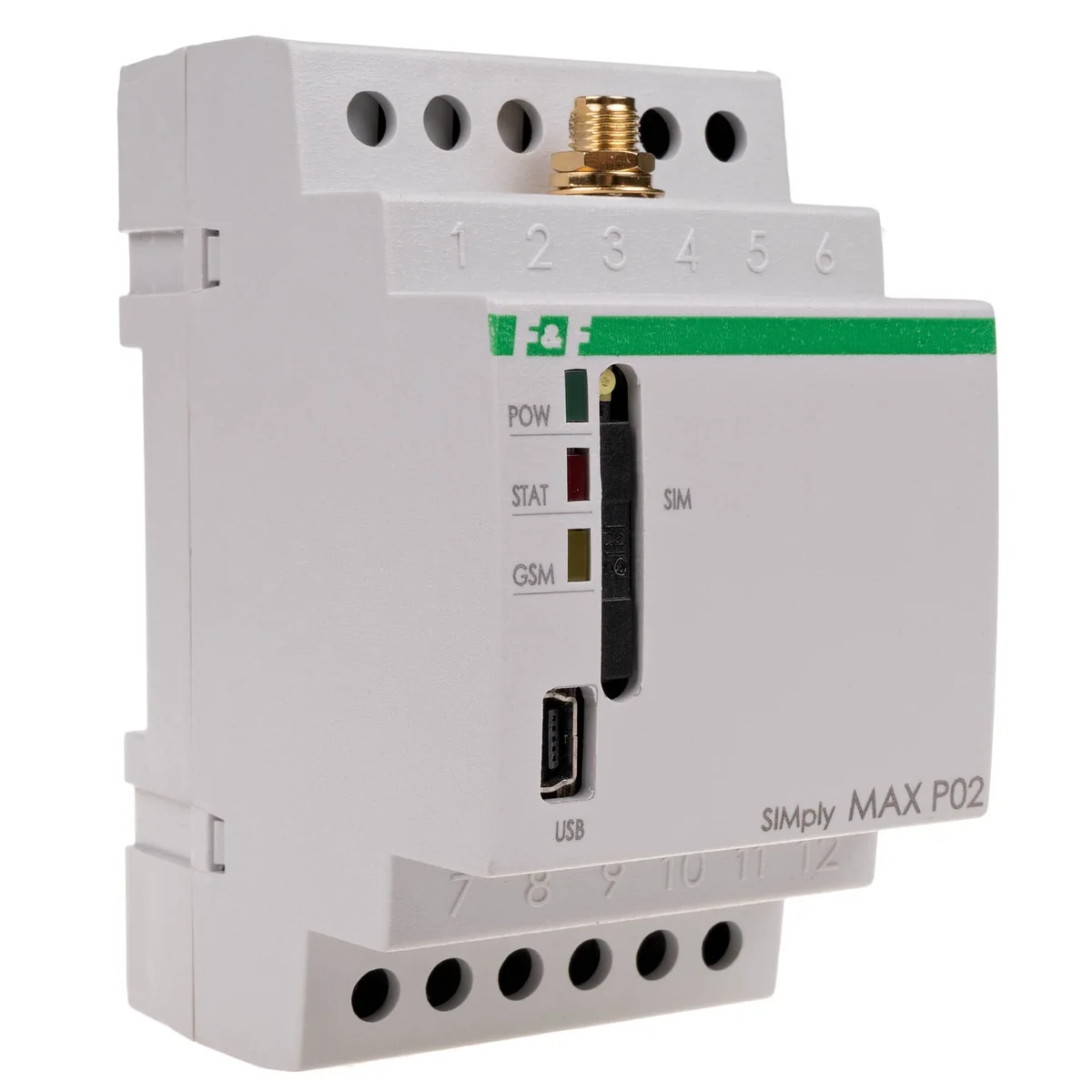

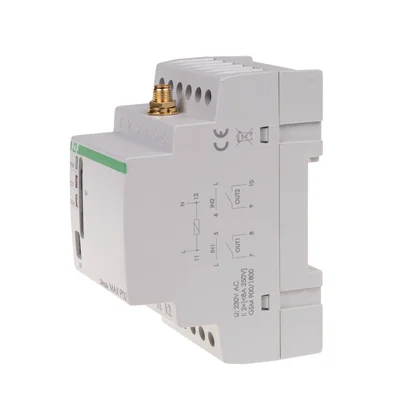

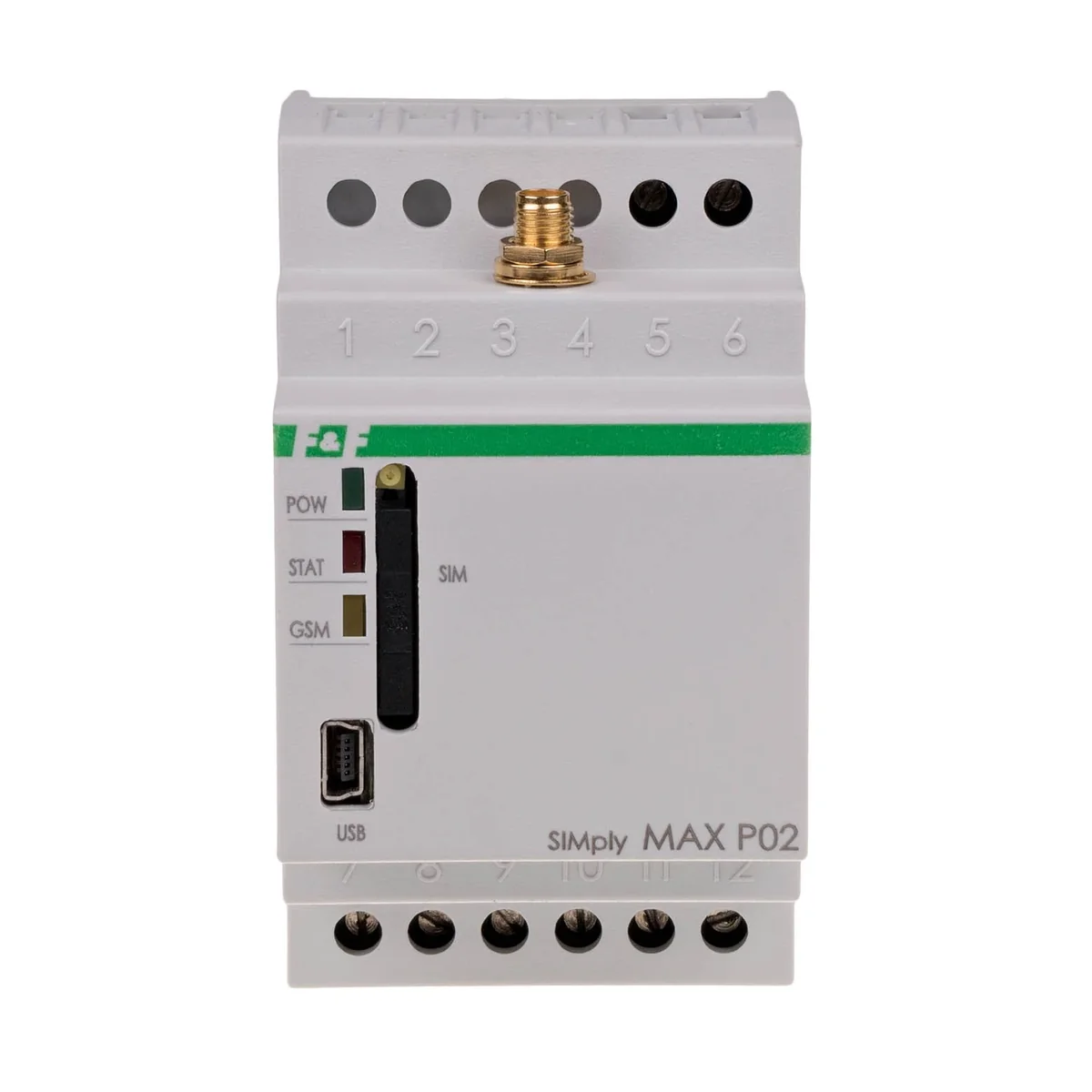

GSM control relay gate control SIMPLYMAX-P02

local index:
APS023FIFQ
Catalog No:
SIMPLYMAX-P02
EAN code:
5908312597223
Manufacturer: F&F
Working temperature [°C]: -10-50
inputs: 2
exits: 2x 1Z
Price:
154,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The MAX P02 relay with a built-in GSM communicator is used for remote opening of automatic entrance gates, garage gates, barriers and wickets using a mobile phone. It is used in buildings with protected access and a large number of users with access rights, e.g. housing estates, garages, public and company car parks, etc. It eliminates the traditional control with radio remote controls and the costs associated with their purchase for a large number of users.

Technical data

  • Working temperature [°C]
    -10-50
  • exits
    2x 1Z
  • Power [V]
    230
  • Package width [mm]
    60
  • Power consumption in GSM communication mode [W]
    <3
  • Standby power consumption [W]
    1.3
  • PKWIU
    26.30.23.0
  • inputs
    2
  • Dimensions
    3 modules (52.5mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.4
  • Ports
    SIM
  • Voltage tolerance [V]
    160-260

Other technical data

  • Type of electric connection
    Screw connection
  • Rated control supply voltage AC 50 Hz
    160 ... 260 V
  • Number of contacts as change-over contact
    2
  • Degree of protection (IP)
    IP20
  • Height
    90 mm
  • With detachable clamps
    No
  • Voltage type for actuating
    AC
  • Type of switch contact
    Double contact
  • Width
    52 mm
  • Depth
    65 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,305
Width (m) 0,110
Length (m) 0,135
Depth (m) 0,070
