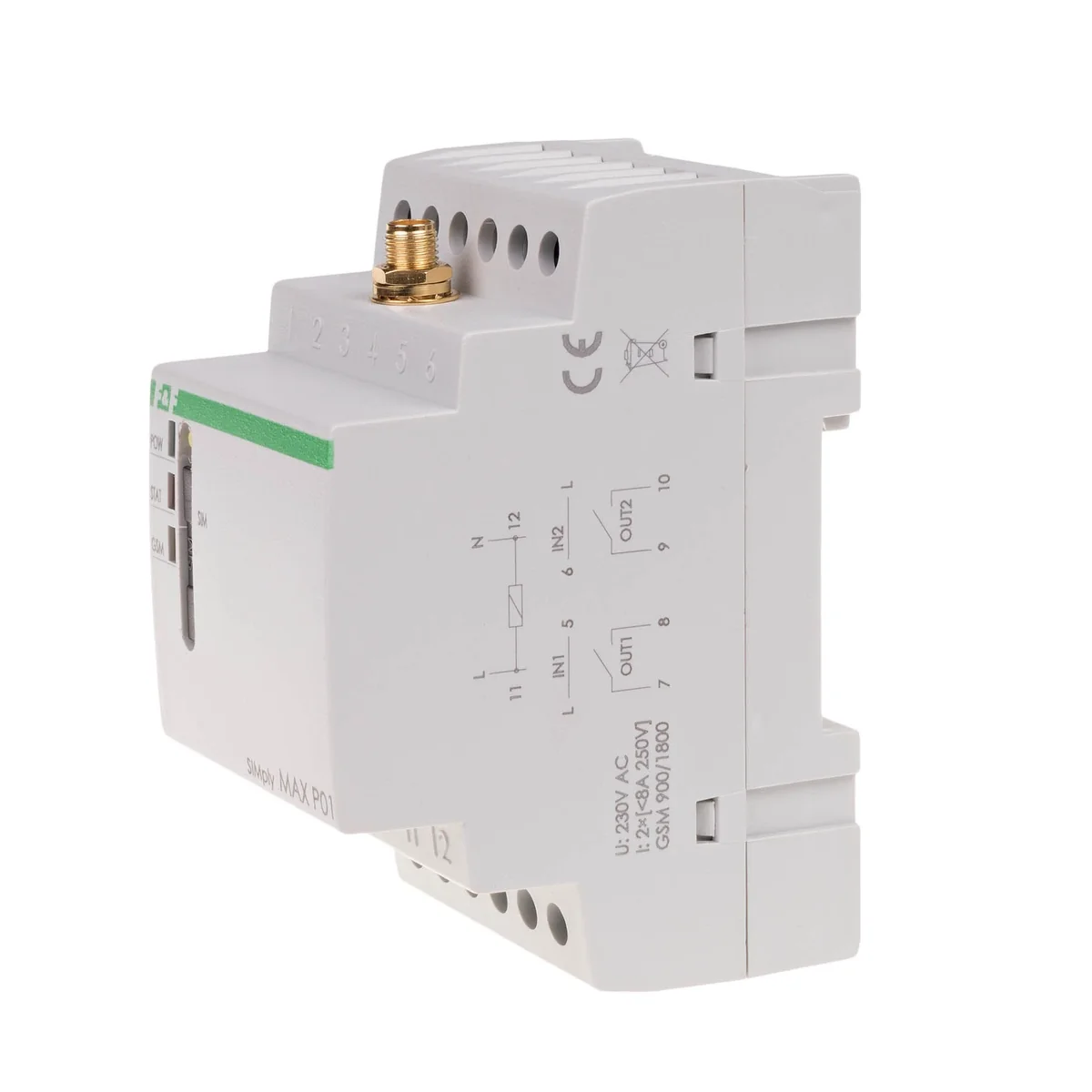

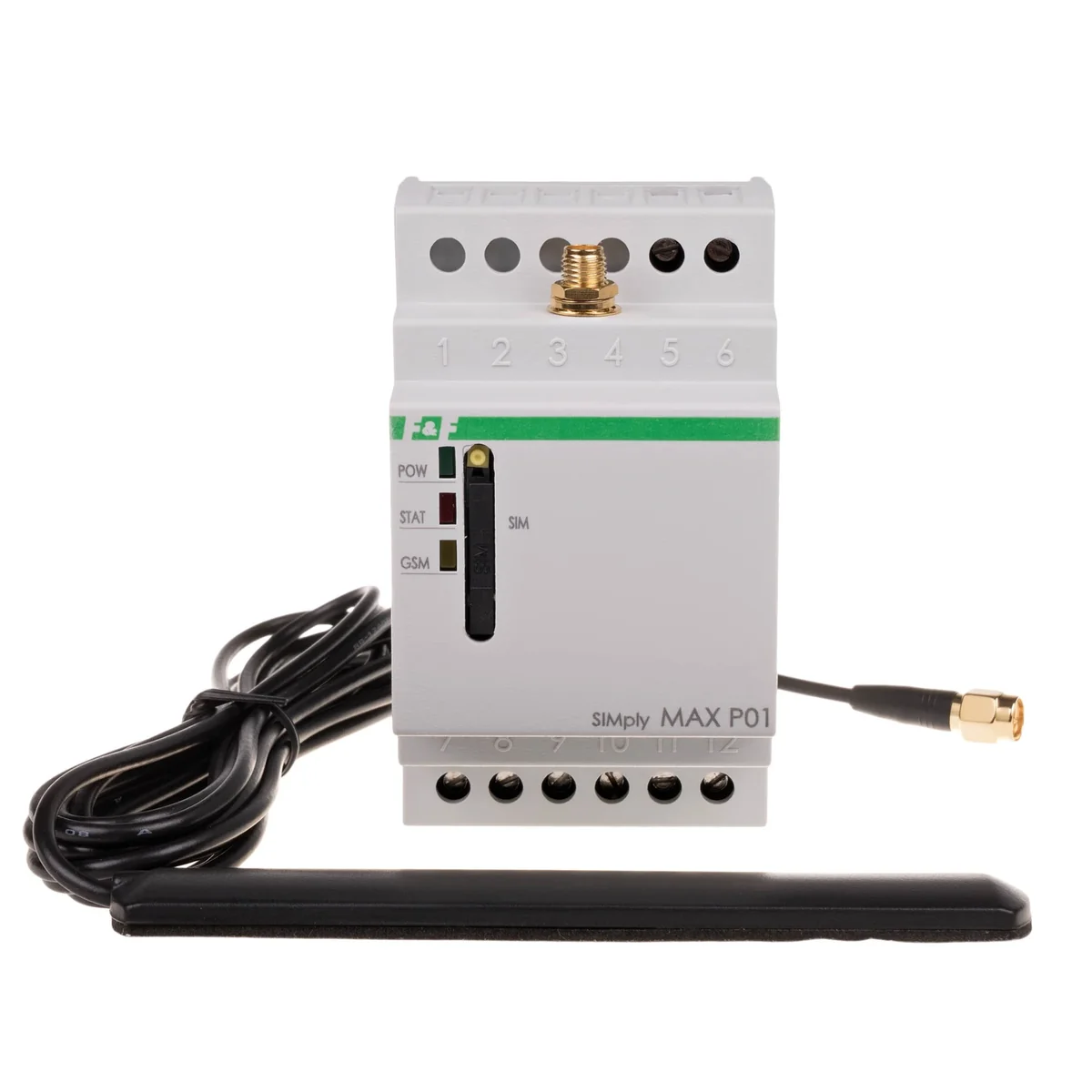

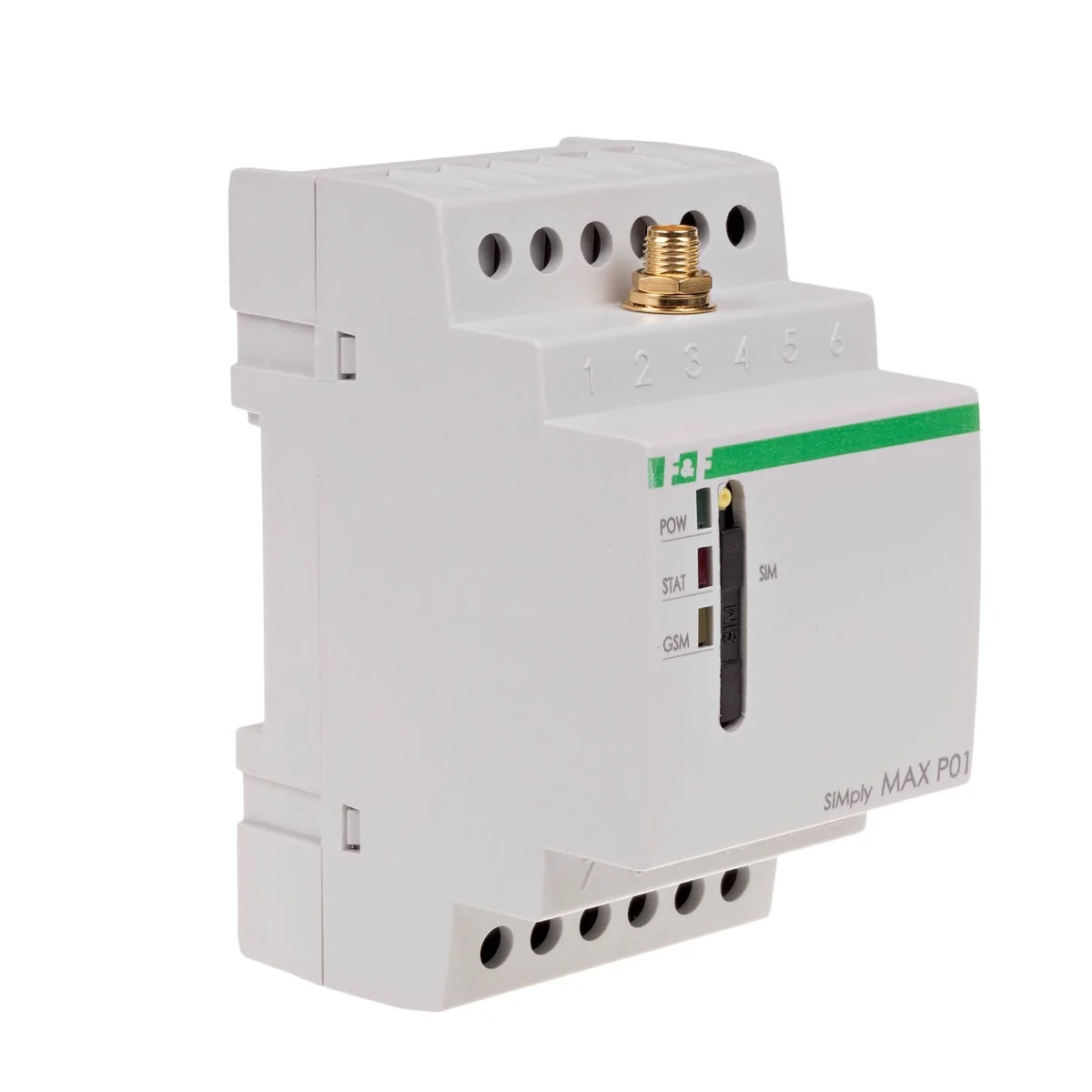

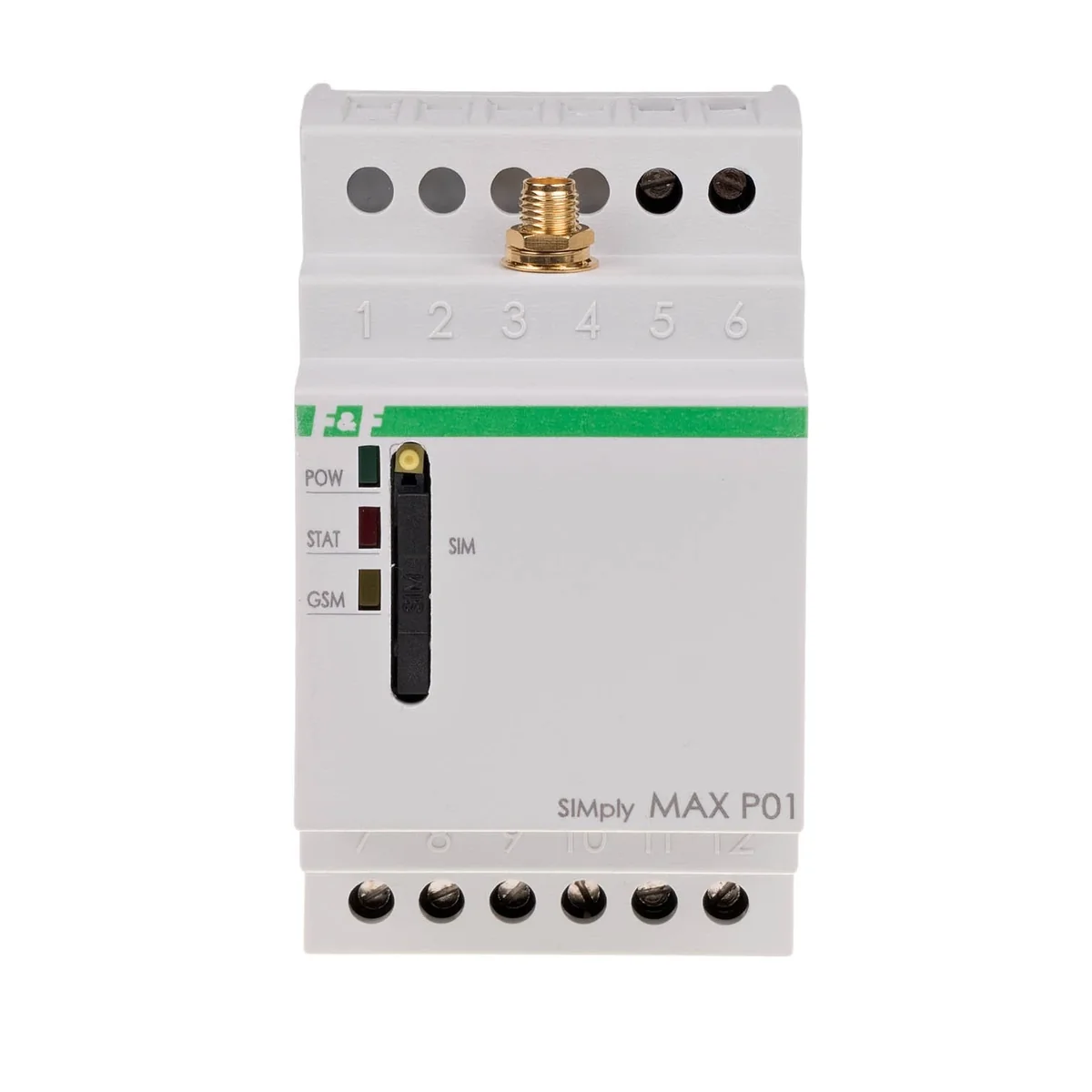

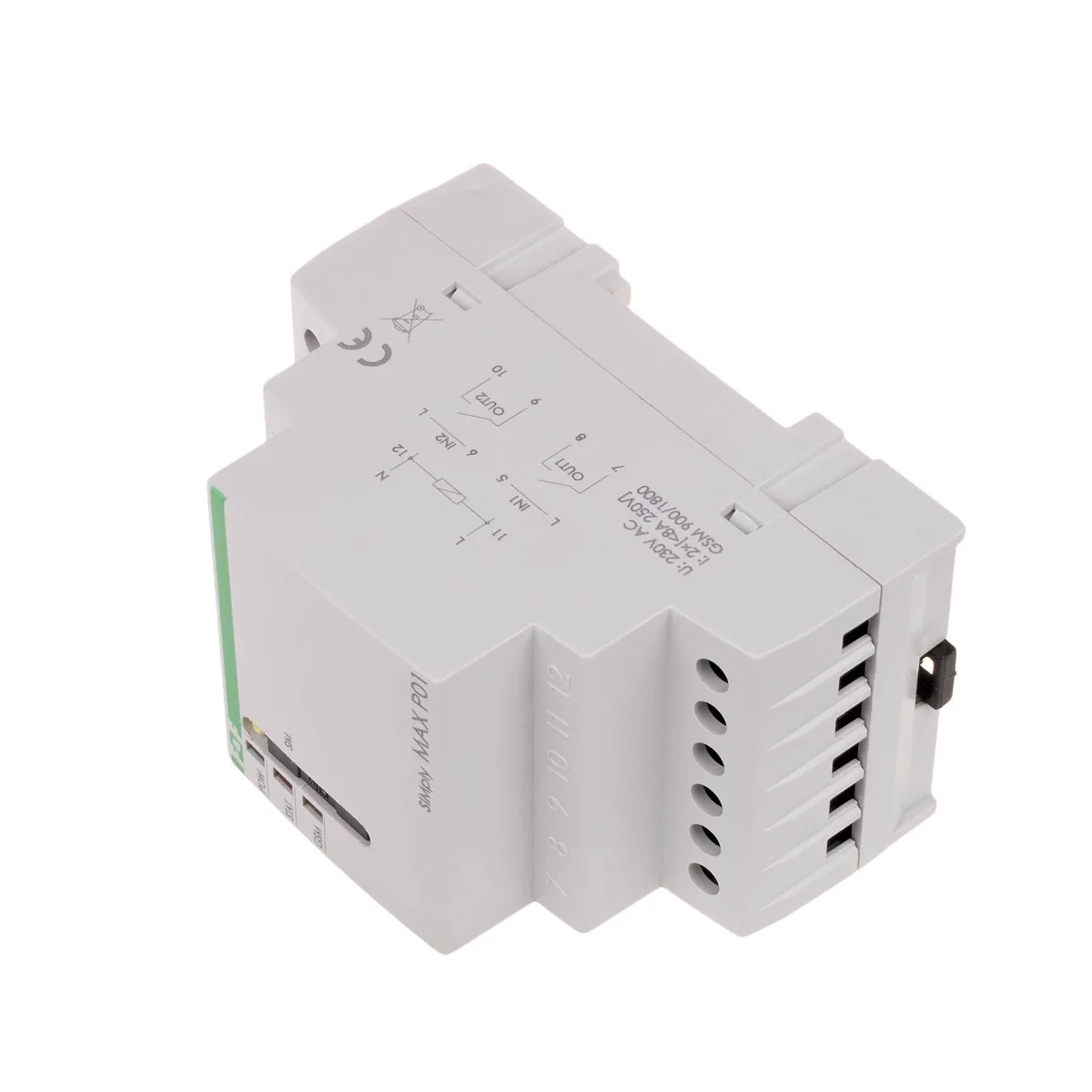

GSM SMS control relay on/off/alarm SIMPLYMAX-P01
local index:
APS022FIFQ
Catalog No:
SIMPLYMAX-P01
EAN code:
5908312596943
Price:
154,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

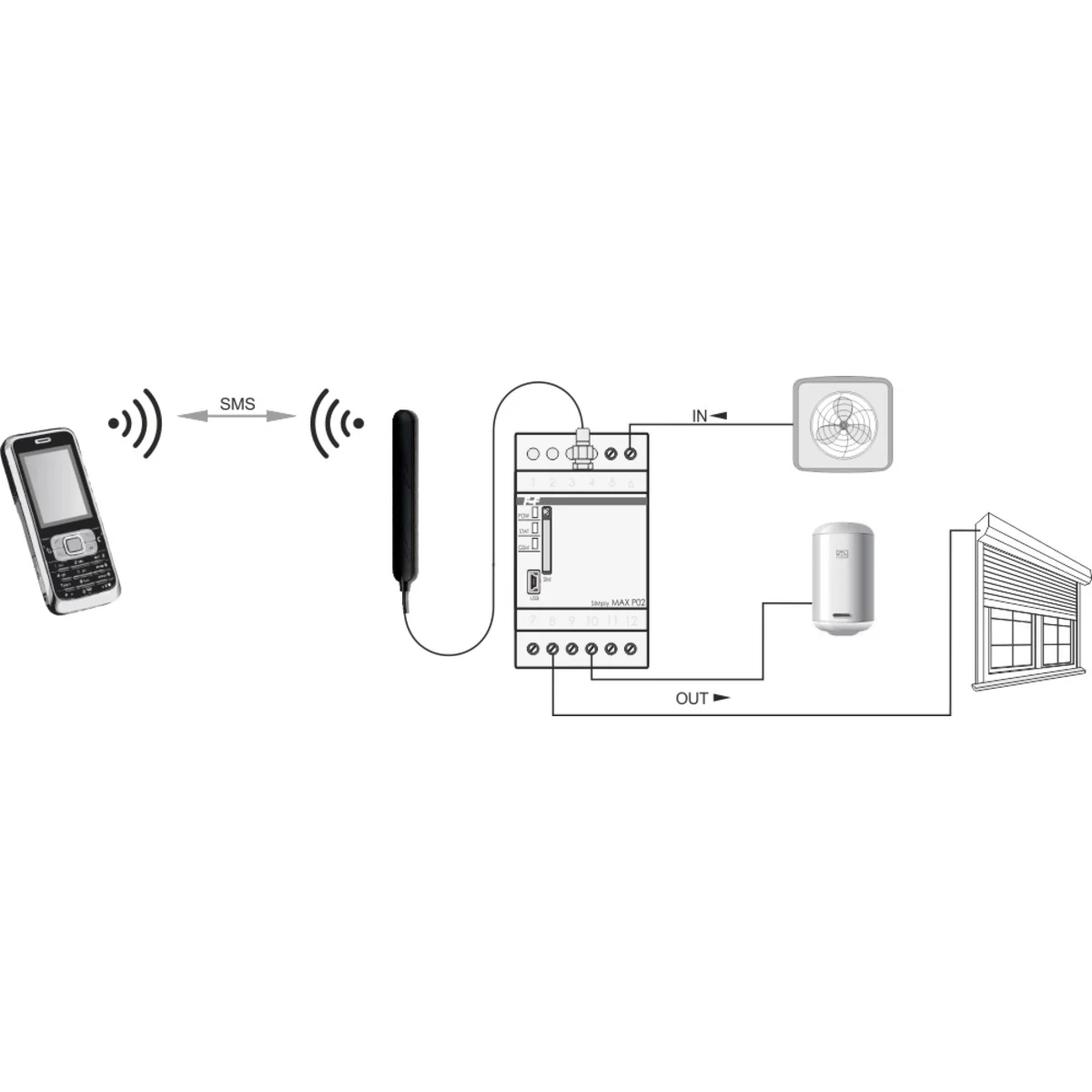

The P01 relay with a built-in GSM communicator is used for remote control using a mobile phone. It allows you to easily manage outputs and control the operating status of devices connected to the inputs of the controller.
Technical data
-
Working temperature [°C]-10-50
-
exits2x 1Z
-
Power [V]230
-
Package width [mm]60
-
Power consumption in GSM communication mode [W]<3
-
Standby power consumption [W]1.3
-
PKWIU26.30.23.0
-
inputs2
-
Dimensions3 modules (52.5mm)
-
Package height [mm]150
-
Package weight [kg]0.4
-
PortsSIM
-
Voltage tolerance [V]160-260
Other technical data
-
Type of electric connectionScrew connection
-
Nominal current8 A
-
Voltage type for actuatingAC
-
Type of switch contactDouble contact
-
Width52 mm
-
Depth65 mm
-
With detachable clampsNo
-
Rated control supply voltage AC 50 Hz160 ... 260 V
-
Number of contacts as change-over contact2
-
Degree of protection (IP)IP20
-
Height90 mm
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,194 |
| Width (m) | 0,110 |
| Length (m) | 0,135 |
| Depth (m) | 0,070 |
