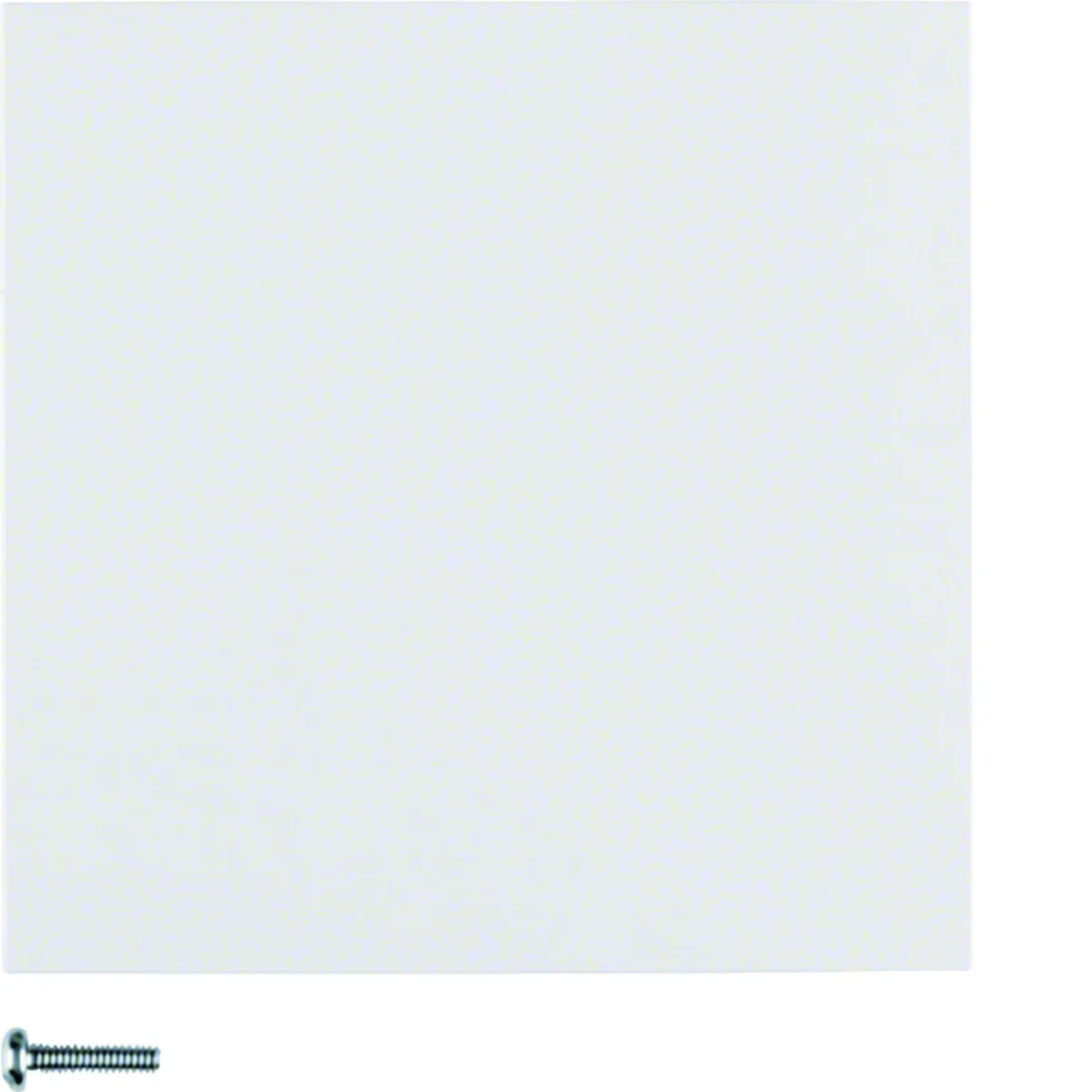

KNX RF QUICKLINK S.1/B.3/B.7 Button 1-gang glossy white 85145189

Single button from the KNX RF quicklink series. Main design line: Berker S.1/B.3/B.7. For product no.: 8512 11 00, 8512 12 00, 8542 11 00, 8542 12 00, 8502 01 00, 8542 17 00.

Features:

• additional ETS functions: +6 scenes, 1 push-button control up/down, operating mode on/off, dimming value, light intensity indicator, push-button switch, status indicator, forced control
• the ability to configure the functions of the transmitter and/or receiver
• reset function (to factory settings) ;
• the ability to block the memory of scenes
• for plasterboard walls

Controls and Indicators:

• user interfaces can be configured for one- or two-level operation
• with configuration button and function

LED control:

• with configuration and function LED
• socket compatibility LED indicator and mechanism

Connection:

• integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Settings:

• the possibility of freely configuring the lower and upper service surfaces for single switching/dimming mechanisms and network mechanisms

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
