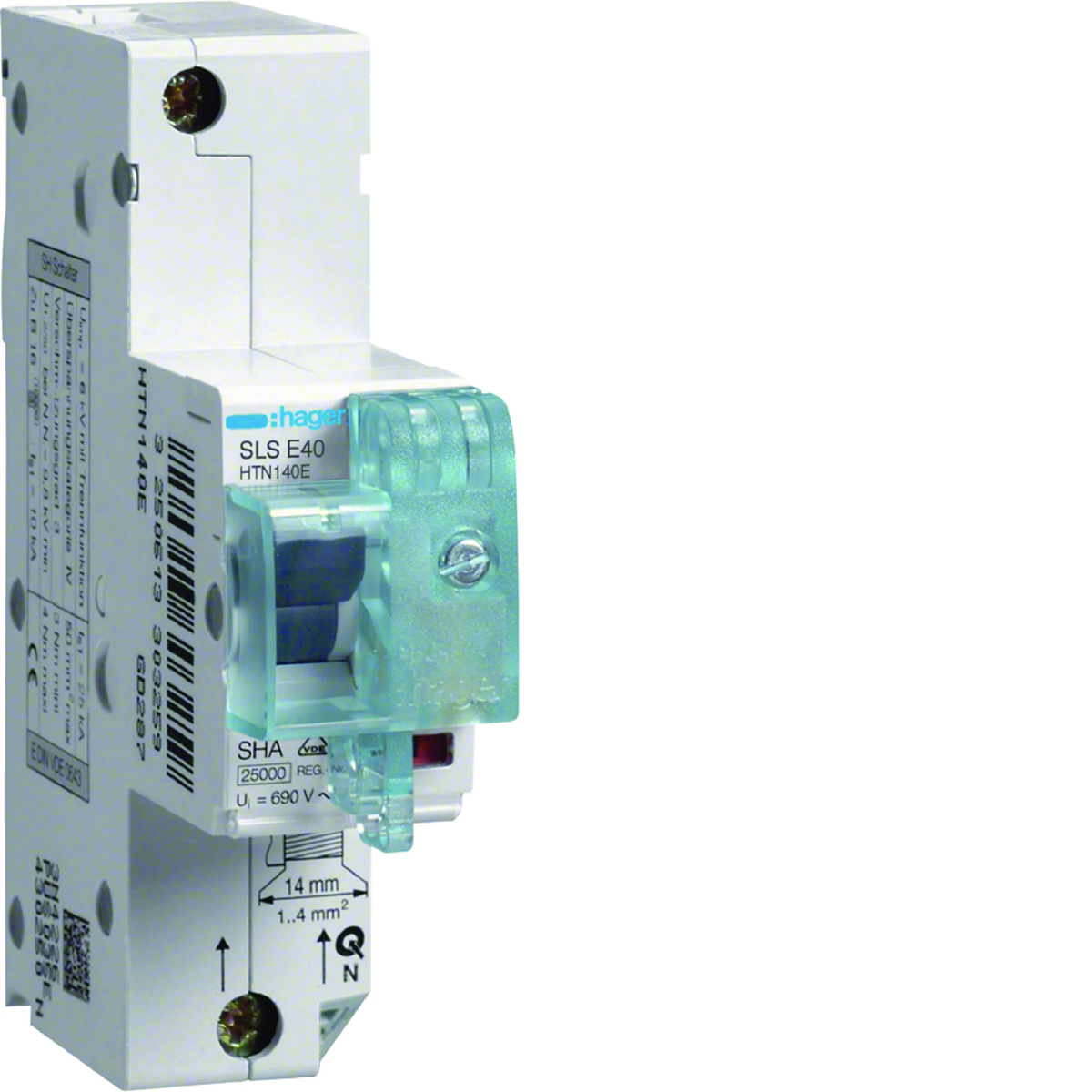

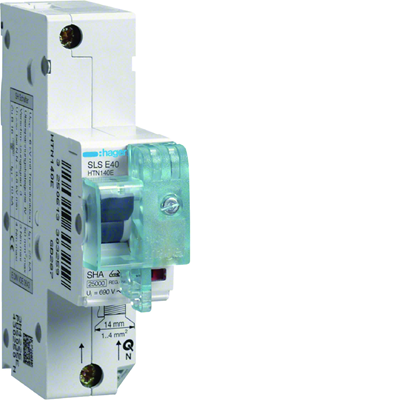

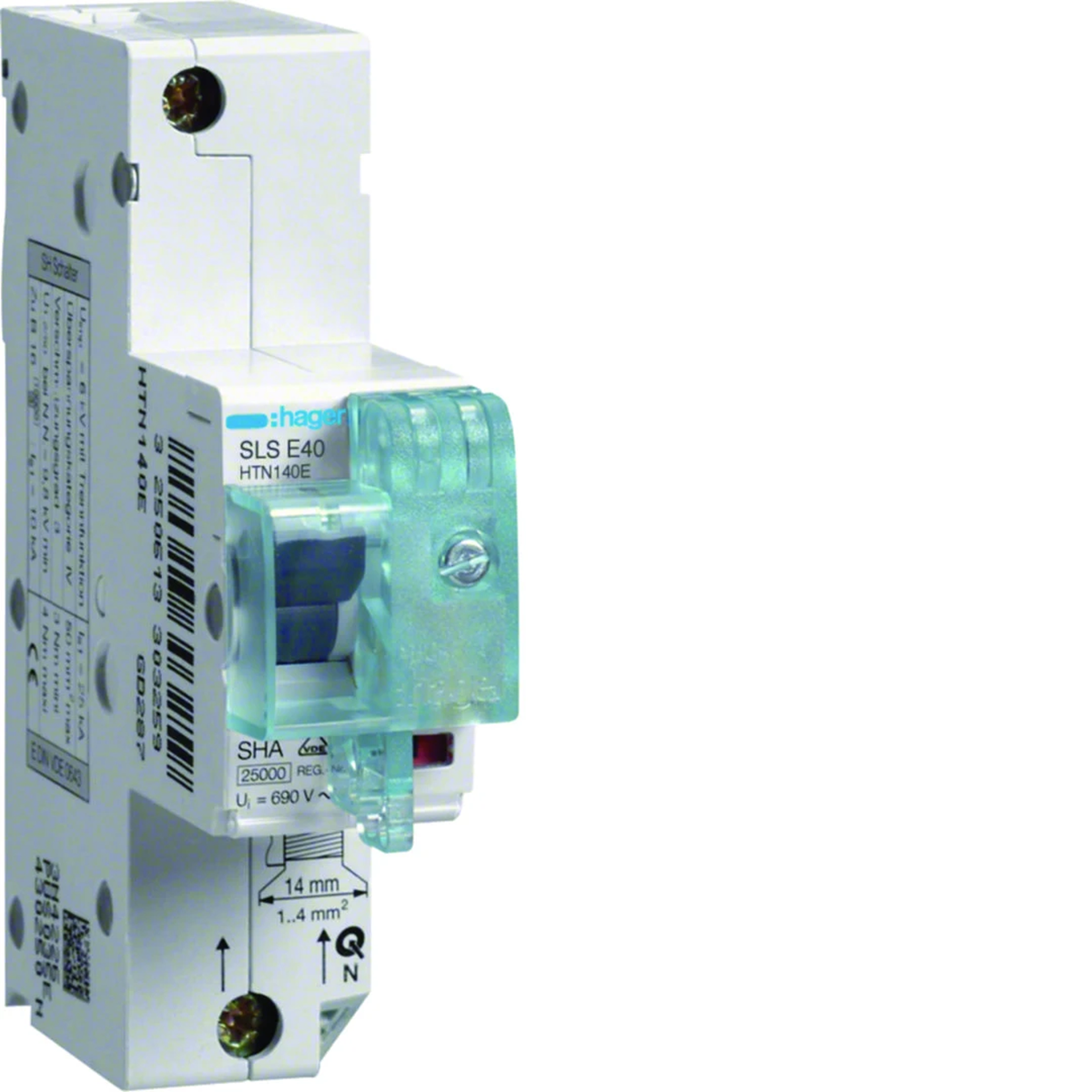

SLS selective circuit breaker, 40A, 1 pole HTN140E

local index:
ABS053HAGE
Catalog No:
HTN140E
EAN code:
3250613303266
Manufacturer: HAGER
Characteristic: E
Depth [mm]: 85
Number of modules: 1.5
Price:
94,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SLS selective circuit breaker, 40A, 1 pole

Technical data

  • Characteristic
    E
  • Number of modules
    1.5
  • Rated voltage [V]
    230
  • Rated current [A]
    40
  • Width [mm]
    27
  • Rated short-circuit breaking capacity [kA]
    25
  • PKWIU
    27.12.22.0
  • Depth [mm]
    85
  • Number of poles
    1
  • Rated insulation voltage [V]
    690
  • Power dissipation [W]
    4.7
  • Height [mm]
    110
  • Number of modules
    1.5

Other technical data

  • Release characteristic
    E
  • Rated current
    40 A
  • Rated insulation voltage Ui
    690 V
  • Concurrently switching neutral conductor
    No
  • Over voltage category
    4
  • Rated surge voltage invariability
    6 kV
  • Degree of protection (IP)
    IP20
  • Number of poles
    1
  • Rated voltage
    400 V
  • Rated switching capacity
    25 kA
  • Frequency
    50 Hz
  • Pollution degree
    3
  • Mounting method
    DIN rail

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,320 1,044 8,720 232,280
Width (m) 0,027 0,120 0,315 0,800
Length (m) 0,110 0,085 0,210 0,990
Depth (m) 0,089 0,148 0,362 1,200
