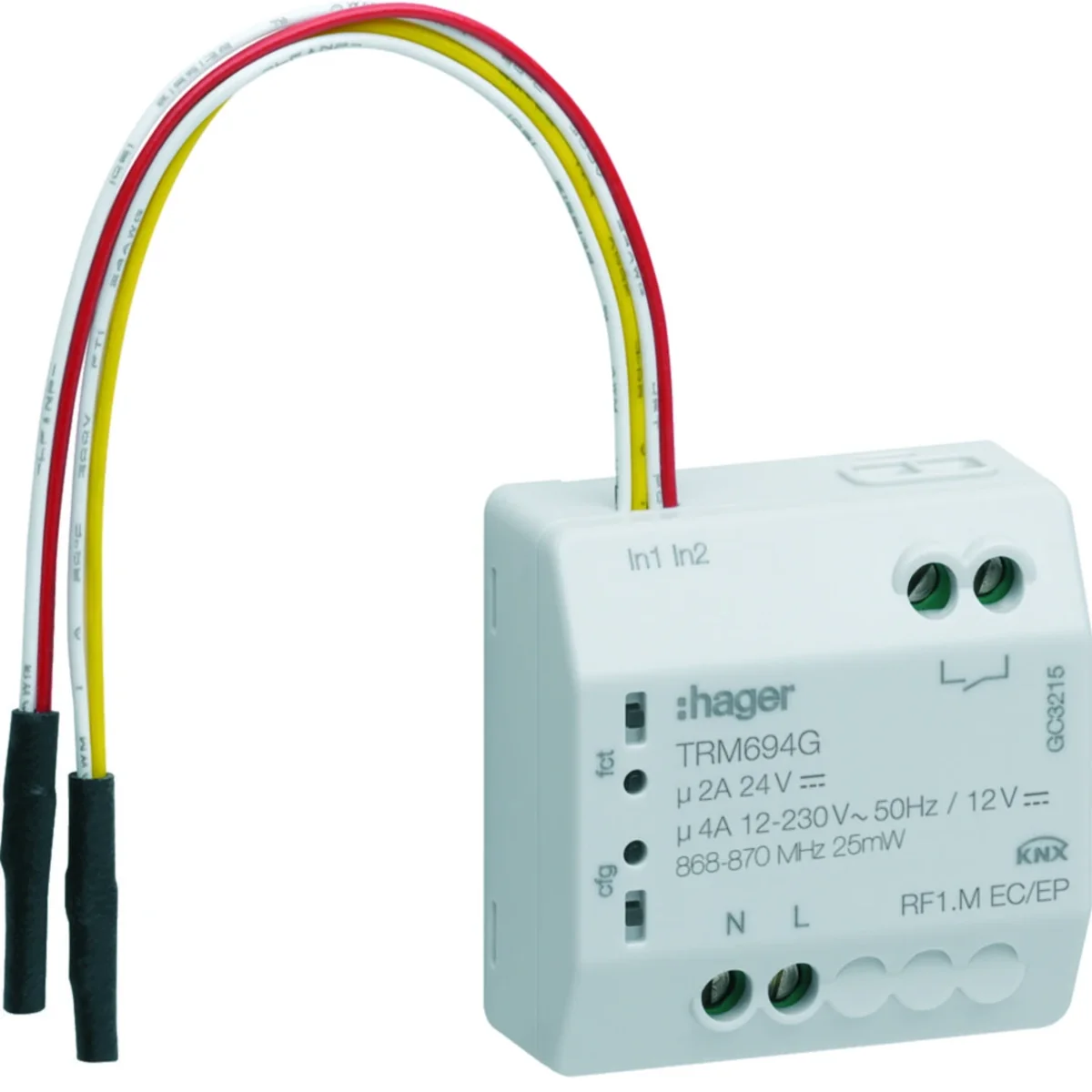

KNX RF quicklink potential-free switching output 1x + potential-free input 2x TRM694G
local index:
AIK076HAGE
Catalog No:
TRM694G
EAN code:
3250615988812
Price:
134,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
KNX RF quicklink potential-free switching output 1x + potential-free input 2x
Technical data
-
Depth [mm]20
-
Contact type1 no
-
Width [mm]40
-
Height [mm]40
-
Maximum bulb power [W]600
-
Receiver category2
-
Number of quicklinksup to 20 transmitters/receivers
-
AC supply voltage [V]230
-
Connection typeWith screw-elevator clamps
-
BeaconYes
-
Electronic transformers [W]600
-
Relative humidity (no condensation) [%]0 - 65 (non-condensing)
-
Radio transmitter range (in open area) [m]100
-
Wire cross-section (cord) [mm²]0.5 - 1.5
-
PKWIU26.51.20.0
-
SurfaceMatt
-
power loss [W]0.15
-
Connection typeWith a screw
-
Operating temperature range [°C]from -10 to 50
-
Radio transmitter/receiver frequency [MHz]868.3
-
Number of radio channels2
-
Radio transmitter power [mA]<10
-
Radio protocolKNX
-
Manual controlYes
-
storage temperature [°C]from -20 to 70
-
Conventional transformers [VA]600
-
Range of the radio transmitter (in the building) [m]thirty
-
Number of outputs1
-
Conductor cross-section (wire) [mm²]0.5 - 2.5
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalYes
-
Width in number of modular spacings0
-
With LED indicationYes
-
Output power920 W
-
Max. number of switching contacts1
-
Rated current4 A
-
Different phases connectableNo
-
Bus module detachableNo
-
Modular expandabilityNo
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodFlush-mounted
-
Local operation/hand operationYes
-
Max. switching power600 W
-
Suitable for C-loadYes
-
Max. switching current4 A
-
Rated operating voltage230 ... 230 V
-
With bus connectionYes
-
Min. depth of built-in installation box40 mm
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,029 | 0,090 | 5,675 | 159,200 |
| Width (m) | 0,020 | 0,085 | 0,315 | 0,800 |
| Length (m) | 0,039 | 0,045 | 0,215 | 1,050 |
| Depth (m) | 0,039 | 0,090 | 0,360 | 1,200 |
