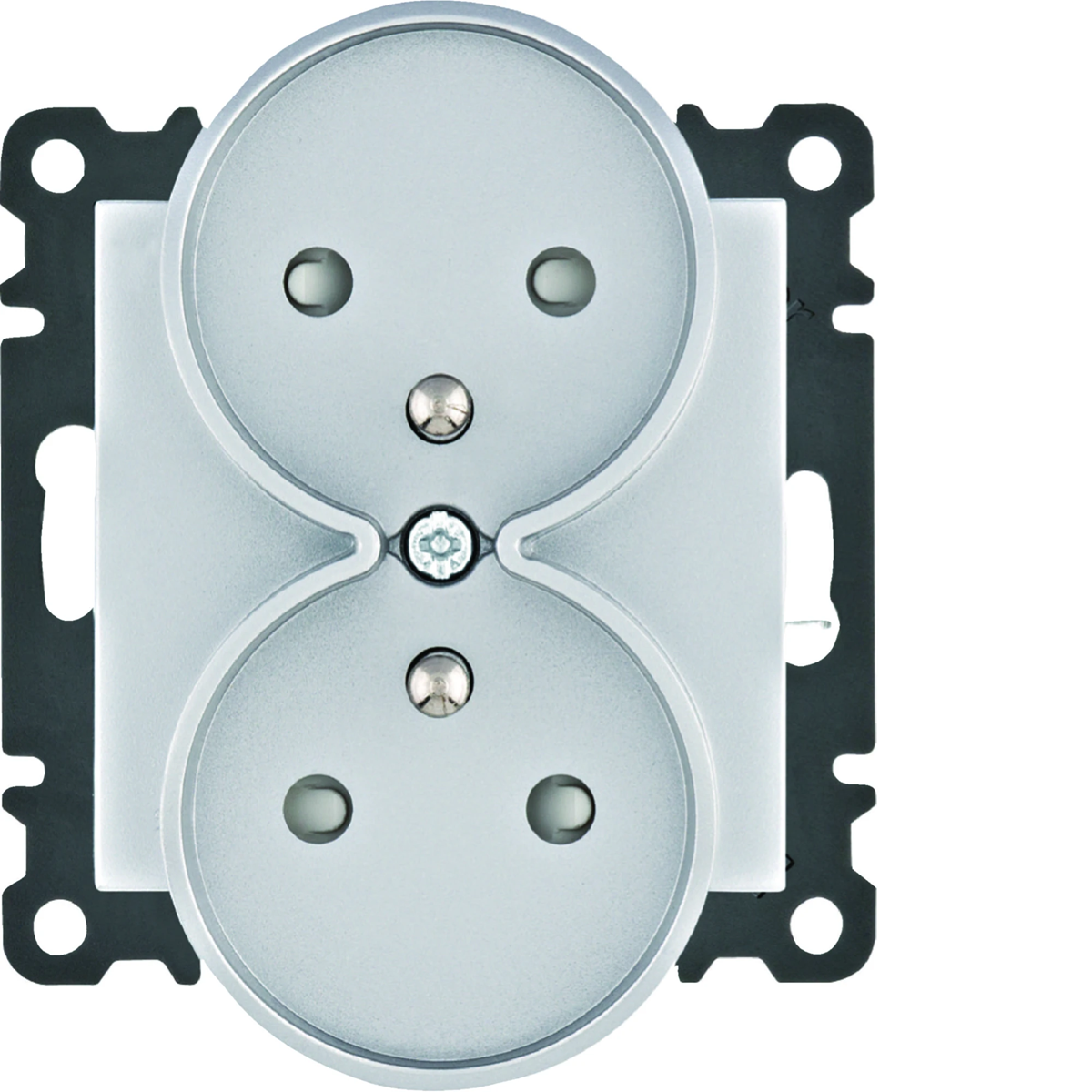

LUMINA Double grounded power socket with contact shutter 16A/250VAC silver WL1342

local index:
MEE026HAGE
Catalog No:
WL1342
EAN code:
8694407002723
Manufacturer: HAGER
Number of sockets: 2
Color: Silver
Shape: Rectangular
Price:
5,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 108 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Electric socket from the lumina series, from the manufacturer Hager. The product part number is WL1342.



FEATURES

  • Double .
  • 2-pole grounded; ground pin.
  • Extended contact protection.
  • Baseless module.
  • Screw terminals.
  • Color anodized aluminum.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Mounting flush.< /li>
  • With spreaders, for screw connection.

Technical data

  • Number of sockets
    2
  • Shape
    Rectangular
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    LUMINA
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Surface finish
    matte
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Material Metal
  • Color
    Silver
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    Hurt
  • Degree of mechanical protection
    IK02
  • Accurate color
    Anodized aluminum
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Number of active contacts (round)
    2
  • With signal lamp
    no
  • Number of modules (module system)
    0
  • Number of phases
    1
  • With hinged lid
    no
  • Label space/information surface
    no
  • RAL-number (similar)
    9006
  • Lockable
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Flush-mounted
  • Material
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    no
  • With loop through function
    no
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    56 mm
  • Protective contact
    yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    no
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    yes
  • Colour
    Silver
  • Transparent
    no
  • Eject-mechanism
    no
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Halogen free
    yes
  • Surface finishing
    Matt
  • With on/off switch
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK02
  • Device height
    86 mm
  • Min. depth of built-in installation box
    35 mm

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 12 pcs. 120 pcs. 1200 pcs.
Weight (kg) 1,051 11,260 134,600
Width (m) 0,295 0,505 1,200
Length (m) 0,092 0,315 1,070
Depth (m) 0,200 0,420 0,800
