B.3 Triple surface-mounted box, anthracite 10431606

Name: B.3 Triple surface-mounted box, anthracite
Brand: BERKER
SKU: MVN044BERK
Price: 38.38 PLN

local index:

MVN044BERK

Catalog No:

10431606

EAN code:

4011334223467

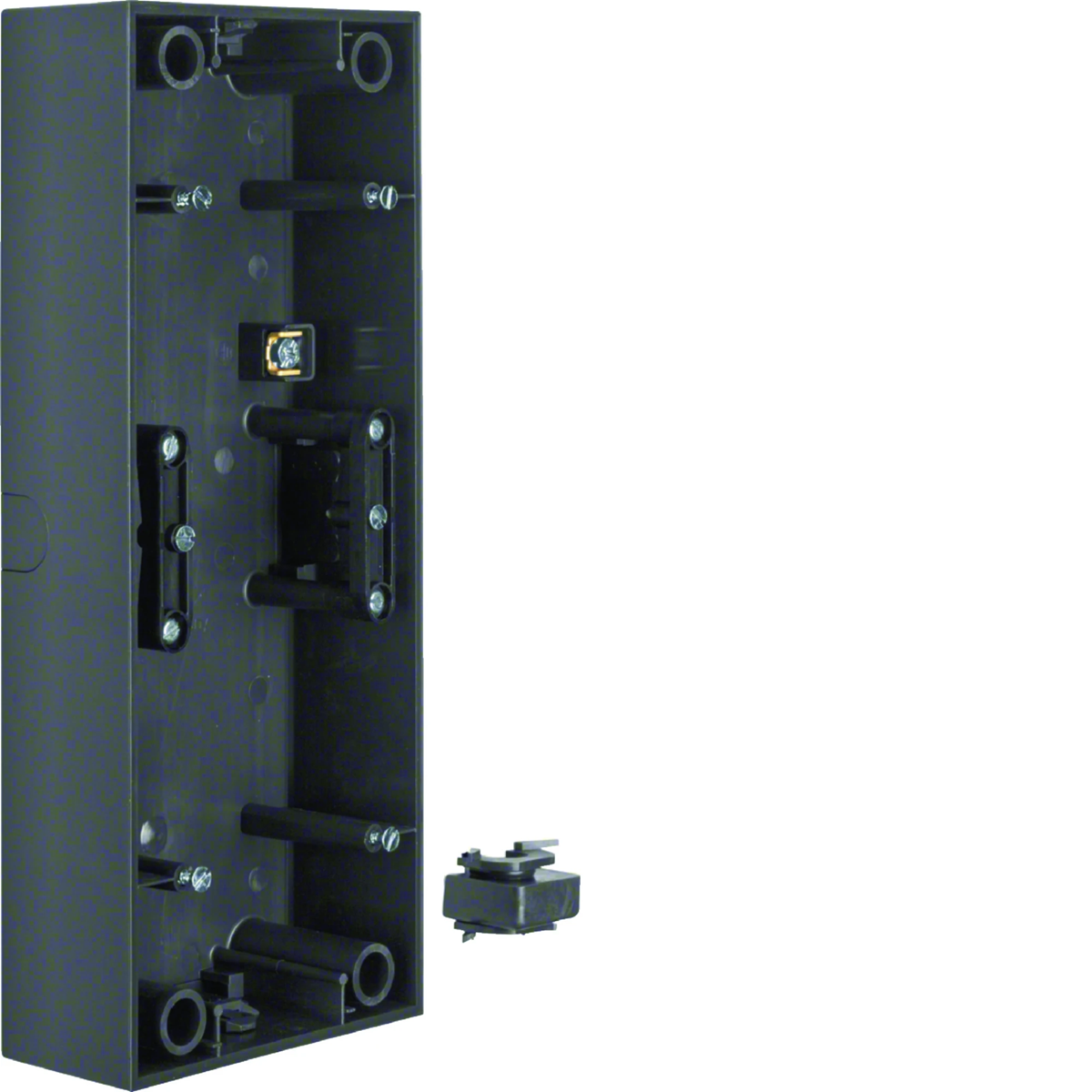

B.3 Triple surface-mounted box, anthracite

Click on the photo to enlarge

Manufacturer: BERKER

Halogen free: Yes

Depth [mm]: 42

Color: Graphite

See full description

Price:

38,38 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Surface-mounted 3-gang box from Berker B.3 - a series whose wiring accessories are an architectural detail that emphasizes the style of the interior. This modern, yet classic in its elegance design, thanks to the variety of available colors, can become the icing on the cake of any arrangement.

Features:

Mounting depth: 37 mm,
Cable: with cable and conduit entry,
Cable entries: cable entry possible from top, bottom and in the middle of each side,
Mounting type: suitable for mounting on a flammable surface; for vertical installation,
Thanks to the use of surface-mounted boxes, flush-mounted devices can be used for surface-mounted installation.

Technical data

Halogen free

Yes
Color

Graphite
Material

Thermoplastic
Cover

NO
Family

B.3
Width [mm]

225
Height [mm]

93
Accurate color

Anthracite
Mounting direction

Vertical
For modular equipment

Not applicable
Number of slots

4

Depth [mm]

42
Shape

Rectangular
Installation

Surface-mounted
Type

Wall-mounted
Level of security

IP20
Type

For attachments
Surface finish

matte
Fire resistance

Not applicable
Number of segments

3
With terminal strip

NO
PKWIU

27.12.40.0

Other technical data

Assembly arrangement

Surface mounted box
Number of modules (module system)

0
Mounting direction

Vertical
Material quality

Thermoplastic
Surface protection

Untreated
Colour

Anthracite
Transparent

No
With duct entry

Yes
With screw gland entry

No
Device width

225 mm
Device depth

42 mm

Suitable for modular domestic switching devices

No
Number of units

3
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
RAL-number (similar)

7021
With cover frame

No
With cable entry

Yes
Degree of protection (IP)

IP20
Device height

93 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	5 pcs.	10 pcs.	320 pcs.
Weight (kg)	0,166	0,950	2,318	94,159
Width (m)	0,093	0,190	0,300	0,800
Length (m)	0,042	0,140	0,225	1,050
Depth (m)	0,225	0,280	0,400	1,200
