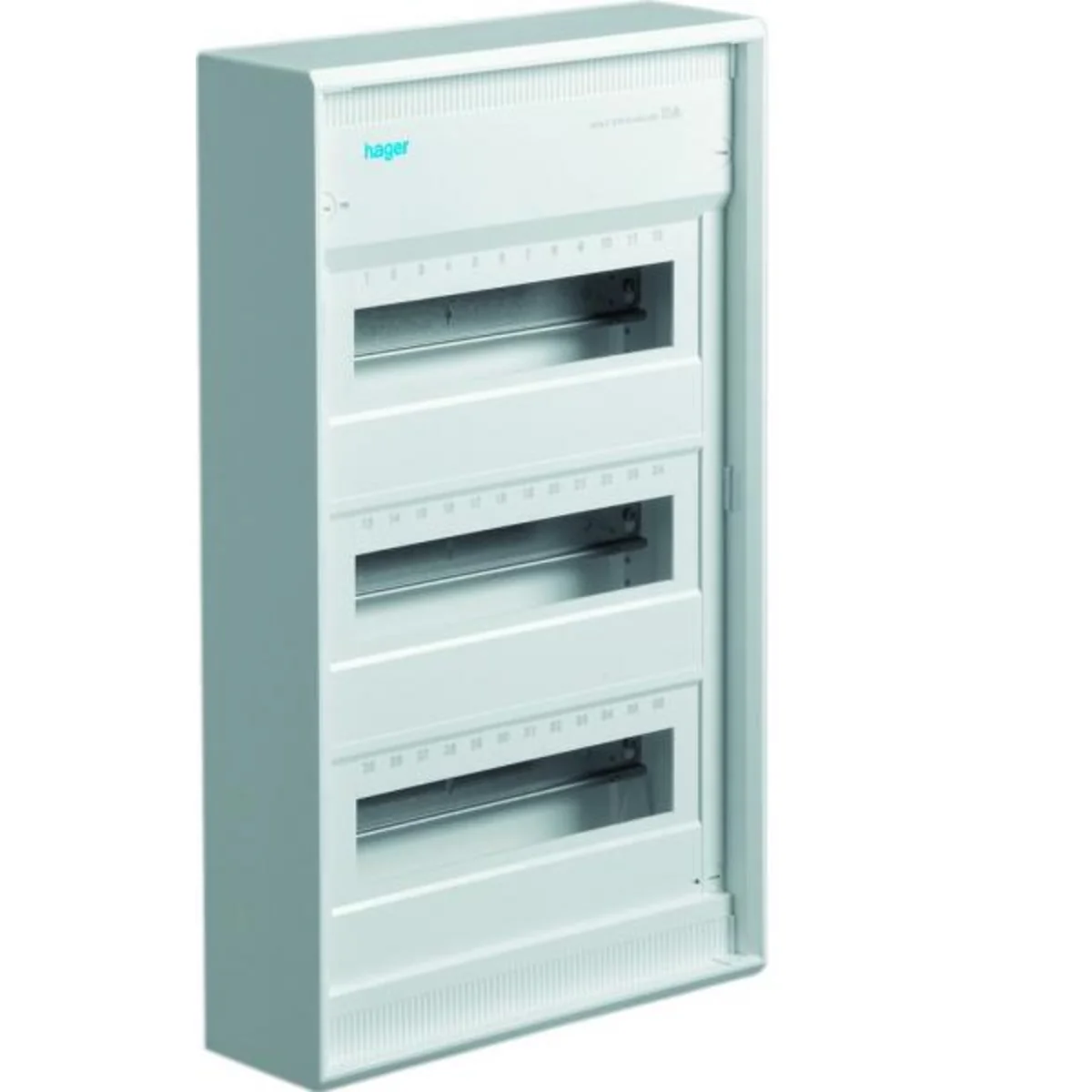

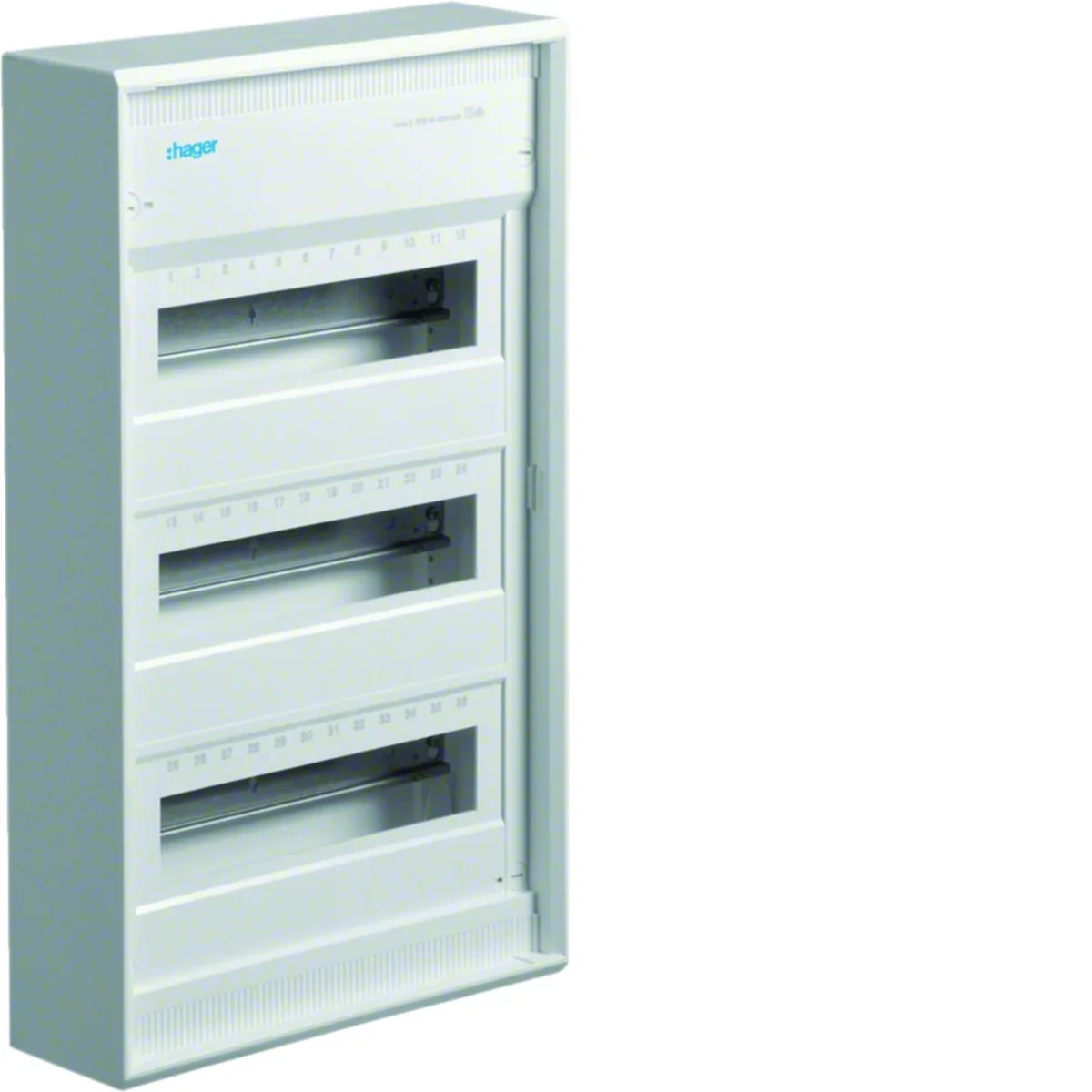

Surface-mounted, 3-row switchgear for devices up to 63 A
• maximum installation depth 70 mm
• possibility of serial connection “butting”

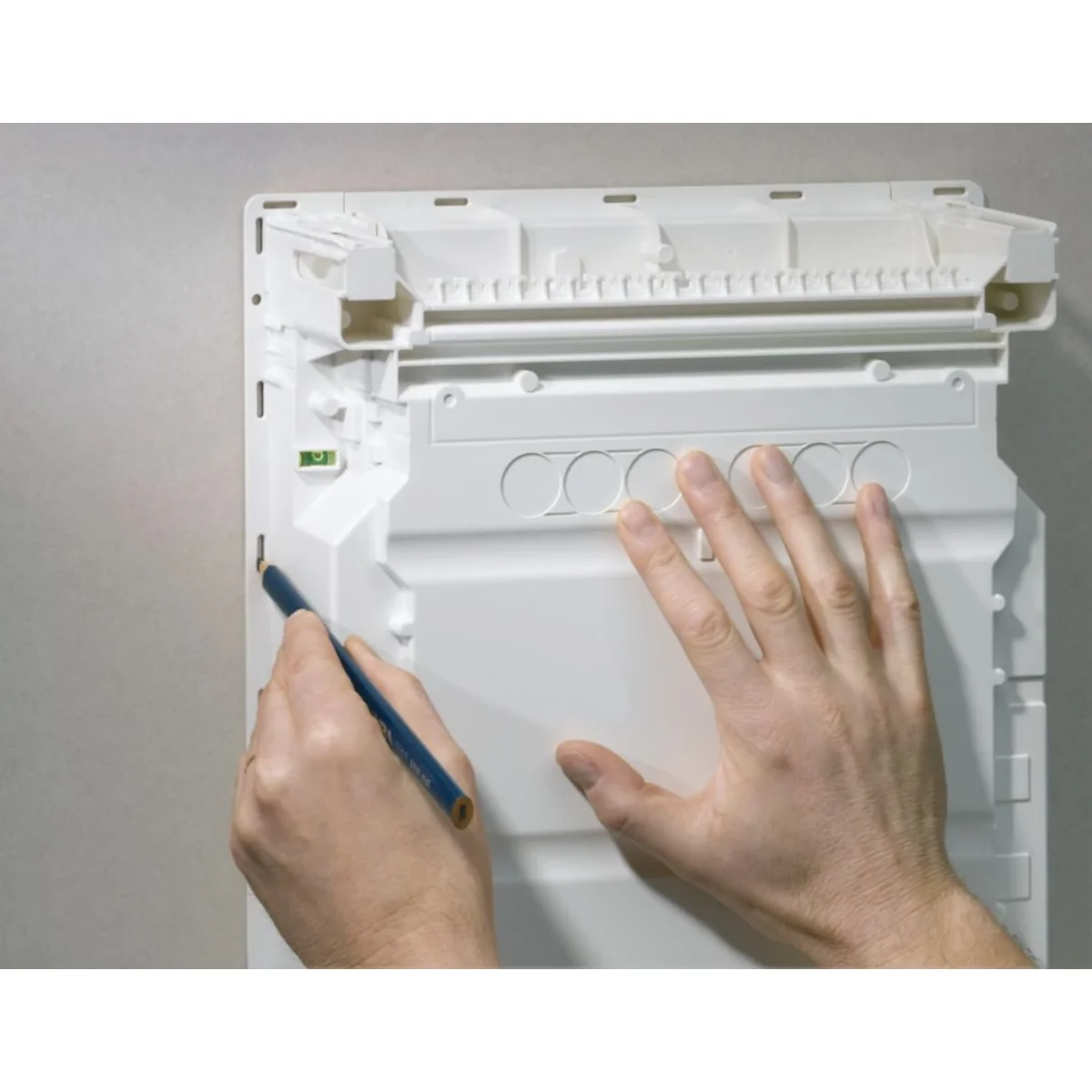

• rear wall with embossed cable glands
• cover made of durable plastic
• enclosure supplied without door as standard
• PE+N screw terminals in a touch-proof cassette, mounted by snapping on top or bottom of the cabinet
• as an assortment terminals for wiring RCDs for 1, 2, 3, and 4-row switchboards
• II insulation class, IP30
• sealable covers
• color: white, RAL 9010
• standards: DIN 43871, PN-EN 60439-3
• suitable for use in residential buildings according to DIN 18015

Depth [mm]

96.5
Number of rows

3
Level of security

IP30
Number of modules

36
PKWIU

27.12.40.0

Number of modules

36
Color

White
Height [mm]

305
Accurate color

White

Other technical data

Mounting method

Surface mounted
Width in number of modular spacings

12
Cover model

With notch
Housing material

Plastic
Width

305 mm
Inner depth

92.5 mm
With mounting plate

No
Colour

White
Degree of protection (IP)

IP30

Number of rows

3
Type of covering

None
Transparent cover/door

No
Height

515 mm
Depth

96.5 mm
DIN-rail

Yes
Extension possible

Yes
RAL-number

9010
With lock

No

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	48 pcs.
Weight (kg)	0,709	1,805	111,640
Width (m)	0,305	0,310	0,800
Length (m)	0,515	0,100	1,170
Depth (m)	0,097	0,520	1,200
