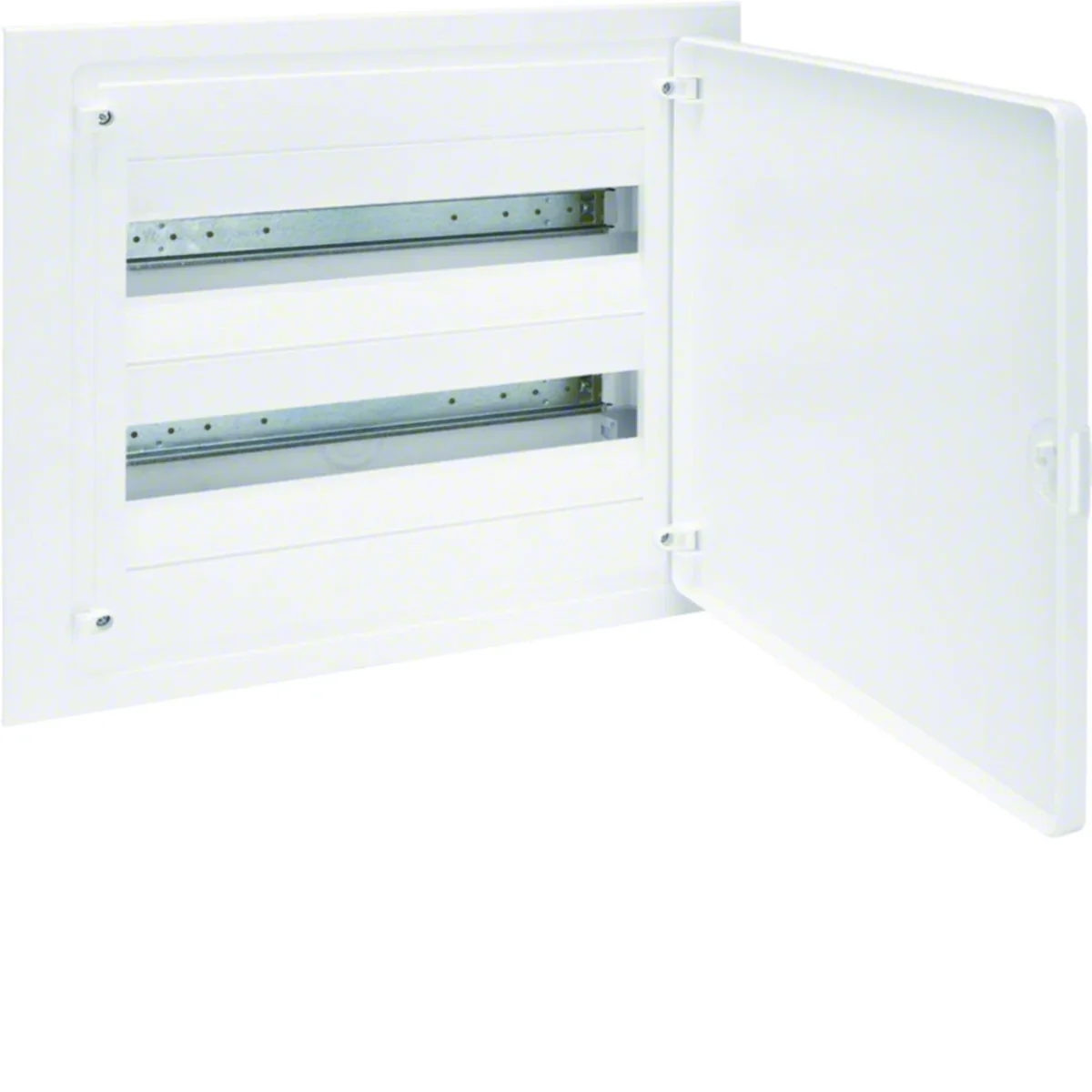

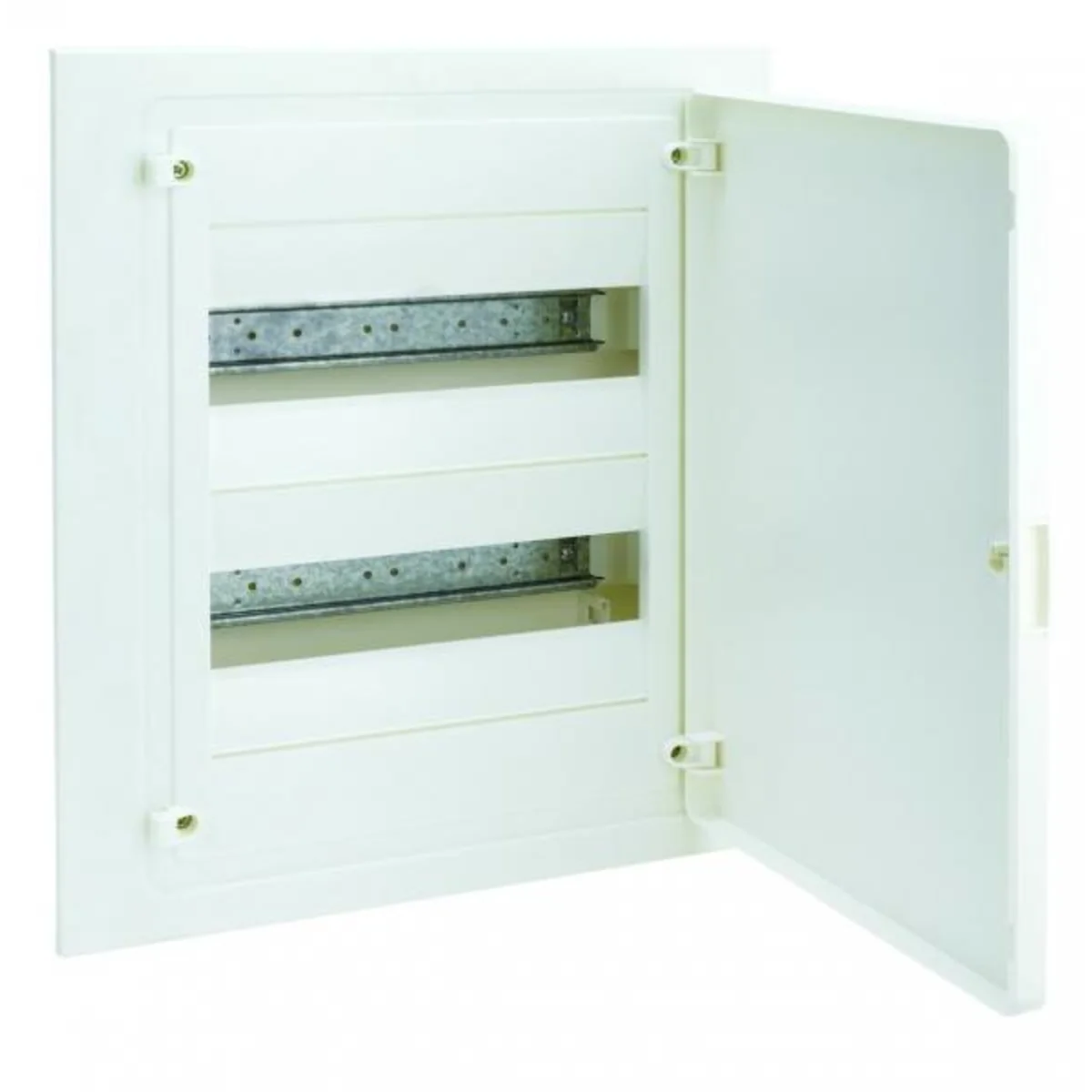

switchboard entitled Golf IP41 solid door VF218PD

Lokaler Index:
RIP013HAGE
Katalognummer:
VF218PD
EAN-Code:
3250616463264
Hersteller: HAGER
Depth [mm]: 97.5
Number of modules: 36
Number of rows: 2
Preis:
293,40 zł
gross / stk.
(inklusive MwSt 23%)
bis zu 4 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

1-4 row surface-mounted distribution boards, for 4 to 72 modules, for devices with a depth of up to 70 mm, supplied with solid or transparent doors. The box is made of plastic. Simple replacement of the left-right door, without the need to dismantle the masking frame. Optionally, a lock with a key can be installed. The door opens to the angle of 180°.

Technische Daten

  • Depth [mm]
    97.5
  • Number of rows
    2
  • Width [mm]
    460
  • Number of modules
    36
  • Number of modules
    36
  • Level of security
    IP40
  • Height [mm]
    418
  • PKWIU
    27.12.40.0

Weitere technische Daten

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    18
  • Cover model
    Closed
  • Transparent cover/door
    No
  • With lock
    No
  • Housing material
    Plastic
  • Built-in height
    382 mm
  • Inner depth
    97.5 mm
  • Neutral terminal block
    Yes
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Width
    460 mm
  • Number of rows
    2
  • Type of covering
    Door
  • Type of door
    Single
  • Signal passing door
    Yes
  • Type of closure
    Other
  • Built-in depth
    72 mm
  • Built-in width
    426 mm
  • Earthing terminal block
    Yes
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • Height
    418 mm
  • Depth
    97.5 mm

Hersteller-Details

  • Hersteller
    Hager Industrial de Envolventes S.A.
  • Adresse
    08430 La Roca del Valles Alfred Nobel 18 Hiszpania

Großpackungen

Eine Art Paket Karton Paleta
Menge 1 stk. 32 stk.
Gewicht (kg) 2,455 103,560
Breite (m) 0,440 0,800
Länge (m) 0,110 1,100
Tiefe (m) 0,460 1,200
