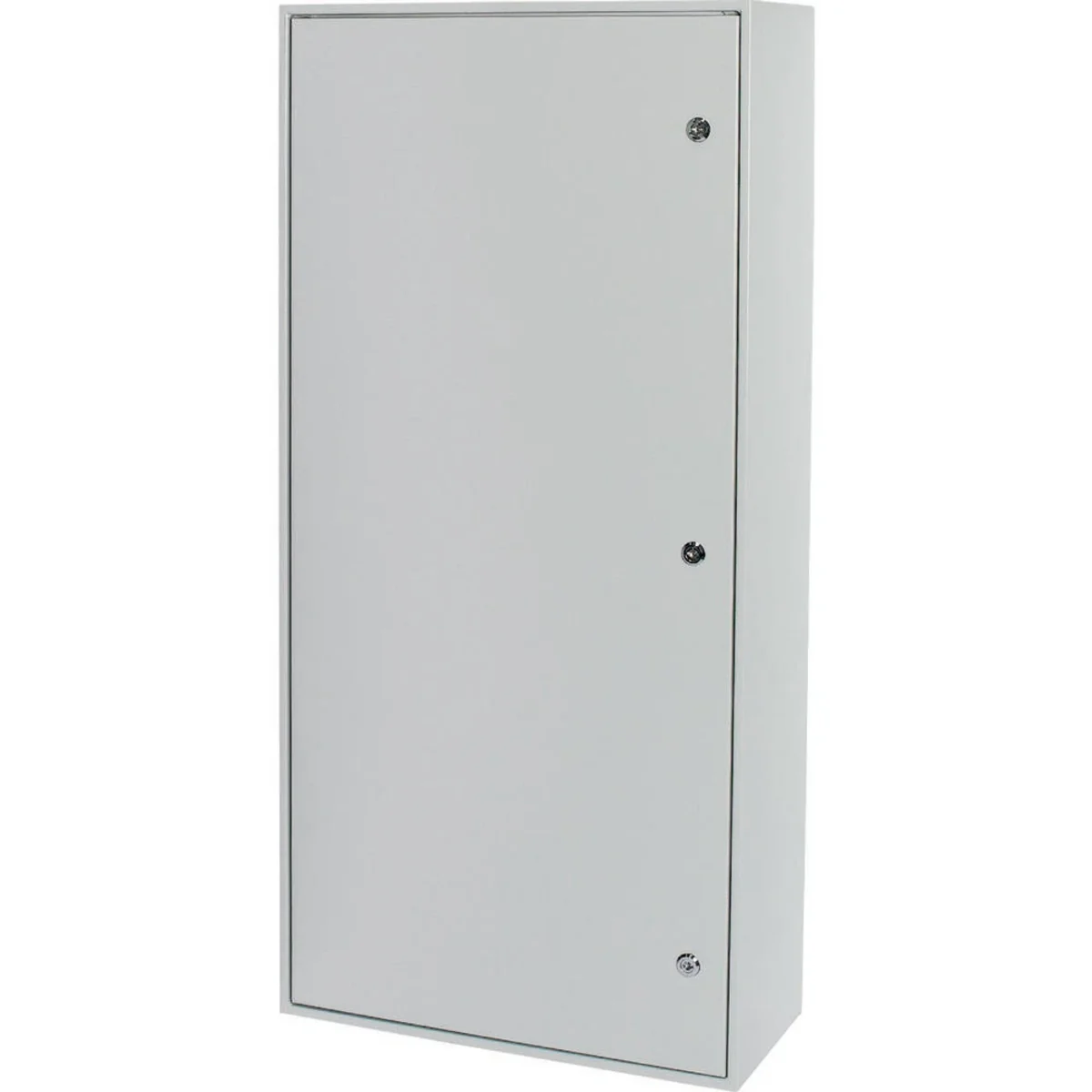

Surface-mounted switchgear, BPM-O-800/15 111031
local index:
RMN250MOEL
Catalog No:
111031
EAN code:
4015081105922
Shipment on a pallet
Price:
733,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
IP30 surface-mounted switchboards – without equipment, type BP-O-...
• IP30 switchgears have removable side walls as well as removable top and bottom covers. This makes it possible to connect switchboards.
• Includes rubber insertion flanges from the top type BP-FLP-..2K and from the bottom full metal BP-FLP-..BL
• The switchgear has a metal rear wall with profiled reinforcing angles. This allows mounting rails and accessories directly on the back wall.
• The front covers are mounted directly on the profiles of the side walls of the switchgear.
• IP30 switchgears have removable side walls as well as removable top and bottom covers. This makes it possible to connect switchboards.
• Includes rubber insertion flanges from the top type BP-FLP-..2K and from the bottom full metal BP-FLP-..BL
• The switchgear has a metal rear wall with profiled reinforcing angles. This allows mounting rails and accessories directly on the back wall.
• The front covers are mounted directly on the profiles of the side walls of the switchgear.
Technical data
-
Level of securityIP54
-
Shield height [mm]1450
-
Width [mm]800
-
External height [mm]1560
Other technical data
-
Mounting methodSurface mounted
-
Width in number of modular spacings35
-
Cover modelClosed
-
Housing materialSteel
-
Width800 mm
-
Built-in depth1580 mm
-
Built-in width800 mm
-
Earthing terminal blockNo
-
DIN-railNo
-
Extension possibleYes
-
ColourGrey
-
Degree of protection (IP)IP55
-
Type of closureOther
-
Number of rows9
-
Type of coveringDoor
-
Transparent cover/doorNo
-
Height290 mm
-
Depth1580 mm
-
Built-in height290 mm
-
Inner depth265 mm
-
Neutral terminal blockNo
-
With mounting plateNo
-
EMC-versionYes
-
RAL-number7035
-
With lockNo
-
Signal passing doorNo
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 55,094 |
| Volume (m3) | 0,367 |
| Width (m) | 0,800 |
| Length (m) | 1,580 |
| Depth (m) | 0,290 |
