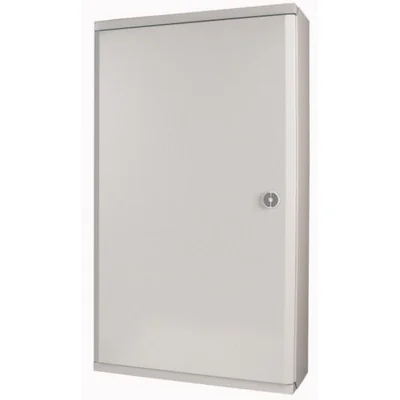

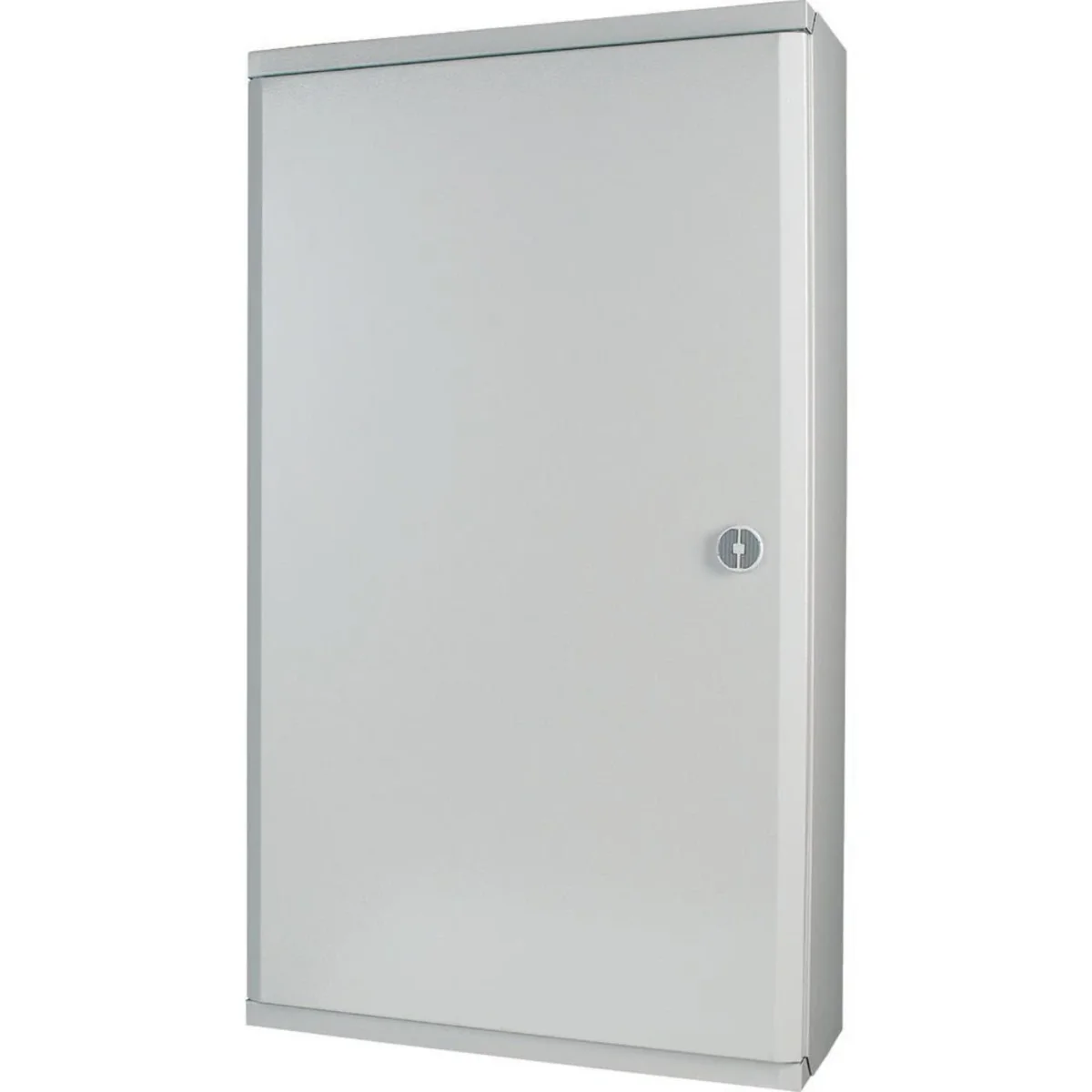

Surface-mounted switchgear, BP-O-800/7-C 293311

local index:
RMR030MOEL
Catalog No:
293311
EAN code:
4015082933111
Manufacturer: EATON
Number of modules: 140
Number of rows: 4
Level of security: IP30
Price:
420,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

IP30 surface-mounted distribution boards, type BP-O..-C – set
• Complete switchboards for the assembly of modular equipment include: mounting rails, covers, doors
• Possibility of extension, extension
• As a standard, switchgears are blinded from the top with BP-FLP..-2K type flanges, from the bottom with a full metal flange type BP-FLP..-BL
• Supplied without clamps

Technical data

  • Number of modules
    140
  • Level of security
    IP30
  • Height [mm]
    760
  • Number of rows
    4
  • Width [mm]
    800

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    35
  • Cover model
    Closed
  • Housing material
    Steel
  • Width
    815 mm
  • Built-in depth
    280 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • Colour
    Grey
  • Degree of protection (IP)
    IP30
  • Type of closure
    Other
  • Number of rows
    4
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    775 mm
  • Depth
    280 mm
  • Inner depth
    257.5 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    7035
  • With lock
    No

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 28,970
Volume (m3) 0,177
Width (m) 0,815
Length (m) 0,280
Depth (m) 0,775
