Standing switchgear BP-F-800/20/3 IP30 102320

local index:
RMR151MOEL
Catalog No:
102320
EAN code:
4015081022083
Manufacturer: EATON
Sheet thickness [mm]: 0.7
Material: galvanized steel
Level of security: IP30
Shipment on a pallet
Price:
605,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

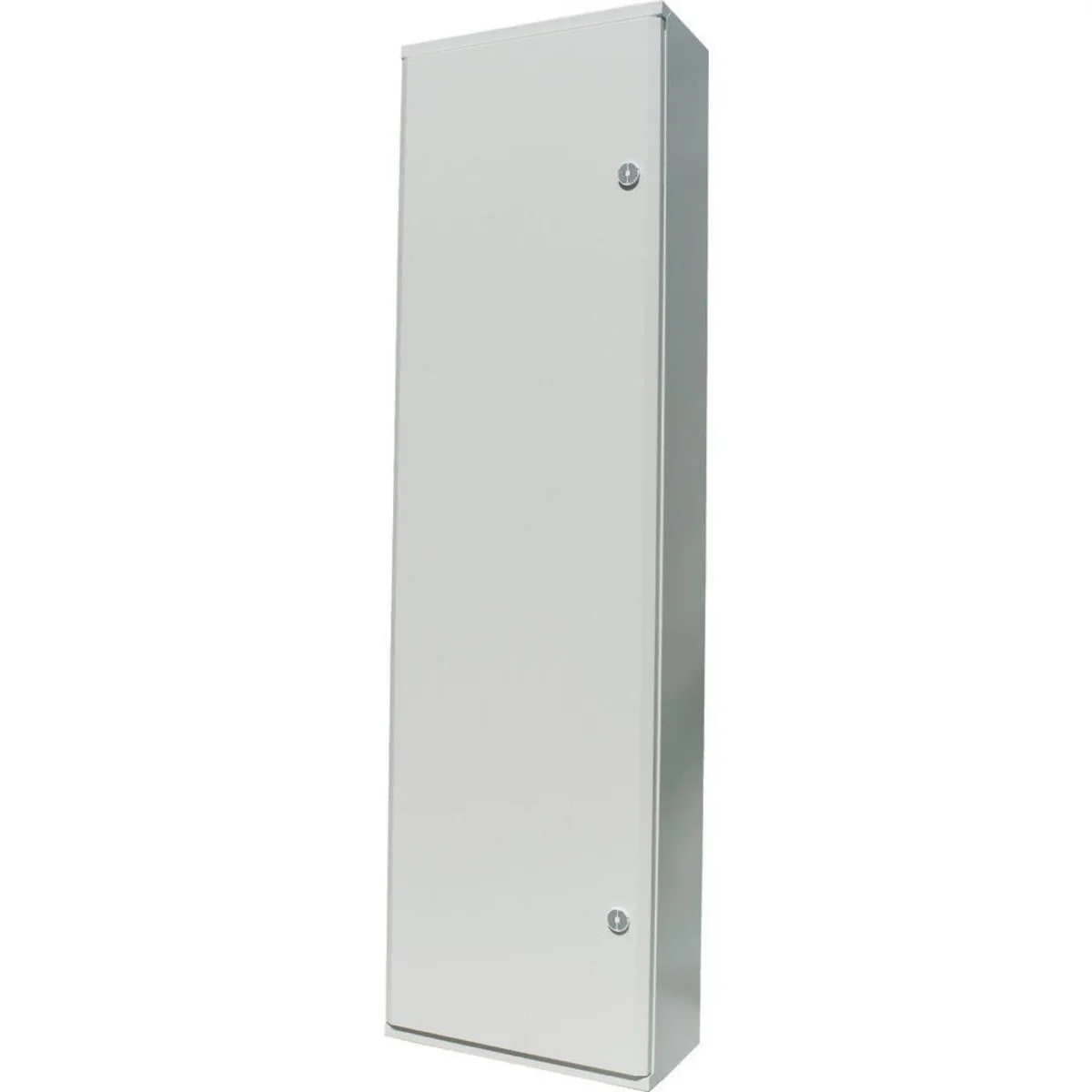

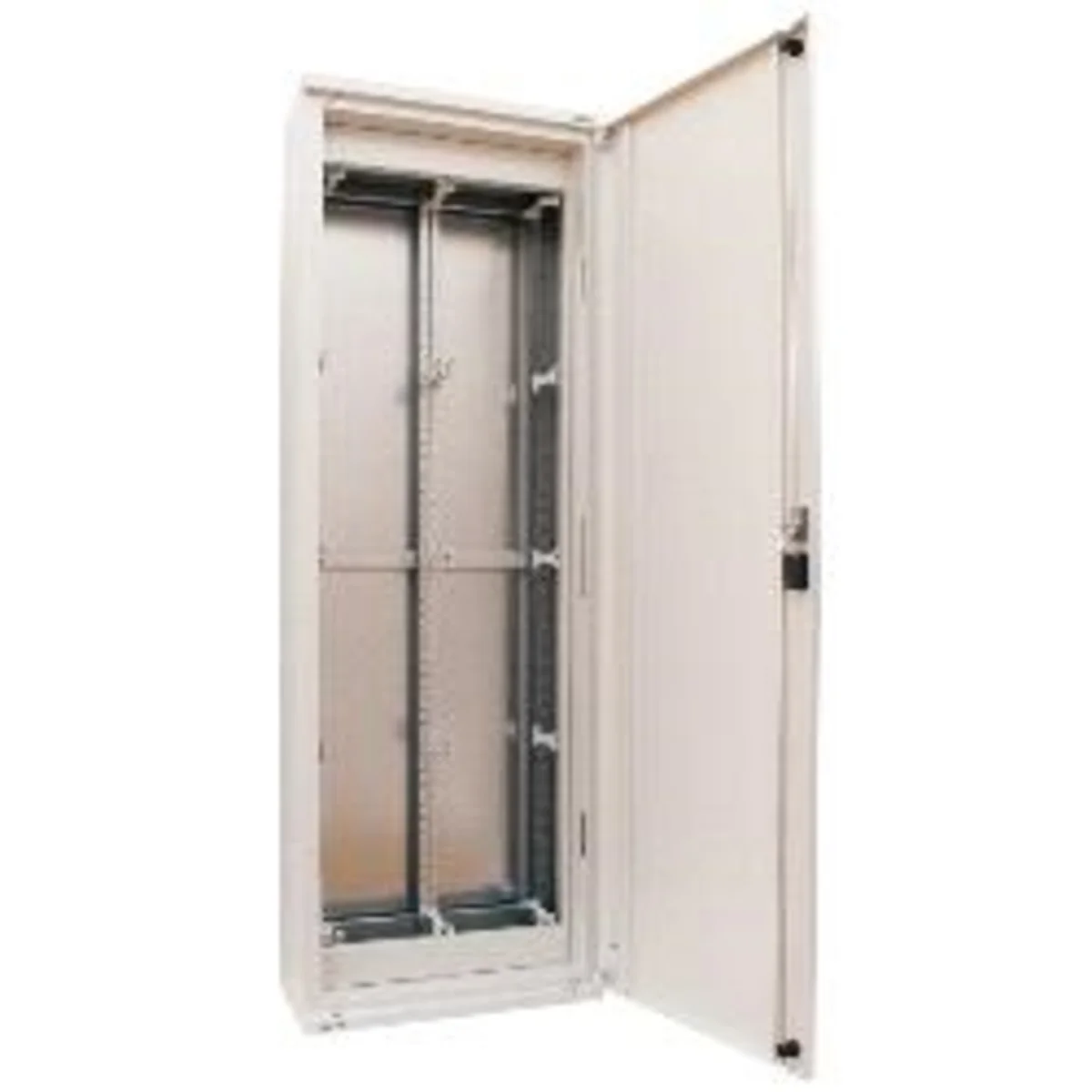

Floor-mounted switchgear type BP-F-..., locked with a rotary lock  – without equipment

Technical data:

  • type: BP-F-800/20/3
  • protection level ( IP): 30
  • color: gray
  • width mm: 800
  • external height mm: 2060
  • height of covers mm: 1950< /li>
  • Welded side walls
  • Included galvanized rear wall with profiled angles
  • Supplied with top / bottom entry flanges type BP-FLP-..2K
  • depth 300 mm
  • two rotary locks included
  • possibility of closing the door left / right
  • divided door for width 1000 (400+) 600) and 1200 (600+600)
  • switchgears can be divided into sections 600/400, 600/600, 400/800 (similarly as in Profi Line switchgears), the BPZ switchboard dividing kit is used for this -SF-...

Technical data

  • Sheet thickness [mm]
    0.7
  • Level of security
    IP30
  • Type
    PKKL200
  • Height [mm]
    2060
  • Material
    galvanized steel
  • Width [mm]
    200
  • Weight 1 piece [kg]
    0.34
  • Compliance with standards
    PN-EN 103462011

Other technical data

  • Width
    815 mm
  • Depth
    315 mm
  • Material quality
    Other
  • Colour
    Grey
  • Freestanding
    Yes
  • Suitable for wall mounting
    No
  • Intermediate mounting
    No
  • With mounting plate
    No
  • Suitable for wall built-in
    No
  • Number of doors
    1
  • Suitable for metrical mounting
    Yes
  • Pitched roof
    No
  • With glazed door
    No
  • With rear door
    No
  • Degree of protection (IP)
    IP30
  • Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
    0 W
  • Max. permissible load of the door(s) according to IEC 62208
    0 N
  • Height
    2080 mm
  • Material
    Steel
  • Surface finishing
    Powder coating
  • RAL-number
    7035
  • Floor standing wall model
    No
  • Corner model
    No
  • Couplable
    No
  • Mounting plate depth-adjustable
    Yes
  • Pole fastening
    No
  • Number of locks
    1
  • Suitable for outdoor set-up
    No
  • EMC-version
    Yes
  • With ventilation door
    No
  • Impact strength
    IK08
  • Degree of protection (NEMA)
    Other
  • Max. permissible load of the enclosure according to IEC 62208
    0 N
  • Max. permissible load of the mounting plate according to IEC 62208
    0 N

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 55,399
Volume (m3) 0,534
Width (m) 0,815
Length (m) 0,315
Depth (m) 2,080
