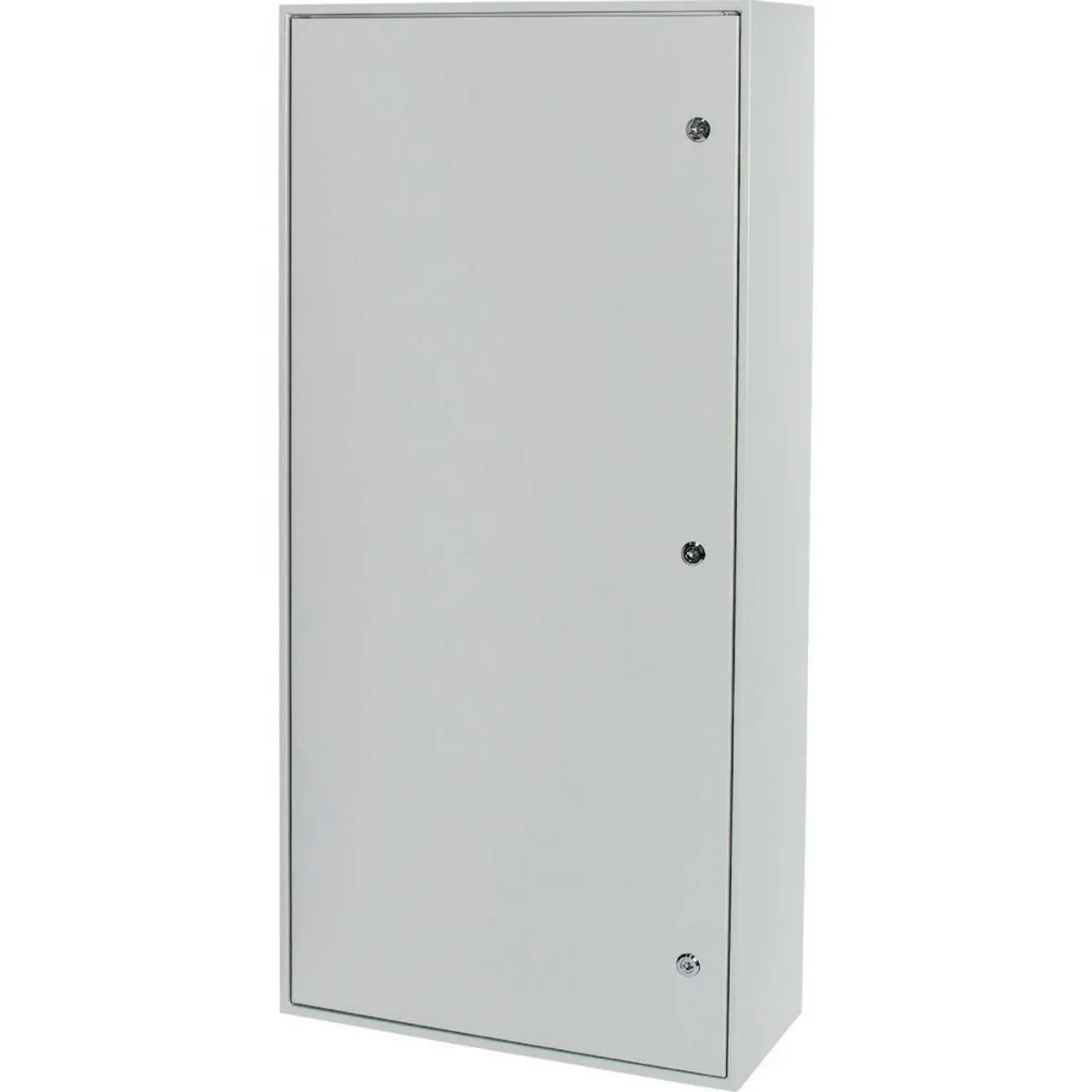

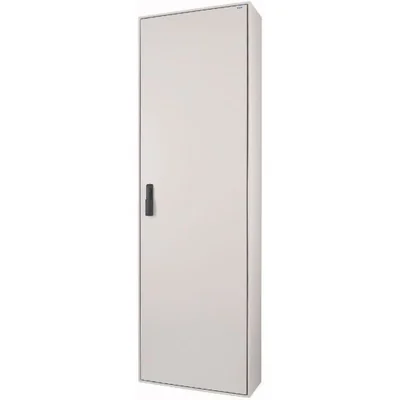

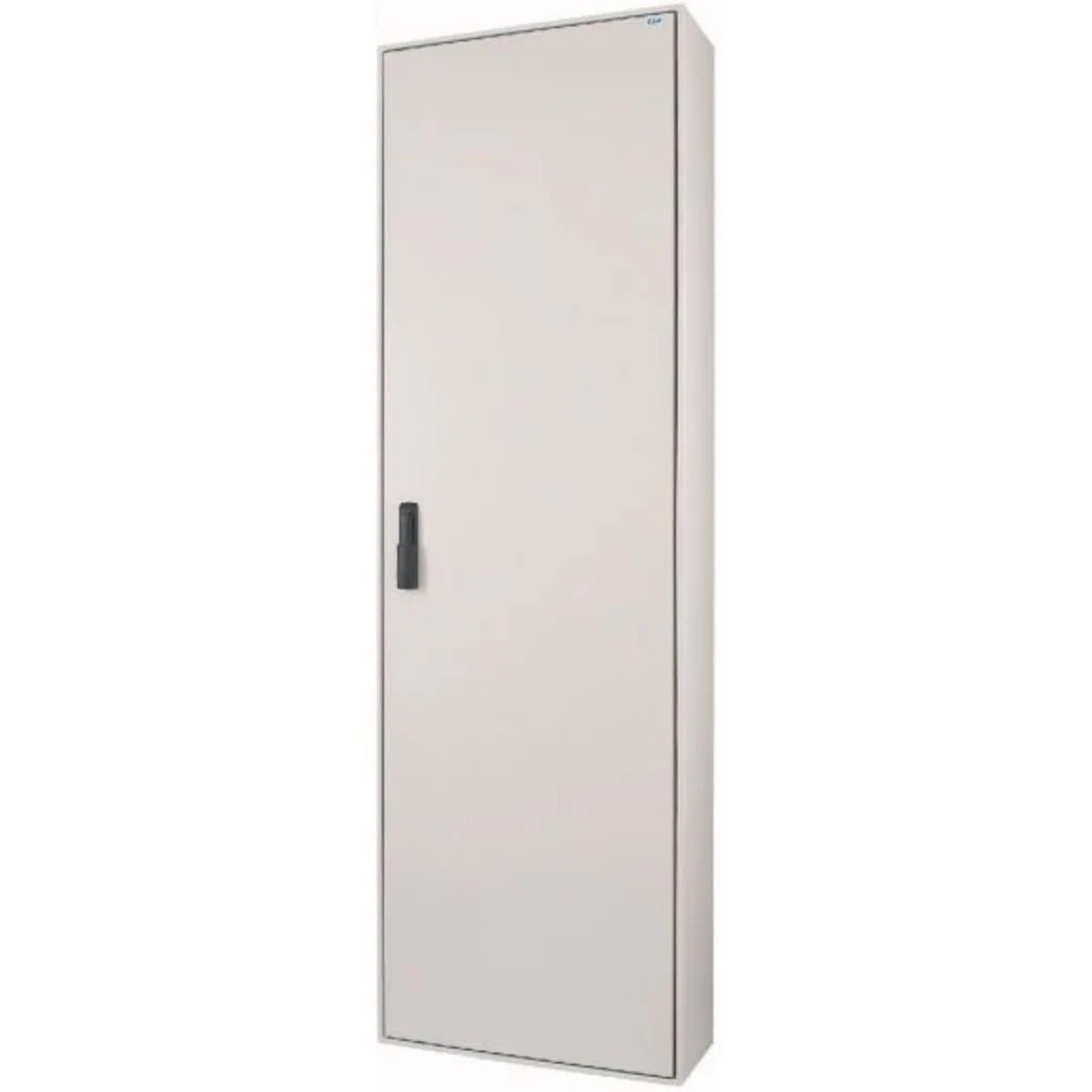

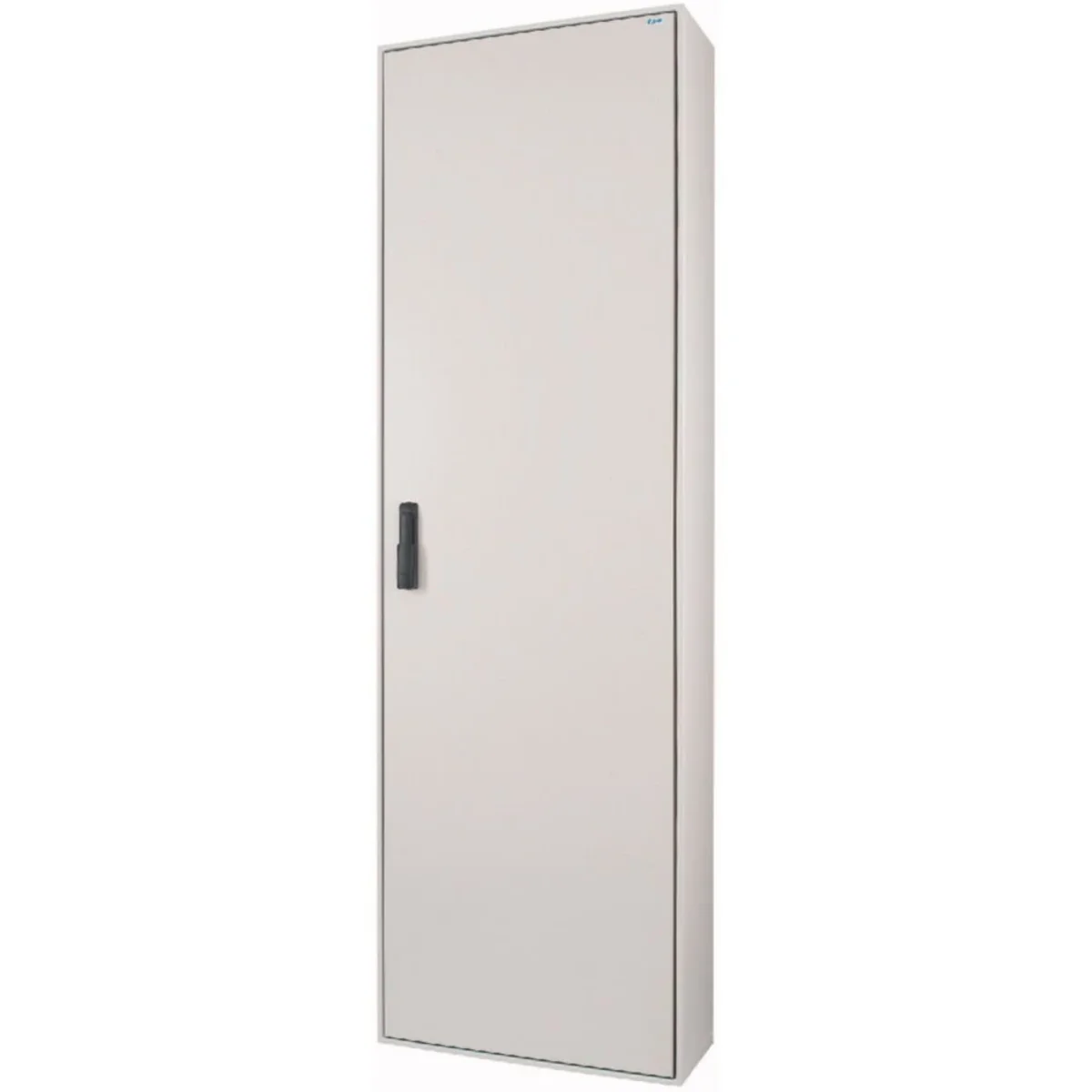

Standing cabinet BPM-F-1200/17-P 111055
local index:
RMS004MOEL
Catalog No:
111055
EAN code:
4015081106165
Shipment on a pallet
Price:
1325,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Standing cabinet BPM-F-1200/17-P. IP54 floor-standing switchboards, type BPM-F-...,
closed with a lever – without equipment
• welded side walls.
• Switchboards supplied without F3A type lead-in flanges
• Split door for width 1000 (400+600) and 1200 (600+600)
• The switchboards can be divided into sections 600/400, 600/600, 400/800 (similarly to the Profi Line system),
The BPZ-SF switchboard dividing kit is used for this purpose
closed with a lever – without equipment
• welded side walls.
• Switchboards supplied without F3A type lead-in flanges
• Split door for width 1000 (400+600) and 1200 (600+600)
• The switchboards can be divided into sections 600/400, 600/600, 400/800 (similarly to the Profi Line system),
The BPZ-SF switchboard dividing kit is used for this purpose
Technical data
-
Level of securityIP54
-
Shield height [mm]1650
-
Width [mm]1200
-
External height [mm]1760
Other technical data
-
Width1230 mm
-
Depth350 mm
-
Material qualityOther
-
ColourGrey
-
FreestandingYes
-
Suitable for wall mountingNo
-
Intermediate mountingNo
-
With mounting plateNo
-
Suitable for wall built-inNo
-
Number of doors2
-
Suitable for metrical mountingYes
-
Pitched roofNo
-
With glazed doorNo
-
With rear doorNo
-
Degree of protection (IP)IP55
-
Thermal dissipation (Delta T = 20 K) according to IEC/TR 608900 W
-
Max. permissible load of the door(s) according to IEC 622080 N
-
Height1790 mm
-
MaterialSteel
-
Surface finishingPowder coating
-
RAL-number7035
-
Floor standing wall modelNo
-
Corner modelNo
-
CouplableNo
-
Mounting plate depth-adjustableNo
-
Pole fasteningNo
-
Number of locks0
-
Suitable for outdoor set-upNo
-
EMC-versionYes
-
With ventilation doorNo
-
Impact strengthIK10
-
Degree of protection (NEMA)Other
-
Max. permissible load of the enclosure according to IEC 622080 N
-
Max. permissible load of the mounting plate according to IEC 622080 N
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 61,092 |
| Volume (m3) | 0,771 |
| Width (m) | 1,230 |
| Length (m) | 0,350 |
| Depth (m) | 1,790 |
