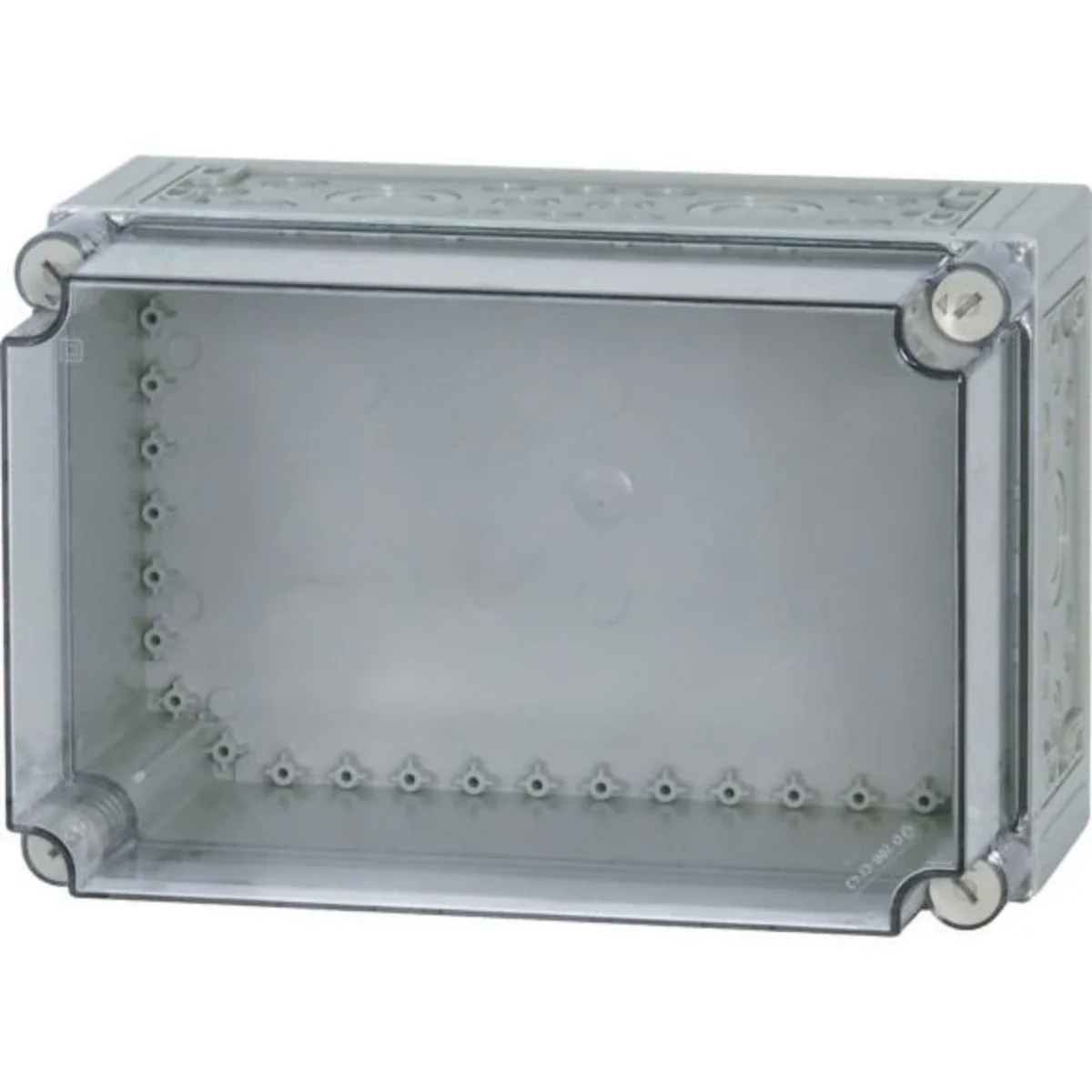

Single housing pre-stamped CI43E-200 097879

local index:
RMH023MOEL
Catalog No:
097879
EAN code:
4015080978794
Manufacturer: EATON
Flap color: Transparent
Price:
216,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Pre-stamped single housing
• Protection class IP65
• Transparent or opaque cover (RAL 7032, pebble grey)
• Flat bars for fixing to the wall
• Sealable lid closure
• With metric knockouts on all sidewalls, see A–F in drawings
• Breakout sidewalls

Technical data

  • Flap color
    Transparent

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    Yes
  • Nominal current (In)
    1600 A
  • Width
    375 mm
  • Built-in depth
    200 mm
  • Material plate thickness cabinet
    6 mm
  • Colour
    Grey
  • Number of modules
    1
  • Width in number of modular spacings
    15
  • Extension possible
    Yes
  • Housing material
    Plastic
  • With mounting plate
    No
  • Suitable for lightning protection
    Yes
  • Degree of protection (NEMA)
    Other
  • Impact strength
    IK10
  • Cover with overpressure release
    Yes
  • Type of covering
    Optional
  • Type of door
    None
  • With lock
    No
  • Height
    250 mm
  • Depth
    225 mm
  • Inner depth
    200 mm
  • Material plate thickness door/cover
    6 mm
  • RAL-number
    7035
  • Number of rows
    0
  • Number of openings for flange plates
    4
  • Number of conduit inlets
    76
  • Surface protection
    Other
  • Suitable for outdoor use
    Yes
  • Degree of protection (IP)
    IP65
  • Protection class
    II
  • Circuit integrity
    Other

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 2,453
Volume (m3) 0,021
Width (m) 0,250
Length (m) 0,375
Depth (m) 0,225
