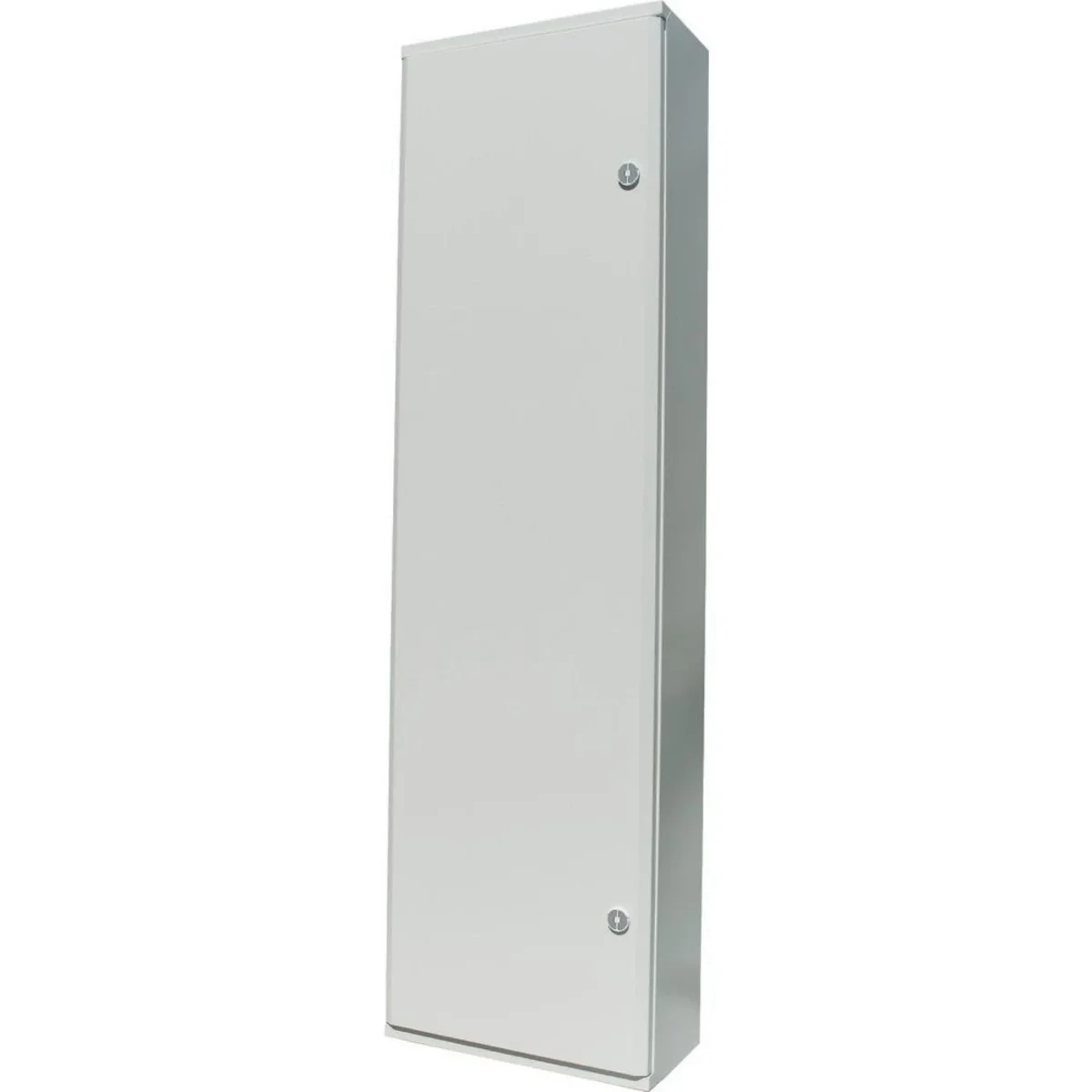

Profi+ switchboard, IP30, 1000x250mm 119190

local index:
RMS132MOEL
Catalog No:
119190
EAN code:
4015081173273
Manufacturer: EATON
Depth [mm]: 250
Color: Gray
Installation: Inside
Shipment on a pallet
Price:
783,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Profi+ enclosure, IP30, 1000mm wide, 250mm deep

Technical data

  • Depth [mm]
    250
  • Installation
    Inside
  • Level of security
    IP30
  • Material
    Steel plate
  • Color
    Gray
  • Surface
    Powder coated
  • Width [mm]
    1000
  • Height [mm]
    2060

Other technical data

  • Width
    1015 mm
  • Depth
    265 mm
  • Material quality
    Other
  • Colour
    Grey
  • Freestanding
    Yes
  • Suitable for wall mounting
    No
  • Intermediate mounting
    No
  • With mounting plate
    No
  • Suitable for wall built-in
    No
  • Number of doors
    2
  • Suitable for metrical mounting
    Yes
  • Pitched roof
    No
  • With glazed door
    No
  • With rear door
    No
  • Degree of protection (IP)
    IP30
  • Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
    0 W
  • Max. permissible load of the door(s) according to IEC 62208
    0 N
  • Height
    2080 mm
  • Material
    Steel
  • Surface finishing
    Powder coating
  • RAL-number
    7035
  • Floor standing wall model
    No
  • Corner model
    No
  • Couplable
    No
  • Mounting plate depth-adjustable
    Yes
  • Pole fastening
    No
  • Number of locks
    1
  • Suitable for outdoor set-up
    No
  • EMC-version
    Yes
  • With ventilation door
    No
  • Impact strength
    IK08
  • Degree of protection (NEMA)
    Other
  • Max. permissible load of the enclosure according to IEC 62208
    0 N
  • Max. permissible load of the mounting plate according to IEC 62208
    0 N

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 45,743
Volume (m3) 0,559
Width (m) 1,015
Length (m) 0,265
Depth (m) 2,080
