Measuring set housing - OZP/Z (with lock) 38.02

local index:
RIN022ELOP
Catalog No:
38.02
EAN code:
5905548284460
Depth [mm]: 190
Width [mm]: 230
Height [mm]: 540
Price:
75,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

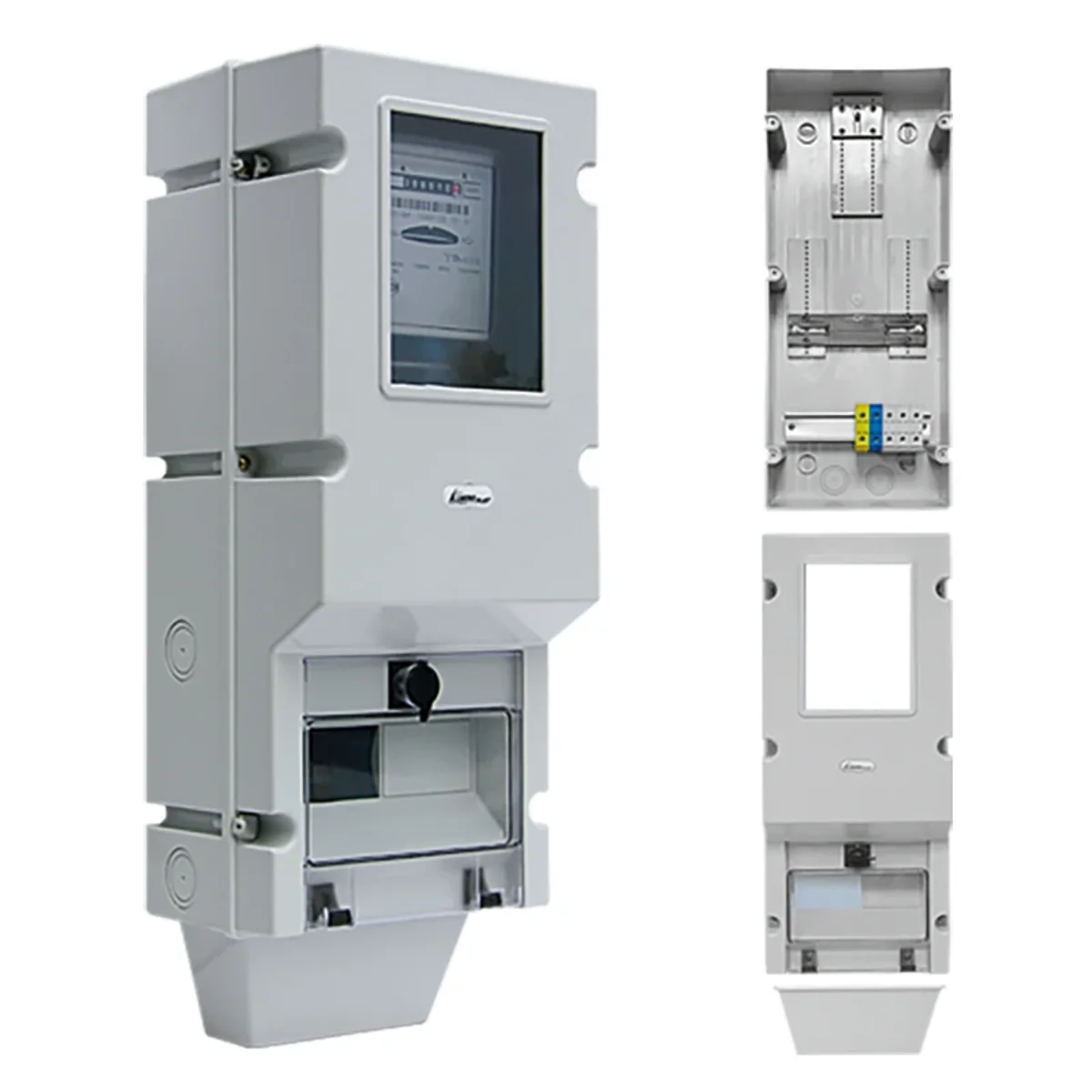

Connection and metering sets are designed to supply electricity consumers billed through direct metering systems. Installed on the external walls of buildings, as recessed or wall-mounted. The housing is designed to mount electric meters, both 1f and 3f, as well as pre-meter protections. The housing is equipped with a connection strip, inspection glass, plugs for sealing and special embossing for easy cable entry. The housing is also available in a version with a metal lock.

Technical data

  • Depth [mm]
    190
  • Height [mm]
    540
  • PKWIU
    27.12.31.0
  • Width [mm]
    230
  • Lock
    Yes

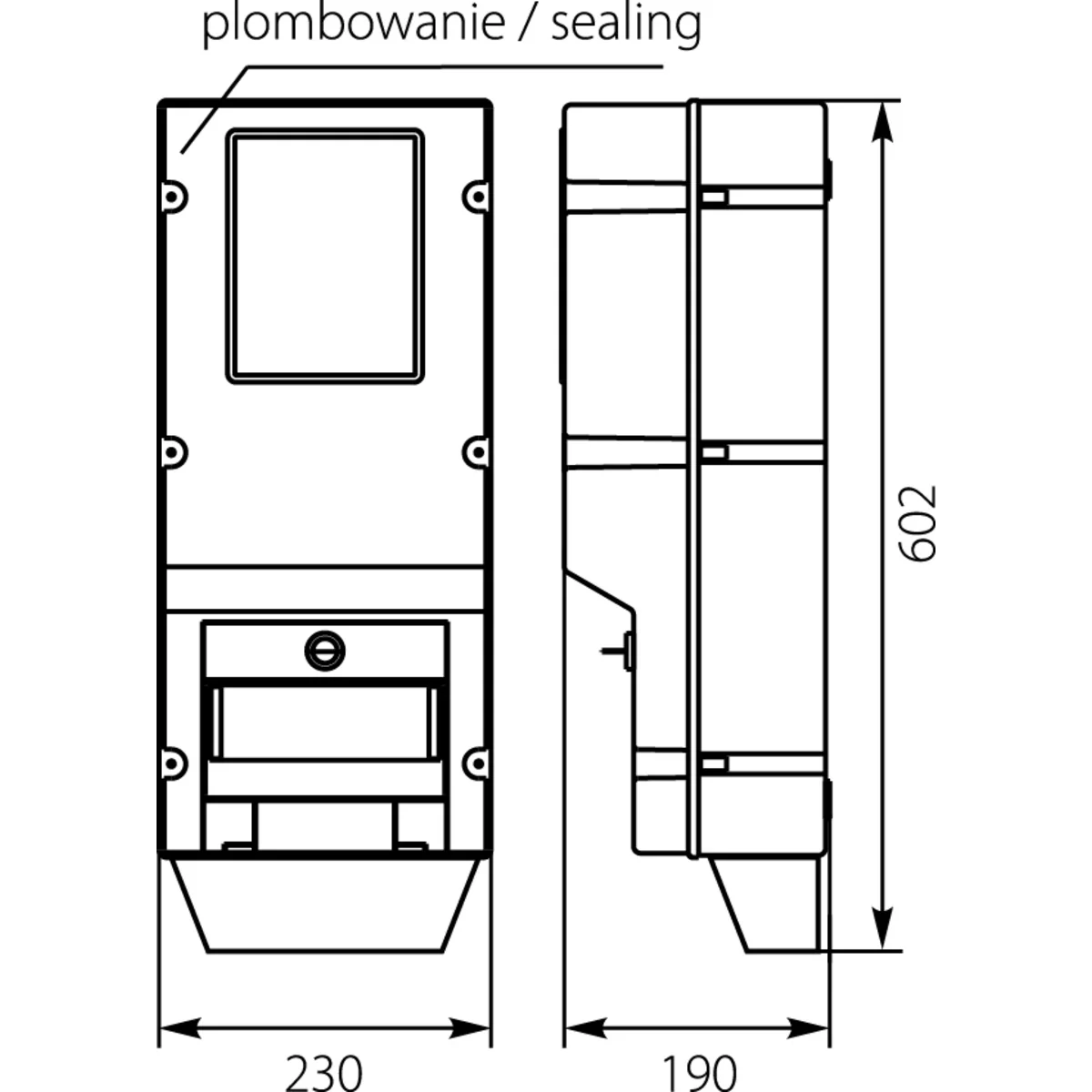

Other technical data

  • Mounting method
    Surface mounted/partially recessed mounted
  • Built-in depth
    80 mm
  • Height
    602 mm
  • Depth
    190 mm
  • With hinged lid
    Yes
  • Material
    Plastic
  • Degree of protection (IP)
    IP65
  • Width
    230 mm
  • With mounting rail
    Yes

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 2,490 -
