VECTOR OUTDOOR Distribution box IP65, UV resistant, no ribs 4R/48M (4x12) VE412SN

Name: VECTOR OUTDOOR Distribution box IP65, UV resistant, no ribs 4R/48M (4x12)
Brand: HAGER
SKU: RIN036HAGE
Price: 149.01 PLN

local index:

RIN036HAGE

Catalog No:

VE412SN

EAN code:

3250616450479

VECTOR OUTDOOR Distribution box IP65, UV resistant, no ribs 4R/48M (4x12)

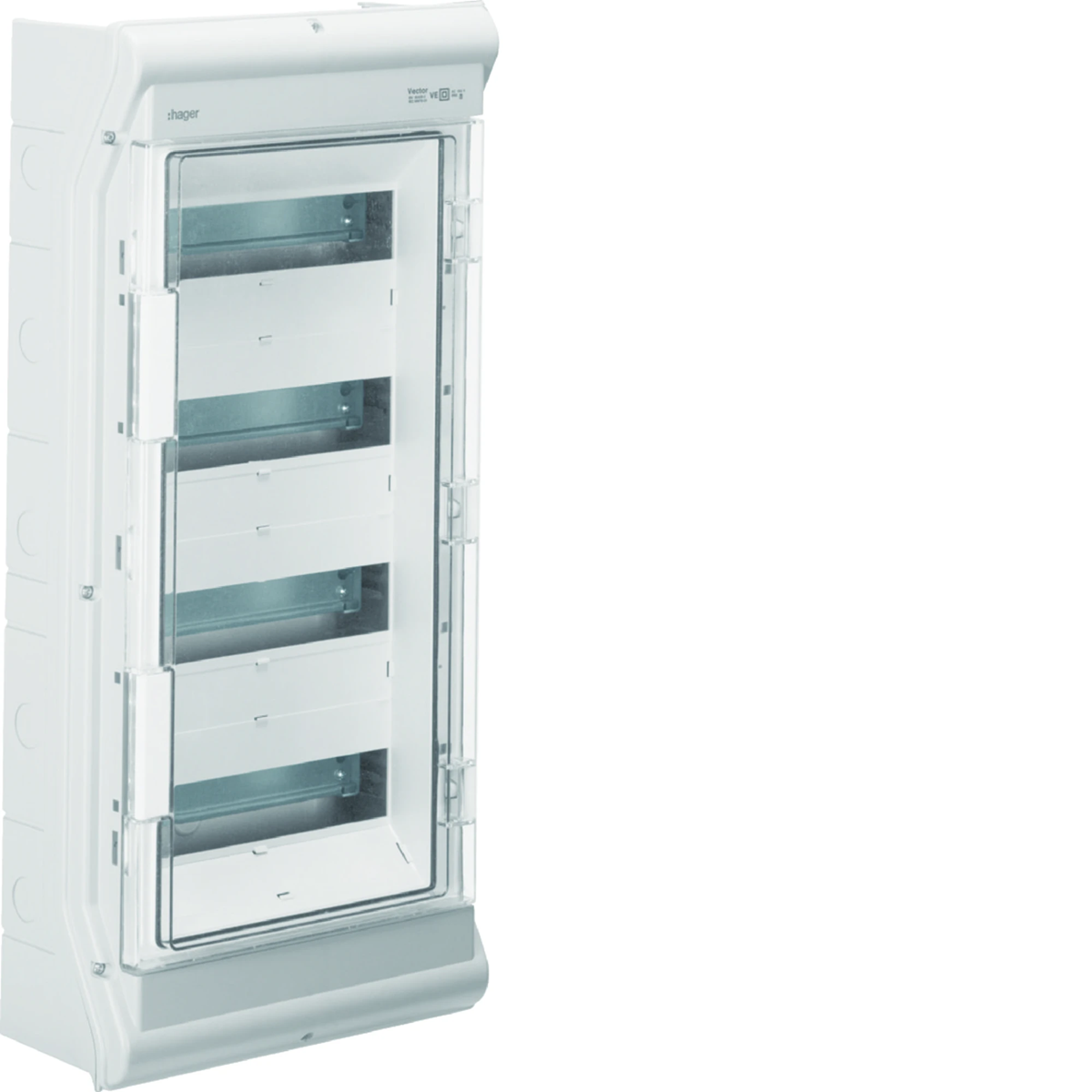

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 151

Number of doors: 1

Number of rows: 4

See full description

Price:

149,01 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Surface-mounted switchgear 4-row, without knockouts 4R/48M (4x12), vector outdoor series.

Series characteristics:

Vector outdoor switchgears are made of plastic resistant to long-term exposure to UV radiation, intended for outdoor installation, resistant to weather conditions. Switchgears of this type can be used, among others, in photovoltaic systems; using dedicated mounting plates, it is possible to mount selected switchgears on pole structures.

for apparatus up to 63A
version with TS35 mounting rail
possibility of mounting on poles and masts with dedicated holders (for VE106PN/SN and VE110PN/SN)
flammability test 850°C with the glow-wire method according to EN 60695-2
II insulation class, IP65 , IK08
light gray

Technical data

Depth [mm]

151
Number of rows

4
Color

Gray
Housing material

Polycarbonate
Family

VECTOR OUTDOOR
Height [mm]

677
Accurate color

light gray
Number of rows for cameras

4
PKWIU

27.12.40.0

Number of doors

1
Protection class

II
Material

Plastic
Installation

Surface-mounted
Width [mm]

310
Number of modules

48
Number of sections

1
Lock type

Latch

Other technical data

Mounting method

Surface mounted
Width in number of modular spacings

48
Cover model

Closed
Housing material

Plastic
Width

310 mm
Inner depth

151 mm
With mounting plate

No
Colour

Grey
Degree of protection (IP)

IP65
Type of closure

Other

Number of rows

4
Type of covering

Door
Transparent cover/door

Yes
Height

677 mm
Depth

151 mm
DIN-rail

Yes
Extension possible

Yes
RAL-number

7035
With lock

No

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	24 pcs.
Weight (kg)	3,658	4,000	121,000
Width (m)	0,320	0,320	0,800
Length (m)	0,155	0,155	1,100
Depth (m)	0,685	0,685	1,200
