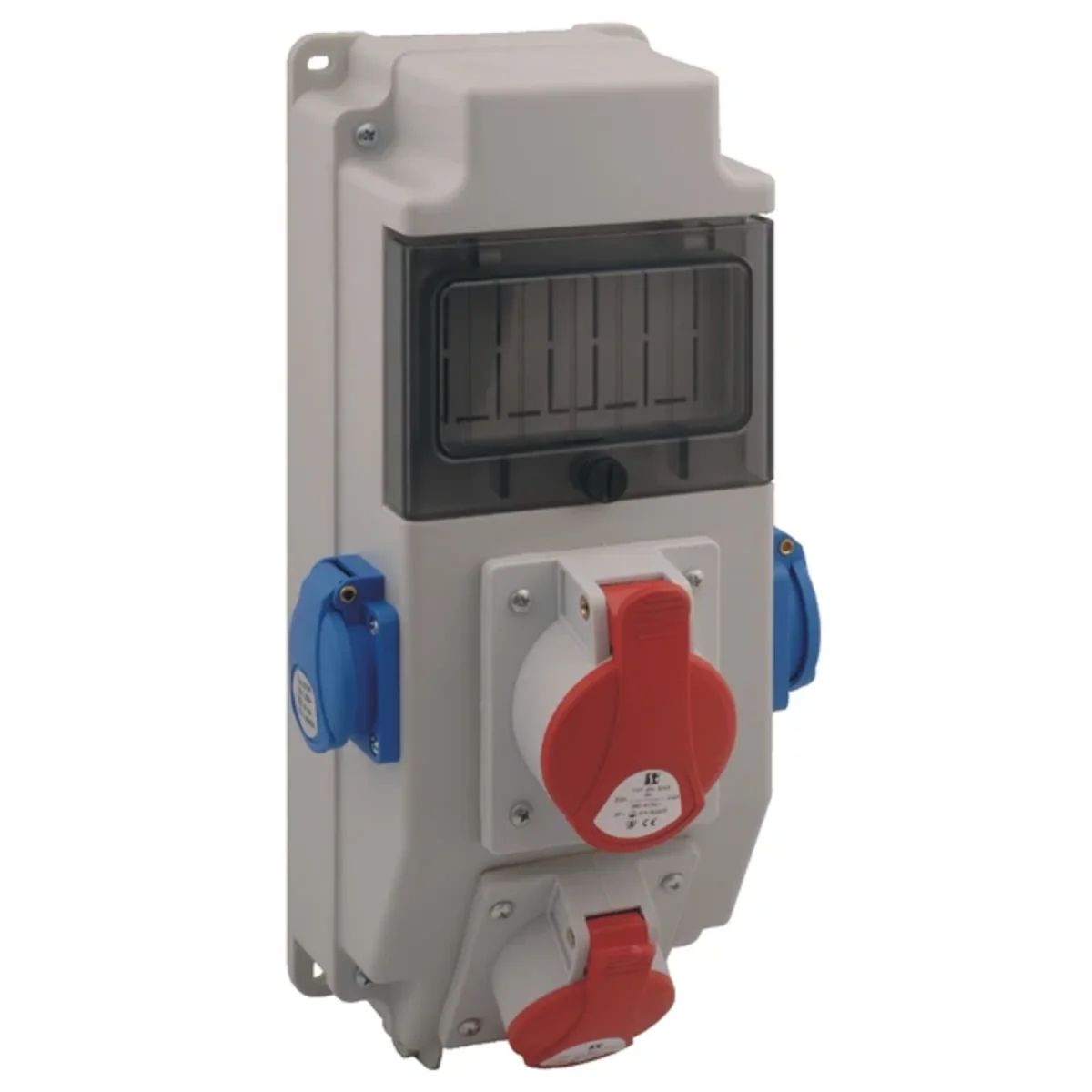

Low voltage switchgear without fuses (five modules) IP54 ROS5\X-15

local index:
RIN110SPAM
Catalog No:
ROS5\X-15
EAN code:
5907723033771
Manufacturer: SPAMEL
Level of security: IP54
Price:
69,69 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The new ROS type switchboards have many versions of different configurations. The switchgears can be equipped with single and three-phase overcurrent circuit breakers, a power switch or a direction of rotation switch and various types of sockets. The ROS switchgear is characterized by a modern shape, and the latest technologies were used in its production.

Technical data

  • Level of security
    IP54

Other technical data

  • Model
    Group distributor cabinet
  • Rated current
    32 A
  • Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
    1
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    2
  • Main switch
    None

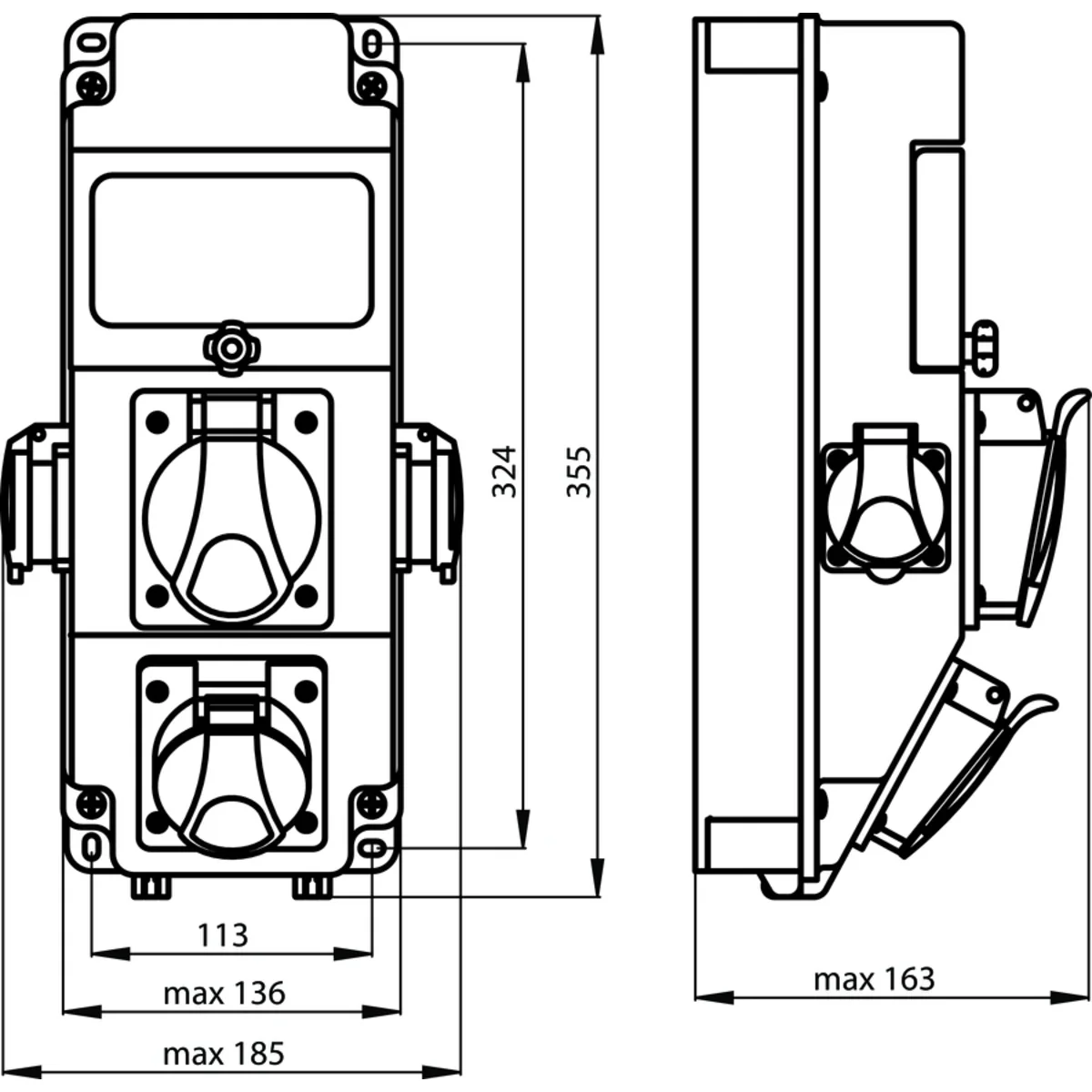

  • Height
    355 mm
  • Rated voltage
    230/400 V
  • Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
    1
  • Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE)
    0
  • Number of meter panels
    0
  • Width
    244 mm
  • Depth
    163 mm
